EXPERT EXVT1000-17

Name: EXPERT EXVT1000-17
Brand: Bosch Professional
SKU: 0601077700
Availability: OutOfStock

Voltage tester

Order number 0.601.077.700

IP65 protection, inverted display, and 4x voltage indication: LED and LCD, audio and vibration

Durable: Thanks to IP65 protection, stable cable-to-tool connection and impact resistance
Job-site ready: Built in non-contact voltage tester, integrated flashlight and extra-long 125 cm cable
IEC EN 61243-3:2014 compliant: Indicates absence of voltage even when batteries are discharged
Versatile: Diode test, frequency, resistance, low voltage, built-in NCV (non-contact voltage), plus Hold and Mute function

Select a variant

Find a local EXPERT dealer

Your Selected Variant

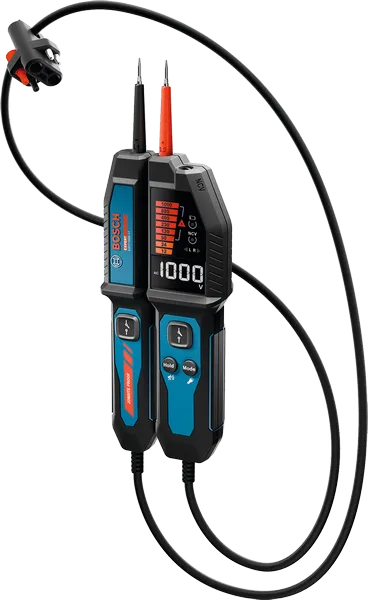

Bosch EXVT1000-17 voltage tester with digital display.

Your Selected Variant

with 2 x battery (AAA), Pouch 0 601 077 700

Find a local EXPERT dealer

Select a variant

Your Selection

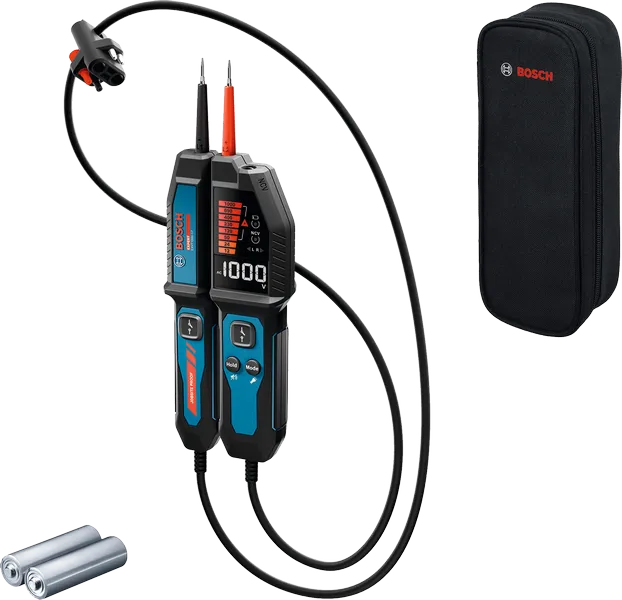

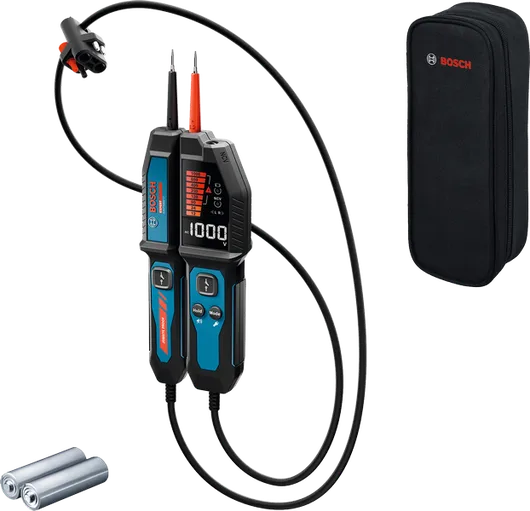

Bosch EXVT 1000 voltage tester with display and case.

Included in this variant

Pouch

2 x 1.5 V LR03 battery (AAA)

Select Variant

Product highlights

1

Large Inverted Display: High-contrast and large font for better readability

2

Increased Safety: Integrated self-test to check integrity of the tool

3

Durable: Built to last with IP65 protection, impact resistance and stable cable-to-tool connection

4

Job-Site Ready : Integrated non-contact voltage tester, flashlight and extra-long 125 cm cable

5

IEC EN 61243-3:2014 Compliant : Indicates absence of voltage even when batteries are discharged

6

User-Friendly Mode Button: Easy access to advanced features with frequency resistance, diode test, low voltage and continuity

Further functions & features

Product Highlights

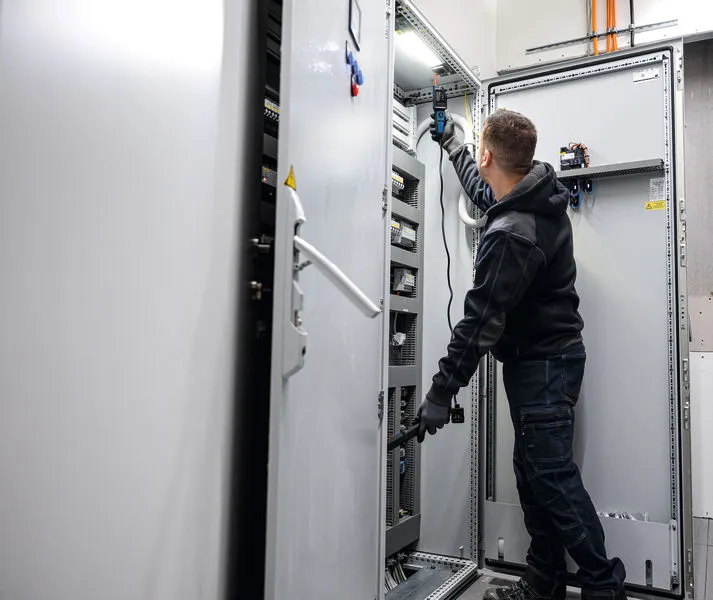

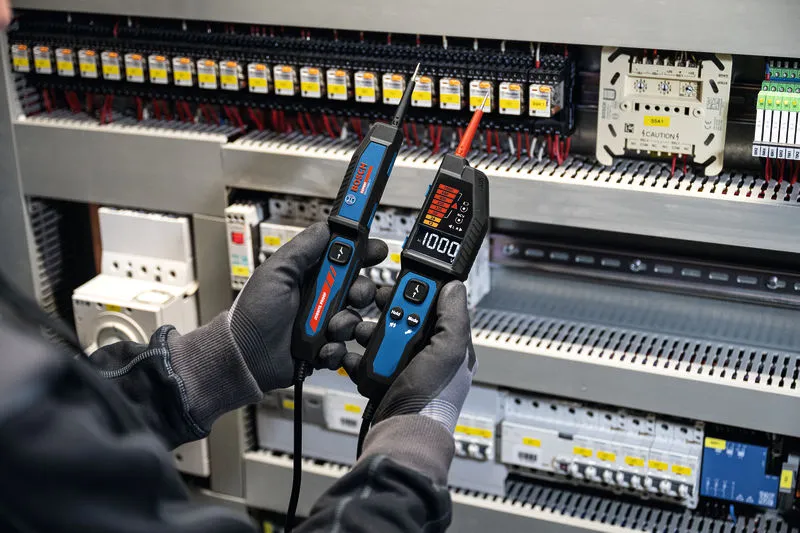

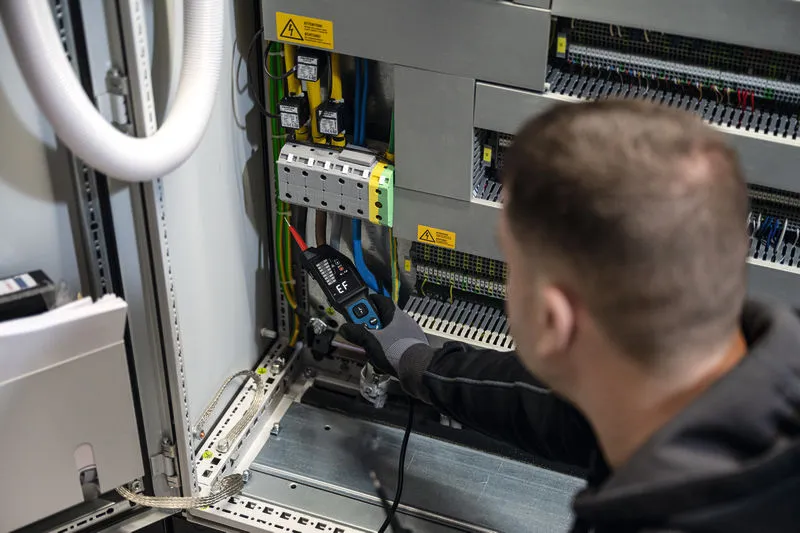

The EXPERT EXVT1000-17 is robust and durable voltage tester thanks to IP65 protection, a stable cable-to-tool connection and impact resistance. Ideal for work onsite, it comes with a built-in non-contact voltage tester and flashlight, as well as an extra long cable for work in large control cabinets. This IEC EN 61243-3:2014-compliant tester indicates the absence of voltage even when batteries are discharged. Convenient and versatile, the EXPERT EXVT1000-17 tests continuity and diodes, performs frequency, resistance and low voltage measurements, and offers a Hold and Mute function.

Equipment & Application

This EXPERT device tests voltage up to 1000 V AC/DC and has an LED and LCD display for precise readings, as well as audio and vibration alerts.

Technical data

The most important data
AC voltage	1,000 V
DC voltage	1,000 V
Resistance	0.3 MΩ
Continuity	Yes
IP-Protection	IP65
Safety class	CAT IV 600 V / CAT III 1000 V
Display type	LCD Inverted
Non-Contact-Voltage (NCV)	Yes
Torch light	Yes
Acoustic feedback	Yes
Vibration feedback	Yes
Diode test	Yes
Polarity test	Yes
Phase sequence test	Yes
Single pole phase test	Yes
Load Connec. via Push Button	Yes
RCD tripping	Yes
Cable Break Detection	Yes
Packaging dimensions (width x length x height)	130 x 340 x 58 mm
