EXPERT EXWS30-230PB

Name: EXWS30-230PB
Brand: Bosch power tools
SKU: 06018G1170
Availability: OutOfStock

Angle Grinder

Order number 0.601.8G1.170

UP TO 40% MORE POWER vs. Professional GWS 20-230 J¹

Excellent Material Removal Rate: 2800 W input power for fast, effective grinding
Brushless Motor: High-performance brushless motor with reduced tool downtime
Advanced Protection: Electronic brake stops disc in less than 3 seconds
Integrated Vibration Control System: Reduces harmful vibrations and minimizes risk of injury
PROtection Switch: Immediately shuts down tool when the trigger is released

¹ vs. the Professional GWS 20-230 J, maximum input power 2800 Watt vs. 2000 Watt*

Select a variant

Your Selected Variant

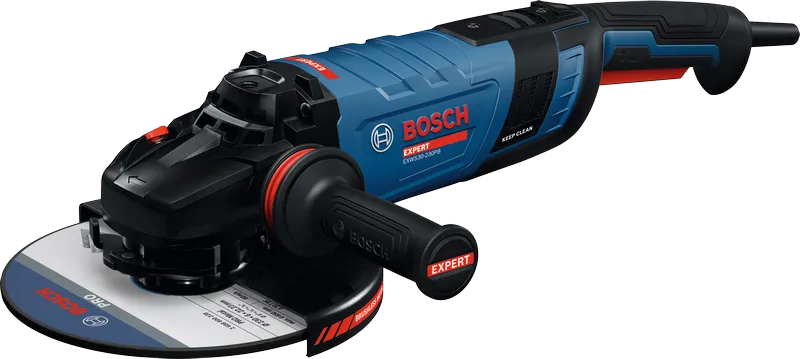

Bosch EXWS30-230PB angle grinder with side handle.

Your Selected Variant

with Locking nut (1 603 340 040) 0 601 8G1 170

Find a local dealer

The best tools for the job

Select a variant

Your Selection

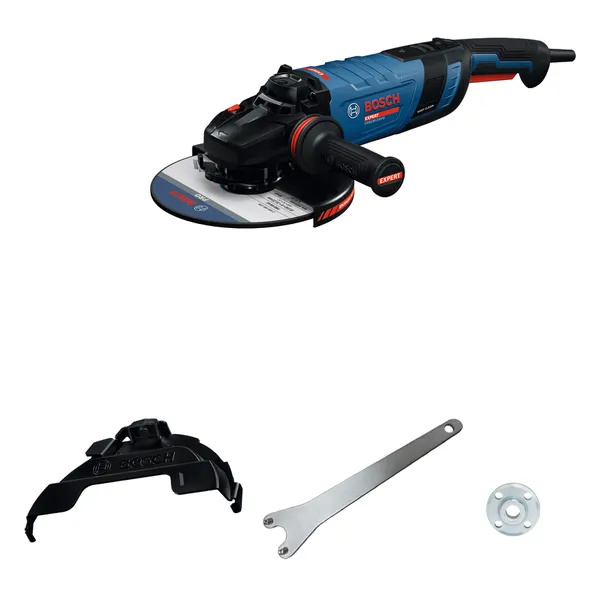

Bosch angle grinder with guard, wrench and flange set.

Included in this variant

Locking nut Part Number: 1 603 340 040

Quick adjustment protective guard Part Number: 1 619 PS3 666

Protective clip-on cutting guard metal Part Number: 1 619 PS3 681

Pin-type face-wrench Part Number: 1 607 950 048

Vibration Control auxiliary handle Part Number: 1 602 025 0BZ

Select Variant

Product highlights

1

Excellent Material Removal Rate: 2800 W input power for fast, effective grinding

2

Brushless Motor: High-performance brushless motor with reduced tool downtime

3

Advanced Protection: Electronic brake stops disc in less than 3 seconds

4

Integrated Vibration Control System: Patented, integrated vibration control system reduces harmful vibrations and minimises risk of injury

5

Kickback Control: Minimises risk of injury by stopping motor when drill jams

Further functions & features

Product Highlights

The EXPERT EXWS30-230PB delivers a high material removal rate thanks to its 2800 W brushless motor, which also reduces maintenance frequency due to fewer wear and tear parts and the absence of carbon brushes. This tool offers all-round safety and convenience with an electronic brake that stops the disc in less than 3 seconds, Kickback Control, Restart Protection and Soft Start. And work is less tiring thanks to the integrated vibration control system, which minimises vibrations.

Equipment & Application

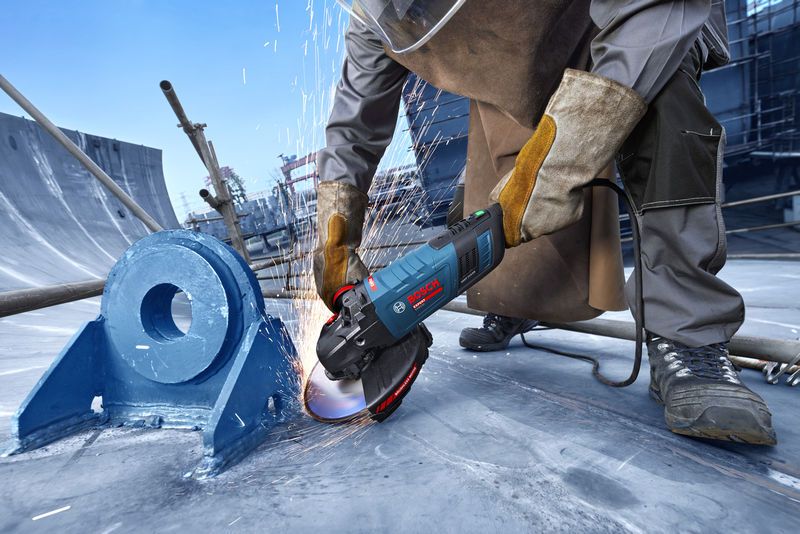

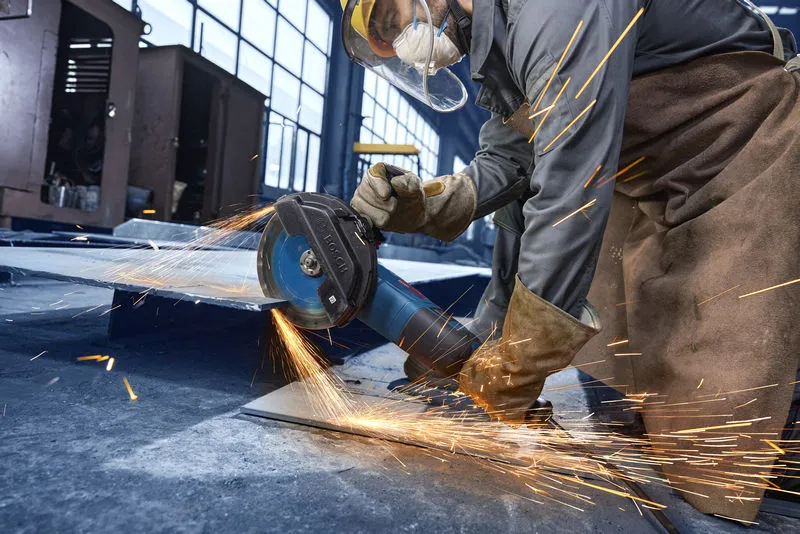

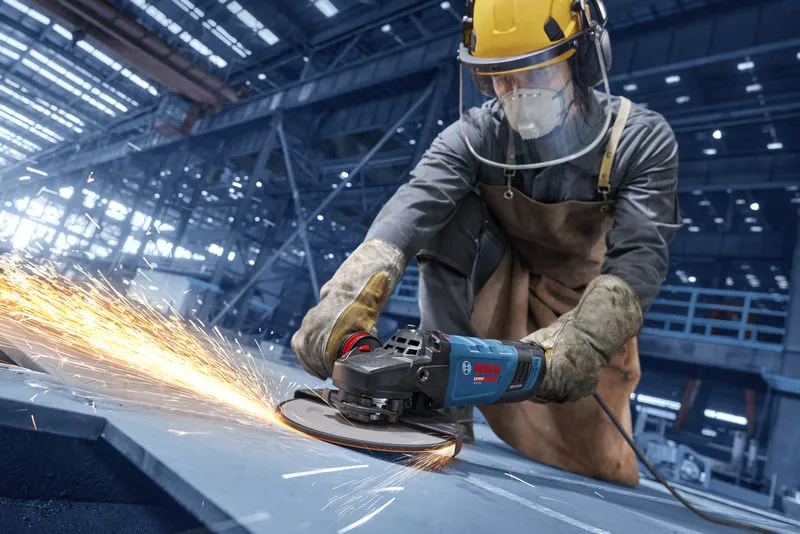

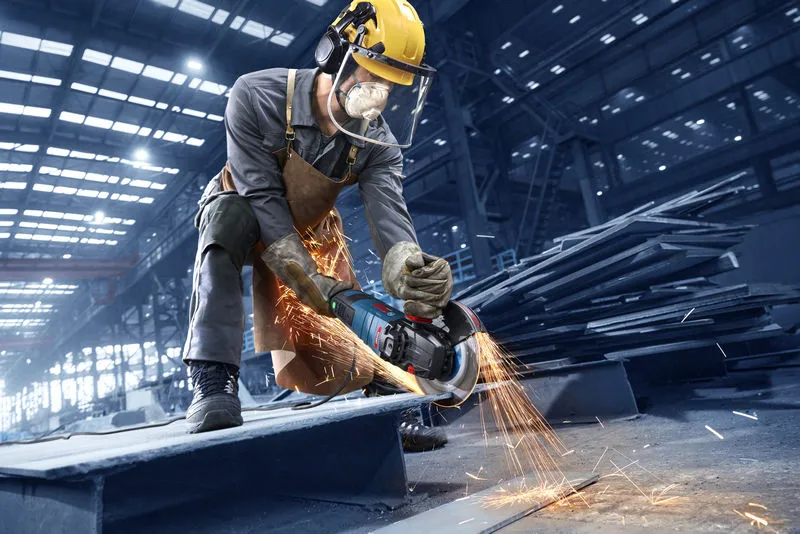

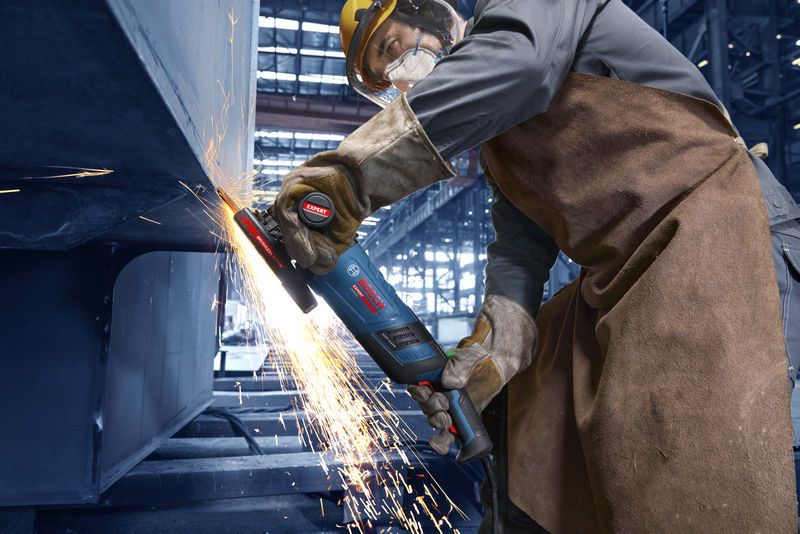

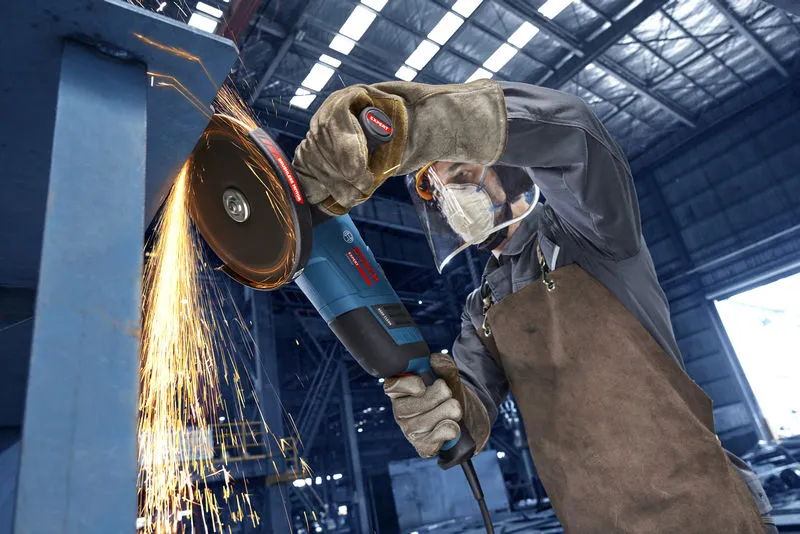

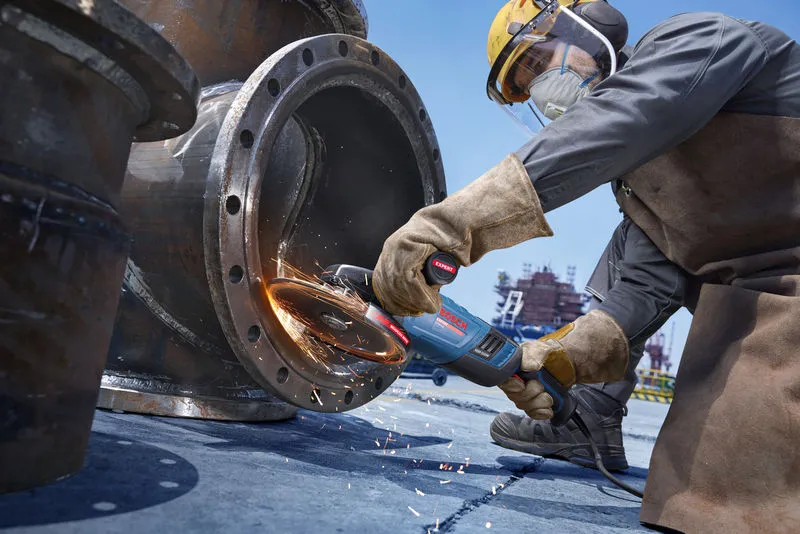

The EXPERT EXWS30-230PB is for grinding and cutting metal, tiles and masonry.

Fits to EXPERT EXWS30-230PB

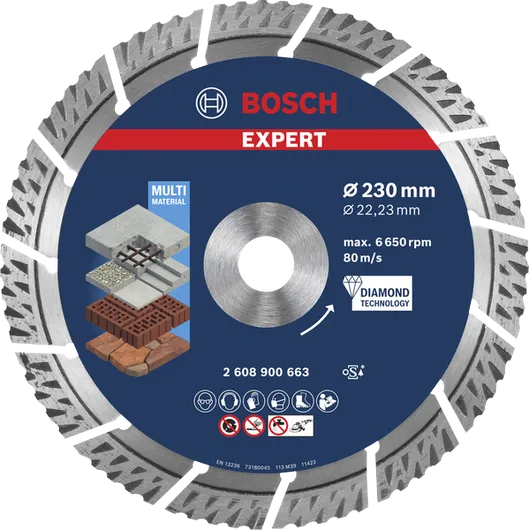

EXPERT Multi Material Diamond Cutting Disc

For large angle grinders with locking nut

Long Life cutting construction materials

Material

£166.43

incl. VAT

£138.69

excl. VAT

Available

Find out more

EXPERT Diamond Metal Wheel Cutting Disc

For large angle grinders with locking nut

Long Life cutting metal

Material

£102.42

incl. VAT

£85.35

excl. VAT

Limited stock

Find out more

EXPERT Multi Material Carbide Cutting Disc

For large angle grinders with locking nut

Long Life cutting various materials

Material

£66.14

incl. VAT

£55.12

excl. VAT

Available

Find out more

Technical data

The most important data
Rated input power	2,800 W
Power output*	2,800 W
Grinding spindle thread	M14
Main handle	Rattail
Disc diameter	230 mm
Wire cup brush, diameter	100 mm
Bore size, diameter	22.23 mm
Weight*	4.95 kg
Switch	PROtection Switch
Packaging dimensions (width x length x height)	189 x 594 x 132 mm
Voltage range	220 – 230 V
Speed output no-load, nominal max.	6,500 rpm
X-LOCK	No

Total vibration values (Surface grinding (roughing))
Vibration emission value ah	4.3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Sanding with sanding sheet)
Vibration emission value ah	2.7 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Insert | EXWS30-230PB,EXWS30-180PB (PDF 0.3 MB) Instruction manual | EXWS30-230PB,EXW ... EXWS30-230B,EXWS30-180B (PDF 17.3 MB) Product data sheet | EXWS30-230PB (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601HG1170

Product name

EXWS30-230PB

Description

Angle Grinder

Go to spare part Browse spare parts catalogue
