18V batteries & chargers
Batteries & chargers

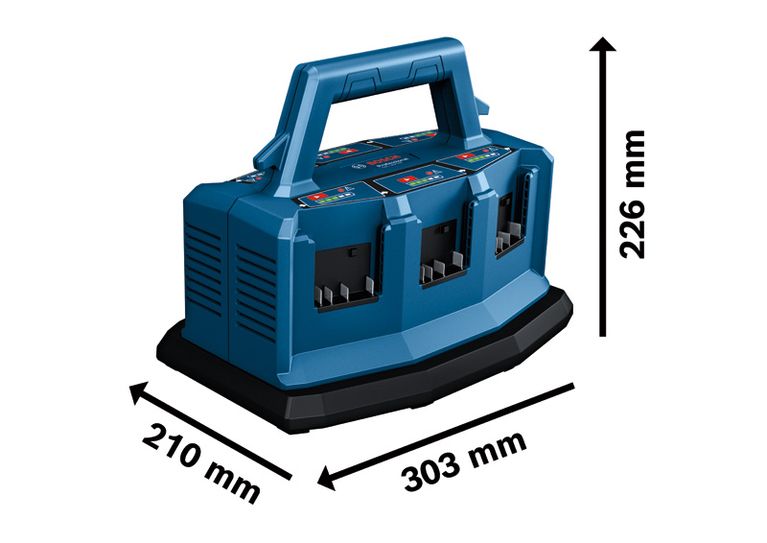

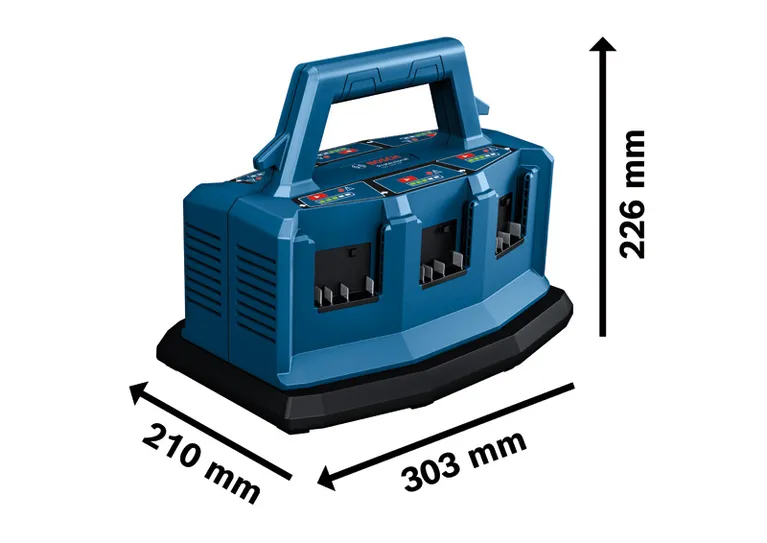

![Bosch GAL 18V6-80 charger with six battery slots.]( "GAL 18V6-80")
![Bosch GAL 18V6-80 charger with six battery slots.]( "GAL 18V6-80")
![Bosch GAL 18V6-80 charger with six battery slots.]( "GAL 18V6-80")
![Bosch GAL 18V6-80 charger with mounting plate.]( "GAL 18V6-80")
![Bosch GAL 18V6-80 charger with six battery slots.]( "GAL 18V6-80")

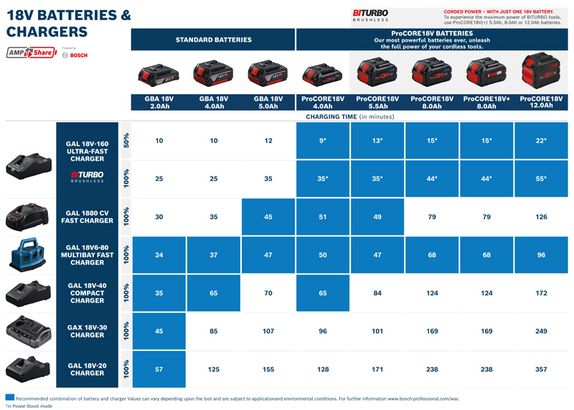

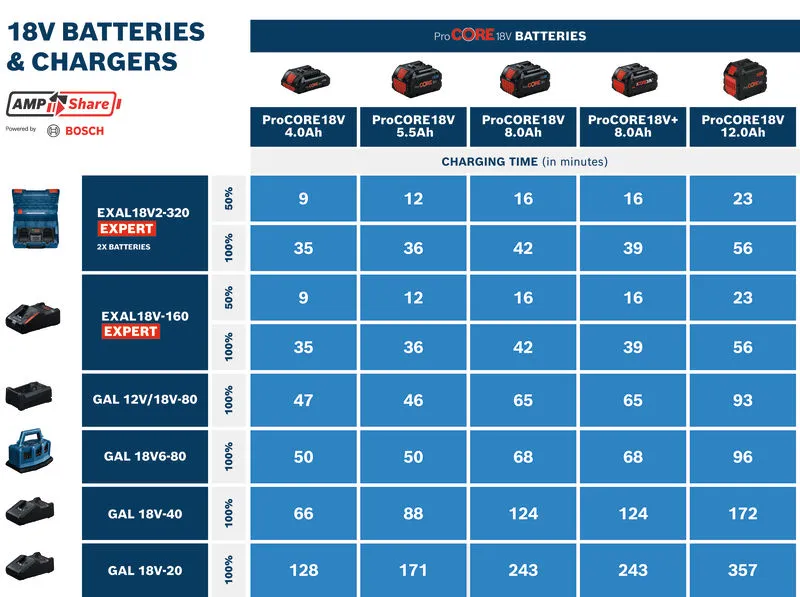

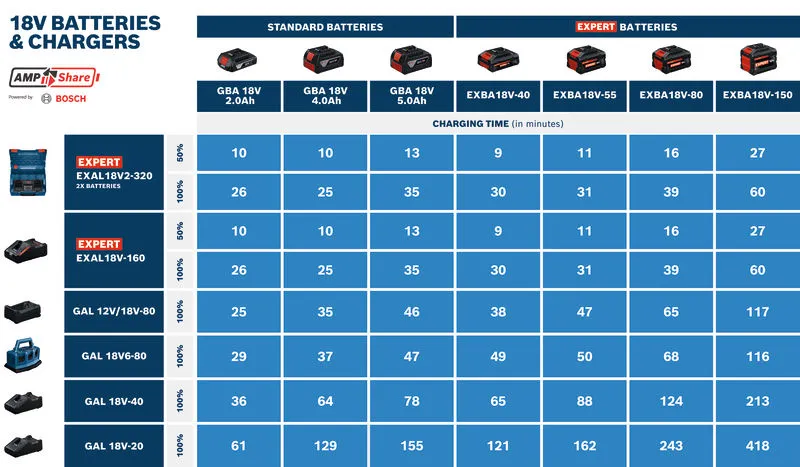

![18V batteries and chargers chart]( "GAL 18V6-80")
![AMPShare battery]( "GAL 18V6-80")

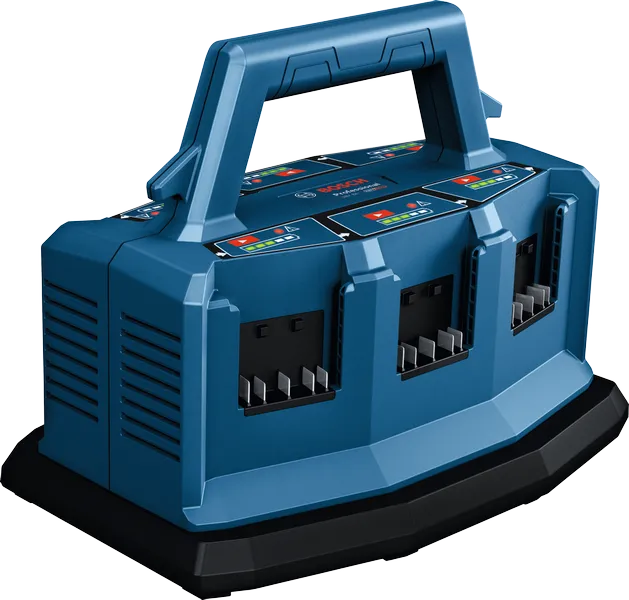

GAL 18V6-80 Professional
Charger
Continuous charging for non-stop work – multi-bay charger with 6 battery interfaces
- Fast charging speed with 8A current – ProCORE18V 8.0Ah charges to 80% in 42 min
- Efficient charge – 2 charging cycles ensure continuous work
- Priority Start Button – easy prioritisation of a selected battery
Functions & key features
Your Selection
- in cardboard box
Available
Estimated delivery time 2-5 working days
£117.00
incl. VAT
£97.50
excl. VAT
in cardboard box
1 600 A01 U9M
GAL 18V6-80 Professional
Your Selection
in cardboard box
Part Number: 1 600 A01 U9M
£117.00
incl. VAT
£97.50
excl. VAT
Available
Included in this variant
-
Cardboard box
-
L-BOXX adapter for GAL 18V6-80
Technical data
The most important data
Battery charging voltage
14.4 – 18 V
Charge current*
8 A
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.*
16/24 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.*
23/37 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.*
28/47 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.*
32/57 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.*
32/50 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.*
42/68 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.*
65/96 min
Weight*
1.8 kg
Packaging dimensions (width x length x height)
251 x 315 x 220 mm
Battery voltage
18.0 V
* You can find more information about the deviations in the following link:
GAL 18V6-80 Professional: Further information
Product Highlights
The GAL 18V6-80 offers continuous charging on the job or overnight in two cycles. The first cycle charges up to six batteries sequentially up to 80%. Cycle two then completes the process, charging all batteries to 100%. Thanks to an 8A charging current, ProCORE18V 8.0Ah batteries load up to 80% in just 42 minutes. Charge-level indicators with 5 LEDs on each charging interface display precise charging progress. With a Priority Start Button for each interface, the cycle can be interrupted to start charging the selected battery immediately. It is compatible with all Bosch Professional 18 V batteries (Professional 18V System).
Equipment & Application
Fixing the multi-bay charger to an L-BOXX avoids potentially harmful movements when transporting. The charger's handle features pegs that allow its cable to be wound neatly in place for storage and safe transportation.
Fits to GAL 18V6-80 Professional
