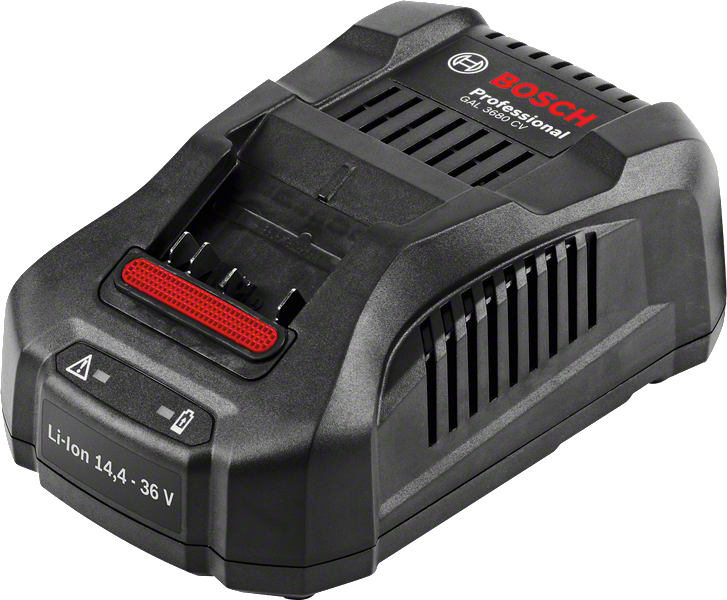

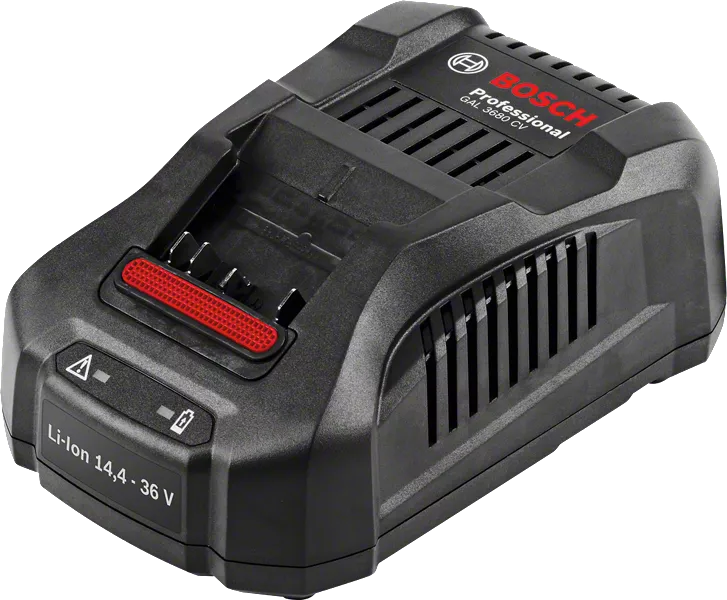

GAL 3680 CV Professional

Charger

The multi-volt quick charger for all Li-Ion batteries from 14.4 to 36 volts

  • 100% faster charging of the batteries (compared to AL 3640 CV)
  • Quick-charge mode: 4.0 Ah battery is ready to use with 80% of its capacity after only 25 mins
  • Active Air Cooling for longer lifetime of the batteries

Functions & key features

Charging current 8.0 A
Faster charging thanks to active air cooling
User-friendly thanks to cable winding function
Metalworking The professional power tools for metalworking from Bosch.

Your Selection

  • in cardboard box with quick charger
Show variant
105.00 GBP
Including VAT

in stock

Estimated delivery time 2-5 working days


in cardboard box with quick charger 1 600 A00 4ZT
105.00 GBP
Including VAT

GAL 3680 CV Professional

Your Selection

GAL 3680 CV
in cardboard box with quick charger

Part Number: 1 600 A00 4ZT

105.00 GBP
Including VAT

in stock

Included in this variant

  • Cardboard box
  • Quick charger GAL 3680 CV
    Part Number: 2 607 225 902

Technical data

The most important data

Battery charging voltage 14.4 – 36 V
Charge current* 8 A
Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.* 10/25 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.* 15/30 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.* 20/35 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.* 25/35 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.* 35/45 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.* 35/55 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.* 41/55 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.* 32/51 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.* 68/79 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.* 113/126 min
Weight* 0.9 kg
Packaging dimensions (width x length x height) 140 x 250 x 95 mm

* You can find more information about the deviations in the following link: Technical features of products
