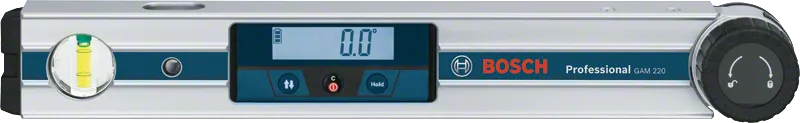

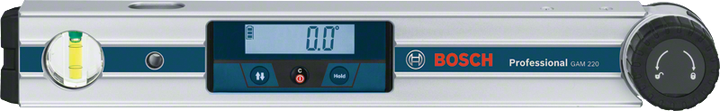

Angle Measurer
GAM 220 Professional

£167.58 Including VAT.
with 4 x battery (AA)

Precise and easy angle measurement

Choose product variation:

Available at Bosch partners

Print

Technical data

The most important data

Measurement range 0 – 220°
Measurement accuracy, angles ± 0.1°
Measurement accuracy, vials ± 0.05°
Accuracy of angle calculation ± 0.1°
Power supply 4 x 1.5 V LR6 (AA)
Battery power, approx. 80 h
Automatic deactivation, approx. 30 min

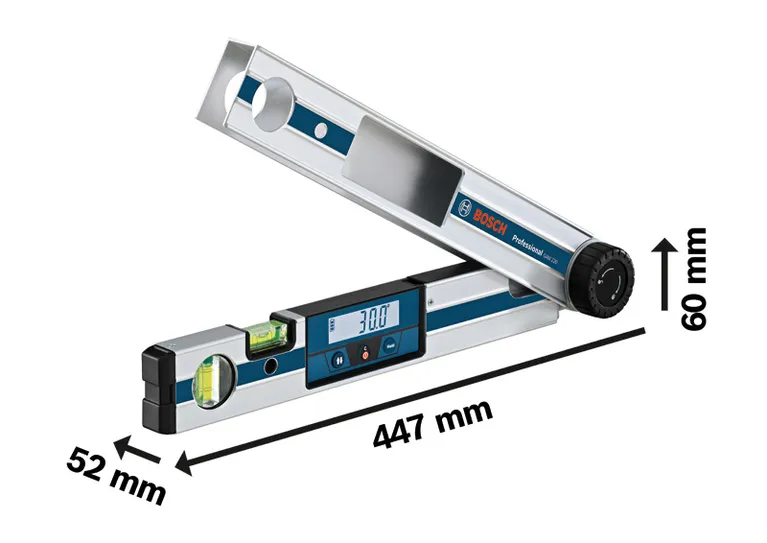

Arm length 40 cm
Weight, approx. 1.3 kg
Packaging dimensions (width x length x height) 68 x 518 x 45 mm

Advantages

Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw

Functions

Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
Measuring range of angles 0°–220° Angle measuring range 0°-220°
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Flip Display Rotating readout on display

Scope of supply

with 4 x battery (AA)

Part Number: 0601076500

£167.58
Including VAT.

Selected version

Price includes:

  • 4 x 1.5 V LR6 battery (AA)

Available at Bosch partners

with 4 x battery (AA)

Part Number: 0601076500920

£117.31
Including VAT.

Price includes:

  • 4 x 1.5 V LR6 battery (AA)

in stock
