Angle measurers and inclinometers

GAM 270 MFL Professional

Angle Measurer

Angle meter and inclinometer with laser-accurate transfer

  • Digital angle measurer and inclinometer in one
  • Calculates mitre angles without the need for accessories
  • Inclinometer with laser up to a range of 30 m
See technical details

Functions & key features

Measuring range of laser max. 30 m Measuring range maximum 30 m
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Hold Hold function for intermediate storage of measured values
Flip Display Rotating readout on display
Display lighting Illuminated display

Your Selection

  • with 4 x battery (AA), accessory set
Show variant
£265.44 Including VAT

in stock

Estimated delivery time 2-5 working days

Buy from a Bosch Partner

with 4 x battery (AA), accessory set 0 601 076 400
£265.44 Including VAT

GAM 270 MFL Professional

Your Selection

with 4 x battery (AA), accessory set

Part Number: 0 601 076 400

Technical data

The most important data

Measurement range 0-270°
Measurement accuracy, angles ± 0.1°
Power supply 4 x 1.5V AA
Battery power, approx. 50 h
Automatic deactivation, approx. 30 min

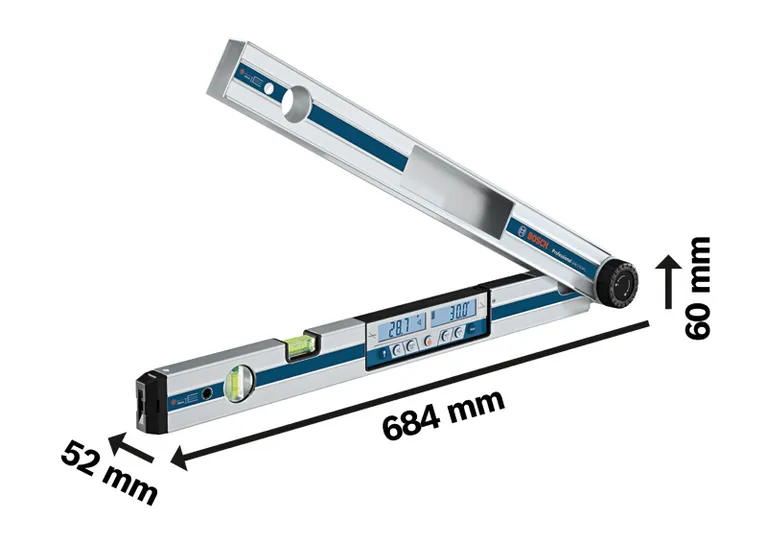

Arm length 60 cm
Weight, approx. 1.7 kg
