Rotary hammers with SDS max

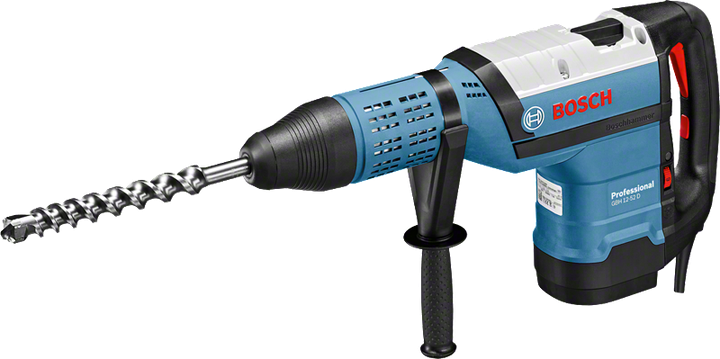

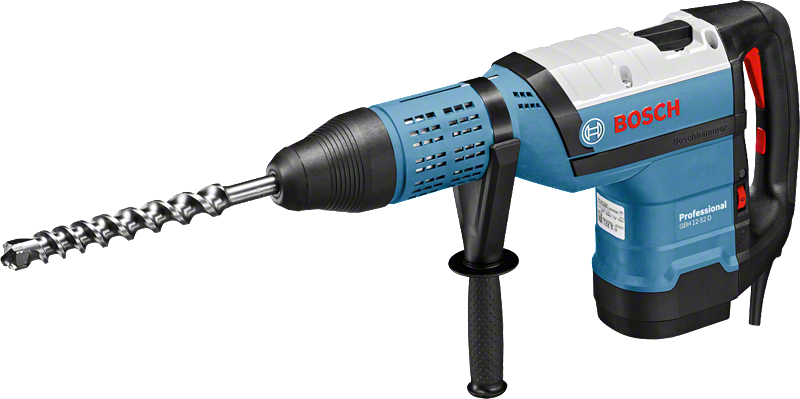

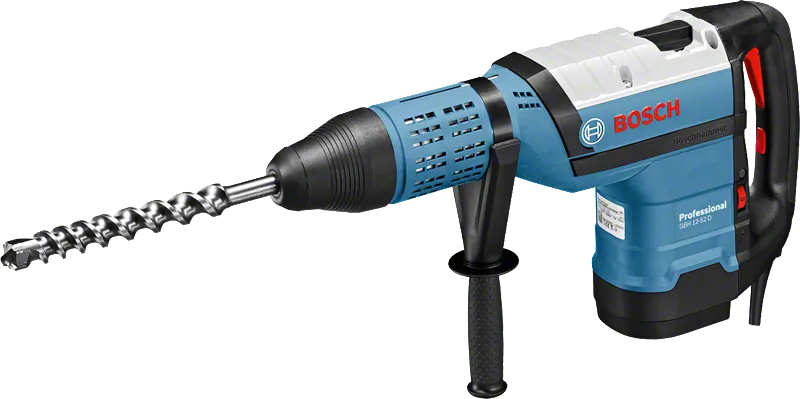

GBH 12-52 D Professional

Rotary Hammer with SDS max

Bosch’s most heavy-duty SDS max rotary hammer

High-end motor for ultimate performance in SDS max tasks
Powerful motor enables the delivery of 19 J of impact energy for heavy chiselling
Highly durable due to extremely robust metal components

Functions & key features

Your Selection

in carrying case with auxiliary handle, Accessory

Change variant

1,042.80 GBP

Including VAT

available at Bosch Partner

Available from our partners

Your Selected Variant

in carrying case with auxiliary handle, Accessory 0 611 266 170

1,042.80 GBP

Including VAT

Available from our partners

Select a variant

Your Selection

in carrying case with auxiliary handle, Accessory

Part Number: 0 611 266 170

1,042.80 GBP

Including VAT

available at Bosch Partner

Available from our partners

Included in all variants

Grease tube (spare part number 1 615 430 010)
Machine cloth
Carrying case (spare part number 1 615 438 705)

Additional in this variant

Voltage 240 V
Auxiliary handle (spare part number 1 612 025 004)

Your selection

Your Selection

in carrying case with accessory set

Part Number: 0 611 266 160

1,141.88 GBP

Including VAT

Quantity

in stock

Included in all variants

Grease tube (spare part number 1 615 430 010)
Machine cloth
Carrying case (spare part number 1 615 438 705)

Additional in this variant

1 x auxiliary handle

Part Number: 1 607 000 C4E

Select Variant

Technical data

Performance data
Impact rate at rated speed*	1,750 – 2,150 bpm
Rated speed*	0 – 220 rpm

The most important data
Tool holder	SDS max
Impact energy (according to EPTA 05/2016)	19 J
Rated input power*	1,700 W

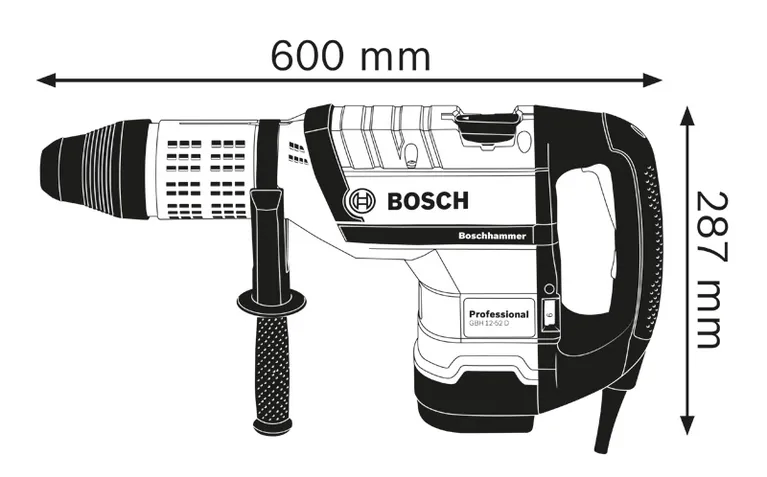

Packaging dimensions (width x length x height)**	505 x 680 x 160 mm
Voltage, electrical	240 V
Weight*	11.5 kg

Drilling range
Drilling dia. concrete, hammer drill bits	12 – 52 mm
Opt. appl. range concrete, hammer drill bits	30 – 50 mm
Drilling dia. concrete, breakthrough drill bits	80 – 80 mm
Drilling diameter in concrete with core cutters	50 – 150 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	20 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	2.8 m/s²

* You can find more information about the deviations in the following link: Technical features of products

** May have small deviations because of variations during production process. You can find more information about the deviations in the following link: Technical features of products

GBH 12-52 D Professional: Further information

Product Highlights

The GBH 12-52 D Professional is the most heavy-duty tool in Bosch’s SDS max corded rotary hammer range. It features a high-end motor producing the ultimate performance in SDS max applications. The rotary hammer’s incredibly powerful motor enables the delivery of 19 J of impact energy, perfect for tough chiselling. It is also designed for high durability, featuring extremely robust metal components.

Equipment & Application

This tool is intended for drilling up to 52 mm in diameter and heavy chiselling work in concrete and stone. It is compatible with various dust attachments.

Additional Information

The GBH 12-52 D Professional features include Constant Speed, Restart Protection, Rotation Control Clutch, and Speed Selection.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3611B66170

Product name

GBH 12-52 D

Description

Rotary Hammer with SDS max

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GBH 12-52 DV | GBH 12-52 D (PDF 4.2 MB) Insert | Herstellergarantie | Manufacturer's guarantee (EU) (PDF 0.2 MB)

Product data sheet Product data sheet | GBH 12-52 D (PDF 1.5 MB)

EPTA Procedure 05: Single Impact Energy

European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.

It defines a standardized measurement method, which ensures comparability between different tools and member companies.

The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
