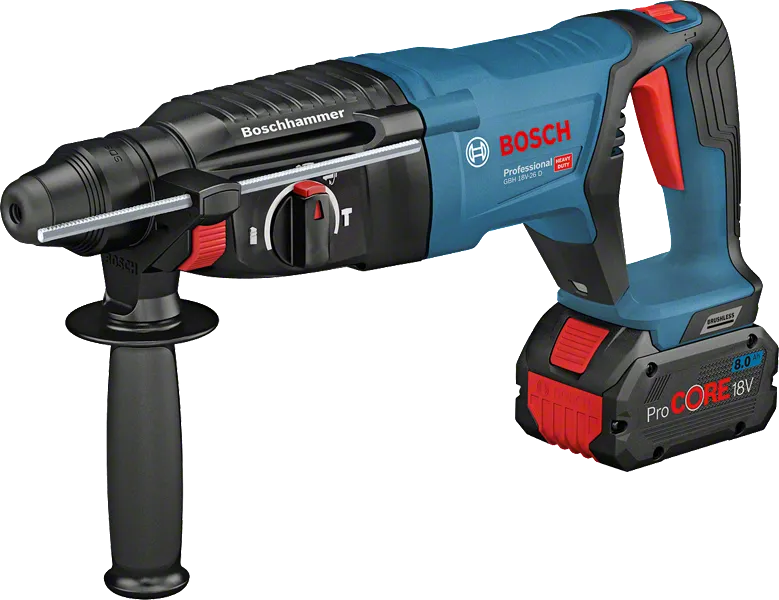

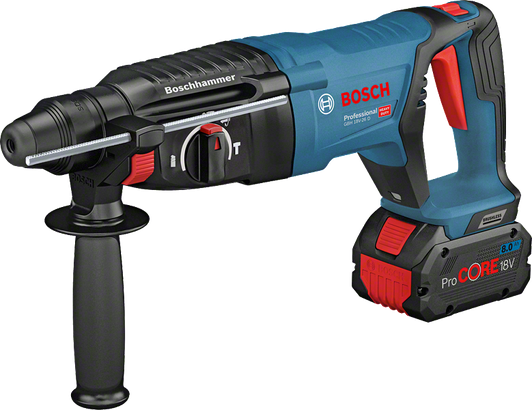

Cordless Rotary Hammer with SDS plus
GBH 18V-26 D Professional

£249.59 Including VAT.
in carrying case with auxiliary handle

Universal D-handle rotary hammer for vertical drilling and chiselling applications in the SDS plus cordless category

Choose product variation:

Available at Bosch partners

Print

More

Technical data

The most important data

Max. impact energy 2.5 J
Impact rate at rated speed 0 – 4,350 bpm
Rated speed 0 – 980 rpm
Battery voltage 18 V
Weight excl. battery 2.6 kg
Tool holder SDS plus

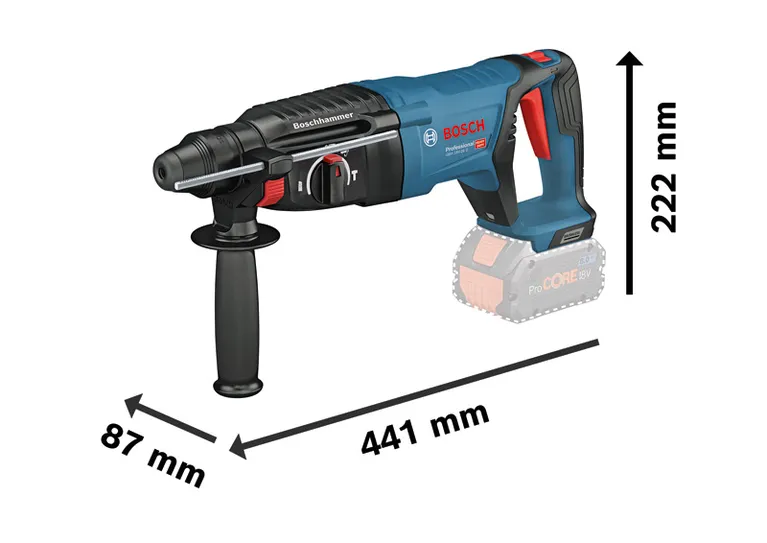

Tool dimensions (length) 441 mm
Packaging dimensions (width x length x height) 118 x 585 x 292 mm
Drilling range
Drilling dia. concrete, hammer drill bits, from 4 mm
Drilling dia. concrete, hammer drill bits, up to 26 mm
Drilling dia. in concrete with hammer drill bits 4 – 26 mm
Opt. app. range in concrete with hammer drill bits 8 – 16 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 91.1 dB(A)
Sound power level 102.1 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 15.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 10 m/s²
Uncertainty K 1.5 m/s²

Advantages

Universal D-handle rotary hammer for vertical drilling and chiselling applications in the SDS plus cordless category

  • Impact energy of 2.5 J and brushless motor: cordless power equal to the corded power of established Boschhammers
  • First D-handle cordless rotary hammer with KickBack Control offers both flexible handling and increased user protection
  • Comfortable handling due to large switch and D-handle, supported by bright LED light for effortless chiselling

Functions

Longer motor life - more runtime - more power thanks to brushless motor
Optimal power transmission for small hammers
Optimal protection of the cells against excessive heat due to special, heat conductive housing
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Long motor lifetime Long motor lifetime because motor shuts off when overloaded, overheated or blocked
Battery charge level indicator shows the level of remaining battery charge
 Illuminating of the work area
Combi hammer with chisel function No rotary motion; impact effect only
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Best work results with constant speed thanks to electronic regulation of speed - even under load
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque

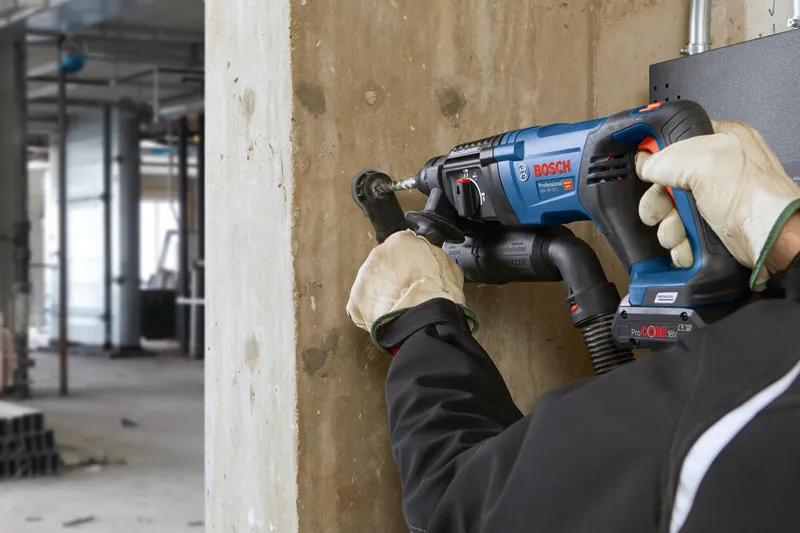

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

Scope of supply

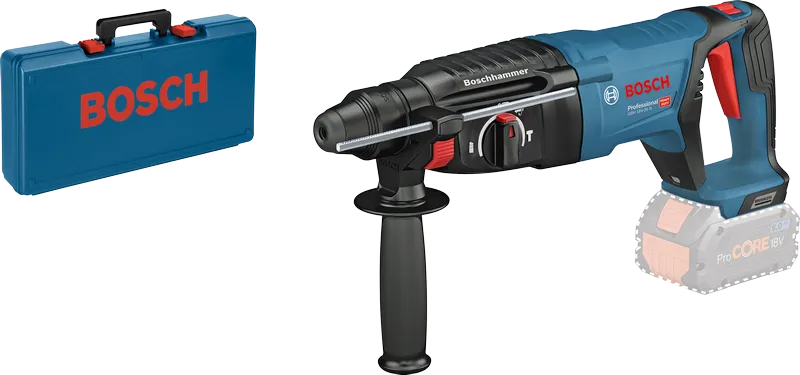

in carrying case with auxiliary handle

Part Number: 0611916000

£249.59
Including VAT.

Selected version

Price includes:

  • Carrying case
  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth (spare part number 1 619 200 413)

Available at Bosch partners

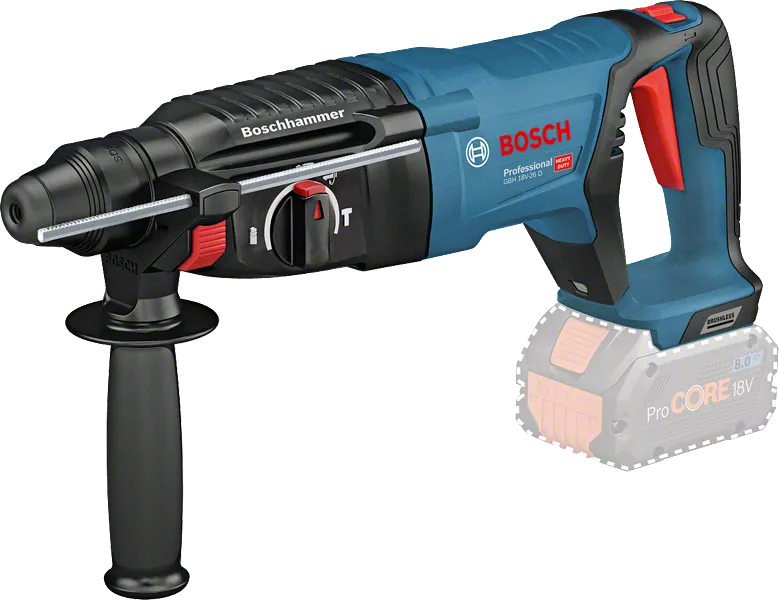

in cardboard box with auxiliary handle

Part Number: 0611916001

£239.99
Including VAT.

Price includes:

  • Cardboard box
  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth (spare part number 1 619 200 413)

* Battery and charger not included

in stock

Product details
