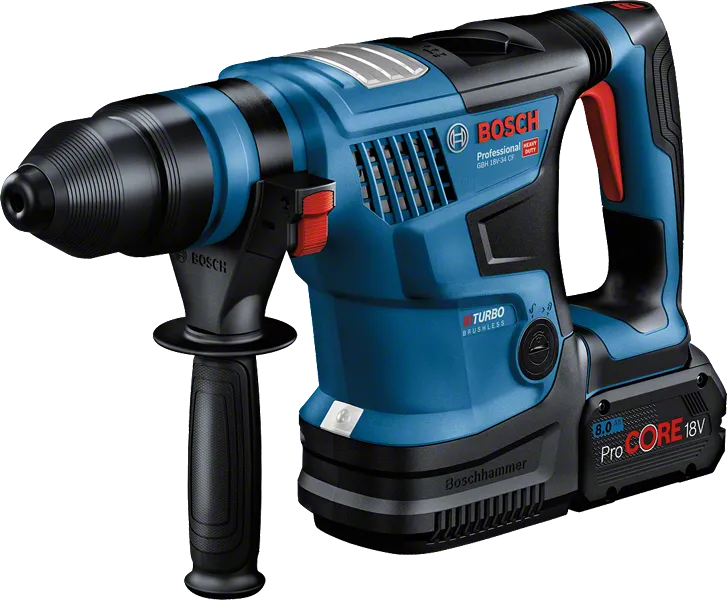

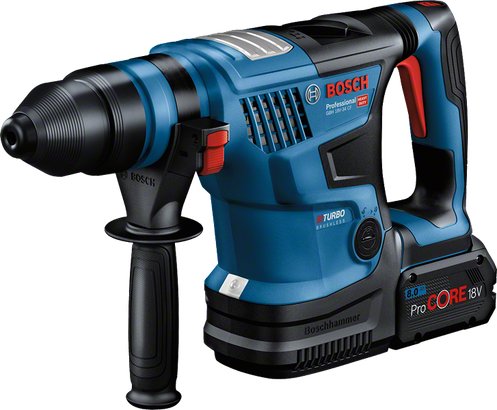

Cordless Rotary Hammer BITURBO with SDS plus
GBH 18V-34 CF Professional

  • New
£630.00 Including VAT.
with depth stop

The market´s most powerful cordless SDS plus hammer

Choose product variation:

Available at Bosch partners

Print

More

Technical data

The most important data

Max. impact energy 5.8 J
Impact rate at rated speed 0 – 2,900 bpm
Rated speed 0 – 500 rpm
Battery voltage 18 V
Weight excl. battery 4.9 kg
Tool holder SDS plus

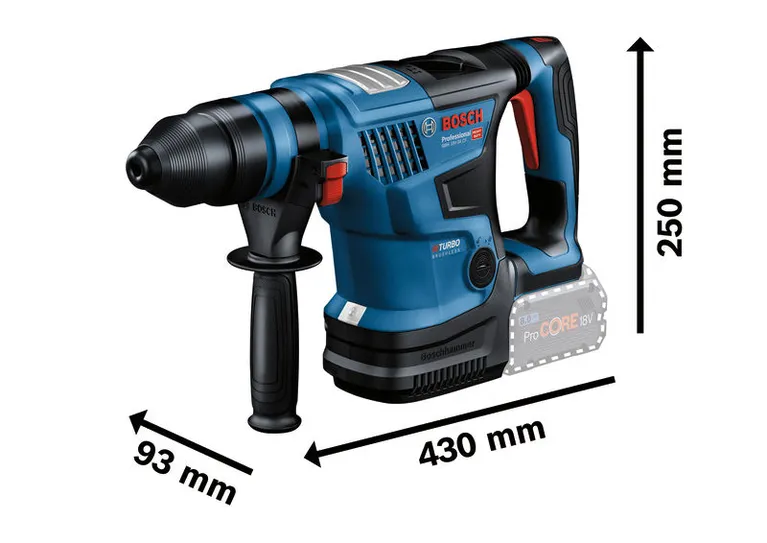

Tool dimensions (length) 430 mm
Packaging dimensions (width x length x height) 411 x 619 x 145 mm
Drilling range
Drilling dia. concrete, hammer drill bits, from 8 mm
Drilling dia. concrete, hammer drill bits, up to 32 mm
Drilling dia. in concrete with hammer drill bits 8 – 32 mm
Opt. app. range in concrete with hammer drill bits 12 – 30 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 40 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Sound pressure level 89 dB(A)
Sound power level 100 dB(A)
Uncertainty K 3 dB
Hammer drilling in concrete
Vibration emission value ah 11 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 11 m/s²
Uncertainty K 2.8 m/s²

Advantages

The market´s most powerful cordless SDS plus hammer

  • Paramount performance with 5.8 J – the most powerful cordless SDS plus hammer in its range for tough jobs in concrete
  • Perfect control – soft start for precise chiselling and 3 different working modes to ensure the right setting for any job
  • Smartest SDS plus hammer – real-time tool status via user interface, individual adjustments by Bluetooth via Bosch Toolbox app

Functions

Optimal power transmission for small hammers
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Longer motor life - more runtime - more power thanks to brushless motor
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Simply.Connected. – Simply.Efficient. thanks to tool personalisation and information
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
 Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
 Enables permanent performance and functions as transportation lock.

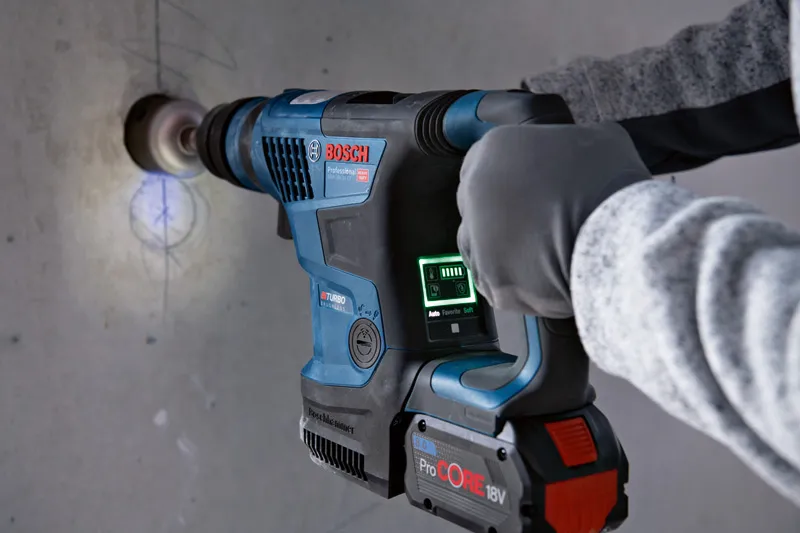

 Illuminating of the work area
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Combi hammer with chisel function No rotary motion; impact effect only
Easy and precise control of the RPM thanks to variable speed
 Individual Speed Setting
Icon

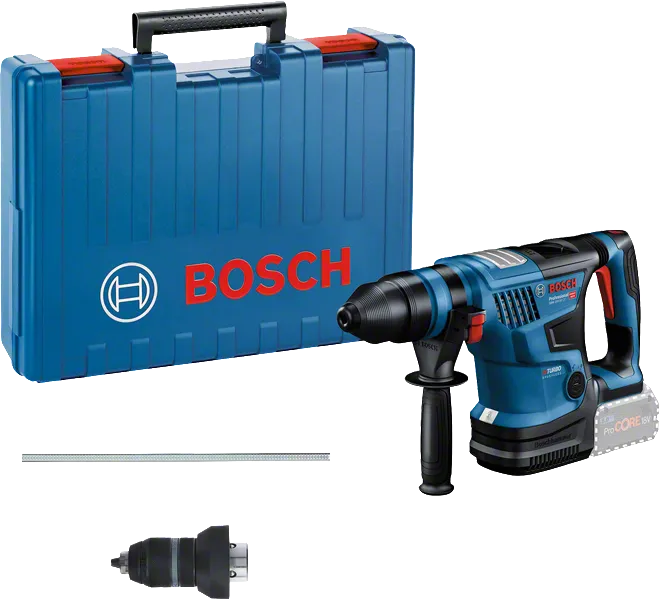

Scope of supply
with depth stop

Part Number: 0611914001

£630.00
Including VAT.

Selected version

Price includes:

  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
  • Carrying case (spare part number 1 605 438 1G2)
  • Auxiliary handle 2 608 000 703
  • Depth stop (spare part number 1 613 001 009)

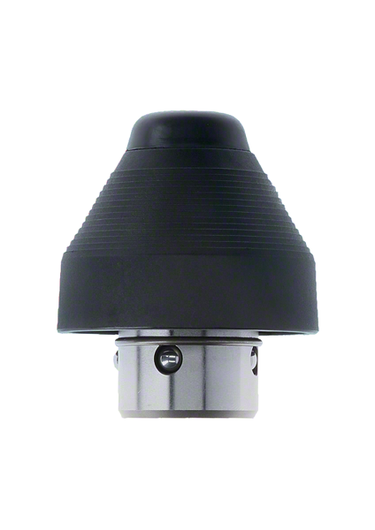

  • SDS plus quick-change chuck 2 608 000 704

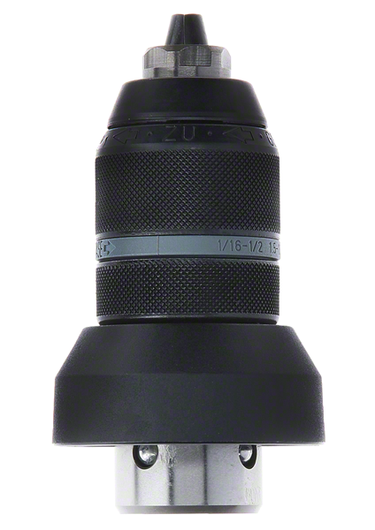

  • Quick-change chuck 1.5 - 13 mm 2 608 000 710
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)

* Battery and charger not included

Available at Bosch partners

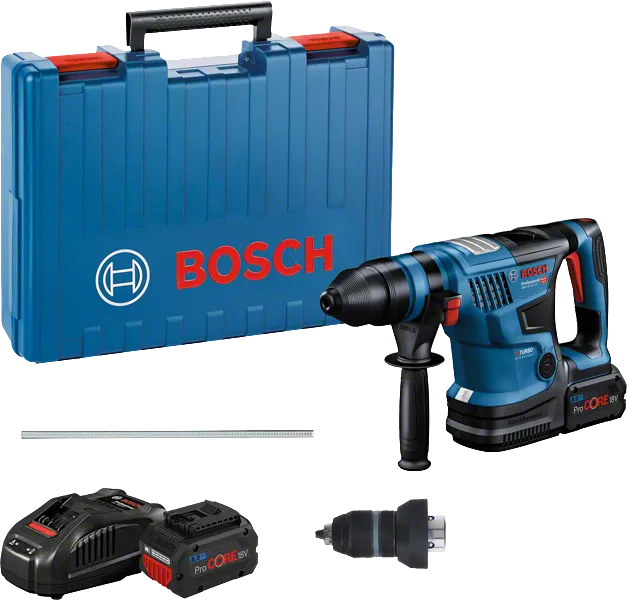

with 2 x 8.0 Ah ProCORE18V Li-ion battery, depth stop

Part Number: 0611914072

£975.56
Including VAT.

Price includes:

  • 2 x battery ProCORE18V 8.0Ah 1 600 A01 6GK
  • Quick charger GAL 1880 CV 1 600 A00 B8H
  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
  • Carrying case (spare part number 1 605 438 1G2)
  • Auxiliary handle 2 608 000 703
  • Depth stop (spare part number 1 613 001 009)
  • SDS plus quick-change chuck 2 608 000 704
  • Quick-change chuck 1.5 - 13 mm 2 608 000 710
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth (spare part number 1 619 200 413)

Available at Bosch partners

Product details
with depth stop

Part Number: 0611914073

£899.04
Including VAT.

Price includes:

  • 2 x battery ProCORE18V 5.5Ah 1 600 A02 149
  • Quick charger GAL 1880 CV 1 600 A00 B8H
  • 1 x Bluetooth Low Energy module GCY 42 Professional 1 600 A01 3WF
  • Auxiliary handle 2 608 000 703
  • Depth stop (spare part number 1 613 001 009)
  • SDS plus quick-change chuck 2 608 000 704
  • Quick-change chuck 1.5 - 13 mm 2 608 000 710
  • Machine cloth (spare part number: 1 619 200 413)
  • Grease tube (spare part number 1 615 430 010)
  • Carrying case (spare part number 1 605 438 1G2)
