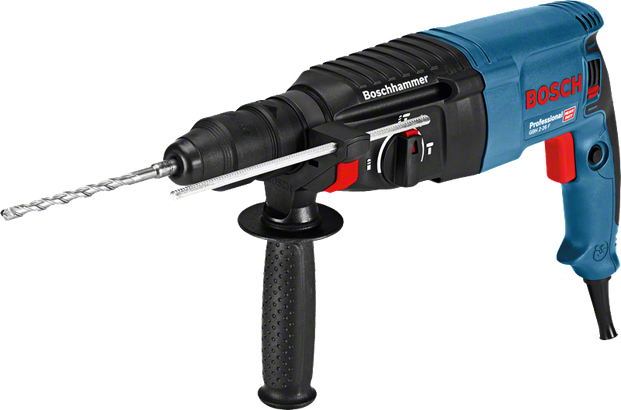

Rotary Hammer with SDS plus
GBH 2-26 F Professional

£144.95 Including VAT.

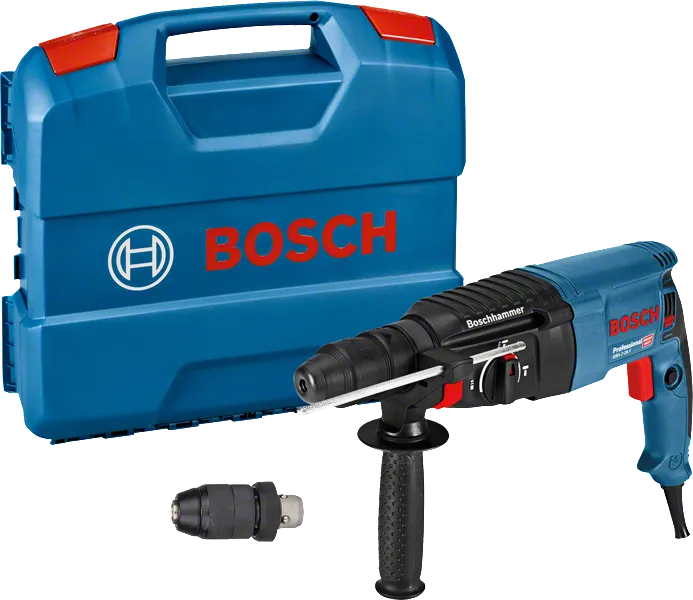

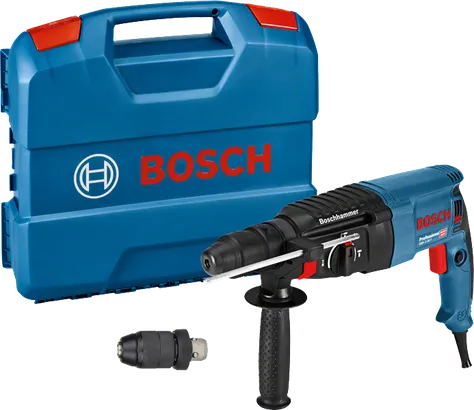

in carrying case with auxiliary handle, Accessory

All-round performance rotary hammer with quick-change chuck in the SDS plus category

Choose product variation:

in stock

Print

More

Technical data

The most important data

Rated input power 830 W
Impact energy 2.7 J
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Weight 2.9 kg

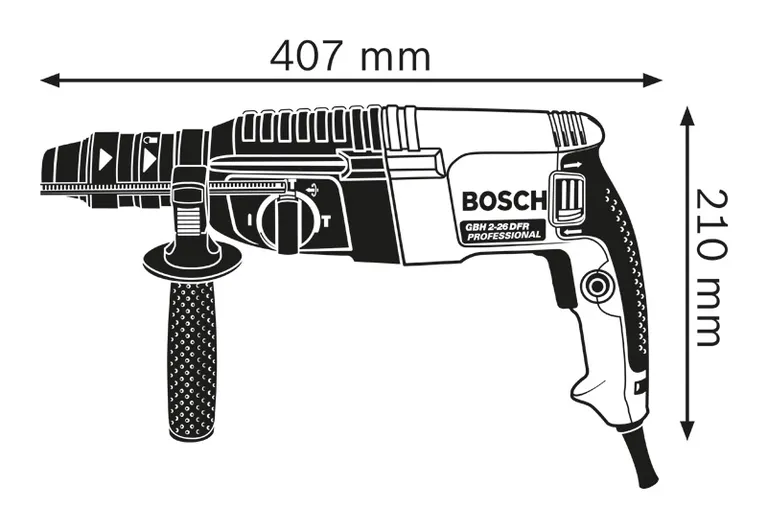

Tool dimensions (width) 83 mm
Tool dimensions (length) 407 mm
Tool dimensions (height) 210 mm
Tool holder SDS plus
Packaging dimensions (width x length x height) 362 x 443 x 118 mm
Voltage, electrical 110 V
Drilling dia. concrete, hammer drill bits 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 16.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²

Advantages

All-round performance rotary hammer with quick-change chuck in the SDS plus category

  • Delivers 2.7 J of impact energy for fast drilling and high chisel removal performance
  • High-quality components ensure robustness, reliability, and long lifetime
  • Optional chisel mode and quick-change chuck enable use in wide range of applications

Functions

Optimal power transmission for small hammers
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Combi hammer with chisel function No rotary motion; impact effect only
Convenient change of accessories Keyless chuck opens and closes easily
Cable length 4.0 m
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Scope of supply
in carrying case with auxiliary handle, Accessory

Part Number: 06112A4060

£144.95
Including VAT.

Selected version

Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 110 V

in stock

in carrying case with auxiliary handle, Accessory

Part Number: 06112A4060920

£122.24
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 110 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 06112A4070

£144.95
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 06112A4070920

£122.24
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 06112A4070930

£94.31
Including VAT.

Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

Available at Bosch partners
