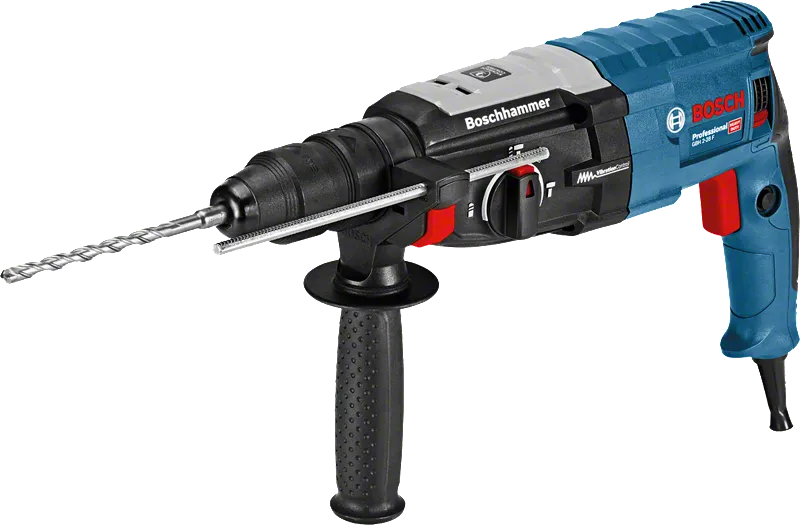

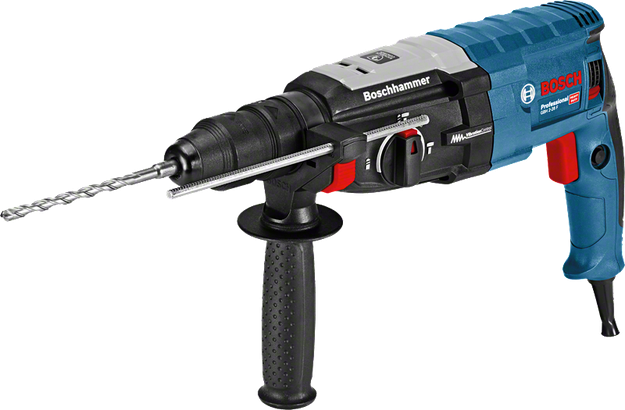

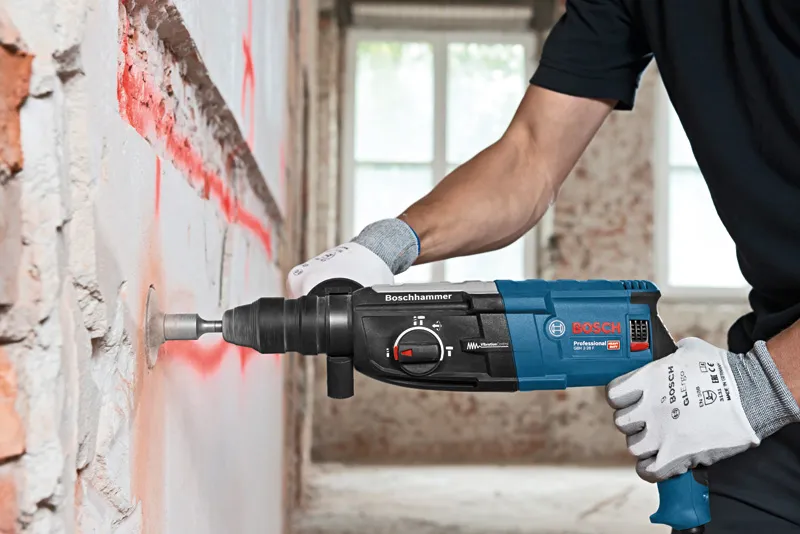

Rotary Hammer with SDS plus
GBH 2-28 F Professional

£217.33 Including VAT.
with auxiliary handle, Accessory

Strongest rotary hammer in Bosch 2 kg SDS plus category with quick-change chuck

Choose product variation:

in stock

Print

More

Technical data

The most important data
Rated input power 880 W
Impact energy 3.2 J
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Weight 3.1 kg

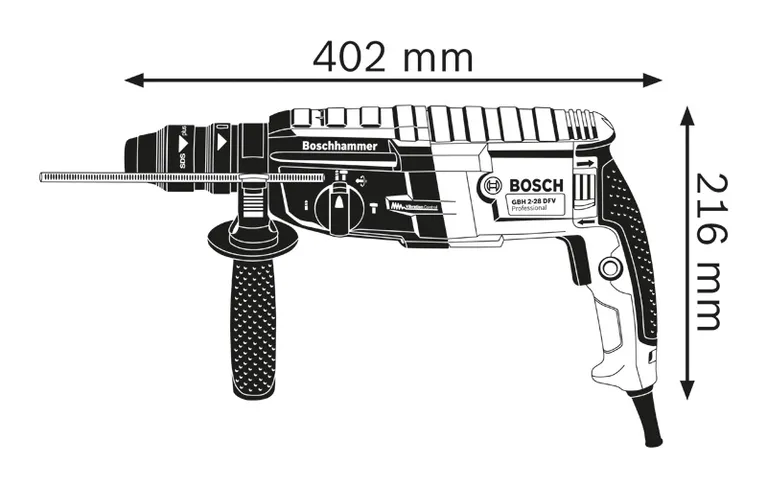

Tool dimensions (length) 402 mm
Tool dimensions (height) 216 mm
Tool holder SDS plus
Packaging dimensions (width x length x height) 353 x 440 x 154 mm
Voltage, electrical 110 V
Drilling dia. concrete, hammer drill bits 4 – 28 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 11 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 11 m/s²
Uncertainty K 1.5 m/s²

Advantages

Strongest rotary hammer in Bosch 2 kg SDS plus category with quick-change chuck

  • Delivers 3.2 J of impact energy for high-power drilling performance
  • KickBack Control for increased user protection
  • Vibration Control for effortless and continuous work in time-intensive applications

Functions

Optimal power transmission for small hammers
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Combi hammer with chisel function No rotary motion; impact effect only
Reduces the hazard of sudden tool reactions in binding conditions thanks to automatic shut-down of the tool
Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Convenient change of accessories Keyless chuck opens and closes easily
Cable length 4.0 m
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Construction The professional power tools for construction from Bosch.
Scope of supply
with auxiliary handle, Accessory

Part Number: 0611267661

£217.33
Including VAT.

Selected version

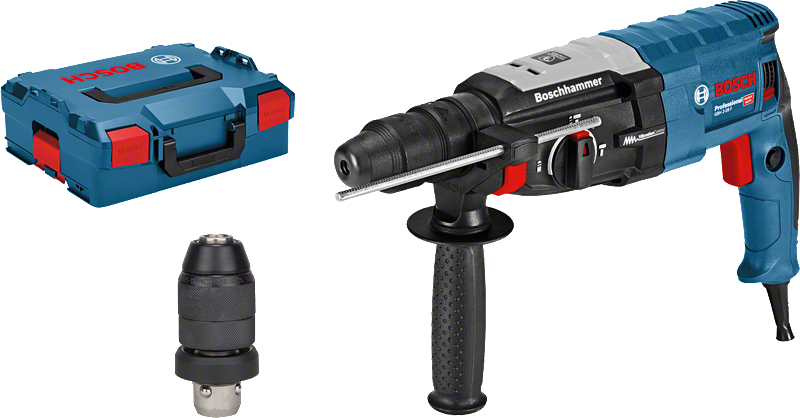

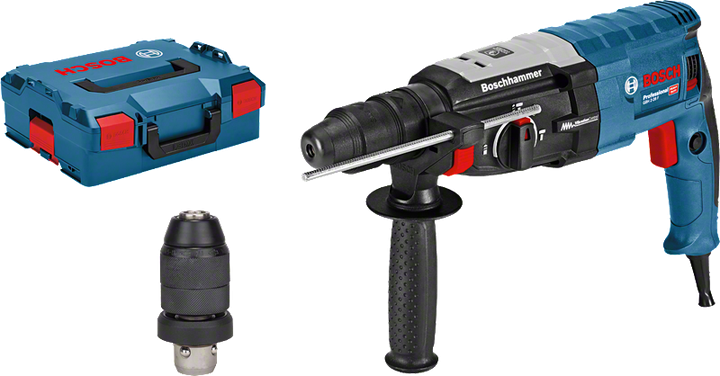

Price includes:

  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
  • L-BOXX inlay
  • L-BOXX 136 1 600 A01 2G0
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 110 V

in stock

with auxiliary handle, Accessory

Part Number: 0611267661920

£183.30
Including VAT.


Price includes:

  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
  • L-BOXX inlay
  • L-BOXX 136 1 600 A01 2G0
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 110 V

Available at Bosch partners

Product details
with auxiliary handle, Accessory

Part Number: 0611267661930

£141.40
Including VAT.


Price includes:

  • Auxiliary handle 2 602 025 141
  • Depth stop 210 mm 1 613 001 010
  • L-BOXX inlay
  • L-BOXX 136 1 600 A01 2G0
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 110 V

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611267671

£217.33
Including VAT.


Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611267671920

£167.16
Including VAT.


Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611267671930

£141.40
Including VAT.


Price includes:

  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V

Available at Bosch partners

Product details

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.
Select a spare part
Order online
Pay
Receive your item
Find a spare part
Find the right spare part
Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
Part number
3611B67660
Product name
GBH 2-28 F
Description
Rotary Hammer with SDS plus
Yes, the part number matches.
I'm looking for a spare part for this product.
Go to spare part
No, the part number does not match.
I'm looking for a spare part for a different product.
Browse spare parts catalogue
Accessories

Spindle Collar Diameter 50 mm

Angle Drill Head
£337.75

Downloads

Product data sheet

GBH 2-28 F Professional
(approx. 1.5 MB)

Download
User Manual

GBH 2-28 F (PDF 43.6 MB)

Download
