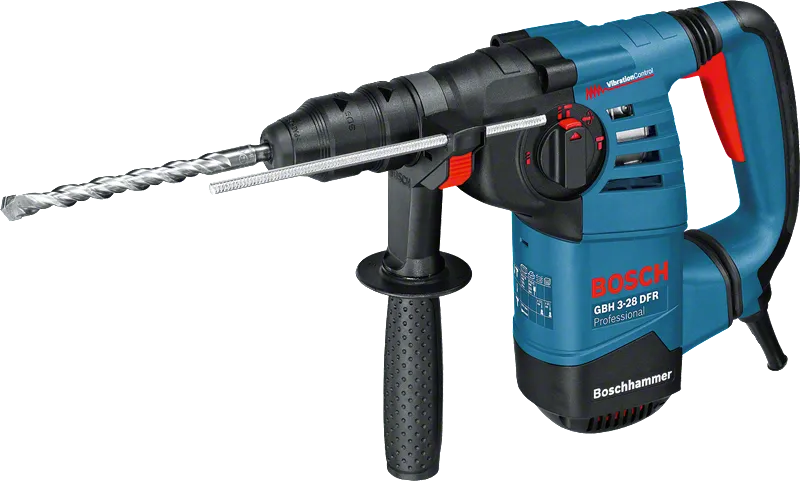

Rotary Hammer with SDS plus
GBH 3-28 DFR Professional

£284.68 Including VAT.
in carrying case with chuck, Accessory

Most versatile rotary hammer performance in the SDS plus category

Choose product variation:

Available at Bosch partners

Print

More

Technical data

The most important data

Rated input power 800 W
Impact energy 3.1 J
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Weight 3.6 kg

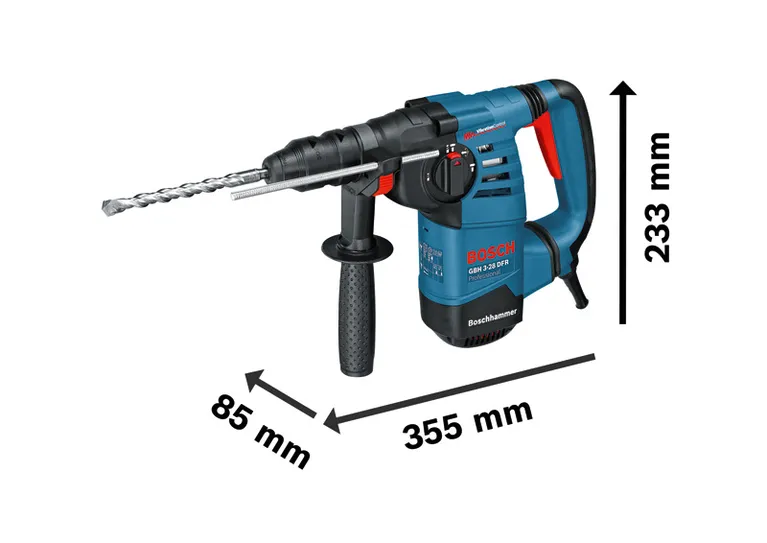

Tool dimensions (length) 354 mm
Tool dimensions (height) 233 mm
Tool holder SDS plus
Packaging dimensions (width x length x height) 360 x 475 x 125 mm
Voltage, electrical 240 V
Drilling range
Drilling dia. concrete, hammer drill bits, from 4 mm
Drilling dia. concrete, hammer drill bits, up to 28 mm
Drilling dia. concrete, hammer drill bits 4 – 28 mm
Opt. appl. range concrete, hammer drill bits 12 – 18 mm
Drilling dia. concrete, core cutters, up to 68 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter masonry, core cutters 82 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 13 m/s²
Uncertainty K 2 m/s²
Chiselling
Vibration emission value ah 9.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

Most versatile rotary hammer performance in the SDS plus category

  • Compact housing enables various applications in narrow and tight spaces
  • L-shaped design and Vibration Control for continuous effortless work
  • High power-to-weight ratio with 800 W motor and tool weight of 3.6 kg

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Optimal power transmission for small hammers
Metal chuck 1.0 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Construction The professional power tools for construction from Bosch.

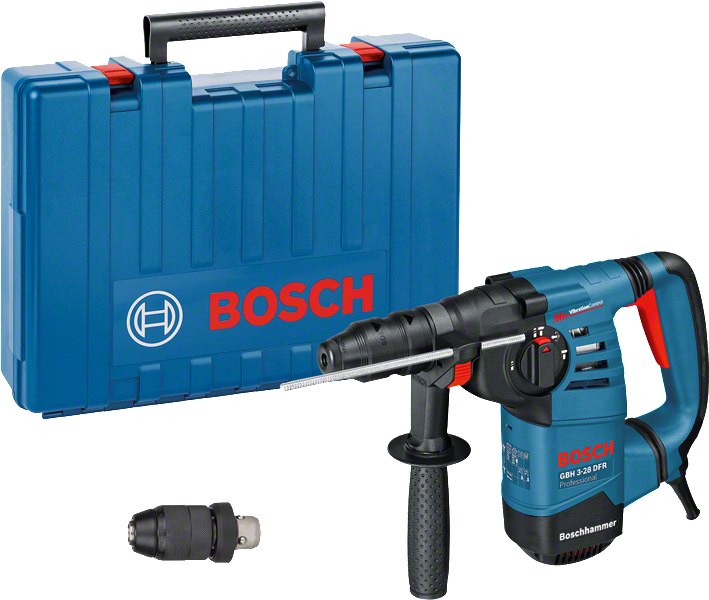

Scope of supply
in carrying case with chuck, Accessory

Part Number: 061124A060

£284.68
Including VAT.

Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 110 V
  • Depth stop 210 mm 1 613 001 010
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 191

Available at Bosch partners

Product details
in carrying case with chuck, Accessory

Part Number: 061124A060920

£249.10
Including VAT.

Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 110 V
  • Depth stop 210 mm 1 613 001 010
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 191

in stock

Product details
in carrying case with chuck, Accessory

Part Number: 061124A070

£284.68
Including VAT.

Selected version

Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 240 V
  • Depth stop 210 mm 1 613 001 010
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 191

Available at Bosch partners
