Rotary Hammer with SDS plus
GBH 4-32 DFR Professional

£402.48 Including VAT.

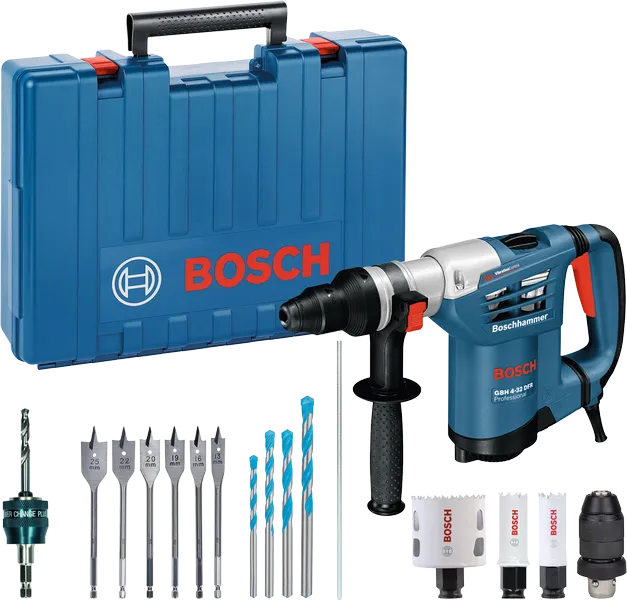

in carrying case with chuck, Accessory

Robustness combined with durability and excellent performance in the SDS plus category

Choose product variation:

in stock

Print

More

Technical data

The most important data
Rated input power 900 W
Impact energy 4.2 J
Impact rate at rated speed 0 – 3,600 bpm
Rated speed 0 – 800 rpm
Weight 4.7 kg
Tool holder SDS plus
Packaging dimensions (width x length x height) 353 x 473 x 125 mm
Voltage, electrical 110 V
Drilling range
Drilling dia. concrete, hammer drill bits, from 6 mm
Drilling dia. concrete, hammer drill bits, up to 32 mm
Drilling dia. concrete, hammer drill bits 6 – 32 mm
Opt. appl. range concrete, hammer drill bits 14 – 25 mm
Max. drilling diameter masonry, core cutters 90 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 32 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 12 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 9 m/s²
Uncertainty K 1.5 m/s²

Advantages

Robustness combined with durability and excellent performance in the SDS plus category

  • 900 W motor delivers 4.2 J of impact energy for very fast chisel removal rates
  • Durable due to robust metal gearbox housing design
  • Vibration Control for effortless and continuous work in time-intensive applications

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Optimal power transmission for small hammers
Metal chuck 1.0 - 13.0 mm
Forward / reverse rotation for inserting and removing screws
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Construction The professional power tools for construction from Bosch.
Scope of supply
in carrying case with chuck, Accessory

Part Number: 0611332161

£402.48
Including VAT.

Selected version

Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 110 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

in stock

in carrying case with chuck, Accessory

Part Number: 0611332161920

£352.18
Including VAT.


Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 110 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

Available at Bosch partners

Product details
in carrying case with chuck, Accessory

Part Number: 0611332161930

£271.68
Including VAT.


Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 110 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

Available at Bosch partners

Product details
in carrying case with chuck, Accessory

Part Number: 0611332171

£402.48
Including VAT.


Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 240 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

Available at Bosch partners

Product details
in carrying case with chuck, Accessory

Part Number: 0611332171920

£306.60
Including VAT.


Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 240 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

Available at Bosch partners

Product details
in carrying case with chuck, Accessory

Part Number: 0611332171930

£271.68
Including VAT.


Price includes:

  • Carrying case 2 605 438 651
  • Quick change chuck 13 mm 2 608 572 212
  • Voltage 240 V
  • Depth stop 310 mm 1 613 001 003
  • SDS plus quick-change chuck 2 608 572 213
  • Auxiliary handle 2 602 025 176

in stock

Product details

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.
Select a spare part
Order online
Pay
Receive your item
Find a spare part
Find the right spare part
Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
Part number
3611C32161
Product name
GBH 4-32 DFR
Description
Rotary Hammer with SDS plus
Yes, the part number matches.
I'm looking for a spare part for this product.
Go to spare part
No, the part number does not match.
I'm looking for a spare part for a different product.
Browse spare parts catalogue
Accessories

HSS Twist Drill Bit Ground

1/64" x 5 x 20 mm

Drilling with the Maximum Precision
£42.76

HSS Twist Drill Bit Ground

1/32" x 10 x 30 mm

Drilling with the Maximum Precision
£25.98

HSS Twist Drill Bit Ground

3/64" x 16 x 38 mm

Drilling with the Maximum Precision
£23.42

HSS Twist Drill Bit Ground

1/16" x 20 x 43 mm

Drilling with the Maximum Precision
£16.31

HSS Twist Drill Bit Ground

5/64" x 24 x 49 mm

Drilling with the Maximum Precision
£18.06

HSS Twist Drill Bit Ground

3/32" x 30 x 57 mm

Drilling with the Maximum Precision
£14.58

HSS Twist Drill Bit Ground

7/64" x 33 x 61 mm

Drilling with the Maximum Precision
£18.06

HSS Twist Drill Bit Ground

1/8" x 36 x 65 mm

Drilling with the Maximum Precision
£15.36

HSS Twist Drill Bit Ground

9/64" x 39 x 70 mm

Drilling with the Maximum Precision
£20.27

HSS Twist Drill Bit Ground

5/32" x 43 x 75 mm

Drilling with the Maximum Precision
£18.54

HSS Twist Drill Bit Ground

11/64" x 47 x 80 mm

Drilling with the Maximum Precision
£24.48

HSS Twist Drill Bit Ground

3/16" x 52 x 86 mm

Drilling with the Maximum Precision
£22.50

HSS Twist Drill Bit Ground

13/64" x 52 x 86 mm

Drilling with the Maximum Precision
£30.16

HSS Twist Drill Bit Ground

7/32" x 57 x 93 mm

Drilling with the Maximum Precision
£27.96

HSS Twist Drill Bit Ground

15/64" x 57 x 93 mm

Drilling with the Maximum Precision
£37.31

HSS Twist Drill Bit Ground

1/4" x 63 x 101 mm

Drilling with the Maximum Precision
£34.58

HSS Twist Drill Bit Ground

17/64" x 69 x 109 mm

Drilling with the Maximum Precision
£46.21

HSS Twist Drill Bit Ground

9/32" x 69 x 109 mm

Drilling with the Maximum Precision
£42.74

HSS Twist Drill Bit Ground

19/64" x 75 x 117 mm

Drilling with the Maximum Precision
£28.13

HSS Twist Drill Bit Ground

5/16" x 75 x 117 mm

Drilling with the Maximum Precision
£26.09

HSS Twist Drill Bit Ground

21/64" x 75 x 117 mm

Drilling with the Maximum Precision
£34.49

HSS Twist Drill Bit Ground

11/32" x 81 x 125 mm

Drilling with the Maximum Precision
£31.63

HSS Twist Drill Bit Ground

23/64" x 81 x 125 mm

Drilling with the Maximum Precision
£41.65

HSS Twist Drill Bit Ground

3/8" x 87 x 133 mm

Drilling with the Maximum Precision
£38.08

HSS Twist Drill Bit Ground

25/64" x 87 x 133 mm

Drilling with the Maximum Precision
£49.85

HSS Twist Drill Bit Ground

13/32" x 87 x 133 mm

Drilling with the Maximum Precision
£45.49

HSS Twist Drill Bit Ground

27/46" x 94 x 142 mm

Drilling with the Maximum Precision
£59.45

HSS Twist Drill Bit Ground

7/16" x 94 x 142 mm

Drilling with the Maximum Precision
£53.64

HSS Twist Drill Bit Ground

29/64" x 94 x 142 mm

Drilling with the Maximum Precision
£70.46

HSS Twist Drill Bit Ground

15/32" x 101 x 151 mm

Drilling with the Maximum Precision
£63.65

HSS Twist Drill Bit Ground

31/64" x 101 x 151 mm

Drilling with the Maximum Precision
£82.20

HSS Twist Drill Bit Ground

1/2" x 101 x 151 mm

Drilling with the Maximum Precision
£74.16

HSS Twist Drill Bit Ground

9/16" x 114 x 169 mm

Drilling with the Maximum Precision
£111.58

HSS Twist Drill Bit Ground

5/8" x 120 x 178 mm

Drilling with the Maximum Precision
£129.86

Keyless Chuck

1.5 – 13 mm, SDS plus

1.5- to 13-mm Diameters
£121.18

Keyless SDS plus Quick-Change Chuck

SDS plus

Easily Mounts and Dismounts Without Additional Tools
£74.24

SDS plus Shank for core cutter

105 mm

For Core Cutters
£30.97

Adapter for SDS plus CoreCutters

175 mm

Accessory Replacement
£87.17

Adapter for SDS plus CoreCutters

340 mm

Accessory Replacement
£122.58

SDS plus Shank for core cutter

8 mm, 220 mm

For Core Cutters
£55.34

Adapter For Diamond Core Cutters

SDS plus, G 1/2"

Ensures Compatibility Between Diamond Drilling Tools and Core Bits
£40.92

Auxiliary Handle

–

Safe Work With Hammers
£17.02

Downloads

Product data sheet

GBH 4-32 DFR Professional
(approx. 1.5 MB)

Download
User Manual

GBH 4-32 DFR (PDF 7.6 MB)

Download
User test report

Editor's Round-Up

Download
