Rotary hammers with SDS max

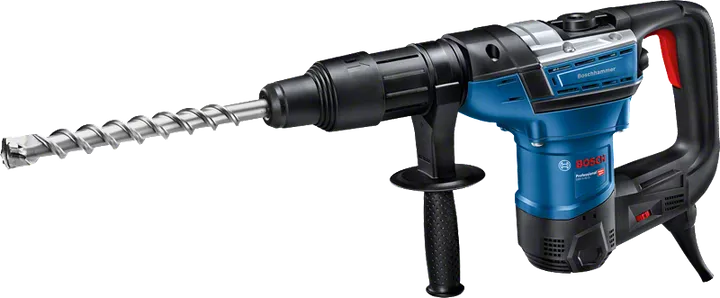

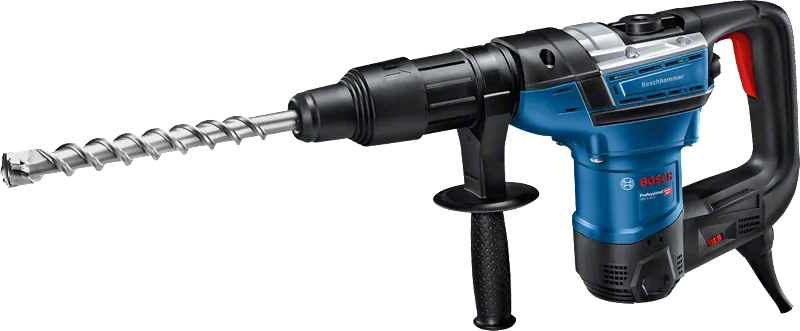

GBH 5-40 D Professional

Rotary Hammer with SDS max

Bosch’s entry-level tool in the SDS max rotary hammer category

Compact and lightweight for work in hard-to-reach places
Durable due to robust metal components and optimised lubrication system
Strong motor enables the delivery of 8.5 J of impact energy for fast drilling and high removal rate

See technical details

Functions & key features

Your Selection

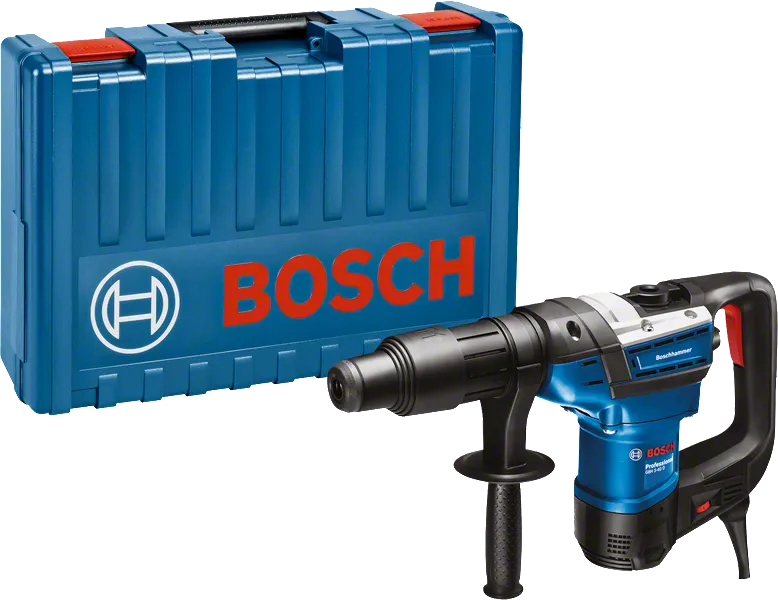

in carrying case with accessory set

Change variant

£741.24 Including VAT

Quantity

in stock

Estimated delivery time 2-5 working days

Buy from a Bosch Partner

Your Selected Variant

in carrying case with accessory set 0 611 269 060

£741.24 Including VAT

Select a variant

Your Selection

in carrying case with accessory set

Part Number: 0 611 269 060

£741.24

Including VAT

Quantity

in stock

Buy from a Bosch Partner

This product includes

Grease tube (spare part number 1 615 430 010)
Carrying case (spare part number 1 605 438 1D1)

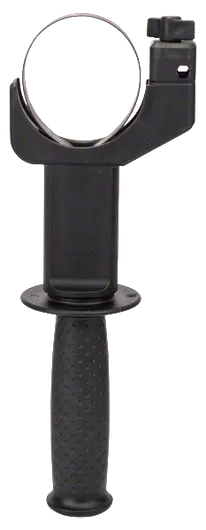

Auxiliary handle (spare part number 1 602 250 07H)
Machine cloth (spare part number 1 619 200 413)

Show less

Your Selection

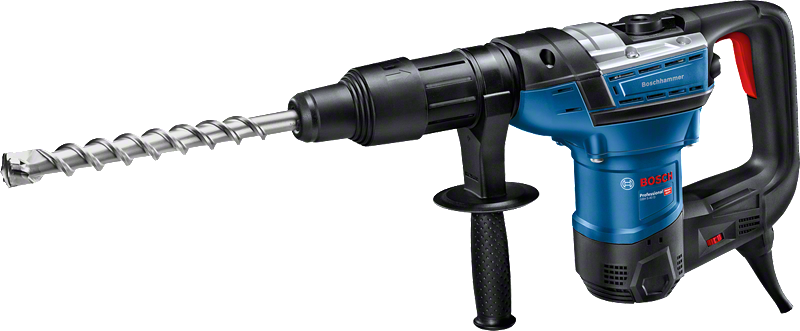

in carrying case with auxiliary handle

Part Number: 0 611 269 071

Select Variant

£511.37

Including VAT

Quantity

in stock

Buy from a Bosch Partner

This product includes

Auxiliary handle
Grease tube (spare part number 1 615 430 010)
Machine cloth
Carrying case (spare part number 1 605 438 1D1)

Show less

Technical data

Performance data
Impact rate at rated speed*	1,500 – 2,900 bpm
Rated speed*	170 – 340 rpm

The most important data
Rated input power*	1,100 W
Impact energy (according to EPTA 05/2016)	8.5 J
Tool holder	SDS max
Weight*	6.8 kg

Drilling range
Drilling dia. concrete, hammer drill bits	12 – 40 mm
Opt. appl. range concrete, hammer drill bits	18 – 32 mm
Drilling dia. concrete, breakthrough drill bits	45 – 55 mm
Drilling diameter in concrete with core cutters	40 – 90 mm
Max. drilling diameter masonry, core cutters	90 mm
Max. drilling diameter concrete	40 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	14 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling)
Vibration emission value ah	11.5 m/s²
Uncertainty K	1.5 m/s²

GBH 5-40 D Professional: Further information

Product Highlights

The GBH 5-40 D Professional is the entry-level tool in Bosch’s SDS max corded rotary hammer category. Its lightweight and compact design makes it ideal for work in hard-to-reach places. The rotary hammer is also designed for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.5 J of impact energy for a fast drilling progress and high material removal rate.

Equipment & Application

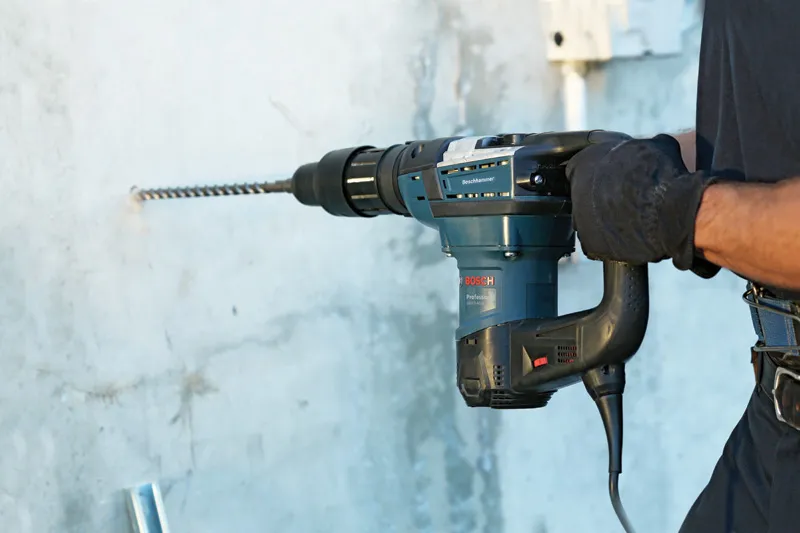

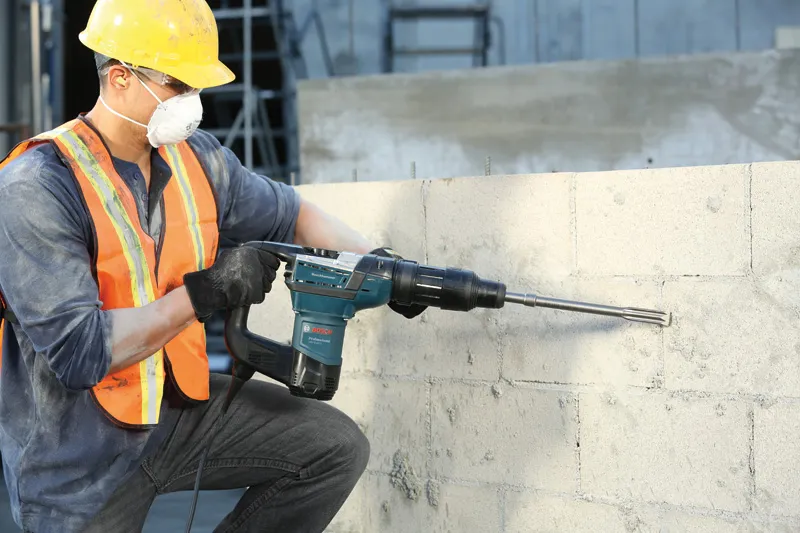

This tool is intended for drilling up to 40 mm in diameter as well as light chiselling work in concrete and stone. It is compatible with various dust attachments.

Additional Information

The GBH 5-40 D Professional also features a Rotation Control Clutch and Speed Selection.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3611B69060

Product name

GBH 5-40 D

Description

Rotary Hammer with SDS max

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GBH 5-40 D (PDF 6.2 MB) Instruction manual | GBH 5-40 D (PDF 5.5 MB)

Product data sheet Product data sheet | GBH 5-40 D (PDF 1.5 MB)

EPTA Procedure 05: Single Impact Energy

European Power Tool Association (EPTA) Procedure 05 provides a common method for the determination of the single impact energy for rotary hammers and breakers.

It defines a standardized measurement method, which ensures comparability between different tools and member companies.

The parameters defined in this procedure are standardized, whereas the real parameters can vary, e.g. due to different working conditions, bit dimensions, condition of work piece.
