Rotary Hammer with SDS max
GBH 8-45 D Professional

£614.90 Including VAT.
in carrying case with auxiliary handle, Accessory

All-round performer in Bosch’s SDS max rotary hammer category

Choose product variation:

in stock

Print

More

Technical data

The most important data

Rated input power 1,500 W
Impact energy 12.5 J
Impact rate at rated speed 1,380 – 2,720 bpm
Rated speed 0 – 305 rpm
Weight 8.2 kg

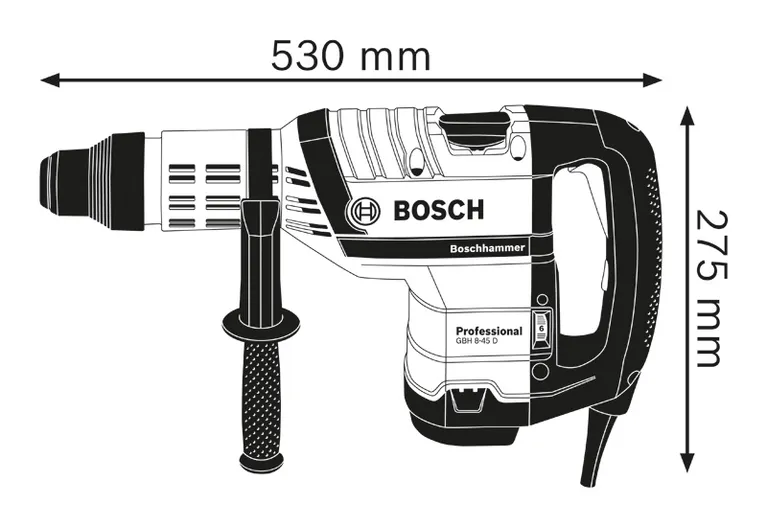

Tool dimensions (width) 116 mm
Tool dimensions (length) 540 mm
Tool dimensions (height) 310 mm
Tool holder SDS max
Packaging dimensions (width x length x height) 410 x 610 x 145 mm
Voltage, electrical 110 V
Drilling dia. concrete, hammer drill bits 12 – 45 mm
Opt. appl. range concrete, hammer drill bits 20 – 40 mm
Drilling dia. concrete, breakthrough drill bits 80 mm
Drilling diameter in concrete with core cutters 125 mm
Max. drilling diameter masonry, core cutters 45 mm
Max. drilling diameter in metal 125 mm
Max. drilling diameter in wood 80 mm
Noise/vibration information

Total vibration values (vector sum of three directions):

Hammer drilling in concrete
Vibration emission value ah 18.5 m/s²
Uncertainty K 1.5 m/s²
Chiselling
Vibration emission value ah 14 m/s²
Uncertainty K 1.5 m/s²

Advantages

All-round performer in Bosch’s SDS max rotary hammer category

  • Perfect power-to-weight ratio for performing many SDS max tasks
  • Durable due to robust metal components
  • Powerful motor enables the delivery of 12.5 J of impact energy for fast drilling and high removal rate

Functions

Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Optimal power transmission for large hammers
Prevents autonomous restart of the tool after power blackout. Only through new, conscious activation will the tool be ready to use
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Construction The professional power tools for construction from Bosch.
Scope of supply

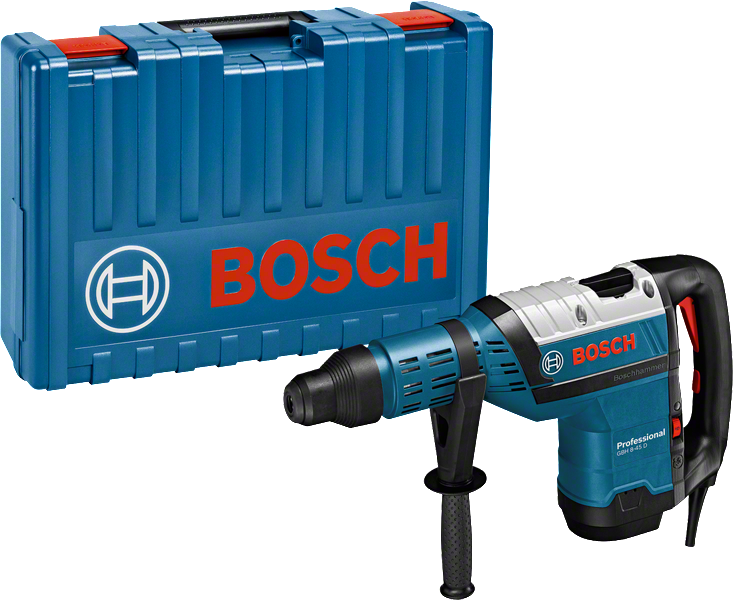

in carrying case with auxiliary handle, Accessory

Part Number: 0611265160

£614.90
Including VAT.

Selected version

Price includes:

  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V
  • Carrying case (spare part number 1 615 438 51A)

in stock

in carrying case with auxiliary handle, Accessory

Part Number: 0611265160920

£538.04
Including VAT.

Price includes:

  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 110 V
  • Carrying case (spare part number 1 615 438 51A)

in stock

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611265170

£614.90
Including VAT.

Price includes:

  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 240 V
  • Carrying case (spare part number 1 615 438 51A)

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611265170920

£460.32
Including VAT.

Price includes:

  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 240 V
  • Carrying case (spare part number 1 615 438 51A)

Available at Bosch partners

Product details
in carrying case with auxiliary handle, Accessory

Part Number: 0611265170930

£355.10
Including VAT.

Price includes:

  • Auxiliary handle (spare part number 1 612 025 004)
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Voltage 240 V
  • Carrying case (spare part number 1 615 438 51A)

Available at Bosch partners

Product details
