Drill

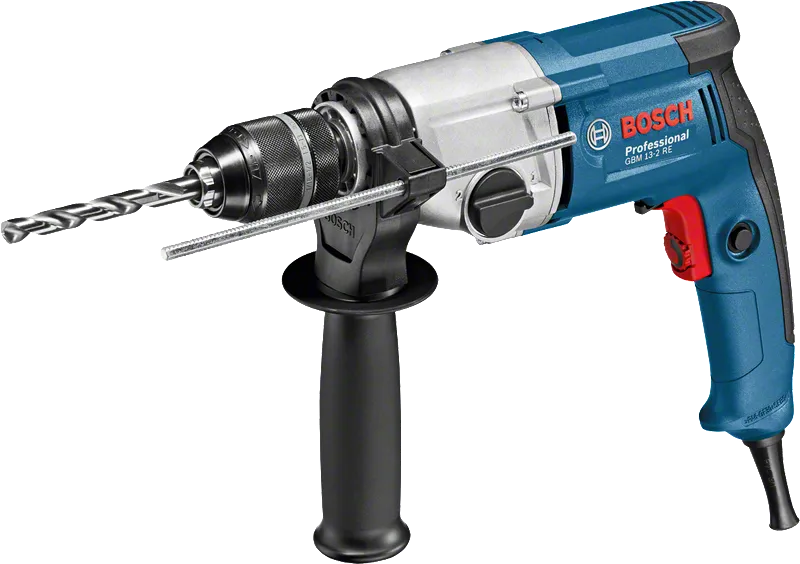

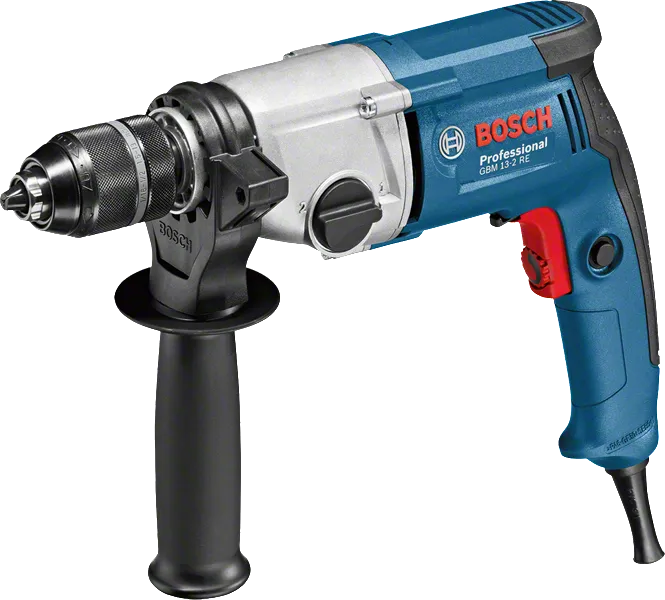

GBM 13-2 RE Professional

£191.98 Including VAT.
in cardboard box with chuck, Accessory

2-geared rotary drill for precision work

Choose product variation:

in stock

Print

More

Technical data

The most important data

Rated input power 750 W
No-load speed, 1st gear 0 – 1,000 rpm
No-load speed, 2nd gear 3,300 rpm
Power output 365 W
Weight 2.4 kg
Rated speed 500 / 1,750 rpm
Rated torque 6.8 / 2.5 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Max. torque 39.5 / 12.5 Nm
Packaging dimensions (width x length x height) 278 x 361 x 80 mm
Drill chuck, version Keyless chuck
Voltage, electrical 110 V
Spindle collar diameter 43 mm
Bit holder 1/2-20 UNF"
Drilling range
Drilling diameter in aluminium 20 / 12 mm
Drilling diameter in wood 32 / 20 mm
Drilling diameter in steel 13 / 8 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 81 dB(A)
Sound power level 93 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.6 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

2-geared rotary drill for precision work

  • Powerful 750 W motor and high torque for fast work progress, drilling holes in steel of up to 13 mm in diameter
  • Compact and ergonomic design providing good tool handling for precise results
  • 2-speed gearbox with speed preselection setting wheel for accurate performance in versatile applications

Functions

Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Easy and precise control of the RPM thanks to variable speed
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.
Scope of supply
in cardboard box with chuck, Accessory

Part Number: 06011B2060

£191.98
Including VAT.

Selected version

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 110 V

in stock

in cardboard box with chuck, Accessory

Part Number: 06011B2060920

£161.92
Including VAT.

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 110 V

Available at Bosch partners

Product details
in cardboard box with chuck, Accessory

Part Number: 06011B2060930

£124.91
Including VAT.

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 110 V

Available at Bosch partners

Product details
in cardboard box with chuck, Accessory

Part Number: 06011B2070

£191.98
Including VAT.

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 240 V

in stock

Product details
in cardboard box with chuck, Accessory

Part Number: 06011B2070920

£137.76
Including VAT.

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 240 V

Available at Bosch partners

Product details
in cardboard box with chuck, Accessory

Part Number: 06011B2070930

£124.91
Including VAT.

Price includes:

  • Keyless chuck 13 mm 2 608 572 105
  • Auxiliary handle 2 605 025 190
  • Depth stop 210 mm 1 613 001 010
  • Cardboard box
  • Voltage 240 V

Available at Bosch partners

Product details
