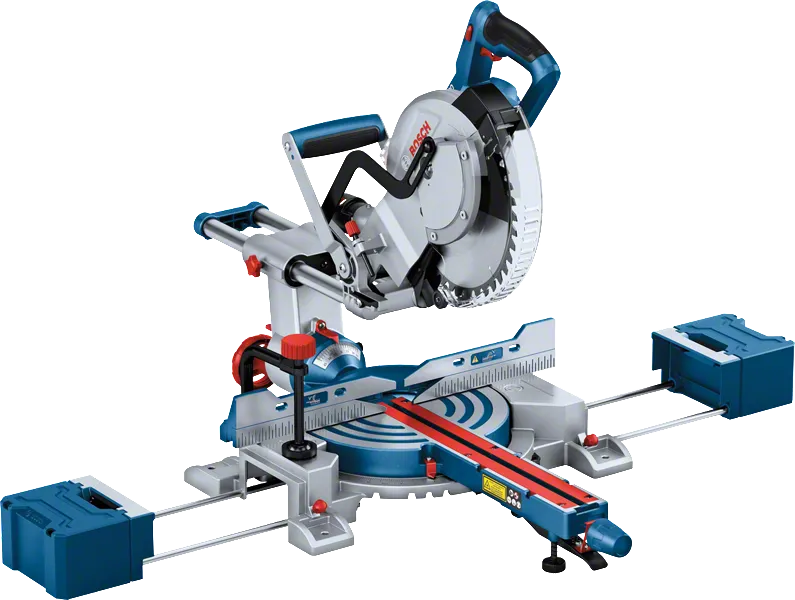

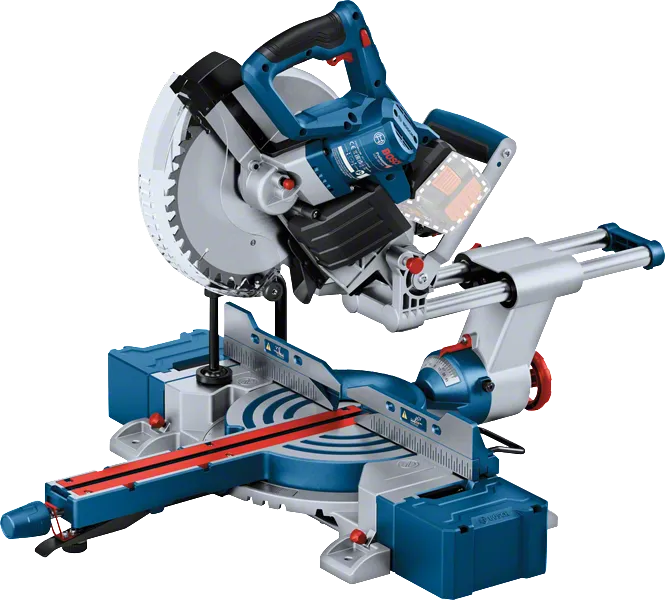

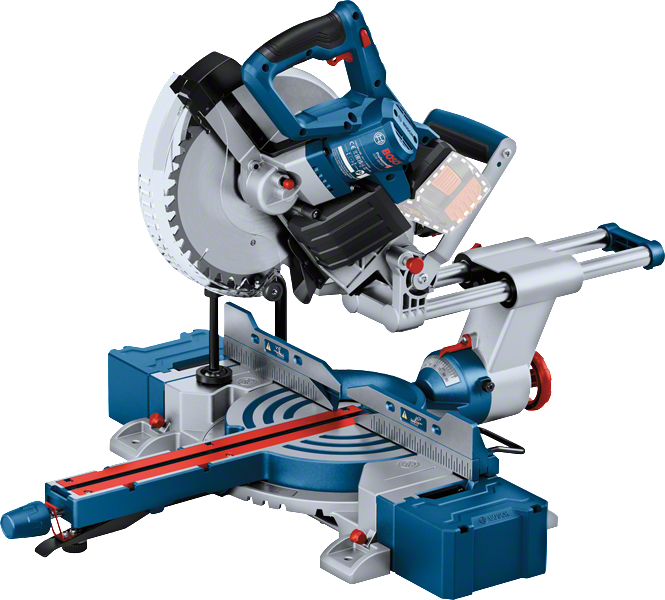

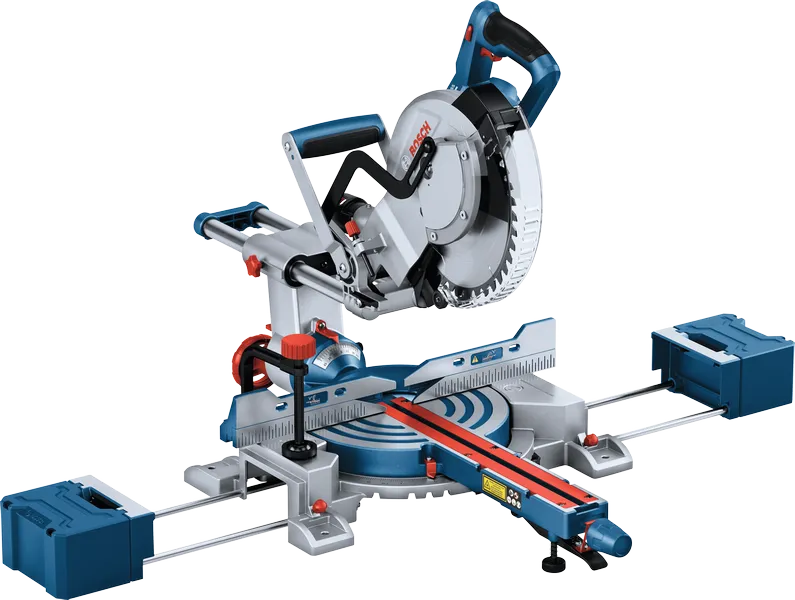

GCM 18V-254 D Professional
Cordless Mitre Saw BITURBO
Cuts up to 90 x 305 mm: mobile and lightweight cordless miter saw with high ergonomics
- Strong corded cutting performance due to BITURBO Brushless drive train

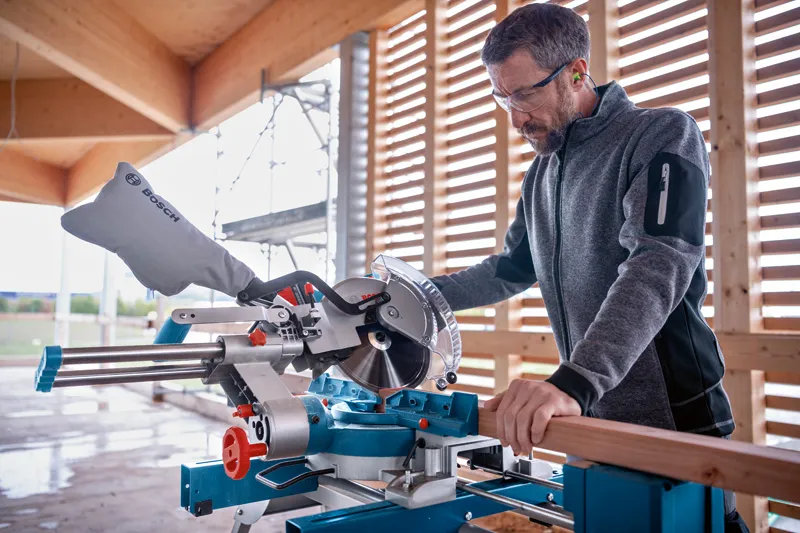

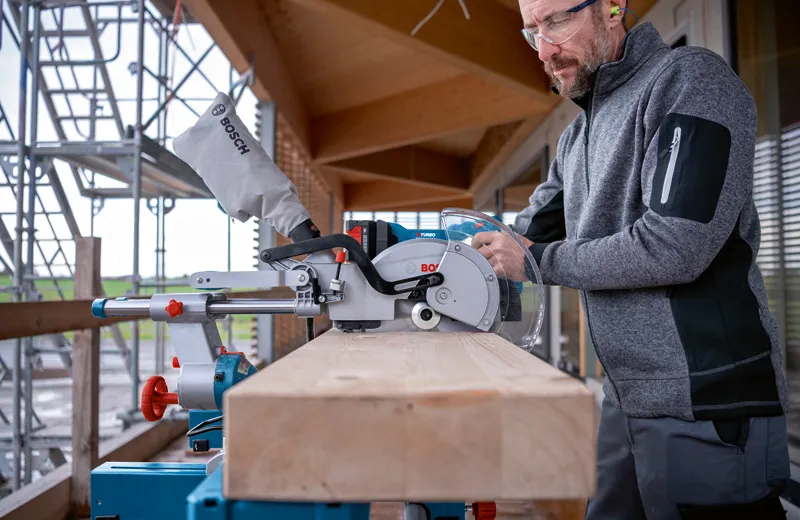

- Even long materials can be easily controlled during cutting

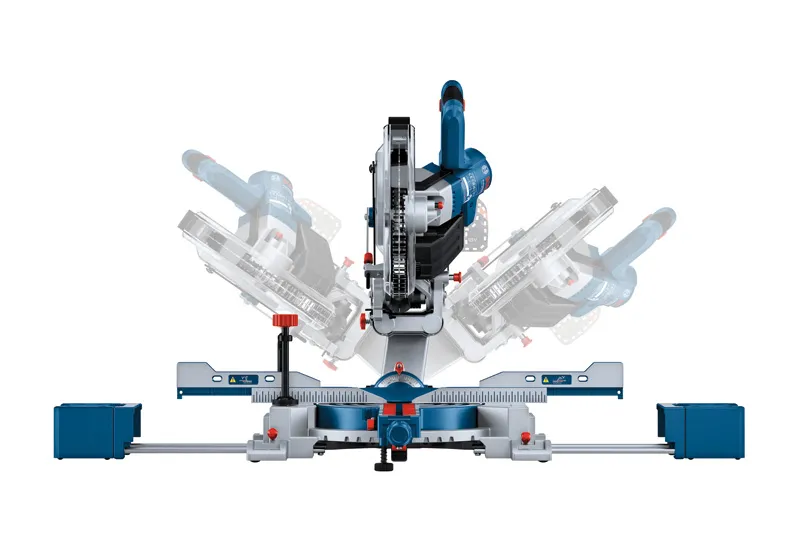

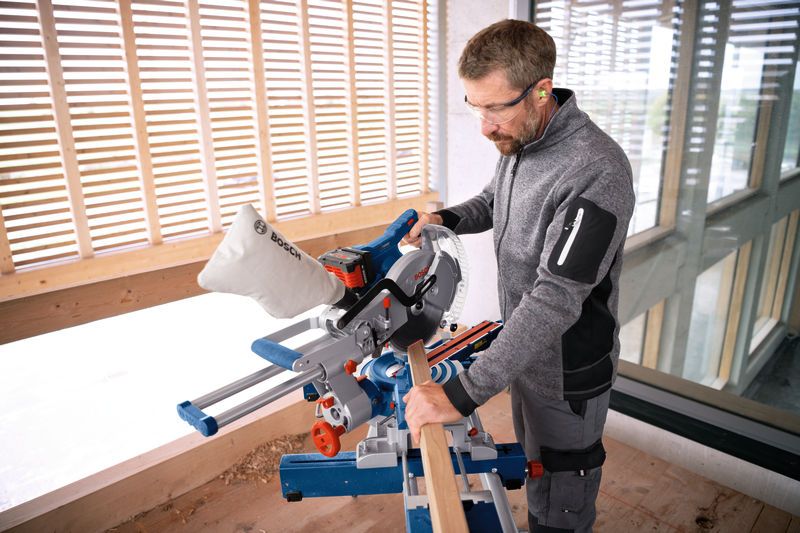

- More comfort and flexibility for demanding cuts due to dual bevel function
Functions & key features
GCM 18V-254 D Professional
Your Selection
Part Number: 0 601 B51 100
in stock
Included in this variant
-
1 x circular saw blade, Standard for Wood, 254 x 30 x 2.2 mm, 48Part Number: 2 608 842 239
-
2 x Workpiece support (flexibly pluggable)Part Number: 1 609 B07 675
-
ClampPart Number: 1 609 B06 932
-
Dust bagPart Number: 2 608 000 841
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 90 x 305 mm |
| Cutting capacity, 45° mitre | 90 x 215 mm |
| Cutting capacity, 45° bevel | 55 x 305 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 47 ° R |

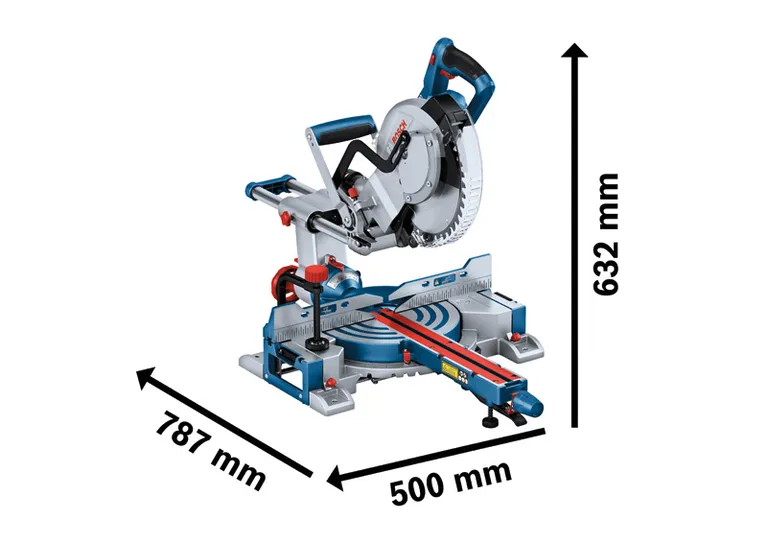

| Tool dimensions (width x length x height) | 500 x 787 x 632 mm |
| No-load speed* | 4,500 rpm |
| Saw blade diameter | 254 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 17.7 kg |
| Battery voltage | 18.0 V |
| Packaging dimensions (width x length x height) | 575 x 790 x 365 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 18V-254 D Professional: Further information
Product Highlights

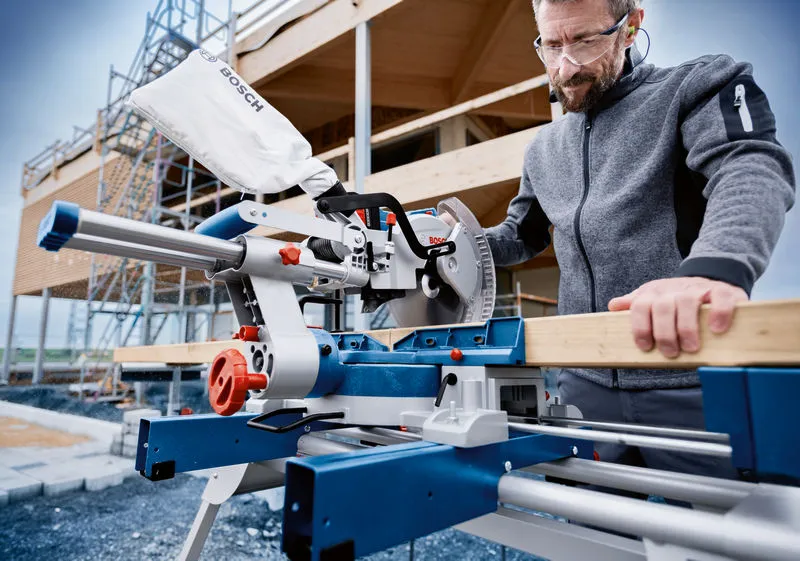

Its BITURBO Brushless drive train combined with its ProCORE18V battery provides the cordless GCM 18V-254 D Professional with strong cutting performance. The detachable workpiece supports, and long table extensions allow, the mobile miter saw to easily control long materials during cutting. Even challenging cuts are done with more comfort and flexibility thanks to the dual bevel setting with the ergonomic bevel lock wheel.
Equipment & Application

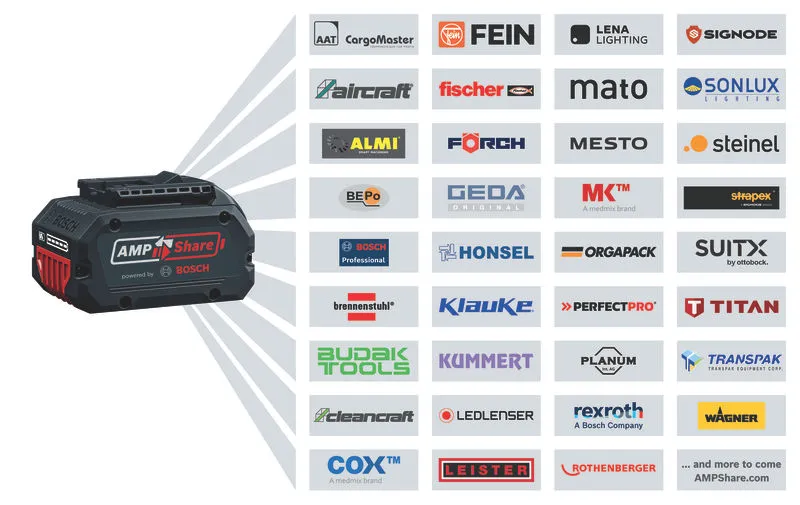

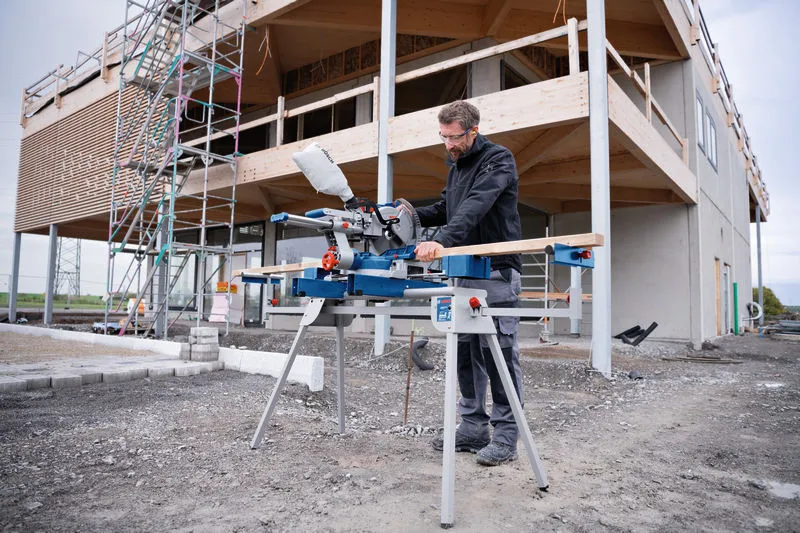

Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic are the ideal application areas of the GCM 18V‐254 D Professional. It is compatible with all batteries and chargers in the Bosch Professional 18V System. For maximum power, use ProCORE18V ≥ 5.5 Ah. For sufficient runtime, 8 Ah or 12 Ah are recommended. It is also compatible with all Bosch dust extractors, GTA saw stands, and saw blades for cordless miter saws. Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information

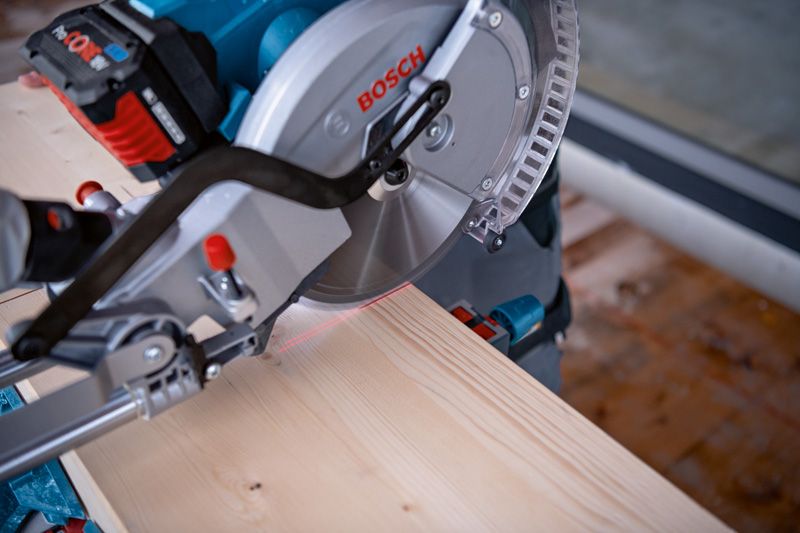

The mobile cordless mitre saw is light and compact, and its various one- or two-handed carrying options make it easy to transport. It features greater precision thanks to the dual laser lines on the left and right side of the saw blade.
