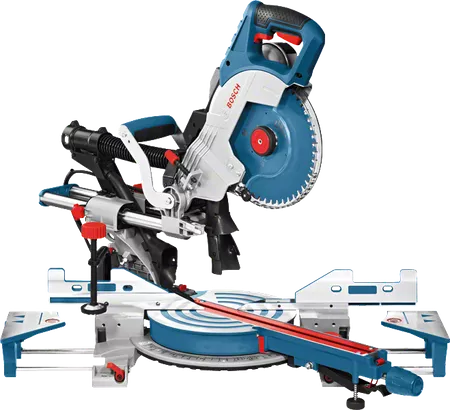

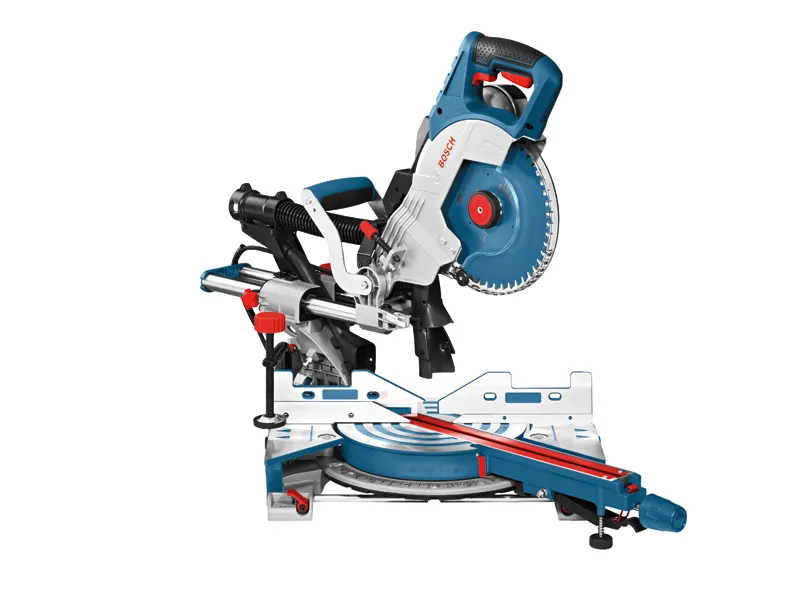

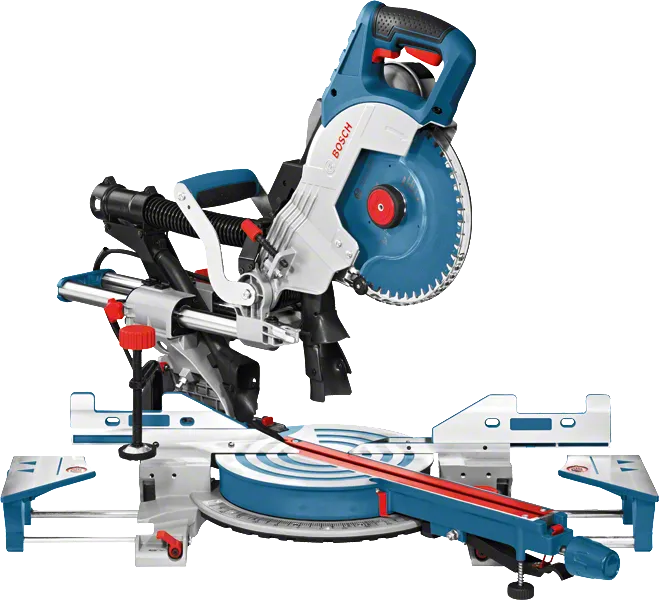

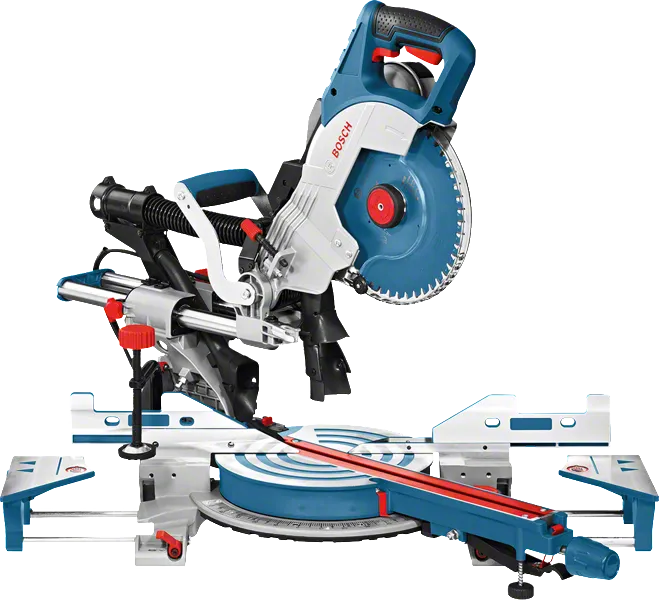

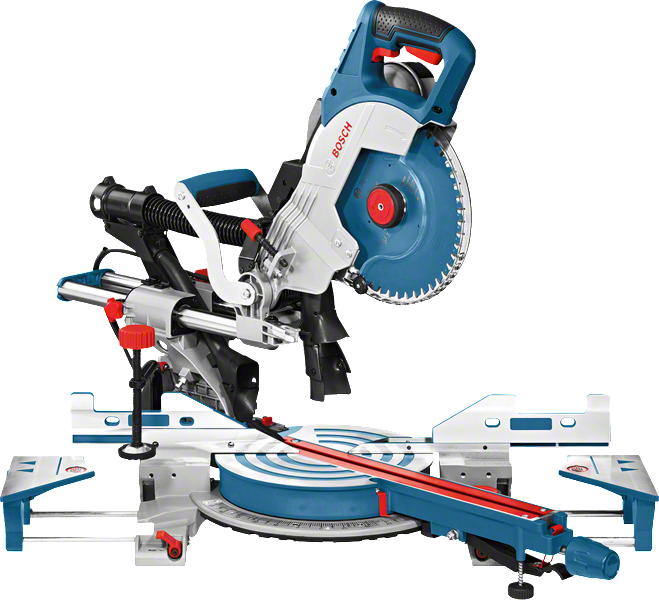

GCM 8 SDE Professional
Sliding Mitre Saw
Powerful mitre saw for various applications and materials
- Lightweight and compact, with convenient transport handle for one-handed transport and high mobility
- Variable cutting speed ensures high versatility in various materials
- Fast, tool-less saw blade changes ensure easy and convenient handling
Functions & key features
GCM 8 SDE Professional
Your Selection
Part Number: 0 601 B19 270
in stock
Included in this variant
-
Voltage 240 V
-
ClampPart Number: 1 609 B04 224
-
1 x circular saw blade, Expert for Wood, 216 x 30 x 2.4 mm, 48Part Number: 2 608 642 497
Technical data
The most important data |
|
|---|---|
| Cutting capacity, 0° | 70 x 312 mm |
| Cutting capacity, 45° mitre | 70 x 225 mm |
| Cutting capacity, 45° bevel | 45 x 312 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |

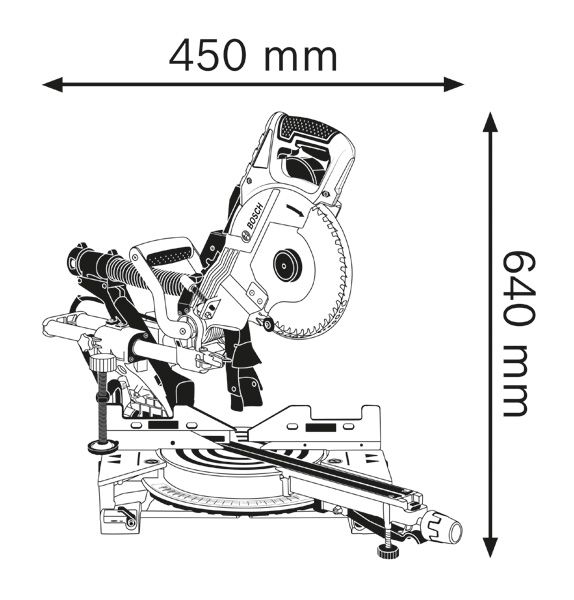

| Tool dimensions (width x length x height) | 450 x910 x640 mm |
| No-load speed* | 3,500 – 5,000 rpm |
| Saw blade diameter | 216 mm |
| Saw blade bore diameter | 30 mm |
| Weight* | 18.9 kg |
| Rated input power | 1,600 W |
| Voltage | 230 – 240 V |
| Packaging dimensions (width x length x height) | 473 x 840 x 430 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 8 SDE Professional: Further information
Product Highlights
Power and flexibility in one: The GCM 8 SDE Professional allows quick and precise work in almost any type of material. Its convenient, one-handed transport handle makes it lightweight and compactly designed for jobs on the go. Variable cutting speed enables high flexibility when cutting materials like plastic and aluminium. For highest convenience, it ensures quick and tool-less sawblade changes.
Equipment & Application

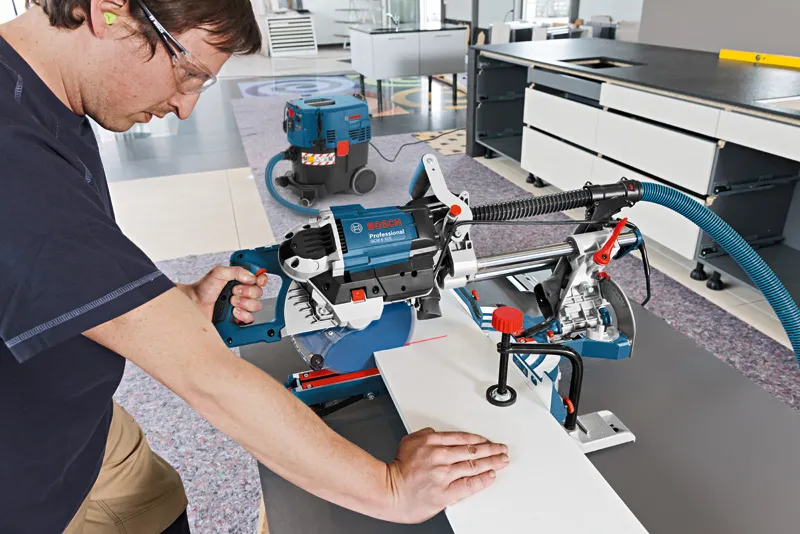

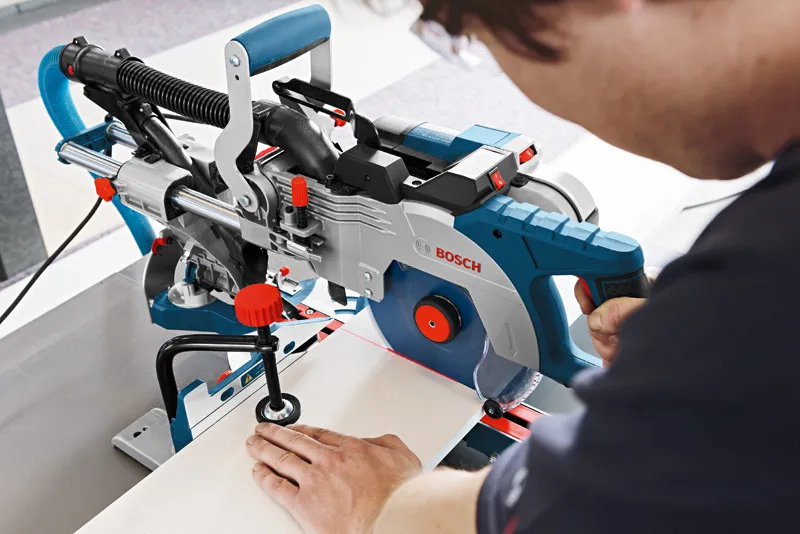

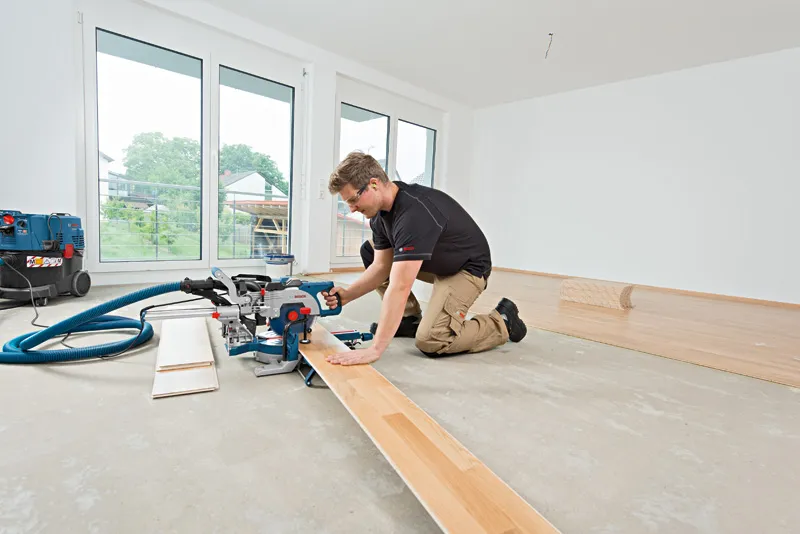

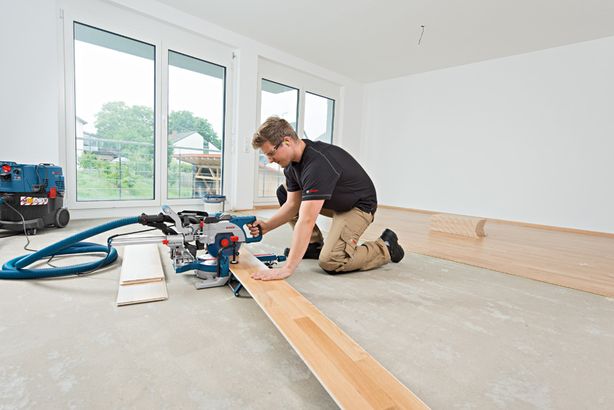

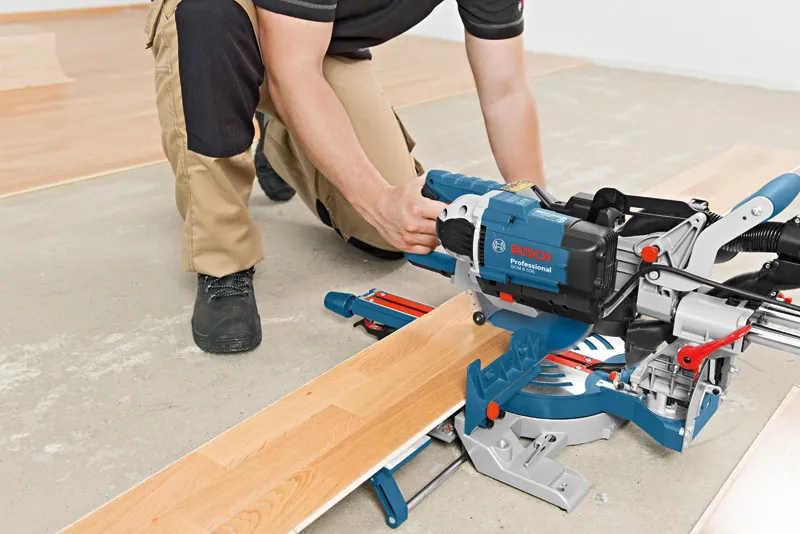

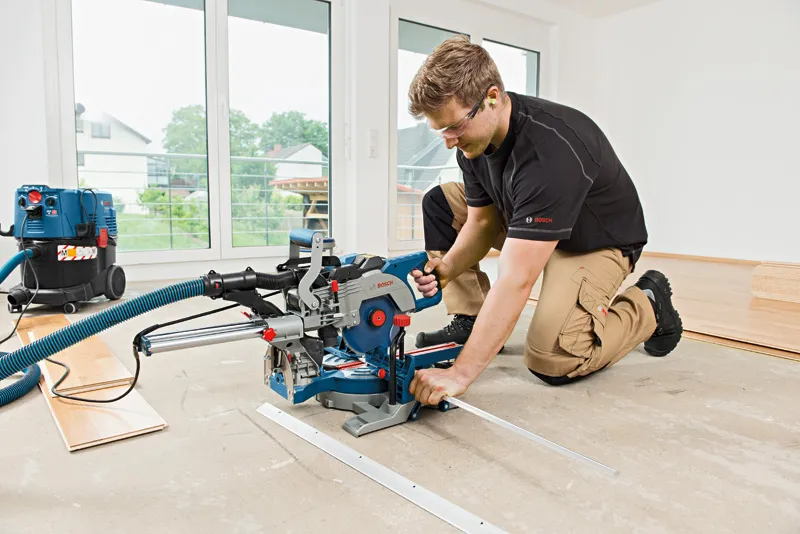

This mitre saw is intended for cross, mitre, bevel and groove cuts in wood, timber beams, and wood composites as well as board materials, floor panels, aluminium, and plastic. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
Additional Information
The GCM 8 SDE Professional also includes features such as 2-point dust extraction, bevel detent turrent, precision laser, soft start, double-sided tilt adjustment, and speed selection.
