Impact wrenches
New
GDS 18V-1000
GDS 18V-1000

GDS 18V-1000 Professional

Cordless Impact Wrench

GDS 18V-1000
GDS 18V-1000

Full power, no cord: 1/2" high torque impact wrench with BITURBO Brushless technology

  • High power with cordless freedom thanks to ProCORE18V batteries and brushless motor
  • Best performance for heavy duties with a tightening torque of 1,000 Nm and a breakaway torque of up to 1,600 Nm
  • High versatility and controlled power due to 3-speed/torque settings
See technical details

Functions

 Impact rate at rated speed 0 - 2600
Direct tool feedback and setting adjustments thanks to the integrated user interface and connectivity features.
Change variant

Available at Bosch partners

Buy from a Bosch partner

GDS 18V-1000 Professional 0 601 9J8 301

Select a variant

Your Selection

New

Part Number: 0 601 9J8 301

Available at Bosch partners

Buy from a Bosch partner Buy at Bosch Partners

Your Selection

New

in cardboard box

Part Number: 0 601 9J8 300

Available at Bosch partners

Buy from a Bosch partner Buy at Bosch Partners

Your Selection

New

with 2 x 8.0 Ah ProCORE18V Li-ion battery

Part Number: 0 601 9J8 370

Available at Bosch partners

Buy from a Bosch partner Buy at Bosch Partners

Your Selection

New

Part Number: 0 601 9J8 371

Available at Bosch partners

Buy from a Bosch partner Buy at Bosch Partners

Technical data

The most important data

No-load speed (1st level) 0-800 rpm
No-load speed 0-1,750 rpm
Weight excl. battery 2.9 kg
Tool holder 1/2'' Square
Torque adjustment range, min./max., 1st level 0/350 Nm
Torque adjustment range, min./max., 2nd level 0/700 Nm
Torque adjustment range, min./max., 3rd level 0/1000 Nm
No-load speed (2nd level) 0-1,200 rpm
No-load speed (3rd level) 0-1,750 rpm
Impact rate 0-2,600 bpm
Impact rate (1st level) 0-1,600 bpm
Impact rate (2nd level) 0-2,400 bpm
Impact rate (3rd level) 0-2,600 bpm
Torque settings 3
Torque, max. 1,000 Nm
Breakaway torque, max. 1,600 Nm

Screw diameter

Screw diameter M 10 - M 24

Total vibration values (Tightening screws and nuts of maximum permitted size)

Vibration emission value ah 13.5 m/s²
Uncertainty K 1.5 m/s²

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

GDS 18V-1000

GDS 18V-1000 Professional: Further information

Product Highlights

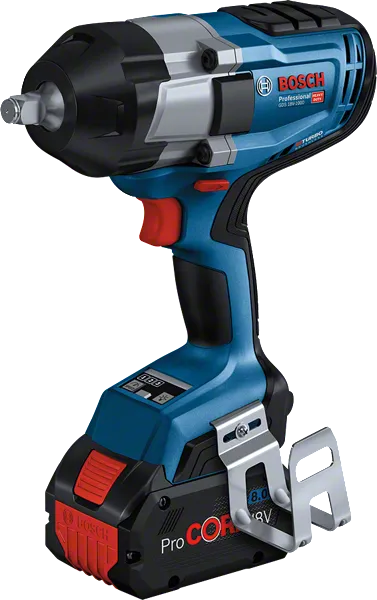

The GDS 18V-1000 Professional is the powerful 1/2" impact wrench with BITURBO Brushless technology. Its cordless freedom with outstanding power is the outcome of the high-performing brushless motor fully maximised for ProCORE18V batteries. The new impact mechanism, which is designed to deliver a maximum tightening torque of 1,000 Nm and a maximum breakaway torque of up to 1,600 Nm, provides best performance for heavy duties. Three settings offer excellent control over speed/torque for high versatility.

Equipment & Application

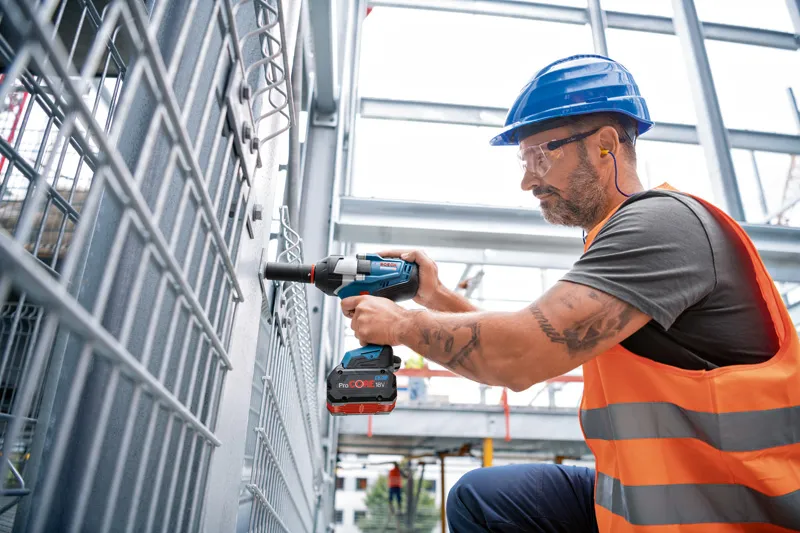

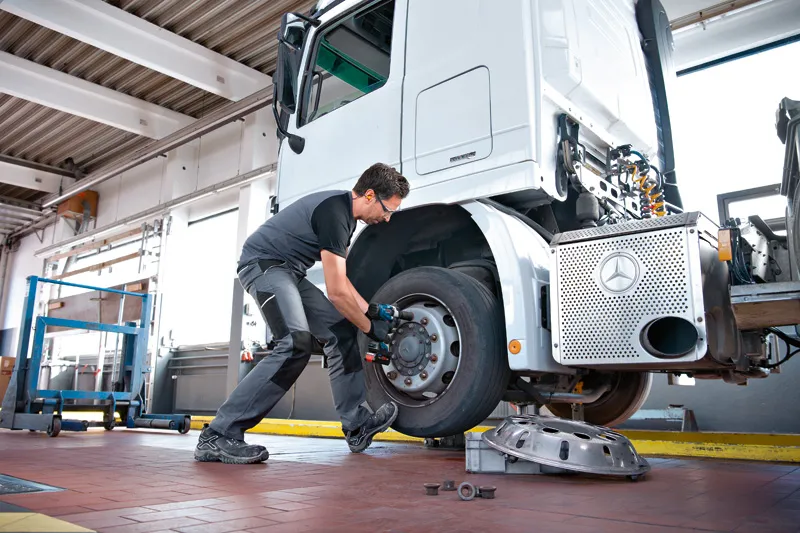

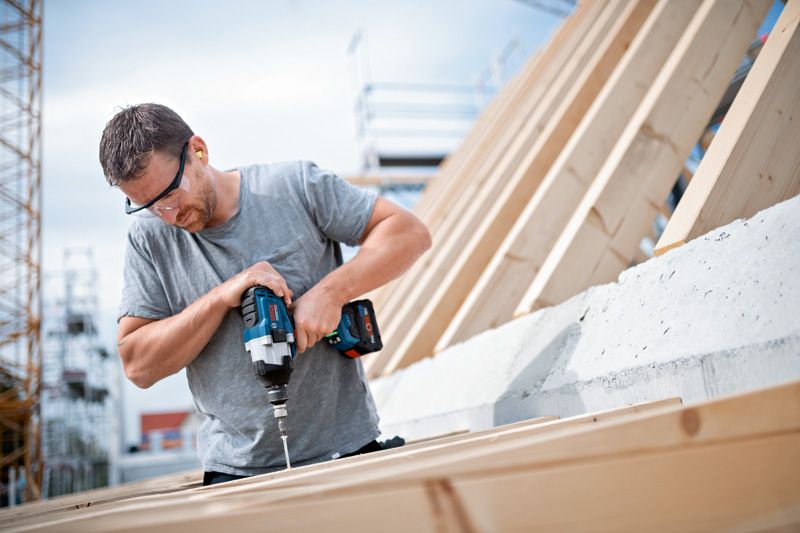

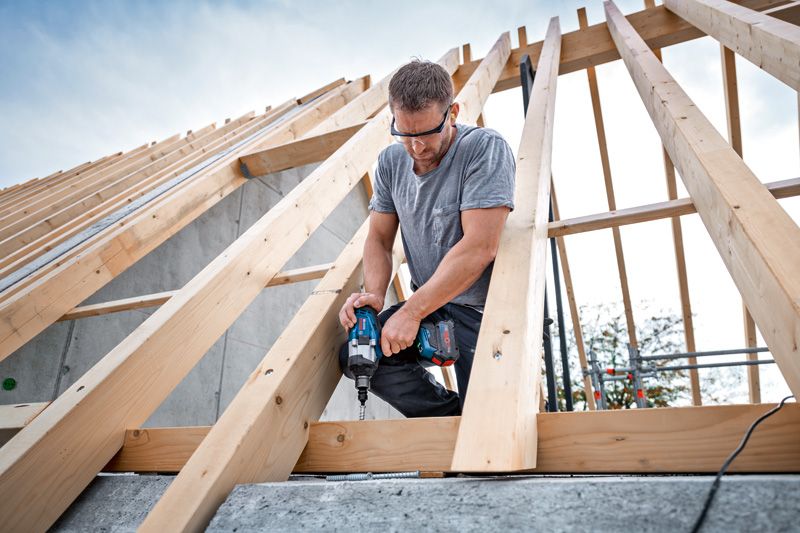

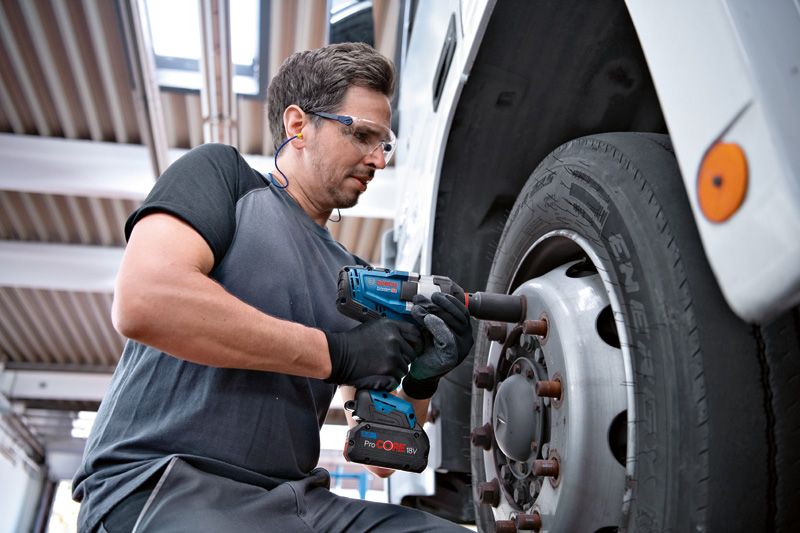

The impact wrench is perfect for metal applications with machine screws from M10 to M24 like structural steel construction, metal assembly, pipe fitting, and for truck maintenance as well as for wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system), for maximum power use ProCORE18V ≥ 5.5 Ah.

Additional Information

The GDS 18V-1000 Professional comes with ECP and EMP, a tool status indicator, LED light, a 1/2" tool holder with friction ring, and a ladder clip.
