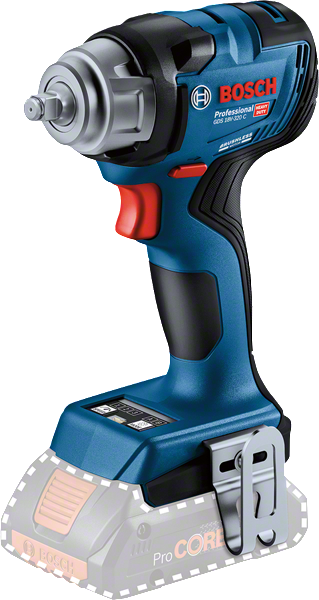

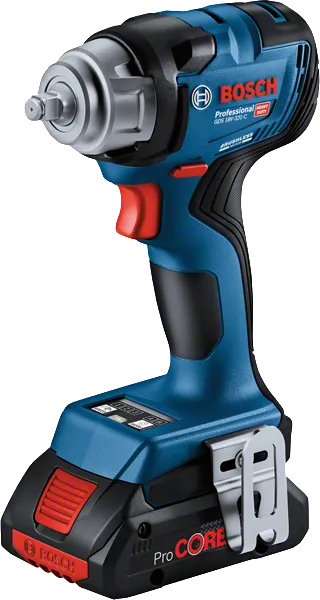

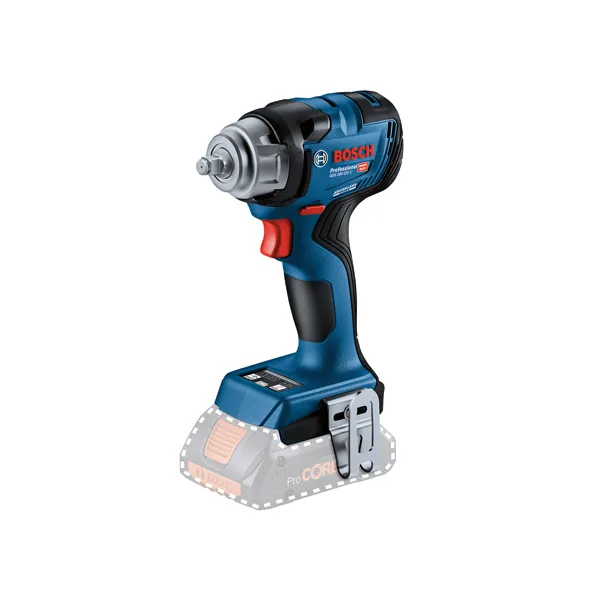

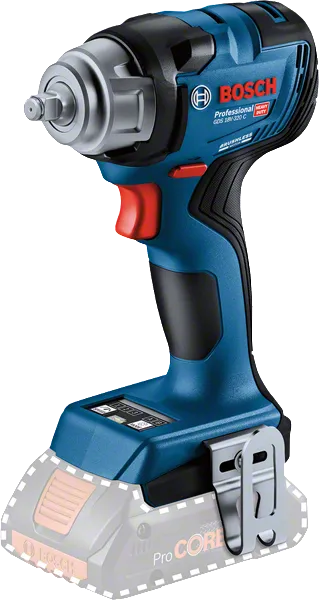

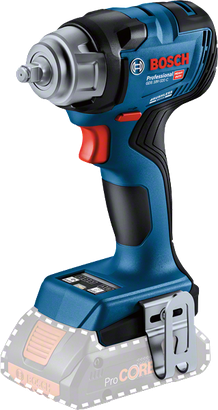

GDS 18V-320 C Professional
Cordless Impact Driver/Wrench
Compact and lightweight 3/8” impact wrench with adjustable modes for multi-purpose use
- Two default screw modes for multi-purpose use. Each mode can be adjusted and individualised via the Bosch Toolbox App
- Powerful 320 Nm tightening and 540 Nm breakaway torque performance
- Versatile three-speed/torque settings for more flexibility and control
Functions & key features
GDS 18V-320 C Professional
Your Selection
New
Part Number: 0 601 9L5 100
in stock
Included in this variant
-
Carton box
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 0/180 Nm |
| Torque adjustment range, min./max., 2nd level | 0/220 Nm |
| Torque adjustment range, min./max., 3rd level | 0/320 Nm |
| No-load speed* | 0-1,200 rpm |
| No-load speed (1st level)* | 0-1,200 rpm |
| No-load speed (2nd level)* | 0-1,900 rpm |
| No-load speed (3rd level)* | 0-2,800 rpm |
| Weight excl. battery* | 1.2 kg |
| Torque, max.* | 320 Nm |
| Impact rate | 0-3,800 bpm |
| Impact rate (1st level)* | 0-2,400 bpm |
| Impact rate (2nd level)* | 0-3,100 bpm |
| Impact rate (3rd level)* | 0-3,800 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 1/2" square friction ring and thru hole |
| Breakaway torque, max. | 540 Nm |
| Packaging dimensions (width x length x height) | 224 x 234 x 94 mm |
| BITURBO | No |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GDS 18V-320 C Professional: Further information
Product Highlights
The compact and lightweight GDS 18V-320 HC Professional cordless impact wrench makes work easier. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screwheads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be adjusted conveniently to a specific application via the Bosch Toolbox App. 320 Nm tightening and 540 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.
Equipment & Application
The impact wrench is ideal for metal workshops/locksmiths, industrial assembly and vehicle maintenance using metal bolts/nuts from M6-M16. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System) and compatible with AMPShare, the battery alliance for various brands.
Additional Information
The GDS 18V-320 HC Professional comes with tool status indicator, LED light, and belt clip for added convenience.
