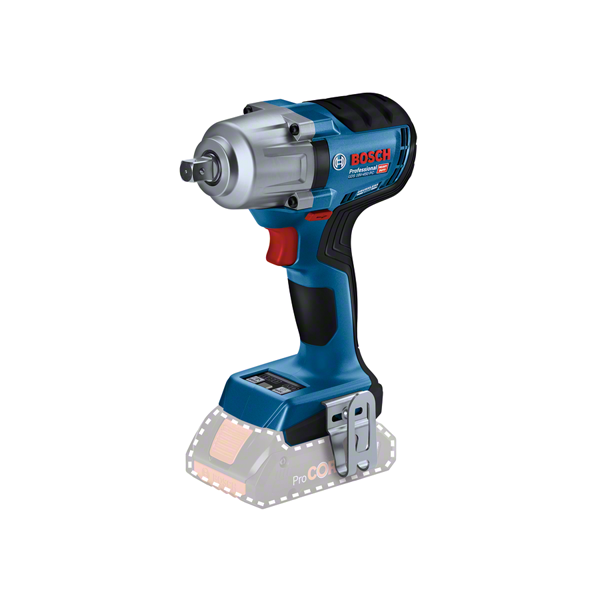

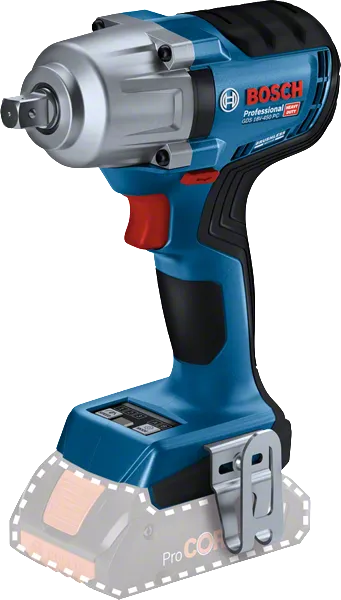

GDS 18V-450 PC Professional
Cordless Impact Wrench
Facilitates work with adjustable modes for consistent driving
- Two default screw modes for consistent driving. Each mode can be adjusted and individualised via the Bosch Toolbox App
- Powerful 450 Nm tightening and 800 Nm breakaway torque performance
- Versatile three-speed/torque settings for more flexibility and control
Functions & key features
Your Selection
- in cardboard box
not available
Available at 3 BOSCH Partners
Select a variant
Your Selection
Part Number: 0 601 9K4 100
not available
Available at 3 BOSCH PartnersIncluded in this variant
-
Cardboard box
Your Selection
Part Number: 0 601 9K4 101
in stock
Included in this variant
-

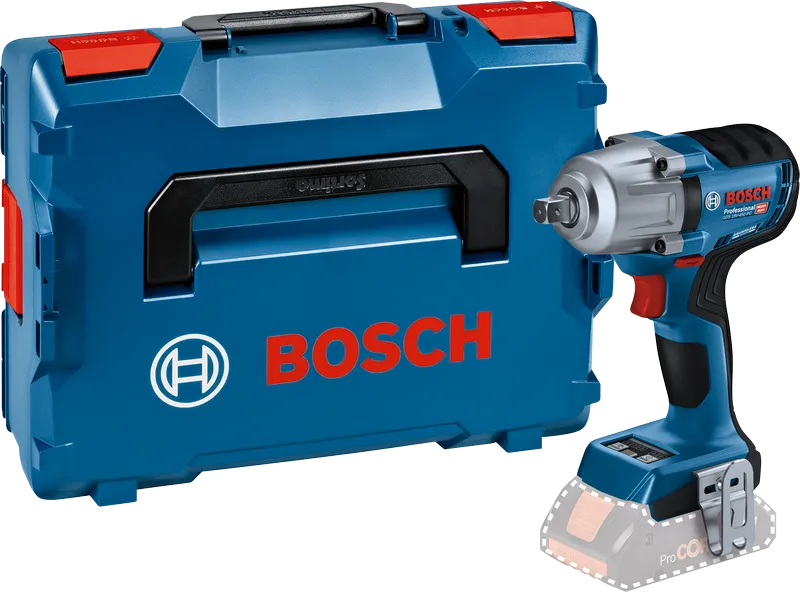

L-BOXX 136Part Number: 1 600 A01 2G0
-
1/1 L-BOXX inlayPart Number: 1 600 A02 DG5
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
Your Selection

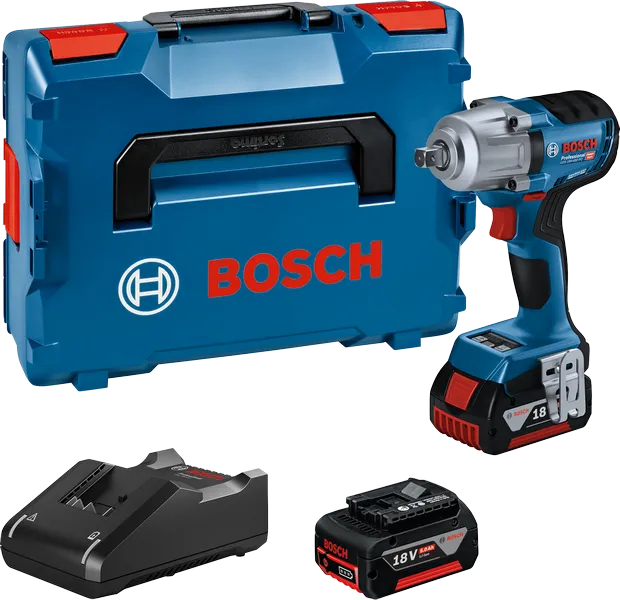

Part Number: 0 601 9K4 170
in stock
Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
1/1 L-BOXX inlayPart Number: 1 600 A02 DG5
-
1 x Bluetooth Low Energy module GCY 42 ProfessionalPart Number: 1 600 A01 3WF
-
Quick charger GAL 18V-40 ProfessionalPart Number: 1 600 A01 9RK
-
2 x battery ProCORE18V 4.0AhPart Number: 1 600 A01 6GB
Technical data
The most important data |
|
|---|---|
| Torque adjustment range, min./max., 1st level | 0/250 Nm |
| Torque adjustment range, min./max., 2nd level | 0/330 Nm |
| Torque adjustment range, min./max., 3rd level | 0/450 Nm |
| No-load speed* | 0-1,000 rpm |
| No-load speed (1st level)* | 0-1,000 rpm |
| No-load speed (2nd level)* | 0-1,500 rpm |
| No-load speed (3rd level)* | 0-2,300 rpm |
| Torque settings | 3 |
| Weight excl. battery* | 1.6 kg |
| Torque, max.* | 450 Nm |
| Impact rate | 0-3,300 bpm |
| Impact rate (1st level)* | 0-1,900 bpm |
| Impact rate (2nd level)* | 0-2,500 bpm |
| Impact rate (3rd level)* | 0-3,300 bpm |
| Battery voltage | 18.0 V |
| Tool holder | 1/2'' Square |
| Breakaway torque, max. | 800 Nm |

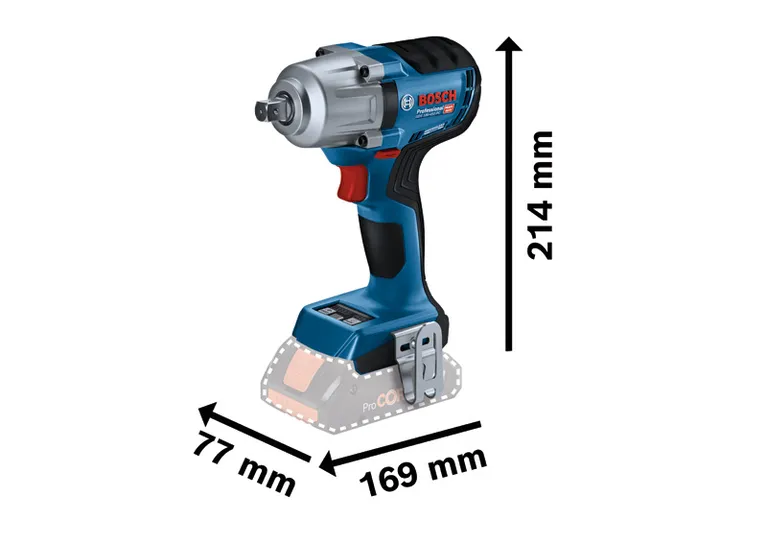

| Packaging dimensions (width x length x height) | 224 x 234 x 94 mm |
| Weight incl. battery* | 1.6 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GDS 18V-450 PC Professional: Further information
Product Highlights
Make work easier with the GDS 18V-450 PC cordless impact wrench. Its two default modes on the user interface, metal bolt/nut (A) and wood screw (B), ensure controlled application to prevent broken screw heads and the loss of metal bolts or nuts by slowing down or shutting off the impact wrench. Each mode can be conveniently adjusted to a specific application via the Bosch Toolbox App. 450 Nm tightening and 800 Nm breakaway torque deliver top performance. Greater flexibility and control are provided thanks to three different speed/torque settings.
Equipment & Application
The impact wrench is ideal for metal workshops/locksmiths, industrial assembly, framing, and vehicle maintenance using metal bolts/nuts from M10-M20. It is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GDS 18V-450 PC with pin detent anvil comes with a tool status indicator, LED light, and belt clip for added convenience.
