Digital Inclinometer
GIM 120 Professional

£157.00 Including VAT.
with 4 x battery (AA), Protective Bag

Longer for maximum precision

in stock

Print

Technical data

The most important data

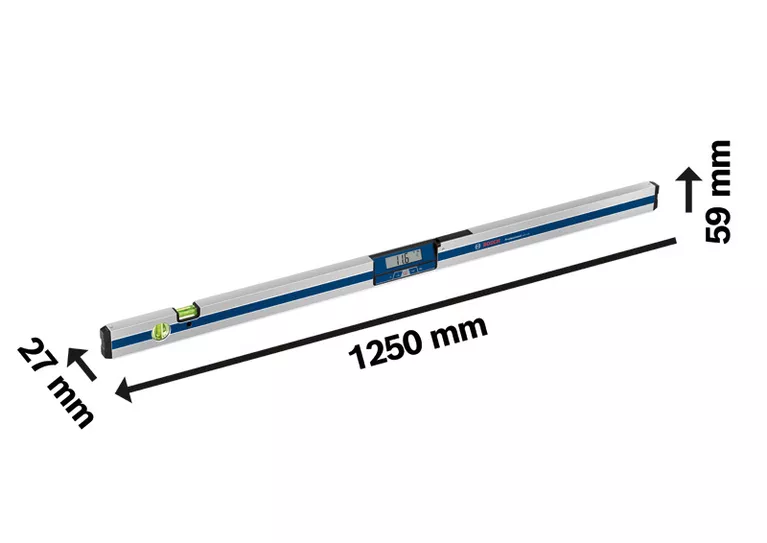

Length 120 cm
Measurement range 0 – 360° (4 x 90°)
Electronics measurement accuracy 0°/90° ± 0.05°
Electronics measuring accuracy at 1– 89° ± 0.2°
Measurement accuracy, vials ± 0.057° = ± 1 mm/m
Operating duration, inclination measurem., approx. 200 h
Weight, approx. 1.3 kg
Units of measurement °, %, mm/m

Advantages

Longer for maximum precision

  • Measures precise tilts in degrees, percent or millimetres/metres
  • Direction arrows and audible signals at 0° and 90° for easy alignment
  • Measured values automatically turn on the display when working overhead

Functions

Hold and Copy Hold/Copy function
Length of GIM 120 Length 120 cm
Flip Display Rotating readout on display
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Measuring accuracy of incline Electronics measuring accuracy 0°/90°: ± 0.05°; Electronics measuring accuracy at 1 – 89°: ± 0.2°
Measuring range of angles 0°-360° Angle measuring range 0°-360°

Scope of supply

with 4 x battery (AA), Protective Bag

Part Number: 0601076800

£157.00
Including VAT.

Selected version

Price includes:

  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

in stock
