New
PRO

PRO GIS12V-700-14

Thermo Detector

Order number 0.601.083.A00

  • Advanced settings like material catalogue and small spot size ensure accurate measurements every time
  • Dual power options: Compatible with AA1 adapter or 12V battery platform for continuous operation
  • Built to last: IP54 protection and 2 m drop resistance for reliable use in tough conditions
View more
Protected tools.
12V system.

Not available

£231.26

incl. VAT

£192.72

excl. VAT

FREE UK DELIVERY

for orders over £ 50

UP TO 3 YEARS WARRANTY

for power tools and measuring tools

14 DAYS FREE RETURN

returns & exchanges


with 4 x battery (AA) 0 601 083 A00

£231.26

incl. VAT

£192.72

excl. VAT

Not available

PRO GIS12V-700-14

Your Selection

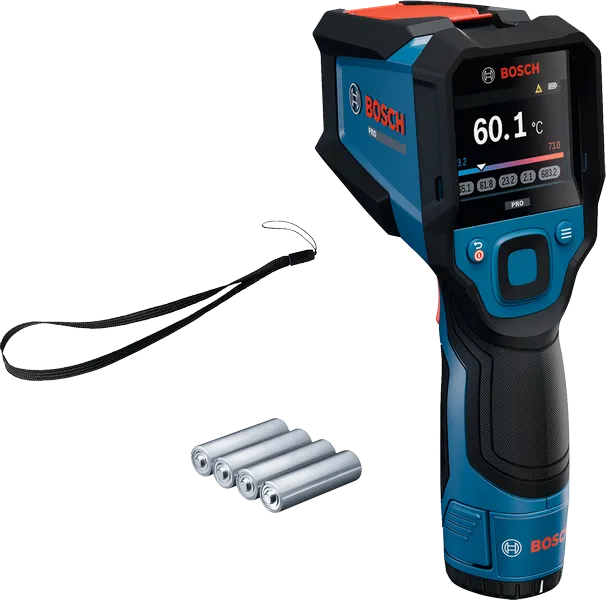

Bosch GIS 700 infrared thermometer with batteries.
New
with 4 x battery (AA)

Part Number: 0 601 083 A00

£231.26

incl. VAT

£192.72

excl. VAT

Not available

Find a local dealer

Included in this variant

  • Alkaline battery adapter
  • 4 x 1.5 V LR6 battery (AA)

Technical data

The most important data

Battery voltage
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Measurement range
-30 °C to +700 °C, −30 °C … −20,1 °C , ±4,5 °C , −20 °C … −10,1 °C , ±3,5 °C , −10 °C … −0 °C , ±2,5 °C , 0,1 °C … +100 °C , ±1,5 °C , +100,1 °C … +500 °C , ±1,5 % , +500,1 °C … +700 °C
Measuring accuracy of IR*
± 1.5 °C
Resolution
0.1 °C
Laser diode
640 – 660 nm, <1 mW
Power supply and runtime
4 x 1.5 V LR6 (AA), 1 x GBA 12V, 1 x GBA 10.8V
Shock protection
2 m
Dust and splash protection*
IP54
Weight*
0.35 kg
Display type
TFT LCD
Size of display
2.4"
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Working range*
0.1 – 5 m
Focus distance, minimum
0.1 m
Number of batteries
4 Pcs
Battery type
1.5 V LR6 (AA)

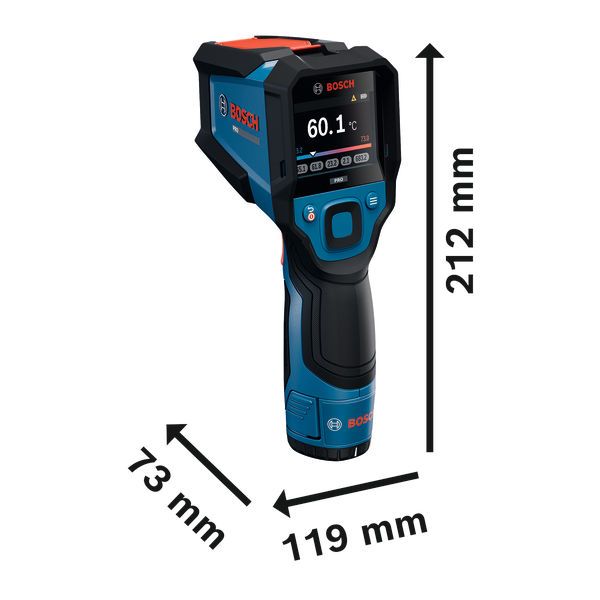

Tool dimensions (L x W x H)
73 x 119 x 212
Net weight
0.35 kg
Optics
20:1

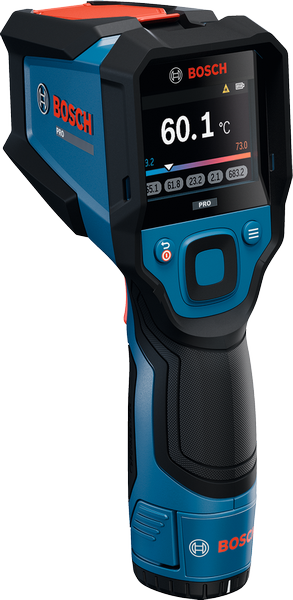

Bosch GIS12V-700-14 thermo detector with 0,1°C resolution.

* You can find more information about the deviations in the following link: Technical features of products

PRO GIS12V-700-14: Further information

Product Highlights

The GIS12V-700-14 Infrared Spot Thermometer delivers precise temperature readings with ease. Its robust design, featuring IP54 dust and splash water protection and 2 m drop-tested durability, ensures reliable performance even in challenging environments. The large graphical display provides clear readings, while the user-friendly interface simplifies operation. With professional-grade spot size D:S and adjustable measurement parameters, this tool allows you to evaluate insulation, locate heat losses, and identify damp areas with precision and speed.

Equipment & Application

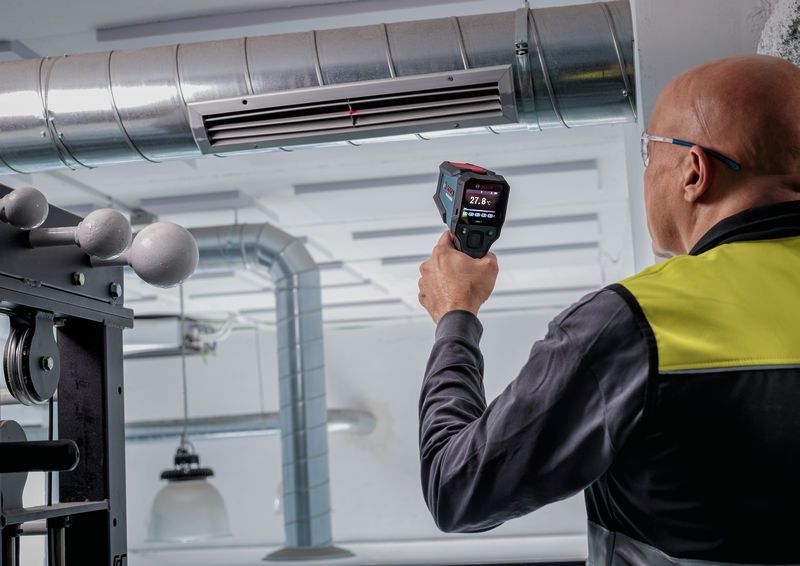

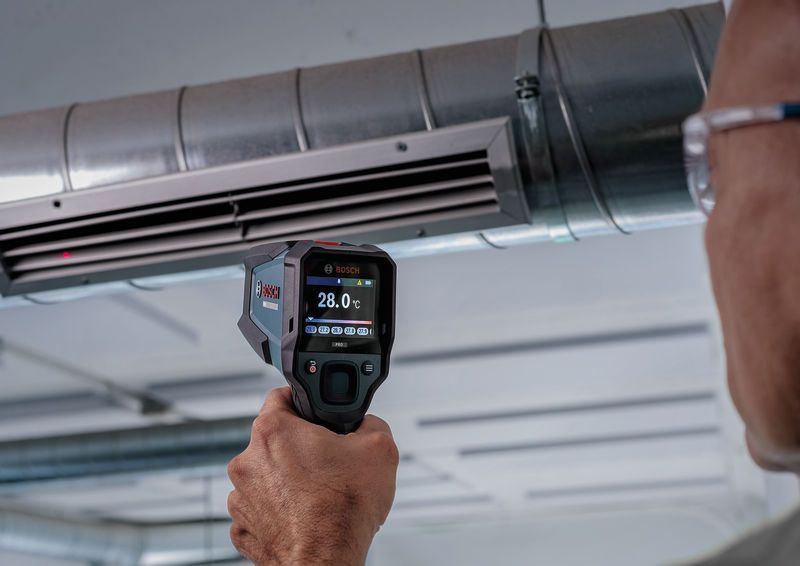

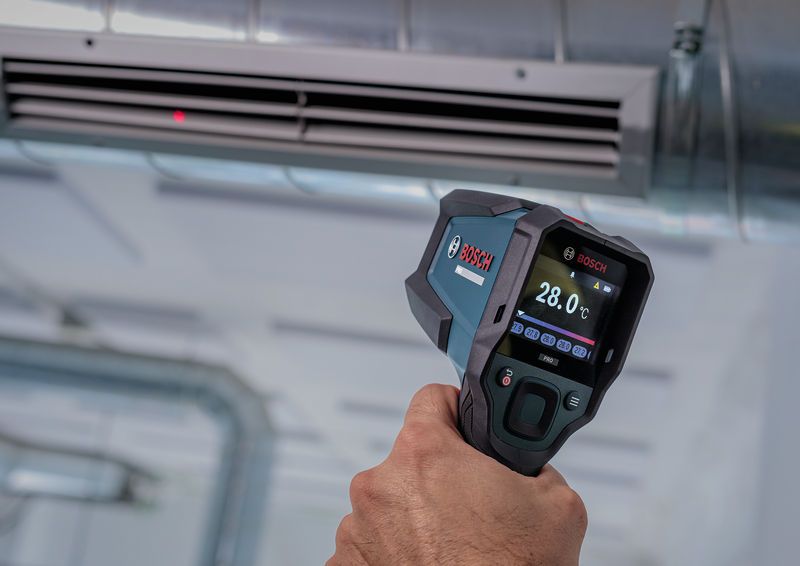

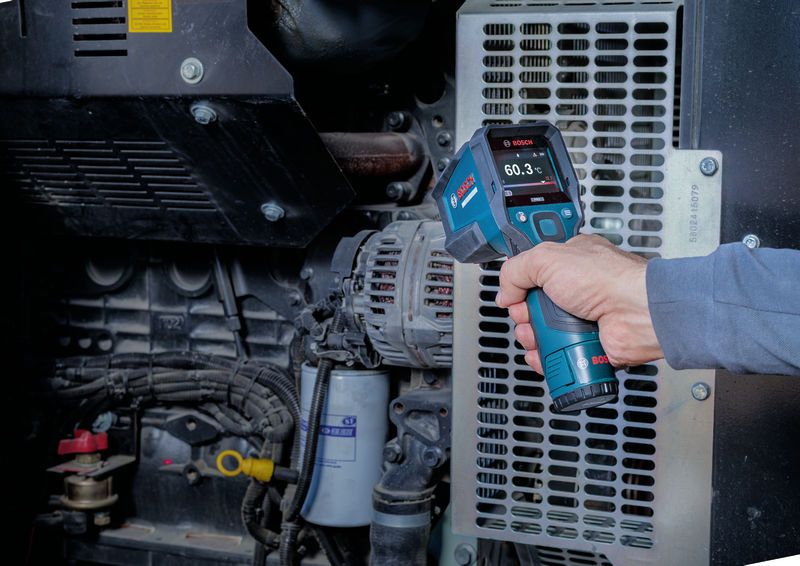

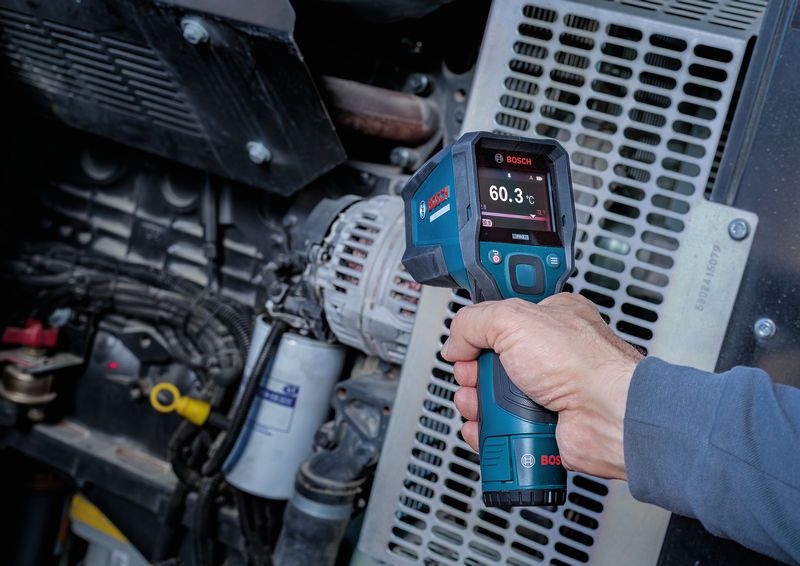

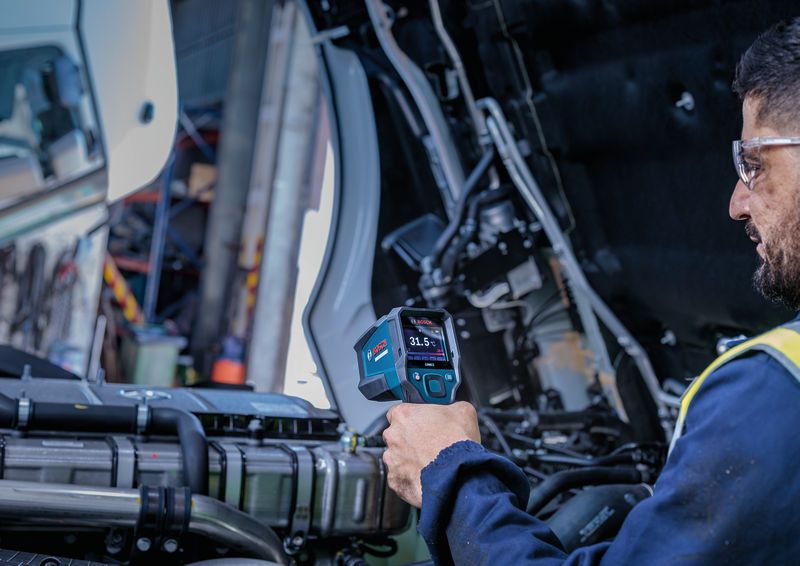

This IR thermometer is perfect for HVAC professionals, electricians and facility managers working on heating, cooling or electrical systems. It quickly identifies problem areas with single-spot measurements, making it ideal for evaluating insulation, locating damp areas or checking similar components under time pressure.

Additional Information

The fast booting and temperature measurement features save time, while the dual-use capability adds flexibility by allowing operation with either an AA1 battery adapter or a 12V power tool battery. This ensures uninterrupted operation, whether you're on-site or in the workshop. With its big graphical screen, alarm functions and fast response time, the GIS12V-700-14 empowers professionals to work efficiently – and always with confidence.
