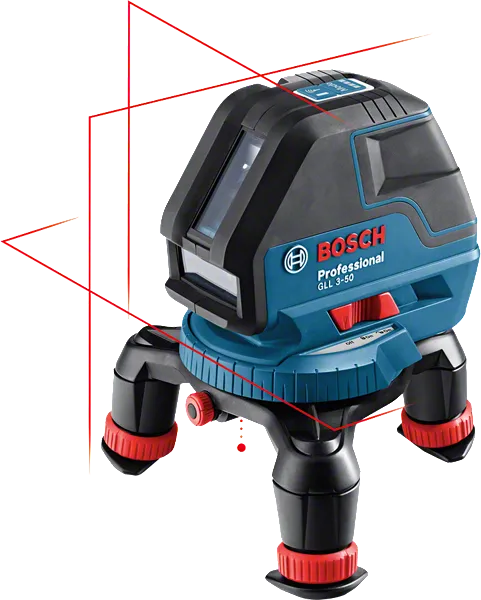

Line Laser
GLL 3-50 Professional

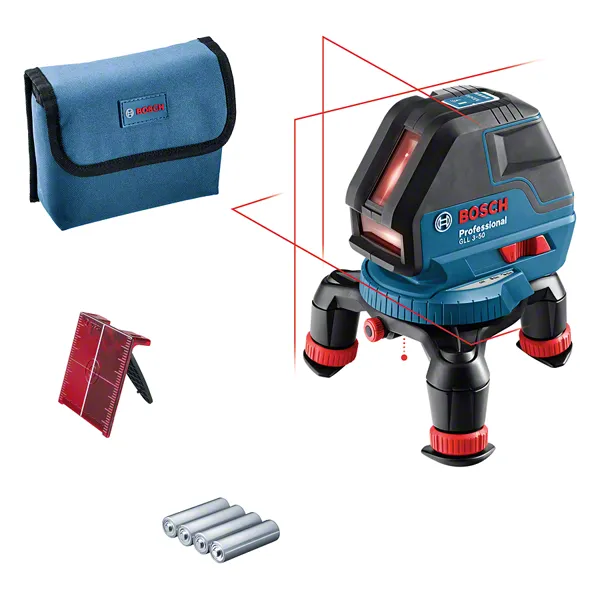

with 4 x battery (AA), laser target plate

The convenient solution for all standard levelling and transfer applications

Print

Technical data

The most important data

Laser diode 635 nm, < 1 mW
Operating temperature -10 – 40°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 10 m

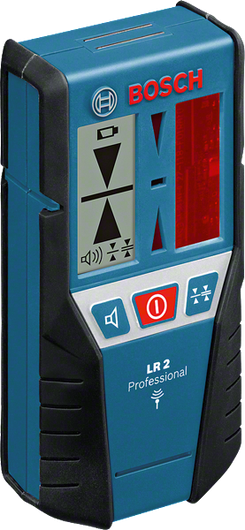

Working range with receiver up to 50 m
Working range without receiver 10 m
Accuracy ± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max. 5 m (bottom)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h
Tripod thread 1/4", 5/8"
Weight, approx. 0.94 kg
Projection 3 lines
Plumb point accuracy ± 0,6 mm/m *(* plus use-dependent deviation)

Advantages

The convenient solution for all standard levelling and transfer applications

  • Two vertical laser lines, one horizontal laser line, one plumb dot: ideal for a wide range of jobs such as squaring
  • Compact design makes handling simple

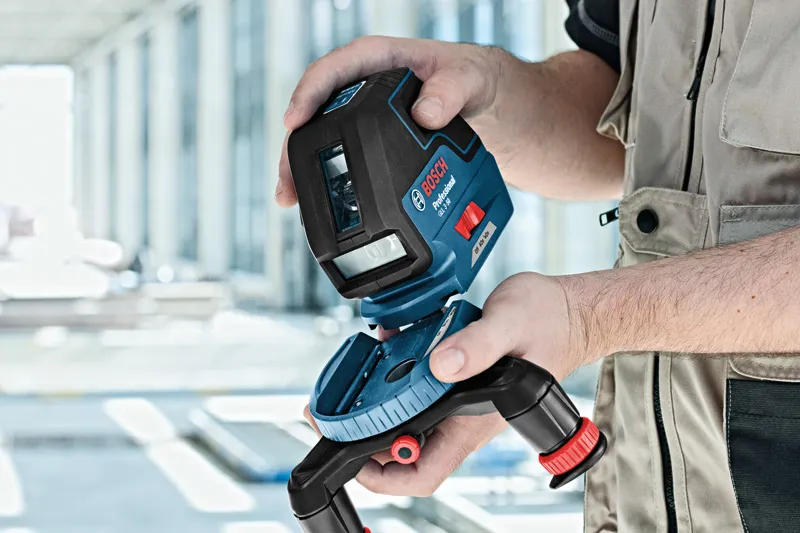

  • Rotating mini-tripod with height-adjustable feet and fine adjustment of the vertical line offer great flexibility

Functions

Icon
Working range + receiver Range with receiver up to 50 m
Working range Range of up to 10 m
Icon
Icon
Icon
Laser scheme packaging Accurate alignment due to horizontal and vertical multi laser lines
Icon
Icon
Icon
Levelling time Short levelling time of four seconds
Icon

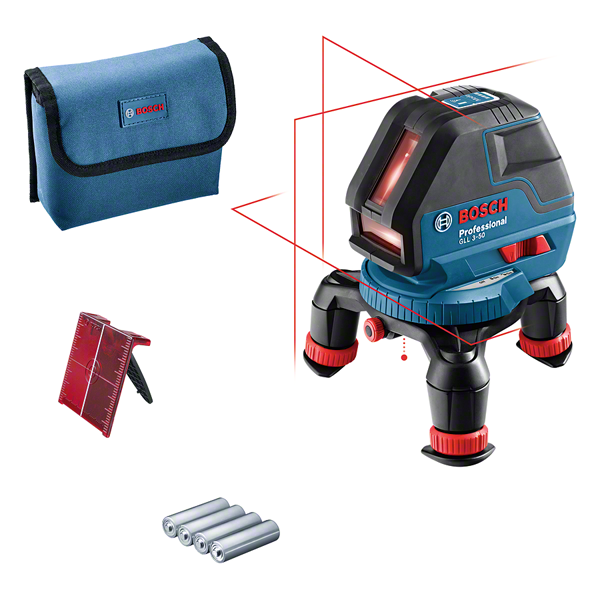

Scope of supply

with 4 x battery (AA), laser target plate

Part Number: 0601063800

Selected version

Price includes:

  • Laser target plate
  • L-BOXX inlay for tool
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

Available at Bosch partners
