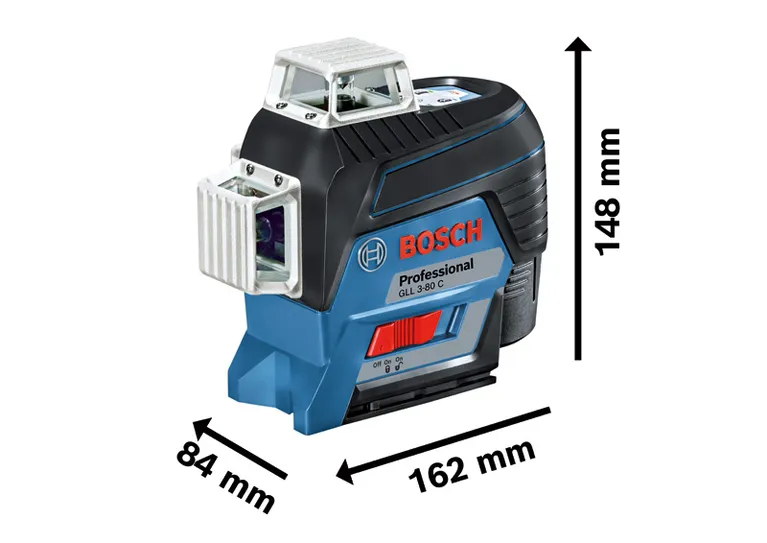

GLL 3-80 C Professional

Line Laser

Visibility on a new level in 3 x 360°. Simply Connected.

  • Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
  • High visual clarity is provided by high-powered diodes
  • 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
See technical details

Functions

Simply.Connected. - Simply. Efficient. thanks to smartphone connection and Bosch App

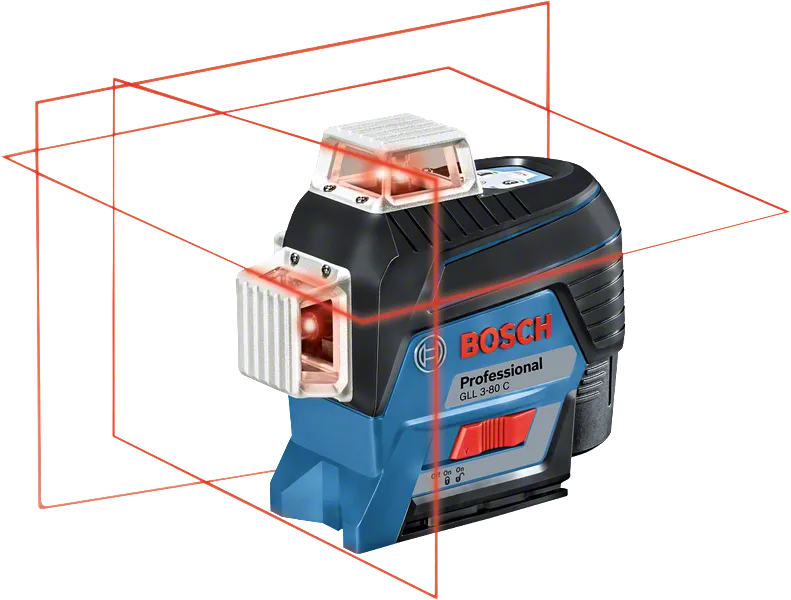

3 x 360° Laser lines

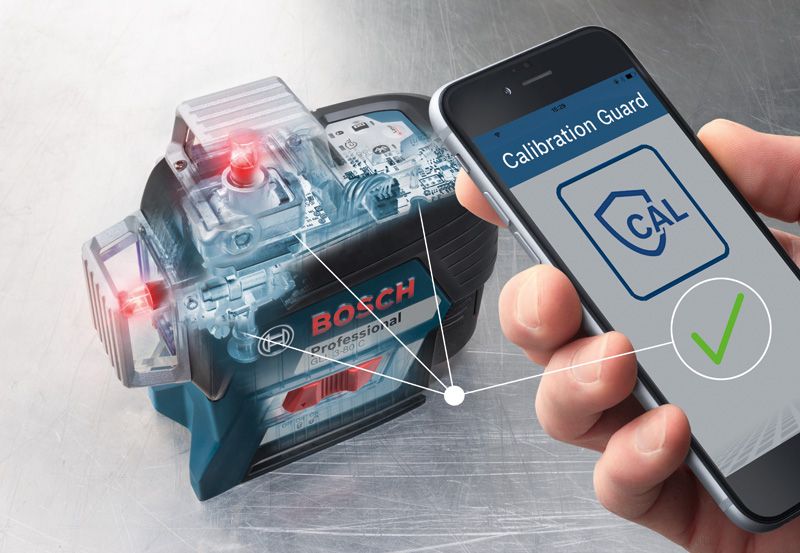

CAL Guard warns, if one of the three following cases have occurred: 1) The measuring tool suffered a severe shock (e.g. impact after a fall) 2) The measuring tool was stored outside of the storage temperature range 3) The calibration interval (every 12 months) has expired
Dual power source
Working with receiver for higher working range

Your Selection

  • with 4 x battery (AA), adapter
Change variant

Available at Bosch partners

Buy from a Bosch partner

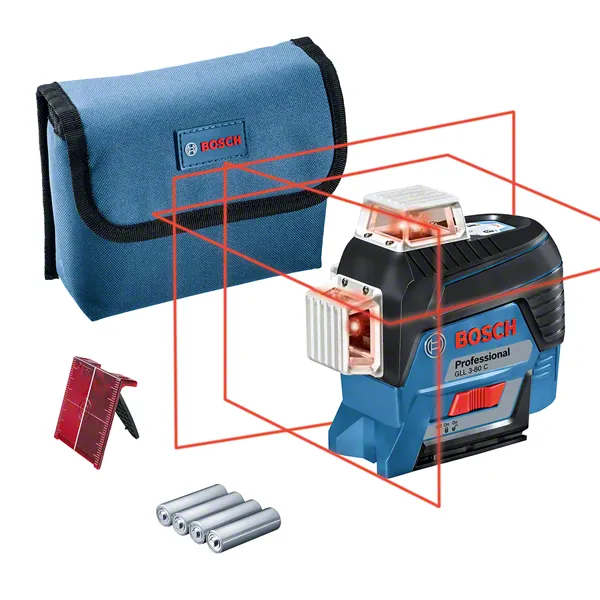

with 4 x battery (AA), adapter 0 601 063 R00

Select a variant

Your Selection

with 4 x battery (AA), adapter

Part Number: 0 601 063 R00

Available at Bosch partners

Buy from a Bosch partner

Your Selection

in L-BOXX 136 with mount

Part Number: 0 601 063 R03

Available at Bosch partners

Buy from a Bosch partner

Your Selection

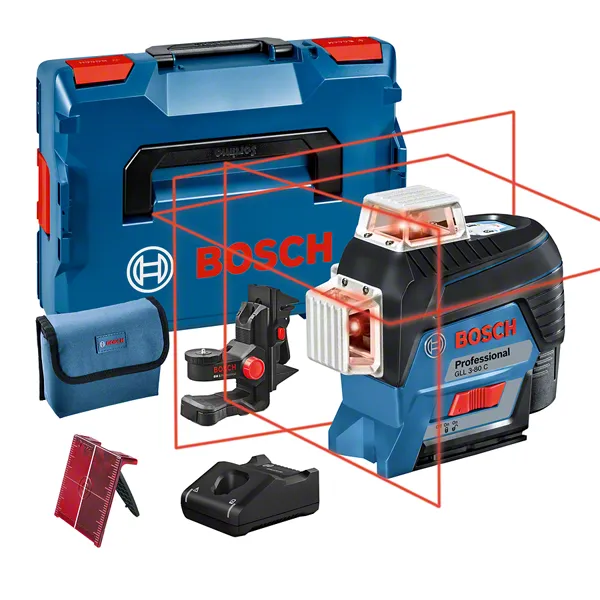

in L-BOXX 136 with Accessory, mount

Part Number: 0 601 063 R70

Available at Bosch partners

Buy from a Bosch partner

Technical data

The most important data

Laser diode Line: 630 - 650 nm, < 10mW
Operating temperature -10 – 40 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range up to 30 m
Working range with receiver up to 120 m
Accuracy +/- 0.2 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9 kg
Colour of laser line red
Projection 3 x 360° line

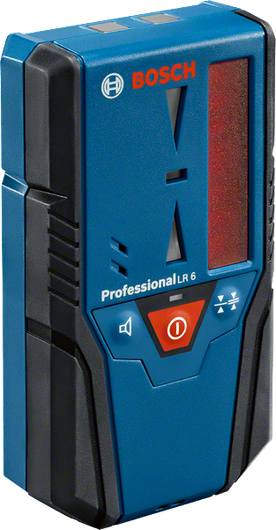

Compatible laser receivers LR 6 + 7
GLL 3-80 C

GLL 3-80 C Professional: Further information

Product Highlights

The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.

Equipment & Application

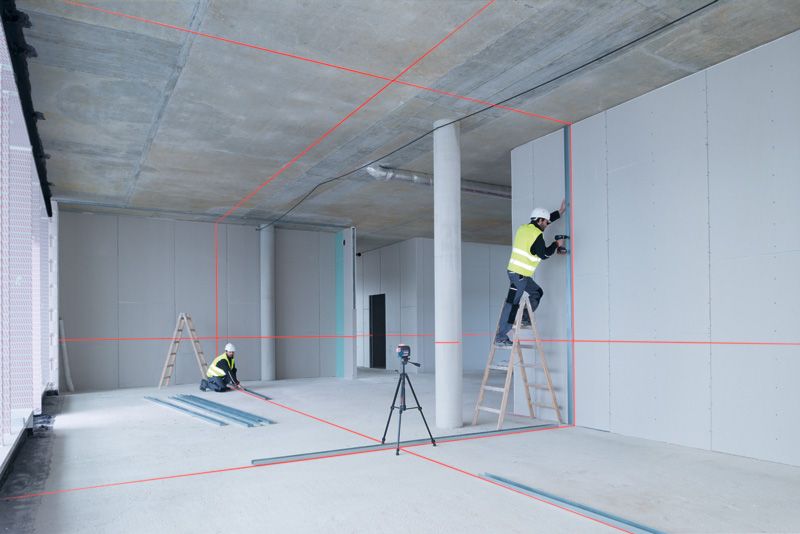

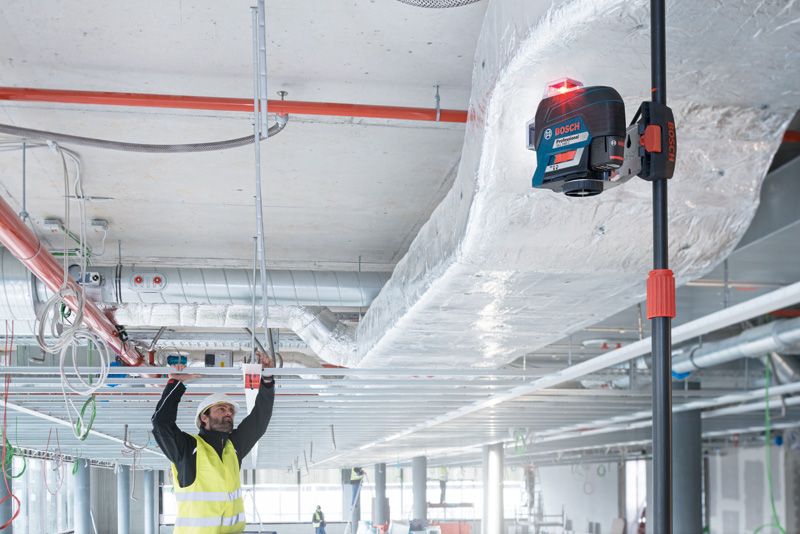

This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles.

Additional Information

Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust.
