LR 7 Professional

Laser Receiver

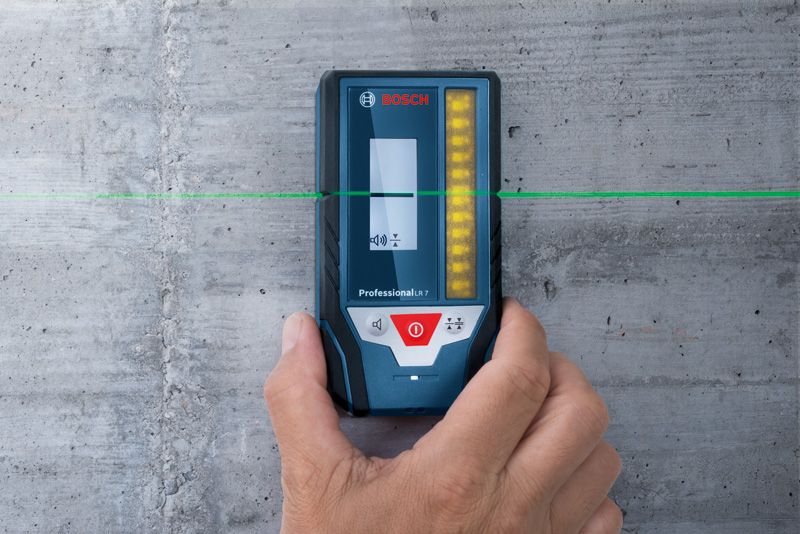

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions
See technical details

Functions

Reception area 80 mm

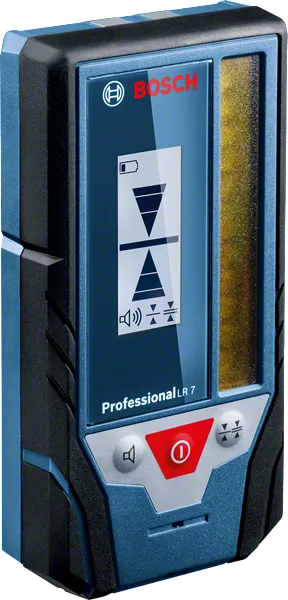

Display

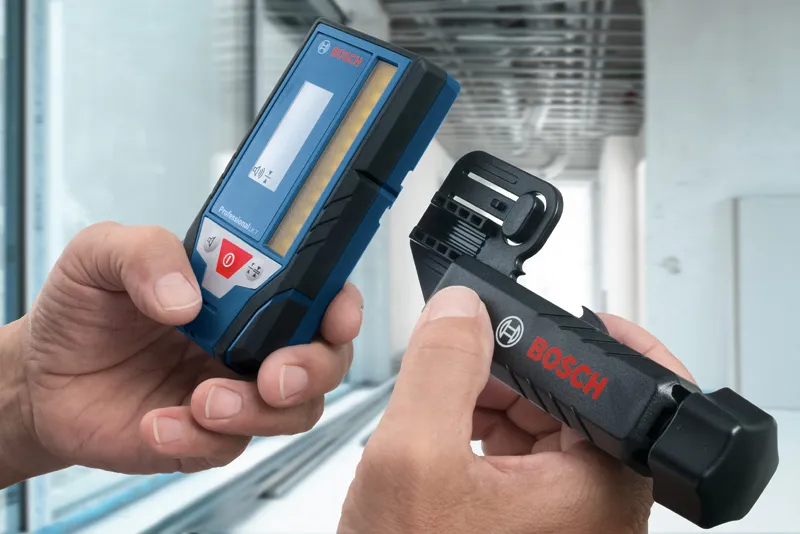

Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection

Your Selection

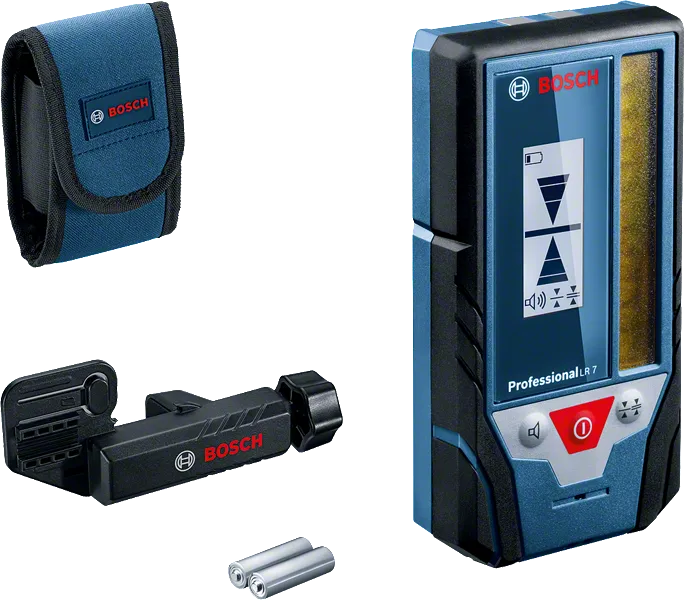

  • with 2 x battery (AA), accessory set
Show variant
£118.19 Including VAT

in stock

Find a local dealer

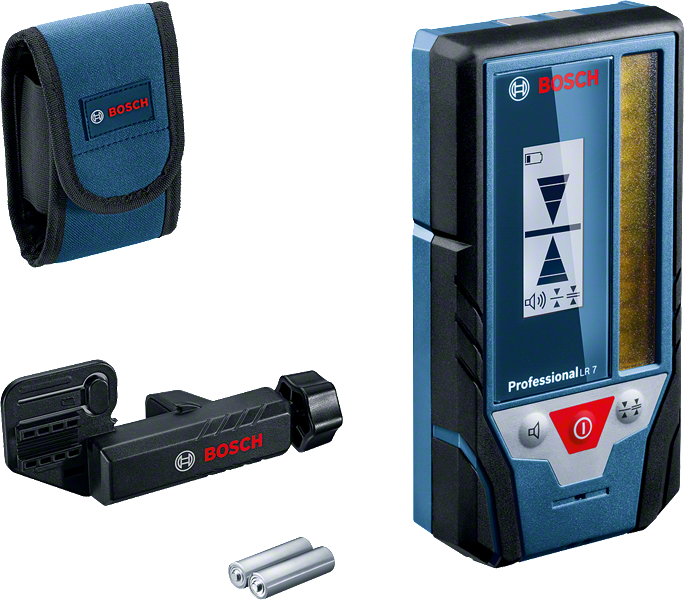

with 2 x battery (AA), accessory set 0 601 069 J00
£118.19 Including VAT

LR 7 Professional

Your Selection

with 2 x battery (AA), accessory set

Part Number: 0 601 069 J00

Technical data

The most important data

Remote control
Receiver
Range of 5 – 50 m
Power supply 2 x 1.5 V LR6 (AA)
Dust and splash protection IP 54
Weight, approx. 150 g

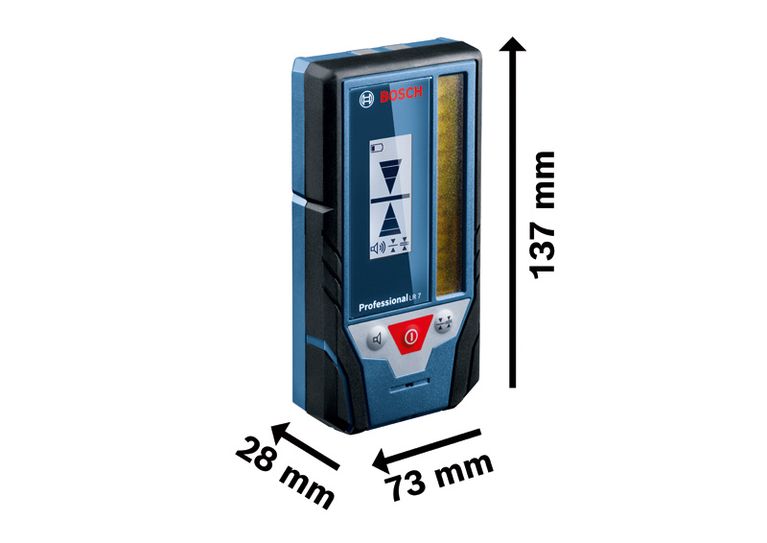

Tool dimensions (width) 28 mm
Tool dimensions (length) 73 mm
Tool dimensions (height) 137 mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm

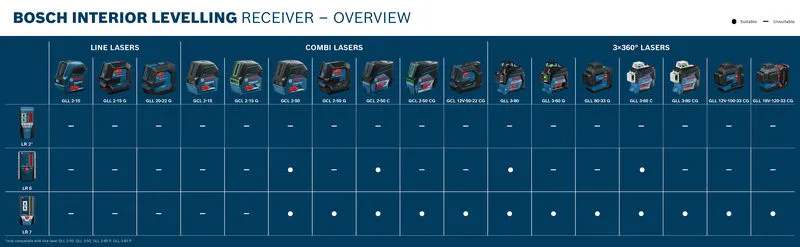

Suitable for GCL 2-50 G, GCL 2-50 C, GCL 2-50 CG, GLL 3-80, GLL 3-80 G, GLL 3-80 C, GLL 3-80 CG
Type of receiver Combi- and line lasers
