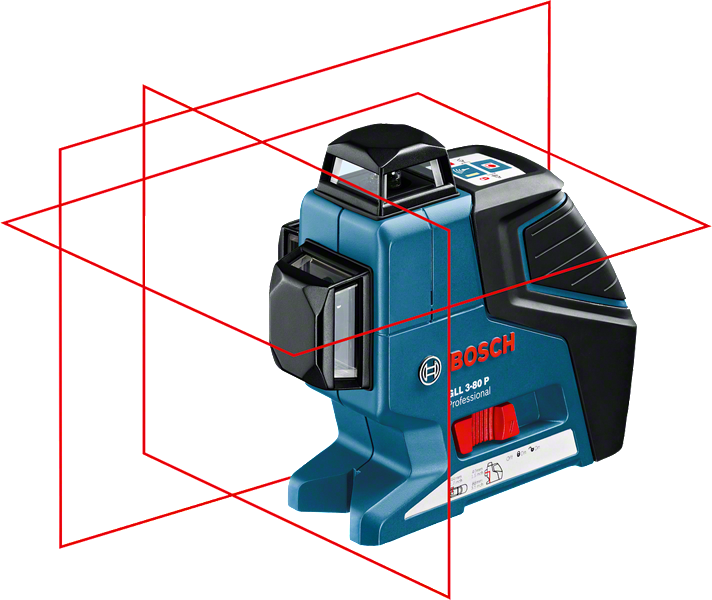

GLL 3-80 P Professional
Line Laser
The compact Multi Line Laser for all indoor applications
- One horizontal and 2 vertical 360° lines enable many new applications for simultaneous marking, alignment and levelling indoors
- Self-levelling (4° in 4 sec), very precise (± 0.2 mm/m) and range of up to 80 m with receiver
- Compact, easy-to-handle and extremely robust (IP54)
Functions & key features
with 4 x battery (AA), mount
0 601 063 309
GLL 3-80 P Professional
Your Selection
with 4 x battery (AA), mount
Part Number: 0 601 063 309
not available
Find a local dealerIncluded in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
-
Laser target plate
-
Universal mount BM 1 ProfessionalPart Number: 0 601 015 A01
-
1/2 L-BOXX inlay for toolPart Number: 1 608 M00 C04
Technical data
The most important data |
|
|---|---|
| Laser diode | 640 nm, < 1 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | 40 m |
| Working range with receiver* | 80 m |
| Working range without receiver* | 40 m |
| Accuracy* | ± 0.2 mm/m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR03 (AAA) |
| Operating time (max.) | 18 h in 1-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx.** | 0.74 kg |
| Projection | 3 x 360° line |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
