GLM 100-25 C Professional
Laser Measure
Precise laser measure for easy indoor and outdoor measuring and documenting
- Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
- Large, high-contrast IPS colour display with flip screen ensures optimal reading
- Laser measure connects via Bluetooth for efficient data documentation
Functions & key features
Your Selection
- with 3 x battery (AA), protective acc.
266.00 GBP
Including VAT
in stock
with 3 x battery (AA), protective acc.
0 601 072 Y00
GLM 100-25 C Professional
Your Selection
with 3 x battery (AA), protective acc.
Part Number: 0 601 072 Y00
266.00 GBP
Including VAT
in stock
Included in this variant
-
Protective Bag
-
Carrying Strap
-
3 x 1.5 V LR6 battery (AA)
Technical data
The most important data |
|
|---|---|
| Laser diode | 650 nm, < 1 mW |
| Measurement range* | 0.08 – 100.00 m |
| Laser class | 2 |
| Measurement accuracy, typical* | ± 1.5 mmᵈ |
| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical)* | ± 0.2°ᶜ |
| Measurement time, typical | < 0.5 s |
| Measurement time, max. | 4 s |
| Power supply | 3 x 1.5 V LR6 (AA) |
| Automatic deactivation | 5 min |
| Weight, approx.** | 0.23 kg |
| Units of measurement | m/cm/mm/ft/inch/ft-inch |
| Memory capacity (values) | 50 |
| Dust and splash protection | IP 54 |
| Tripod thread | 1/4" |
| Digital viewfinder | integrated |
| Data transfer | Bluetooth™ 4.2 Low Energy |
| Laser colour | Red |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see
GLM 100-25 C Professional: Further information
Product Highlights

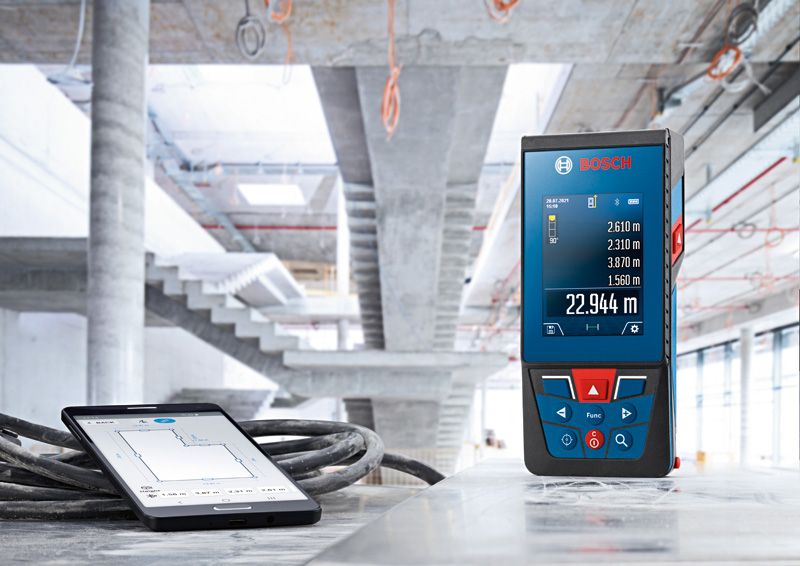

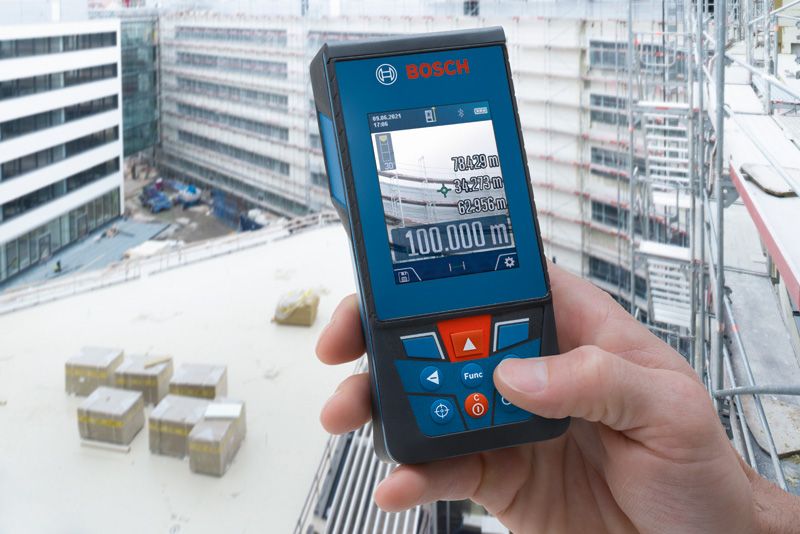

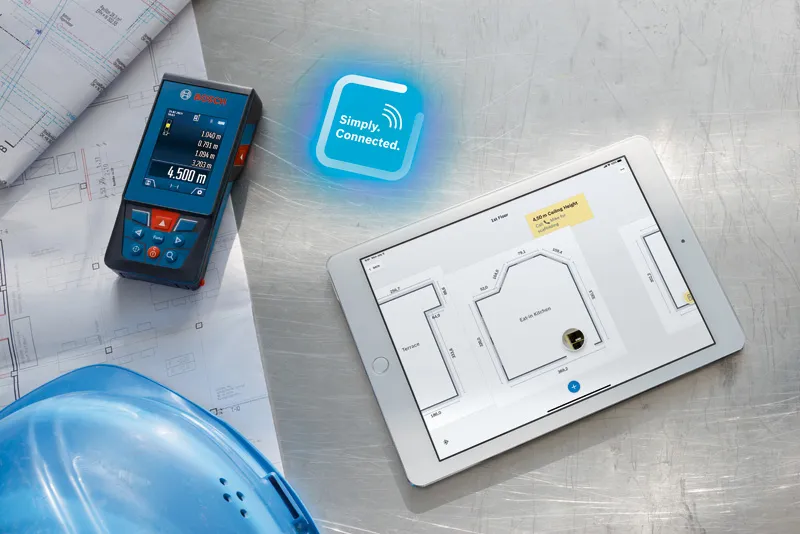

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.
Equipment & Application

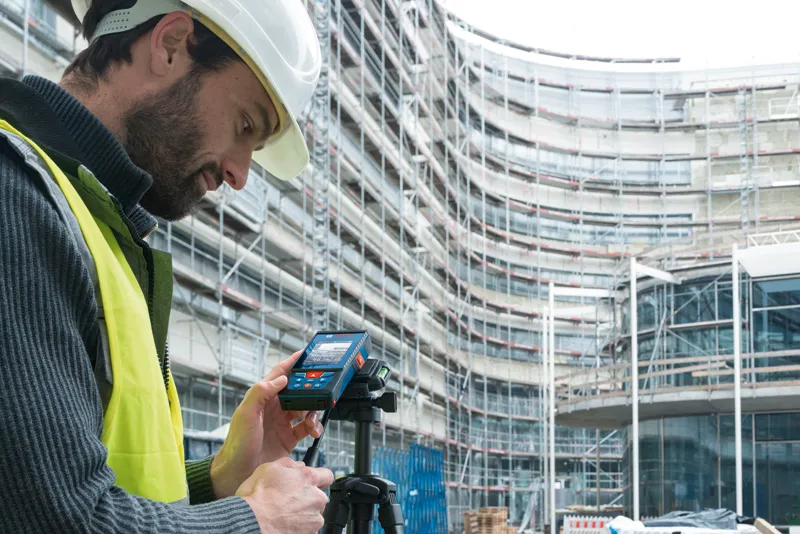

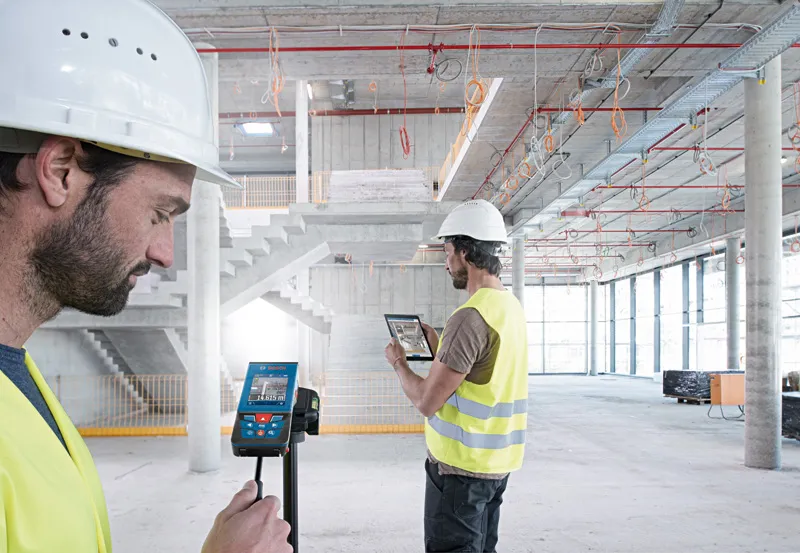

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.
Additional Information
The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
