Laser measures

GLM 120 C Professional

Laser Measure

GLM 120 C

The smart solution for measuring and documenting surroundings, even outdoors

  • Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
  • High-contrast IPS colour display provides optimal readability
  • Remote controlling for rapid measurements and MeasureOn App for simple results documentation

Functions & key features

 Iso-Norm-16331 1-Icon-positive
Real time view
IP54 dust and splash water protection
MeasureOn App

Your Selection

  • with carrying accessory
Change variant Available at 1 BOSCH Partners

with carrying accessory 0 601 072 F70

Select a variant

Your Selection

GLM 120 C
with carrying accessory

Part Number: 0 601 072 F70

not available

Available at 1 BOSCH Partners

Included in all variants

  • Manufacturer’s certificate
  • Protective Bag
  • Micro USB charger
  • Micro USB cable
  • Carrying Strap

Your Selection

GLM 120 C
with carrying accessory

Part Number: 0 601 072 F71

not available

Available at 1 BOSCH Partners

Included in all variants

  • Manufacturer’s certificate
  • Protective Bag
  • Micro USB charger
  • Micro USB cable
  • Carrying Strap

Additional in this variant

  • Building tripod BT 150 Professional
    Part Number: 0 601 096 B00

Technical data

The most important data

Laser diode 650 nm, < 1 mW
Measurement range* 0.08 – 120.00 m
Laser class 2
Measurement accuracy, typical* ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical)* ± 0.2°ᶜ
Measurement time, typical < 0.5 s
Measurement time, max. 4 s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5 min
Weight, approx.** 0.21 kg
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 50
Dust and splash protection IP 54
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
GLM 120 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵈ Plus deviations depending on application and distance, see operating instructionsUser Manual

ᶜ At >0°C, <100°C, for other surface temperatures, see operating instructionsUser Manual

GLM 120 C Professional: Further information

Product Highlights

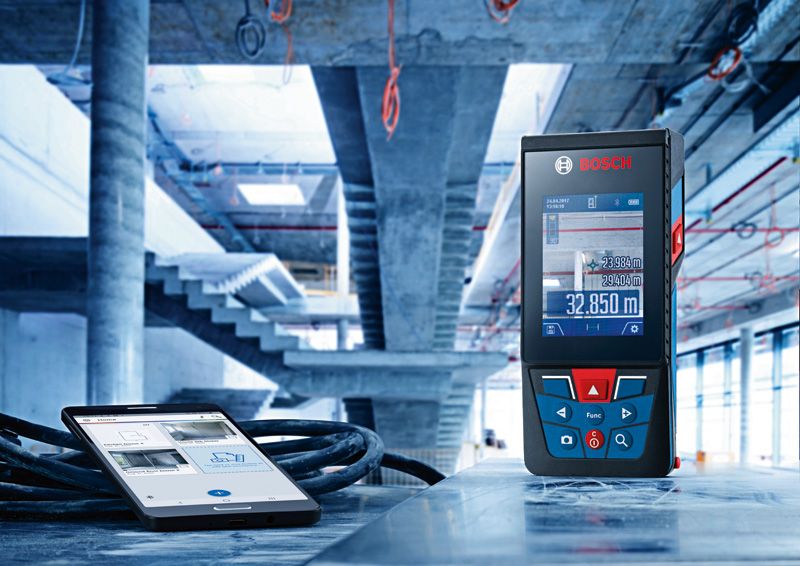

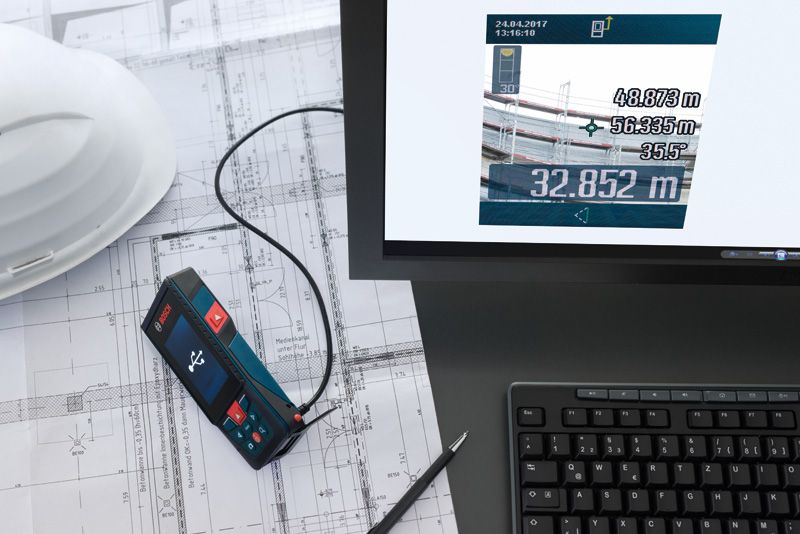

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” colour display with a protective screen. Fast collection and documentation of values are made possible by the micro USB cable connection and the MeasureOn App.

Equipment & Application

This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.

Additional Information

The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.
