Laser measures

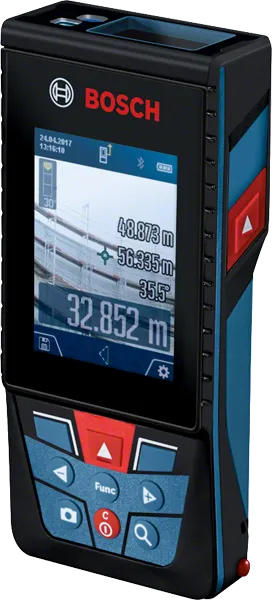

GLM 120 C Professional

Laser Measure

The smart solution for measuring and documenting surroundings, even outdoors

  • Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
  • High-contrast IPS colour display provides optimal readability
  • Remote controlling for rapid measurements and MeasureOn App for simple results documentation
See technical details

Functions

Your Selection

  • with carrying accessory
Change variant

with carrying accessory 0 601 072 F71

Select a variant

Your Selection

with carrying accessory

Part Number: 0 601 072 F71

Your Selection

with carrying accessory

Part Number: 0 601 072 F70

Technical data

The most important data

Laser diode 650 nm, < 1 mW
Measurement range 0.08 – 120.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, typical < 0.5 s
Measurement time, max. 4 s
Power supply 1 x 3.6 V Li-Ion battery (3120 mAh)
Automatic deactivation 5 min

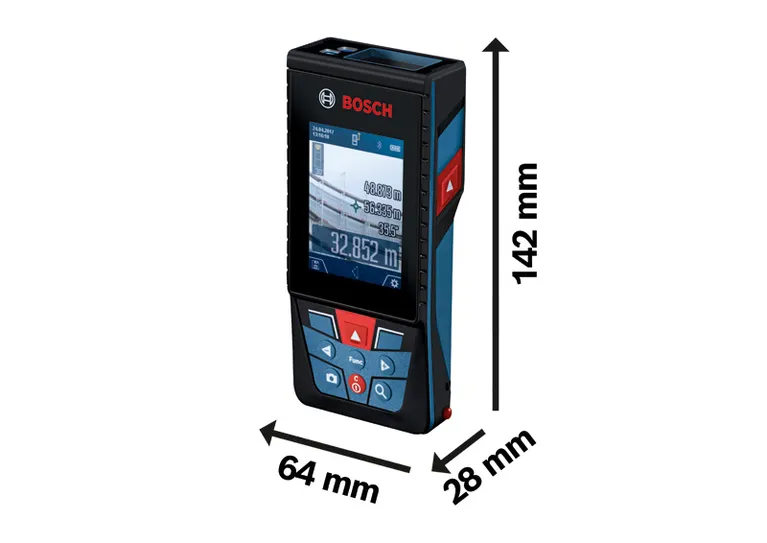

Weight, approx. 0.21 kg
Units of measurement m/cm/mm/ft/inch/ft-inch
Memory capacity (values) 50
Dust and splash protection IP 54
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red

GLM 120 C Professional: Further information

Product Highlights

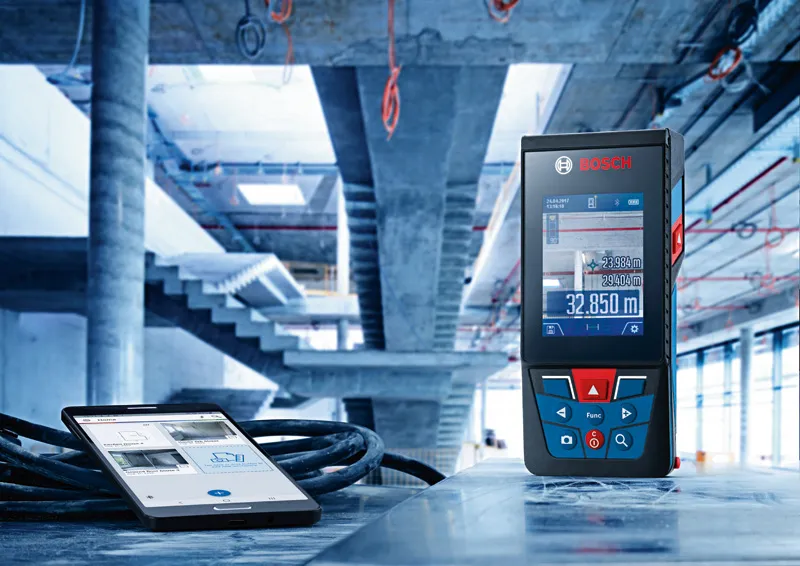

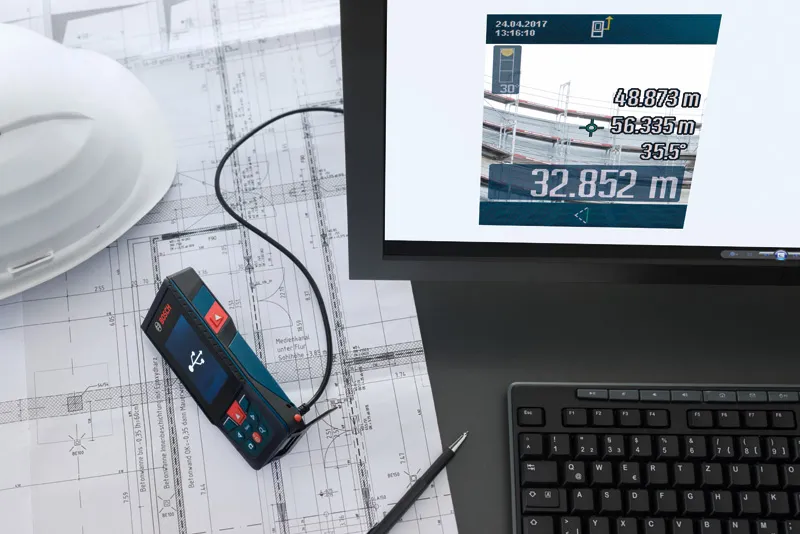

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” colour display with a protective screen. Fast collection and documentation of values are made possible by the micro USB cable connection and the MeasureOn App.

Equipment & Application

This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.

Additional Information

The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.
