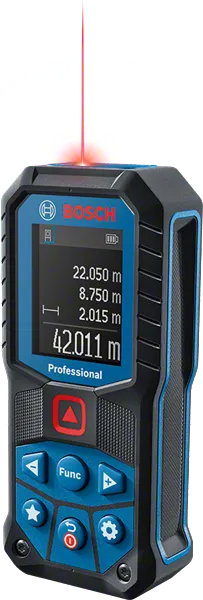

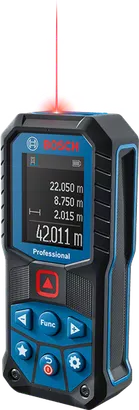

GLM 50-22 Professional
Laser Measure
Laser measuring for rough job sites and easily adjustable to individual needs

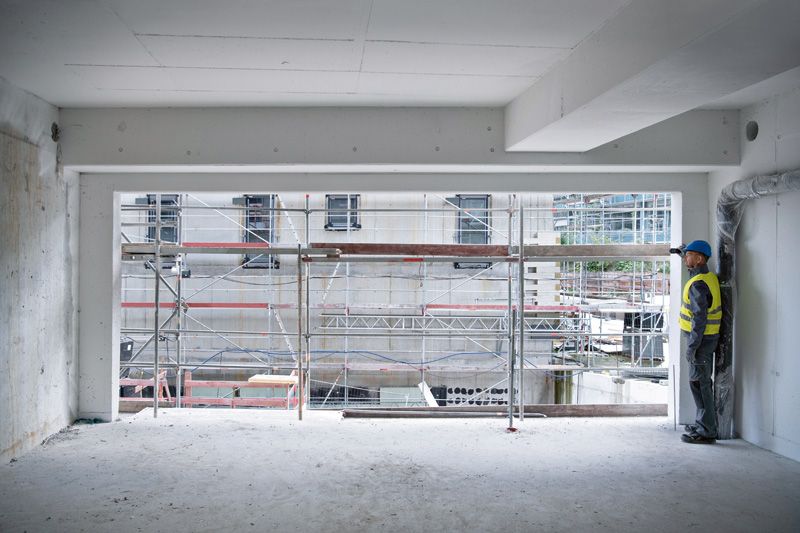

- Ideal for rough construction sites thanks to IP65 certification, shock-absorbing housing, and 1.5-m drop resistance
- Customisable favourite button for preferred measurement functions or settings

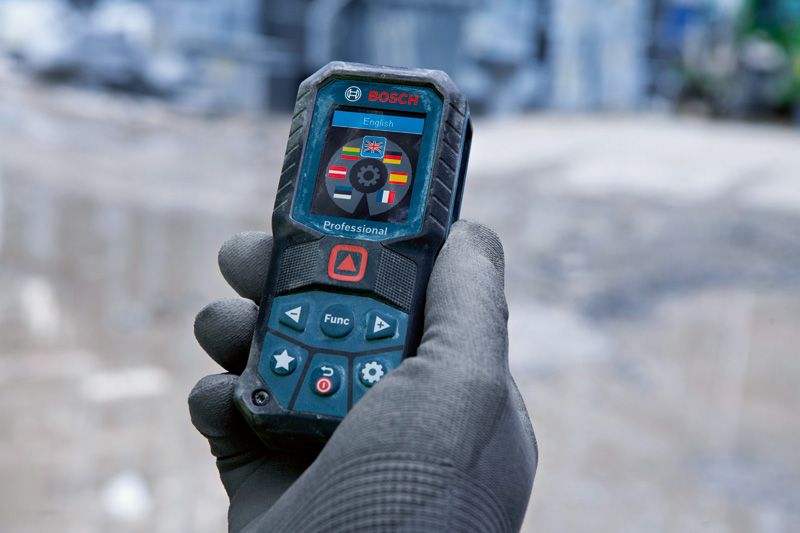

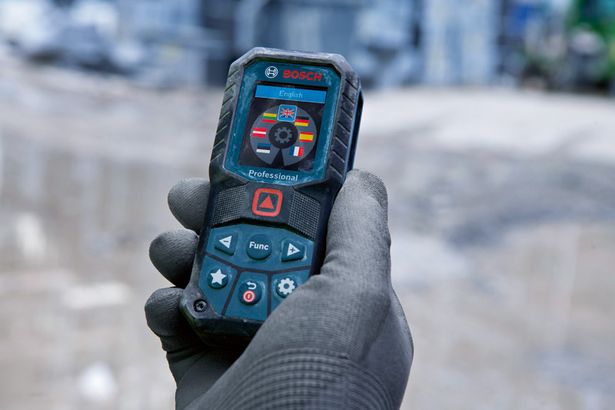

- Intuitive user interface with a Big Numbers Mode for better readability, supporting 30 languages and a new help function
Functions & key features
Your Selection
- with 2 x battery (AA), protective acc.
in stock
GLM 50-22 Professional
Your Selection
Part Number: 0 601 072 S00
in stock

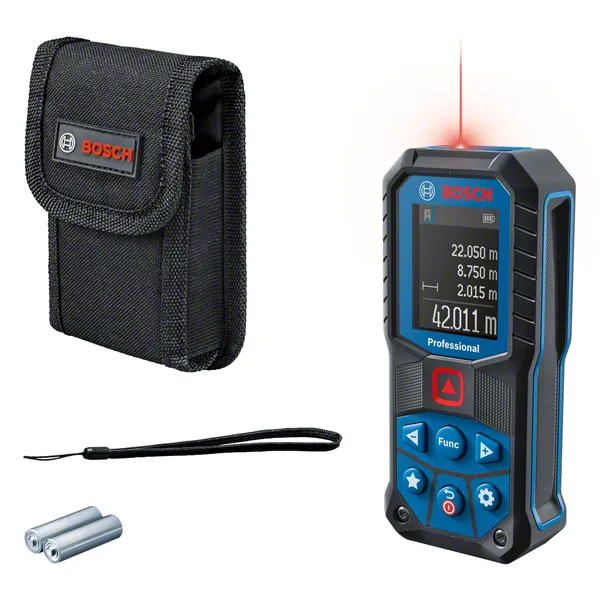

Included in this variant
-
Protective Bag
-
Carrying Strap
-
2 x 1.5 V LR6 battery (AA)
Technical data
The most important data |
|
|---|---|
| Laser diode | 635 nm, < 1 mW |
| Measurement range* | 0.05 – 50.00 m |
| Laser class | 2 |
| Measurement accuracy, typical* | ± 1.5 mmᵈ |
| Measurement time, typical | < 0.5 s |
| Measurement time, max. | 4 s |
| Power supply | 2 x 1.5 V LR6 (AA) |
| Automatic deactivation | 5 min |
| Weight, approx.** | 0.2 kg |
| Units of measurement | m/cm/mm/ft/inch/ft-inch |
| Memory capacity (values) | 10 |
| Dust and splash protection | IP 65 |
| Tripod thread | 1/4" |
| Laser colour | Red |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵈ Plus deviations depending on application and distance, see
GLM 50-22 Professional: Further information
Product Highlights

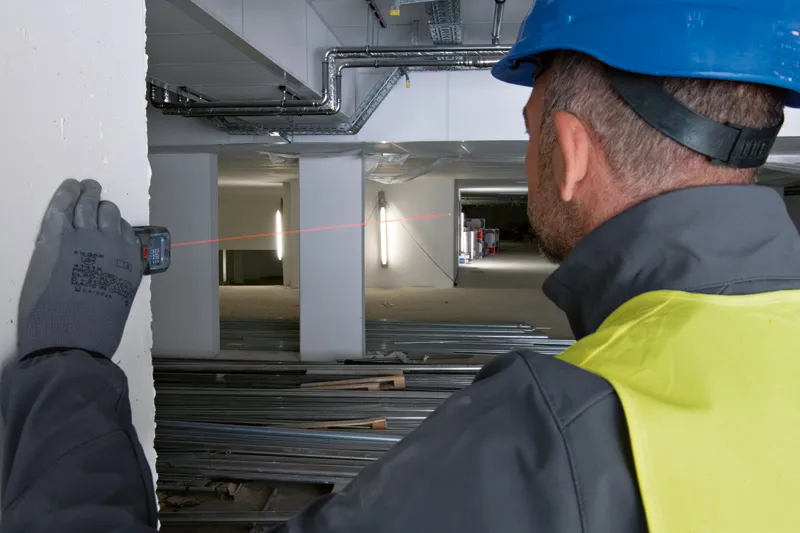

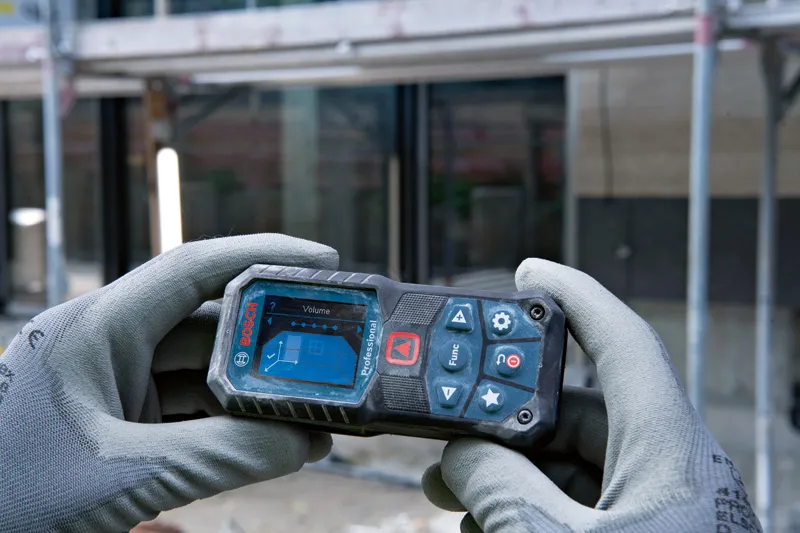

The GLM 50-22 Professional withstands rough conditions on construction sites. Its IP65 design provides complete protection from dust particles and jets of water, while its shock-absorbing housing brings 1.5-m drop resistance even on hard concrete. With a customisable button, favourite measurement functions or settings can be defined. Its intuitive user interface supports 30 languages and consists of a colour display and Big Numbers Mode for better readability. For self-explaining usage it features a new help function that shows all measurement options.
Equipment & Application

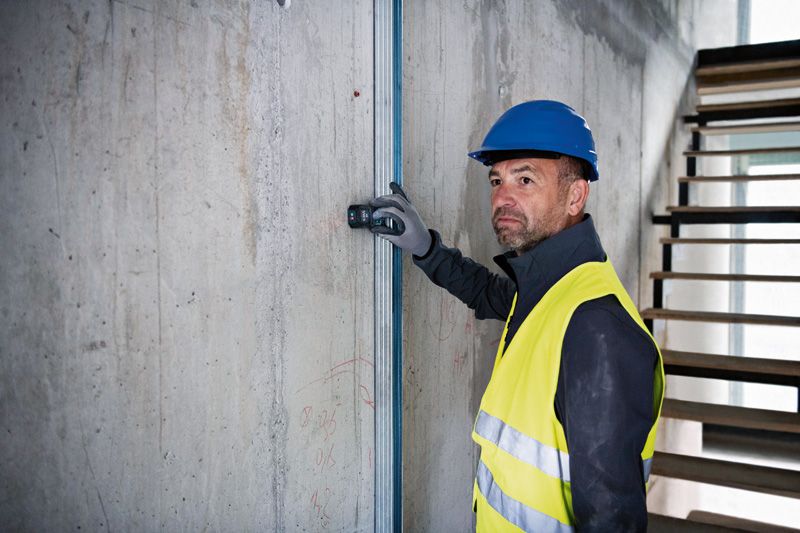

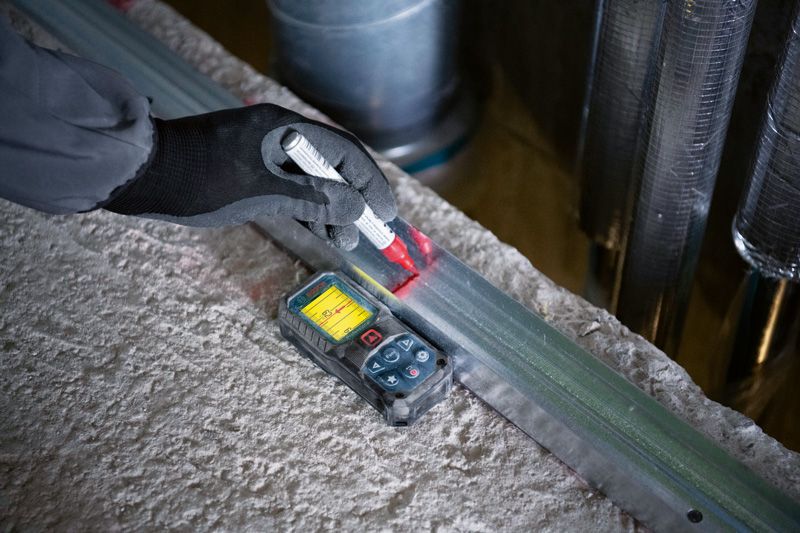

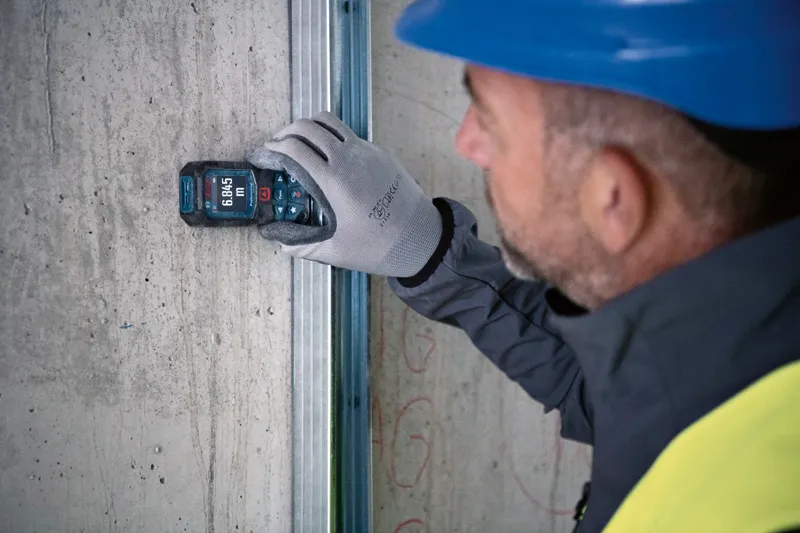

For electricians, HVAC installers, and plumbers, it is ideal when placing and fitting elements on wood, general, or drywall constructions. When used for finishing, it is perfect for painters, floor layers, tilers, or carpenters to calculate material needs.
Additional Information
Long battery runtime regardless of whether Alkaline batteries or the optional Li-ion battery pack is used.
