GMF 1600 CE Professional
Multifunction Router

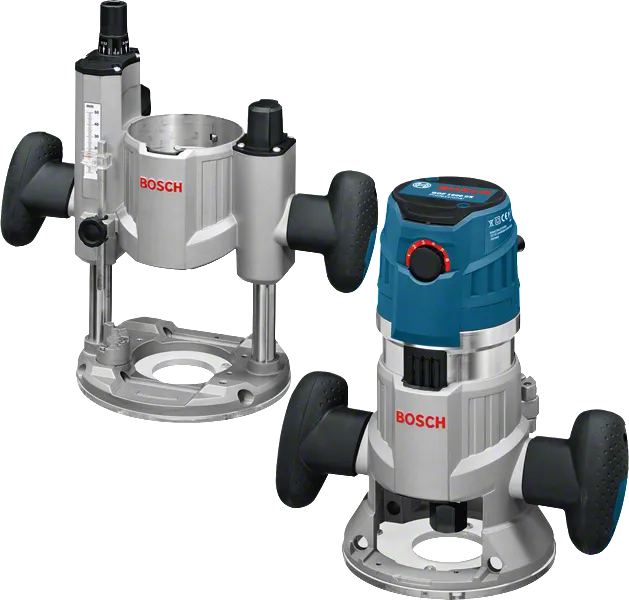

Powerful multi-functional router with fixed and plunge base
- Powerful 1,600 W motor and Constant Speed feature produce best working results
- Patented 1/10-mm fine adjustment steps and variety of attachments for optimal depth regulation and versatility
- SDS quick-change system for accurate and secure plunge base fitting
Functions & key features
Your Selection
- with accessory set, Accessory
not available
Find a local dealer

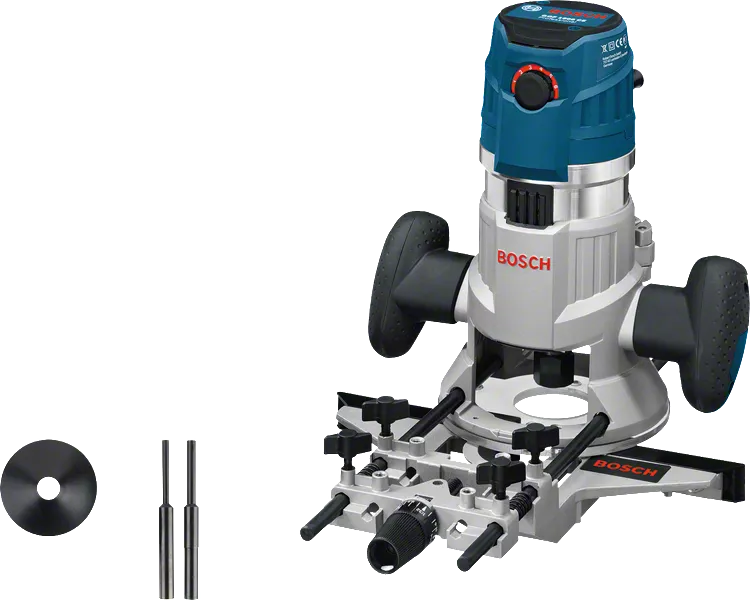

GMF 1600 CE Professional
Your Selection
Part Number: 0 601 624 072
not available
Find a local dealerIncluded in this variant
-

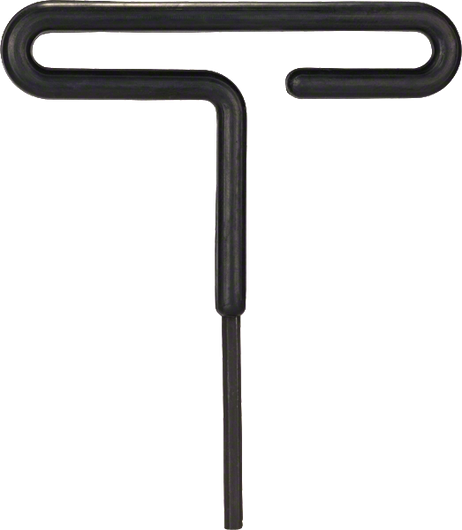

Open-ended spanner
-
Voltage 240 V
-
Template guide adapter
-
2 x template guide 17mm (2 609 200 139) + 30 mmPart Number: 2 609 200 142
-

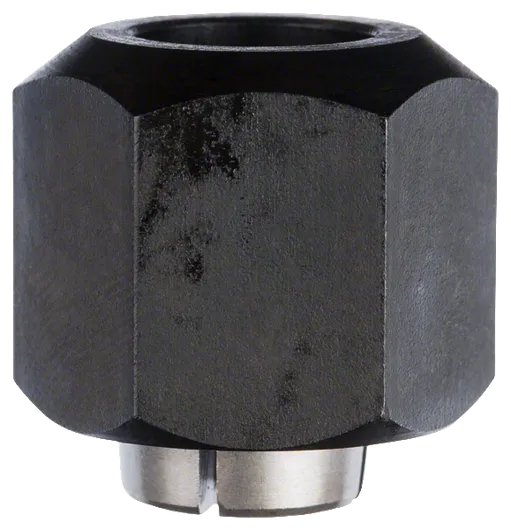

2 x collet with nut 1/4" (2 608 570 104) + 1/2"Part Number: 2 608 570 108
-
Centring pin 8 mm/12 mm
-

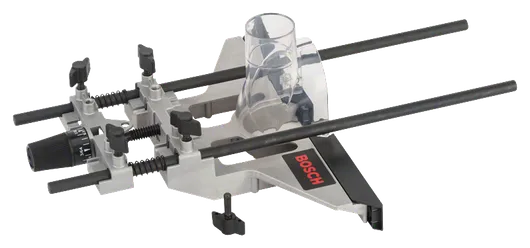

Parallel guide with fine adjustment
Product comparison
| Application |
| Compatible Collets |
| Power |
| Compactness vs. Power |
| GOF 1250 CE Professional |
|---|
|
| all-round routing Applications |
| 6 mm / 8 mm / 1/4'' |
| 1250W |
| GKF 600 Professional |
|---|
|
| edge routing / light grooving Applications |
| 6 mm / 8 mm / 1/4'' |
| 600W |
| GKF 12V-8 Professional |
|---|
|
| edge routing Applications |
| 6 mm / 8 mm / 1/4'' |
| 12V |
Technical data
The most important data |
|
|---|---|
| Bit holder | 8 – 12.0 mm |
| No-load speed* | 10,000 – 25,000 rpm |
| Maximum router cage stroke | 76 mm |
| Rated input power | 1,600 W |
| Weight of plunge-cut unit including motor* | 5.8 kg |
| Weight of copy unit including motor* | 4.3 kg |
| Packaging dimensions (width x length x height) | 390 x 440 x 360 mm |
| Voltage, electrical | 230 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GMF 1600 CE Professional: Further information
Product Highlights

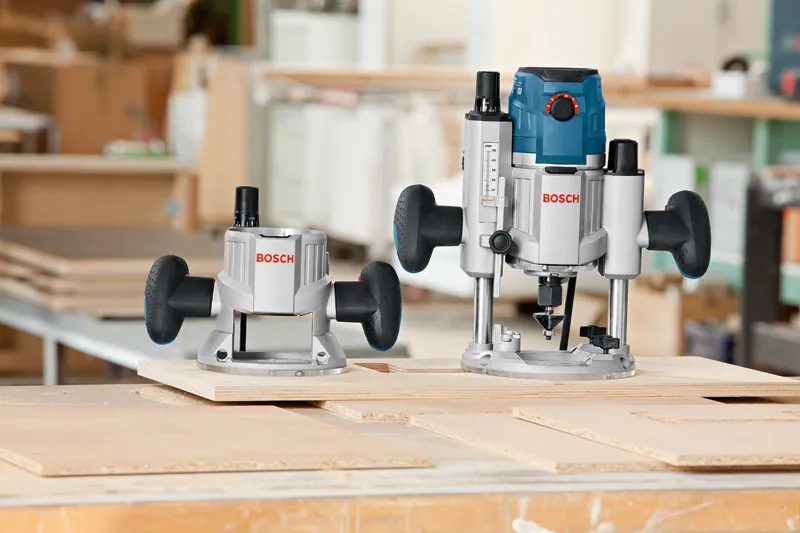

The GMF 1600 CE Professional corded router is a powerful multi-functional tool with a fixed and a plunge base delivering strong performance. Its dynamic 1,600 W motor and Constant Speed feature combine to produce the best working results. The router's patented 1/10-mm fine adjustment steps and its variety of accessories and attachments enable optimal depth regulation for versatile applications. Furthermore, its SDS quick-change system provides an accurate and secure plunge base fitting.
Equipment & Application

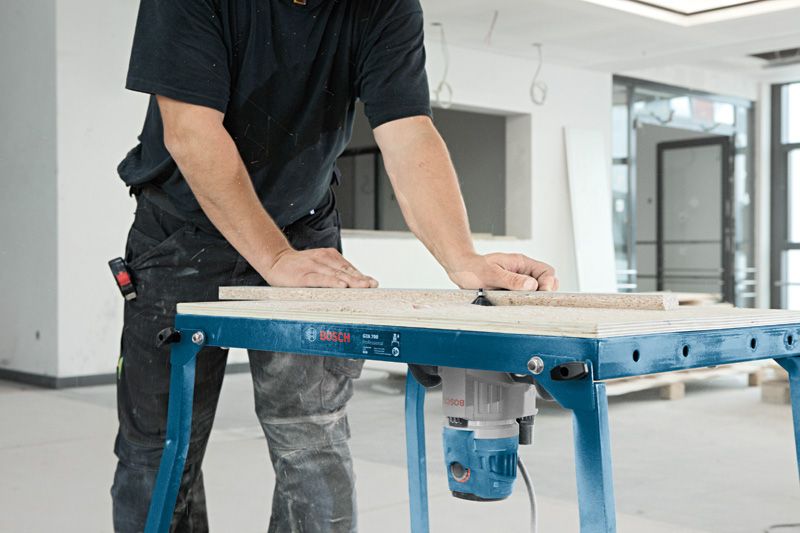

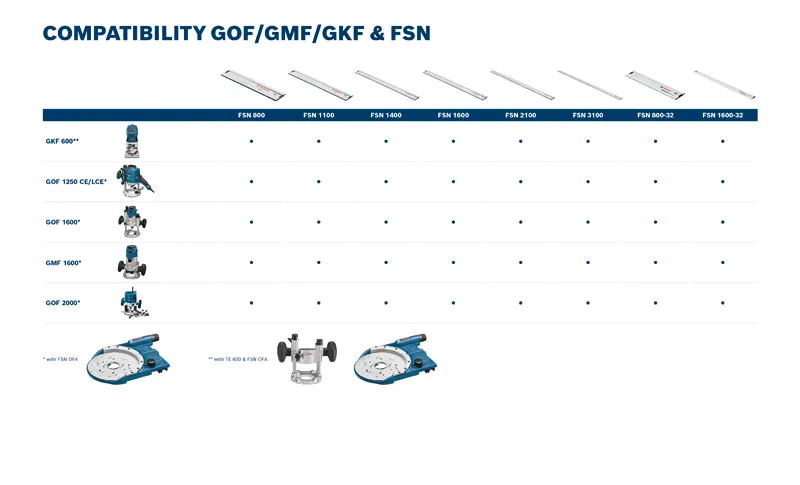

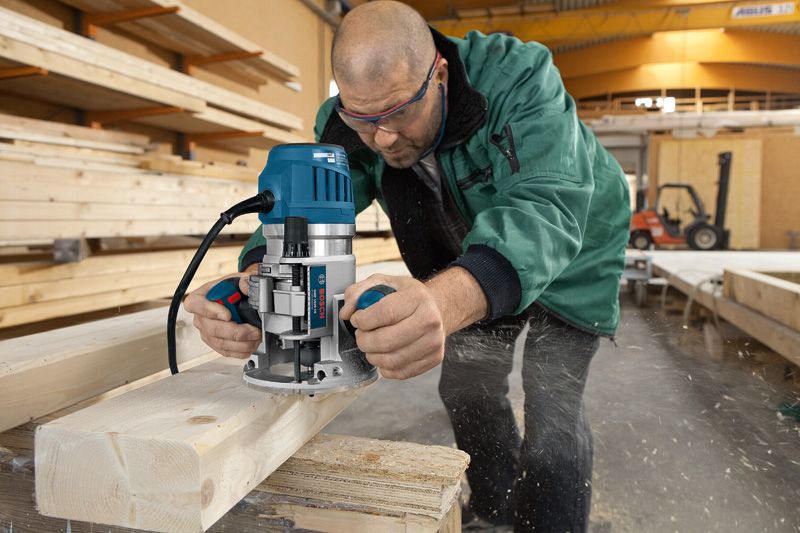

This tool is intended for routing in wood and plastic. It is compatible with Bosch guide rails as well as the Bosch Click & Clean dust extraction system.
Additional Information
The GMF 1600 CE Professional also includes features such as Restart Protection, Soft Start, Speed Selection, and Spindle Lock.
