Point Laser
GPL 5 G Professional

with 2 x battery (AA), Pouch

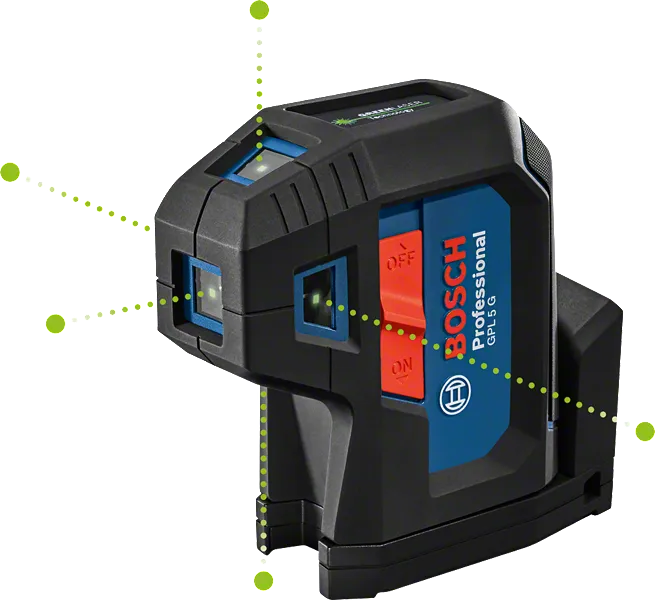

The tough and compact 5-point laser with highly visible green laser points

Print

Technical data

The most important data

Laser diode < 1 mW, 500 – 540 nm
Operating temperature -10 – 45°C
Storage temperature -20 – 70°C
Laser class 2
Working range up to 30 m
Accuracy ± 0.35 mm/m* (except bottom laser point) ; ± 0,7 mm/m* (bottom laser point) (*plus use-dependent deviation)
Self-levelling range ± 4°
Levelling time 4 s
Dust and splash protection IP 65
Power supply 2 x 1.5 V LR6 (AA)
Operating time (max.) 8 h
Tripod thread 1/4"
Weight, approx. 0.35 kg
Projection 5 points

Advantages

The tough and compact 5-point laser with highly visible green laser points

  • Green laser points provide up to four times better visibility than red points
  • Durable design resists tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
  • Fast and secure mounting thanks to integrated rotation mount with strong magnets

Functions

Icon
Line configuration 5-Point laser
IP65 dust tight and water jets protection
Integrated rotation mount
Magnets
Green laser technology  for high visibility
Line configuration 5-Point laser
Icon
Icon
IP65 dust tight and water jets protection
Icon
Icon
Icon
Icon
Magnets

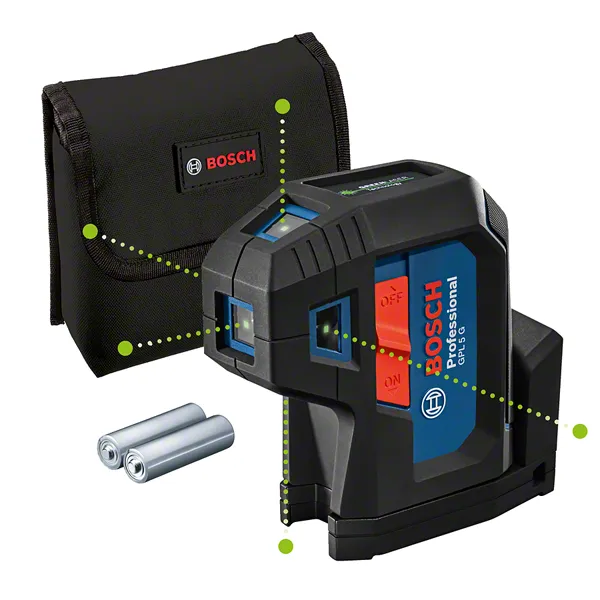

Scope of supply

with 2 x battery (AA), Pouch

Part Number: 0601066P00

Selected version

Price includes:

  • Pouch
  • 2 x 1.5 V LR6 battery (AA)

Available at Bosch partners
