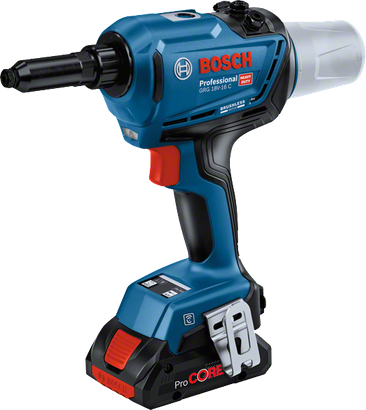

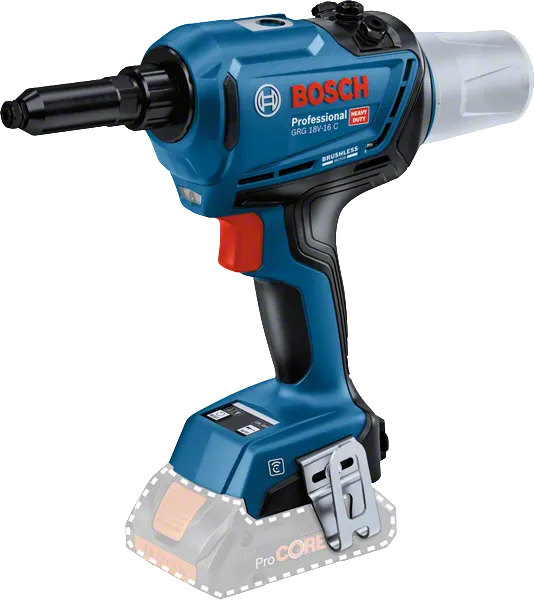

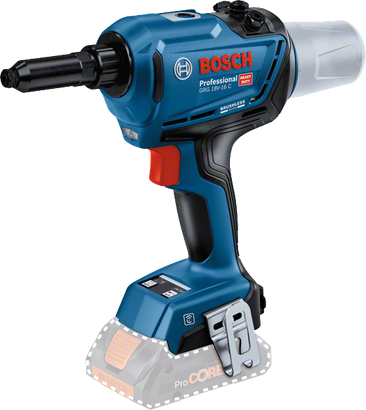

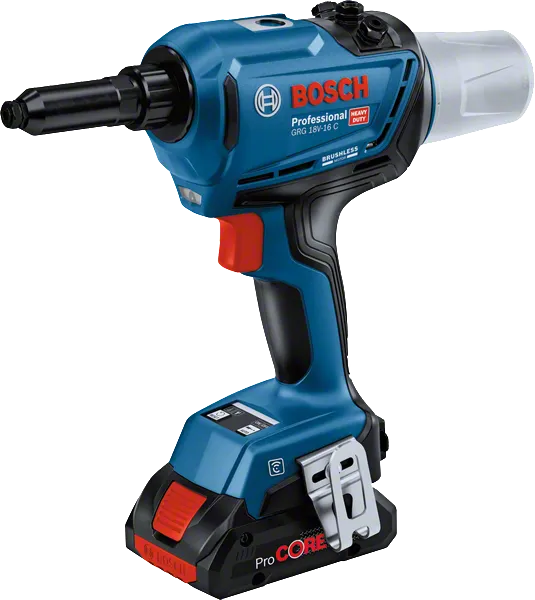

GRG 18V-16 C Professional
Cordless Rivet Gun
Versatile: one rivet gun for a wide range of rivets and with two riveting modes
- Setting blind rivets from 3.0 mm to 6.4 mm with one tool
- Choice between two riveting modes: AUTO mode or MANUAL mode
- Built-in Bluetooth connectivity for easy customisation and tracking of maintenance schedule via the Bosch Toolbox App
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 9K5 000
in stock
Included in this variant
-
Cardboard box
Your Selection
Part Number: 0 601 9K5 002
in stock
Included in this variant
-

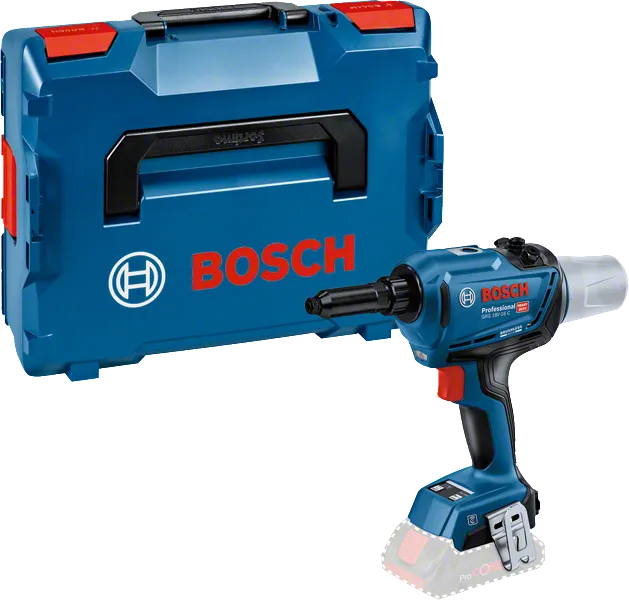

L-BOXX 136Part Number: 1 600 A01 2G0
Technical data
The most important data |
|
|---|---|
| Weight excl. battery* | 1.6 kg |
| Pull force, max. | 16,000 N |
| Stroke length | 0 - 25 mm |
| Rivet diameter | 3 - 6.4 mm |

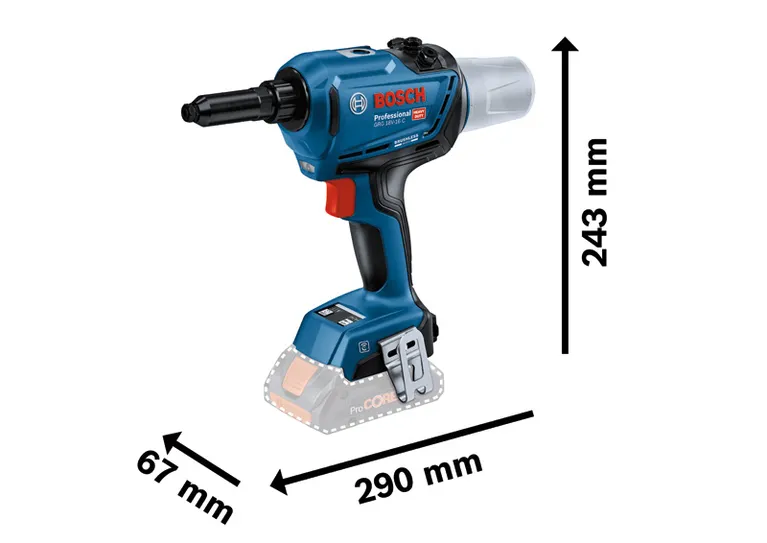

| Tool dimensions | 290 x 243 x 67 mm |
| Voltage | 18 V |
* You can find more information about the deviations in the following link:
GRG 18V-16 C Professional: Further information
Product Highlights
The GRG 18V-16 C Professional installs a wide range of blind rivets (3.0–6.4 mm diameter), with a constant pulling force of 16,000 N. This rivet gun has two modes: AUTO for automatic running of the riveting operation and MANUAL for individual control of the working operation. Built-in Bluetooth connectivity allows users to customise and track their tool maintenance schedule via the Bosch Toolbox App.
Equipment & Application

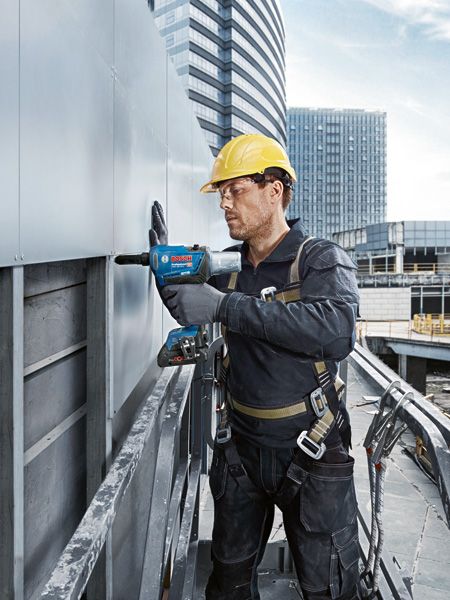

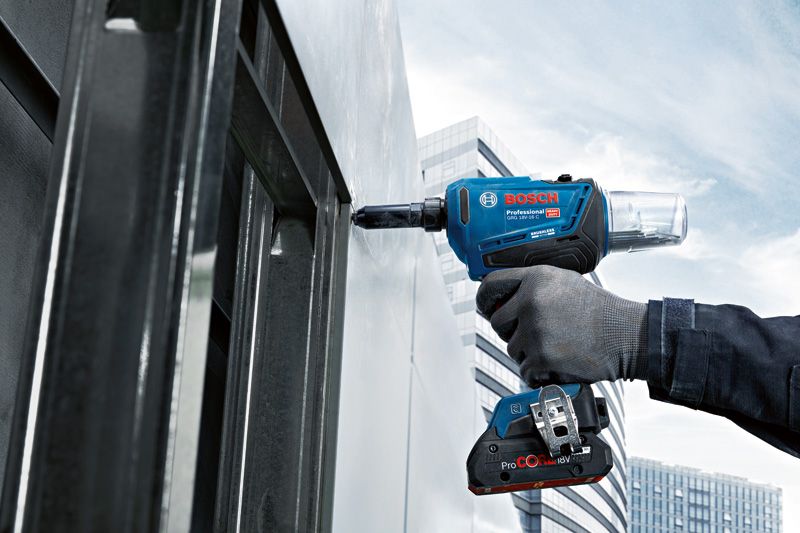

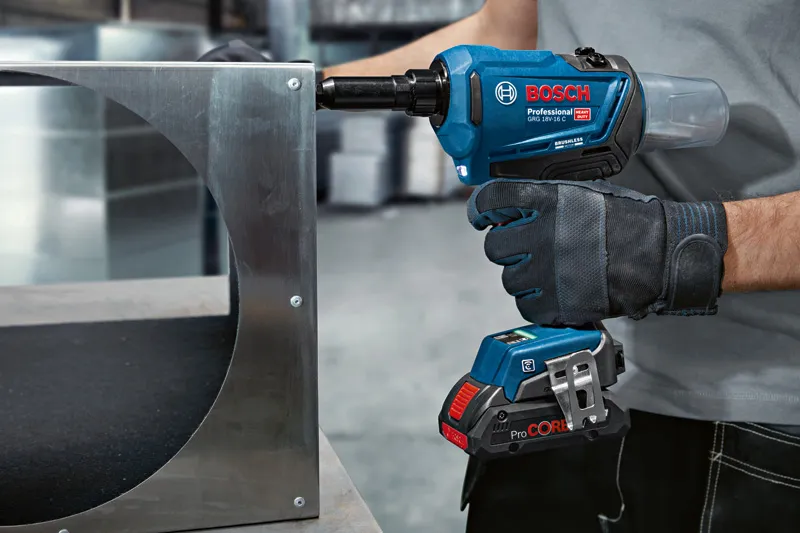

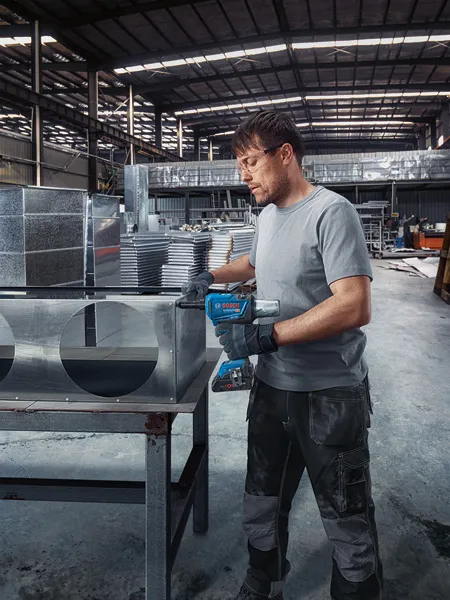

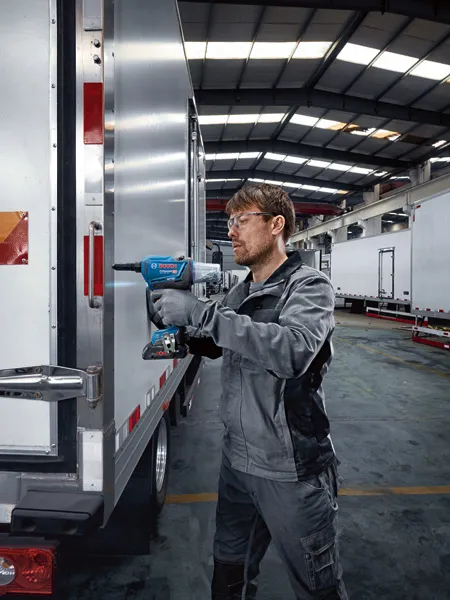

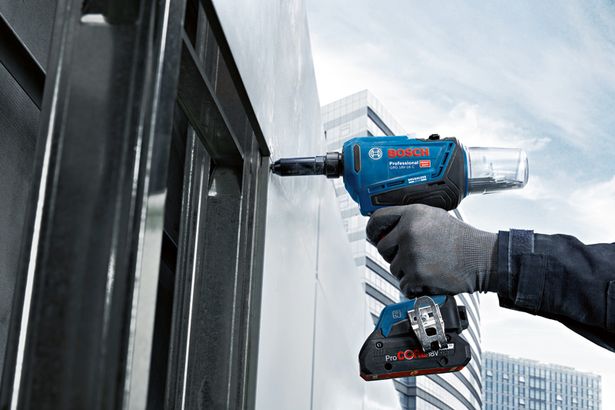

The GRG 18V-16 C Professional is ideal for connecting pre-drilled metal workpieces in HVAC and electrical installations, metal construction, roofing and façade installations, and auto service repair, among others. Compatible with the Bosch Professional 18V System and with the multi-brand battery alliance AMPShare.
Additional Information
It comes with 4 nose pieces (3.0/3.2 mm, 4.0 mm, 4.8/5.0 mm, 6.4 mm), a wrench to easily change the nose pieces, a hanging ring, mandrel container, and a belt clip. It has a brushless motor and tool status indicator on the HMI display.
