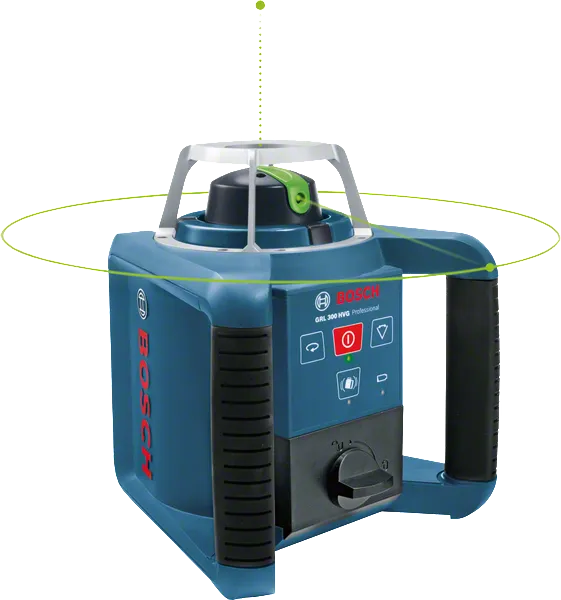

GRL 300 HVG Professional
Rotation Laser

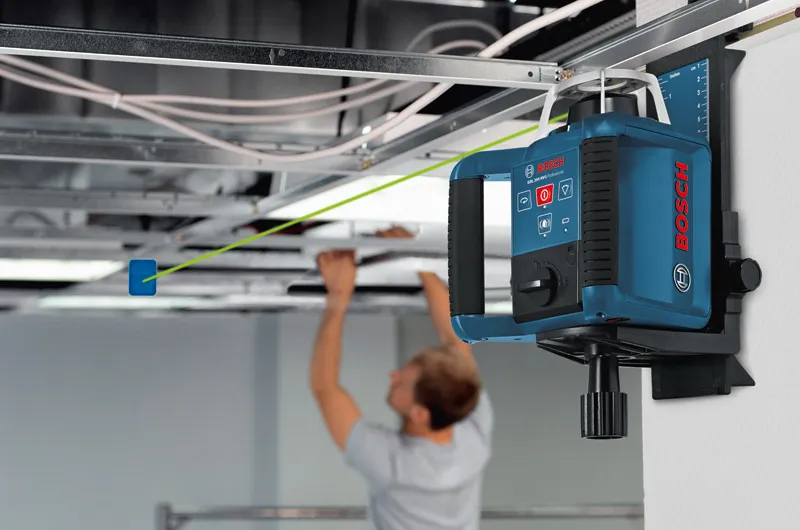

Outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Functions & key features
Your Selection

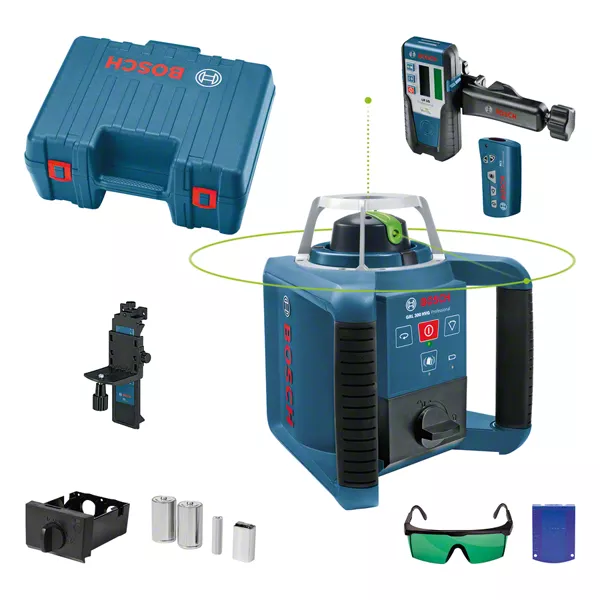

- in carrying case with 1 x 9 V block battery, receiver
987.00 GBP
Including VAT
available at Bosch Partner
Available from our partners
in carrying case with 1 x 9 V block battery, receiver
0 601 061 701
GRL 300 HVG Professional
Your Selection
in carrying case with 1 x 9 V block battery, receiver
Part Number: 0 601 061 701
987.00 GBP
Including VAT
available at Bosch Partner
Available from our partnersIncluded in this variant
-
Battery compartment (spare part number 1 608 M00 05D)
-
BracketPart Number: 1 608 M00 70F
-
Universal mount WM 4 ProfessionalPart Number: 0 601 092 400
-
Laser target (blue) (spare part number 1 608 M00 05K)
-
Carrying case (spare part number 1 608 M00 05F)
-
1 x 1.5 V LR6 battery (AA)
-

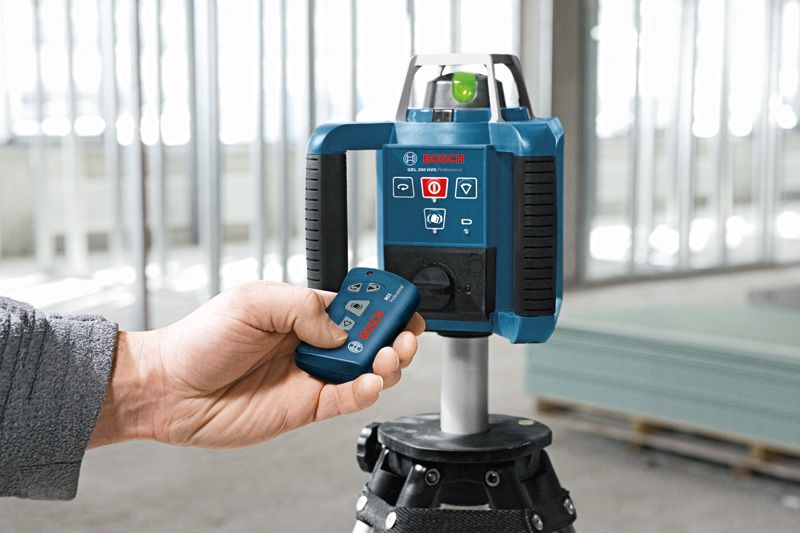

Remote control RC1 ProfessionalPart Number: 0 601 069 900
-
2 x 1.5 V LR20 battery (D)
-

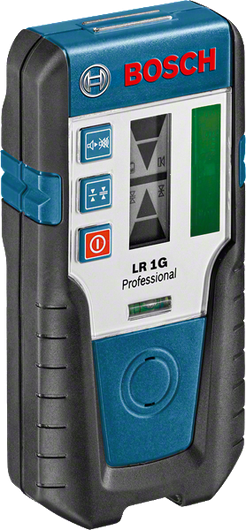

Laser receiver LR 1G ProfessionalPart Number: 0 601 069 700
-
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
-
1 x 9 V block battery (6LR61)
Technical data
The most important data |
|
|---|---|
| Laser diode | 532 nm, < 5 mW |
| Operating temperature | 0 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range* | 100 m |
| Working range with receiver* | 300 m (Diameter) |
| Working range without receiver* | 100 m (Diameter) |
| Accuracy* | ± 3.0 mm at 30 m* (*plus use-dependent deviation) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Dust and splash protection | IP 54 |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.5 V LR20 (D) |
| Tripod thread | 5/8" |
| Weight, approx.** | 1.8 kg |
| Colour of laser line | green |
| Compatible laser receivers | LR 1G |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
