PRO GRL 300 HVG

Rotation Laser

Order number 0601061701920

Green laser line: up to four times better visibility than a red line
Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Products classified as Warehouse Outlet goods are offered at a special price due to packaging damage. The packaging may have significant scratches, dents, and/or scuff marks. These unopened products are unused, tested, and fully functional, with the original seal intact and the scope of delivery complete.

Select a variant

Limited stock

Estimated delivery time 2-5 working days

£612.00

incl. VAT

£510.00

excl. VAT

Payment options

Your Selected Variant

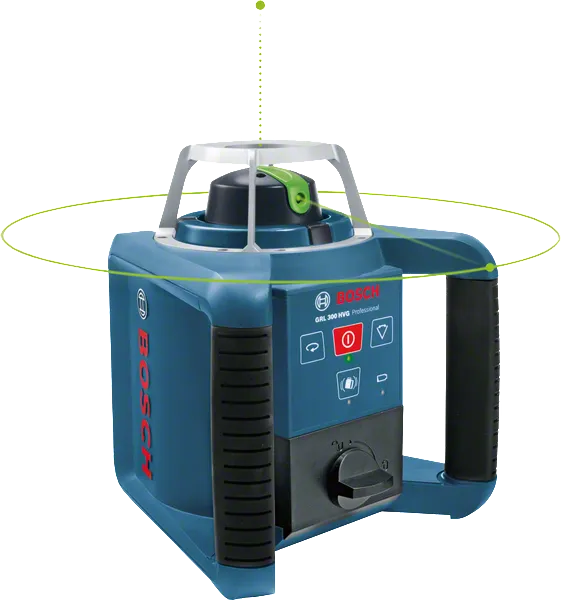

Bosch GRL 300 HVG rotation laser leveling tool, high accuracy.

Your Selected Variant

in carrying case with 1 x 9 V block battery, receiver 0 601 061 701 920

£612.00

incl. VAT

£510.00

excl. VAT

Limited stock

Select a variant

Your Selection

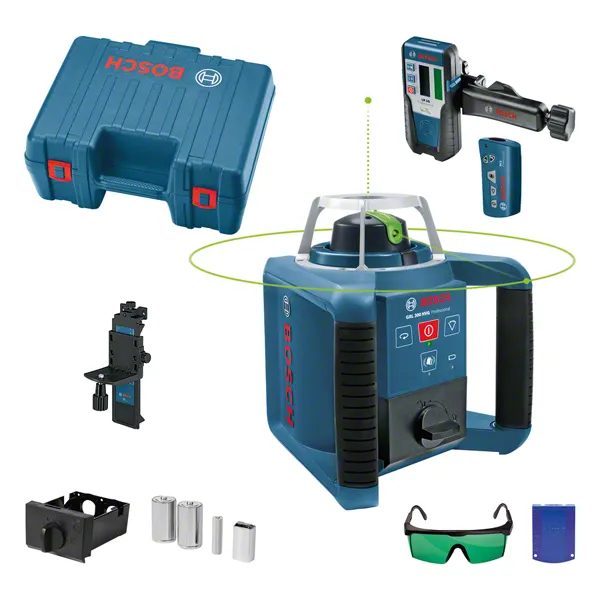

Bosch GRL 300 HVG laser leveling tool with accessories.

Warehouse Outlet

in carrying case with 1 x 9 V block battery, receiver

Part Number: 0 601 061 701 920

£612.00

incl. VAT

£510.00

excl. VAT

Limited stock

Quantity

Included in all variants

Battery compartment (spare part number 1 608 M00 05D)
Universal mount WM 4 Professional

Part Number: 0 601 092 400
Bracket

Part Number: 1 608 M00 70F
Carrying case (spare part number 1 608 M00 05F)
Laser target (blue) (spare part number 1 608 M00 05K)
1 x 1.5 V LR6 battery (AA)
2 x 1.5 V LR20 battery (D)
Remote control RC1 Professional

Part Number: 0 601 069 900
Laser receiver LR 1G Professional

Part Number: 0 601 069 700
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
1 x 9 V block battery (6LR61)

Your selection

Your Selection

in carrying case with 1 x 9 V block battery, receiver

Part Number: 0 601 061 701

£1,020.00

incl. VAT

£850.00

excl. VAT

available at Bosch Partner

Buy from a Bosch Partner

Included in all variants

Battery compartment (spare part number 1 608 M00 05D)
Universal mount WM 4 Professional

Part Number: 0 601 092 400
Bracket

Part Number: 1 608 M00 70F
Carrying case (spare part number 1 608 M00 05F)
Laser target (blue) (spare part number 1 608 M00 05K)
1 x 1.5 V LR6 battery (AA)
2 x 1.5 V LR20 battery (D)
Remote control RC1 Professional

Part Number: 0 601 069 900
Laser receiver LR 1G Professional

Part Number: 0 601 069 700
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
1 x 9 V block battery (6LR61)

Select Variant

Technical data

The most important data

Laser diode

532 nm, < 5 mW

Operating temperature

0 – 40 °C

Storage temperature

-20 – 70 °C

Laser class

Working range, value

100 m

Working range with receiver*

300 m (diameter)

Working range without receiver*

100 m (diameter)

Accuracy*

± 3.0 mm at 30m

Self-levelling range

± 5° (8%)

Levelling time

15 s

Dust and splash protection

IP 54

Rotation speed

150/300/600 min-¹

Power supply

2 x 1.5 V LR20 (D)

Weight, approx.*

1.8 kg

Colour of laser line

green

Compatible laser receivers

LR 1G

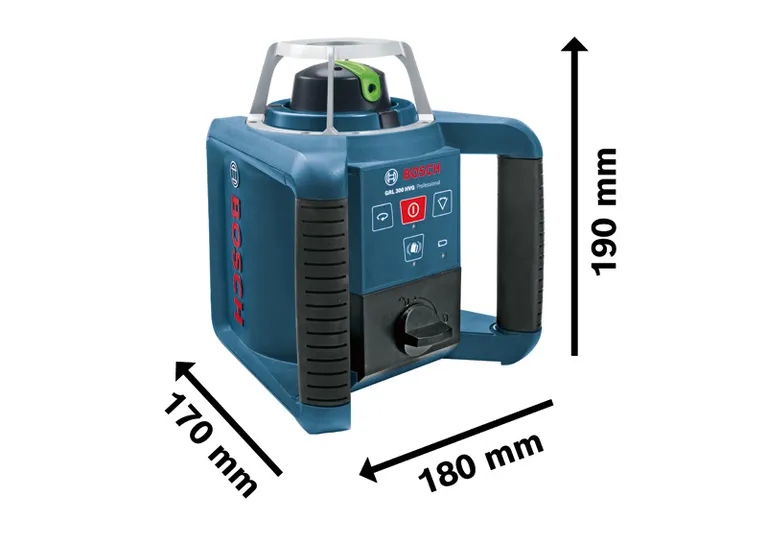

Bosch GRL 300 HVG rotation laser leveling tool with dimensions.

* You can find more information about the deviations in the following link: Technical features of products

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601K61705

Product name

PRO GRL 300 HVG

Description

Rotation Laser

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GRL 300 HVG, GRL 300 HV, GRL 250 HV, RC 1 (PDF 12.1 MB) Instruction manual | GRL 250 HV Profe ... GRL 300 HVG Professional (PDF 6.4 MB) Instruction manual | GRL 300 HVG, GRL 300 HV, GRL 250 HV, RC 1 (Online version)

Product data sheet Product data sheet | PRO GRL 300 HVG (PDF 1.5 MB)
