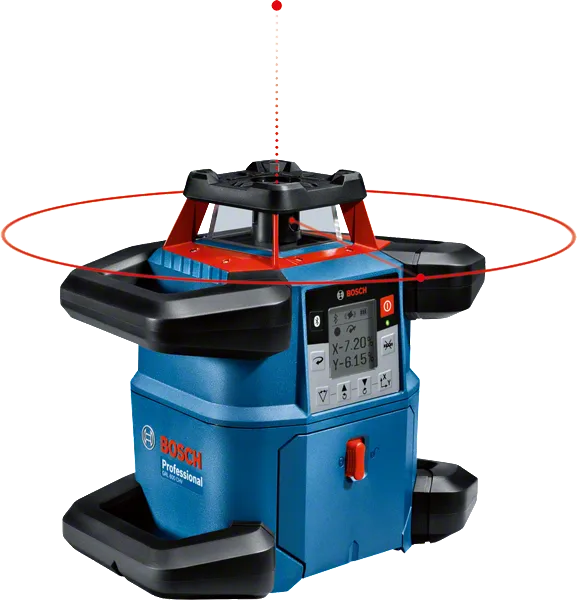

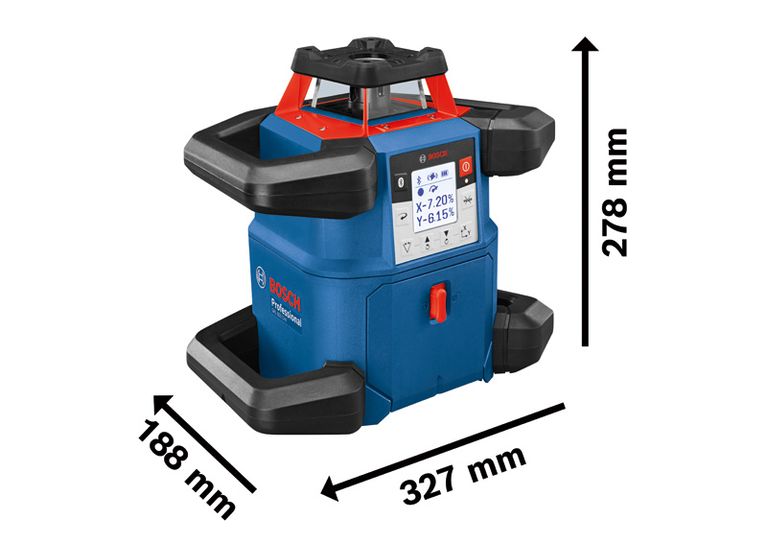

Rotation Laser
GRL 600 CHV Professional

£1,834.92 Including VAT.
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser target plate

Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs

in stock

Print

Technical data

The most important data

Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50°C
Storage temperature -20 – 50°C
Laser class 2
Working range with receiver up to 600 m (Diameter)
Working range without receiver up to 60 m (Diameter)
Accuracy ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range ±8.5% (±5°)
Dust and splash protection IP 68
Rotation speed 150/300/600 min−1
Power supply 18 V Li-ion battery, 4 x D cell batteries
Operating time (max.) 60 h, 70 h
Tripod thread 2 x 5/8"
Colour of laser line red
Projection 1 x 360° line
Compatible laser receivers LR 60
Weight with 4.0 Ah battery 4.3 kg
Weight with alkaline batteries 4.6 kg

Advantages

Get accurate results and save time with the GRL 600 CHV – perfect for heavy-duty jobs

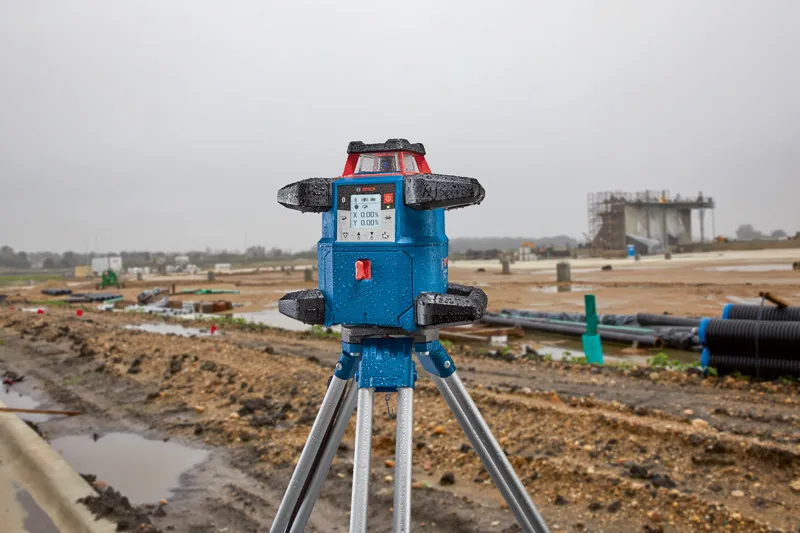

  • Highly flexible in bad weather with robust design, impact protection, and IP68 rating against dust and water
  • Intuitive via screen and access to levelling remote app that visualises all functions including dual slope setting to save time

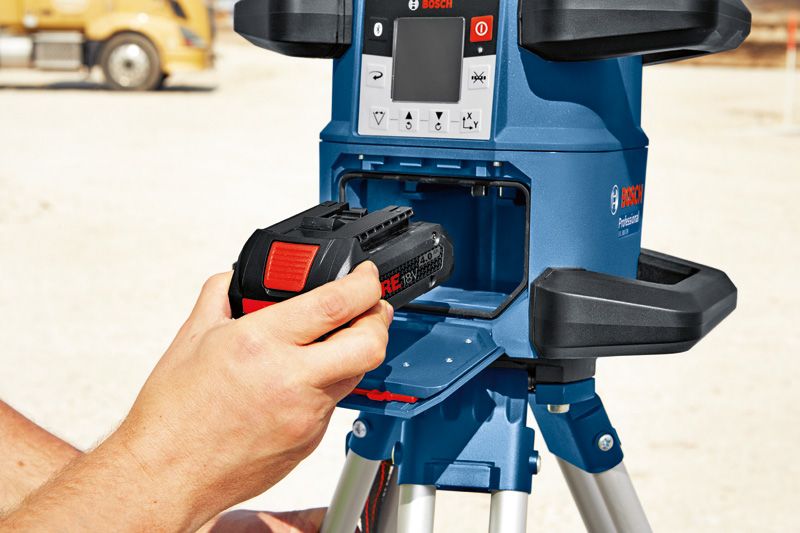

  • Conveniently long runtime both with 18V battery system and alkaline batteries (adapter included)

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

Scope of supply

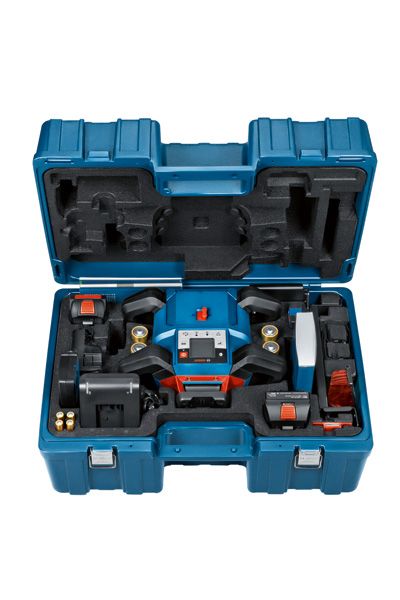

in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser target plate

Part Number: 0601061F70

£1,834.92
Including VAT.

Selected version

Price includes:

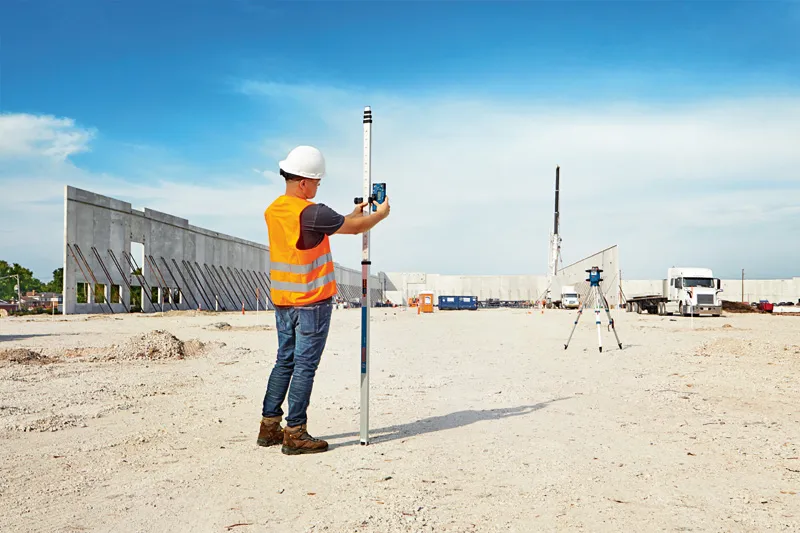

  • Laser receiver LR 60 Professional 0 601 069 P00
  • Receiver bracket RB 60 Professional
  • Remote control RC 6 Professional
  • 1 x battery ProCORE18V 4.0Ah 1 600 A01 6GB
  • Quick charger GAL 18V-40 Professional 1 600 A01 9RJ
  • Battery adapter BA 1 Professional

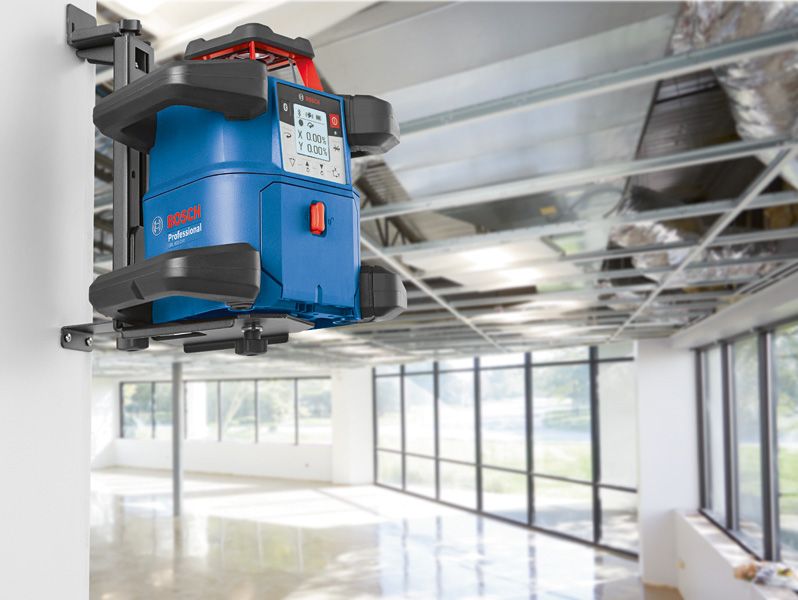

  • Wall mount WM 6 Professional
  • 4 x 1.5 V LR20 battery (D)
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Laser viewing glasses (red) (spare part number 1 608 M00 05B)
  • Carrying case
