PRO LR 60

Laser Receiver

Order number 0.601.069.P00

  • Long 125-mm reception window and dual-sided backlit display for quick and easy laser detection
  • Heavy-duty design via robust, soft grip body, durable rubber keypad, and P67 protection rating against dust and water
  • Communication with GRL 600 CHV Professional for user calibration, dual Centre line mode, and GRL battery status
View more

available at Bosch Partner

£310.59

incl. VAT

£258.82

excl. VAT

FREE UK DELIVERY

for orders over £ 50

UP TO 3 YEARS WARRANTY

for power tools and measuring tools

14 DAYS FREE RETURN

returns & exchanges


with 2 x battery (AA) 0 601 069 P00

£310.59

incl. VAT

£258.82

excl. VAT

available at Bosch Partner

PRO LR 60

Your Selection

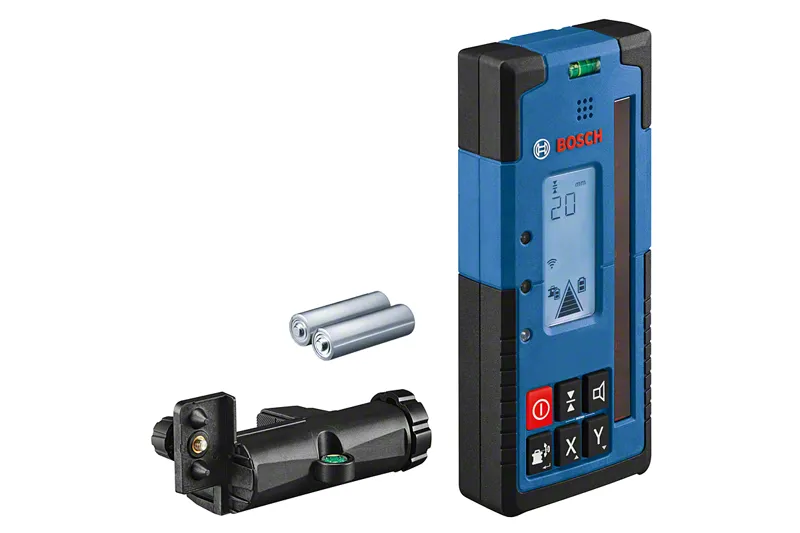

Bosch laser receiver with mounting bracket and batteries.
with 2 x battery (AA)

Part Number: 0 601 069 P00

£310.59

incl. VAT

£258.82

excl. VAT

Find a local dealer

Included in this variant

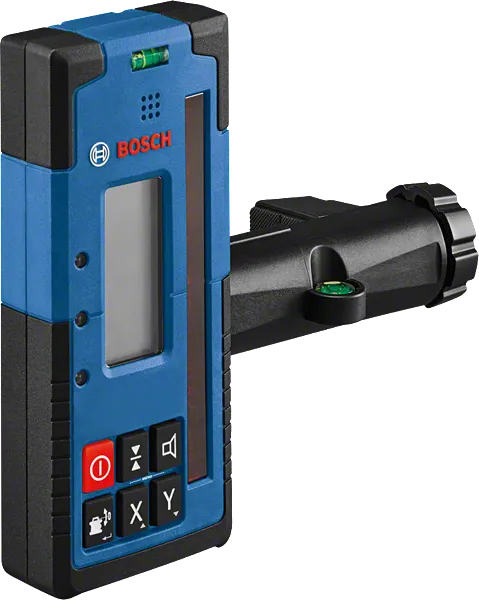

  • Receiver bracket RB 60 Professional
  • 2 x 1.5 V LR6 battery (AA)

Technical data

The most important data

Power supply
2 x 1.5 V LR6 (AA)
Dust and splash protection
IP67
Weight, approx.*
0.38 kg
Measuring accuracy (fine/rough)
± 0.5 mm, ± 1.0 mm, ± 2.0 mm, ± 5.0 mm, ± 10.0 mm
Suitable for
GRL 600 CHV
Type of receiver
Rotation lasers
Packaging dimensions (width x length x height)
160 x 230 x 80 mm

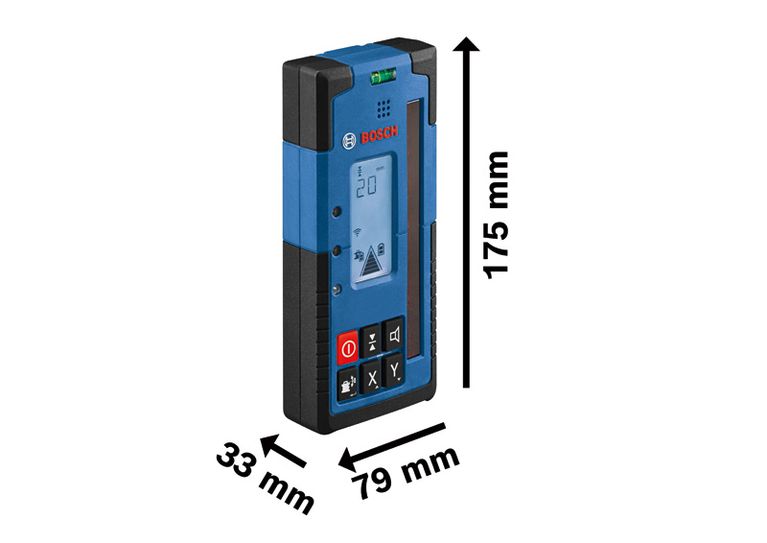

Bosch LR 60 laser receiver with display and dimensions.

* You can find more information about the deviations in the following link: Technical features of products

PRO LR 60: Further information

Product Highlights

Fast and easy laser detection – the robust, high-quality rotation laser receiver LR 60 Professional is the perfect mate when working with the GRL 600 CHV Professional. Its long 125-mm reception window and dual-sided backlit LCD display with a mm offset feature make it simple to detect lasers quickly and easily for efficient working progress. It is always ready for even the toughest jobsites thanks to its robust soft grip body, durable rubber keypad, and IP67 protection rating against dust and water. Communication with GRL 600 CHV enables additional functions including user calibration (uCAL) and Centre line mode for less errors and more reliable results.

Equipment & Application

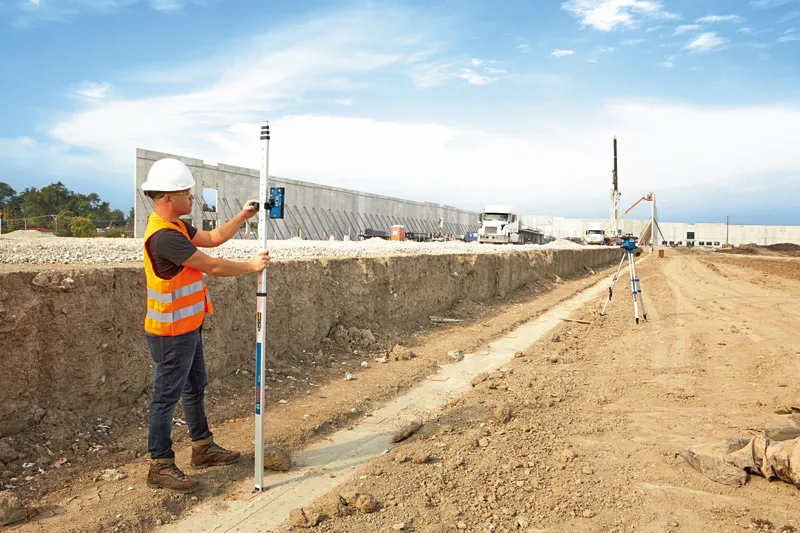

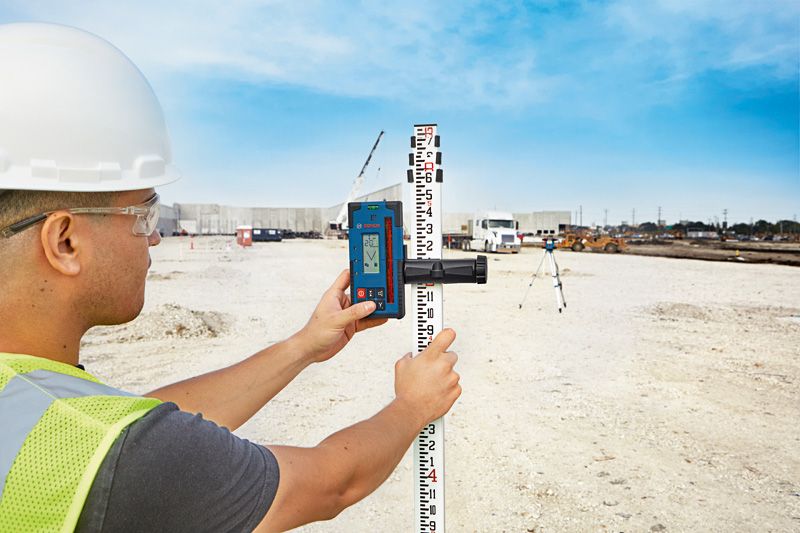

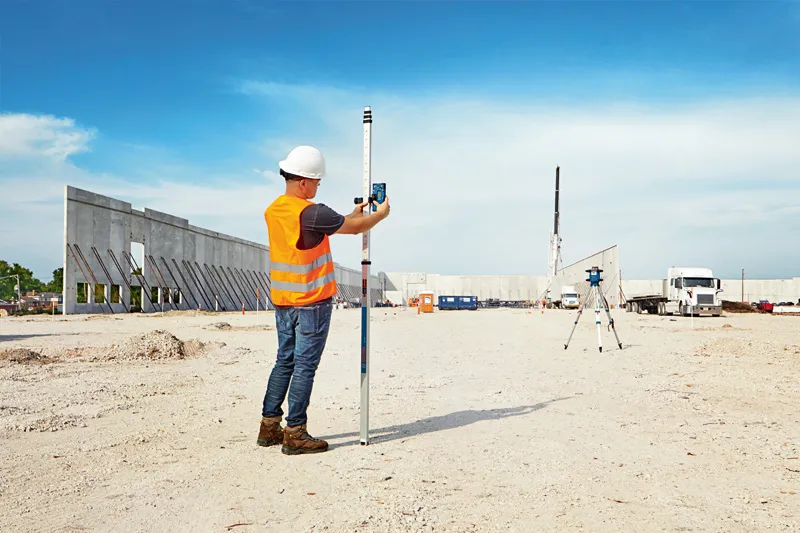

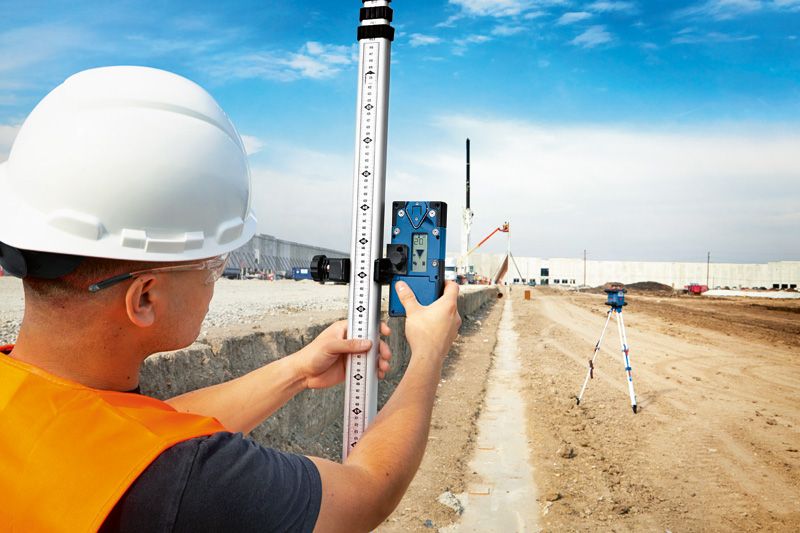

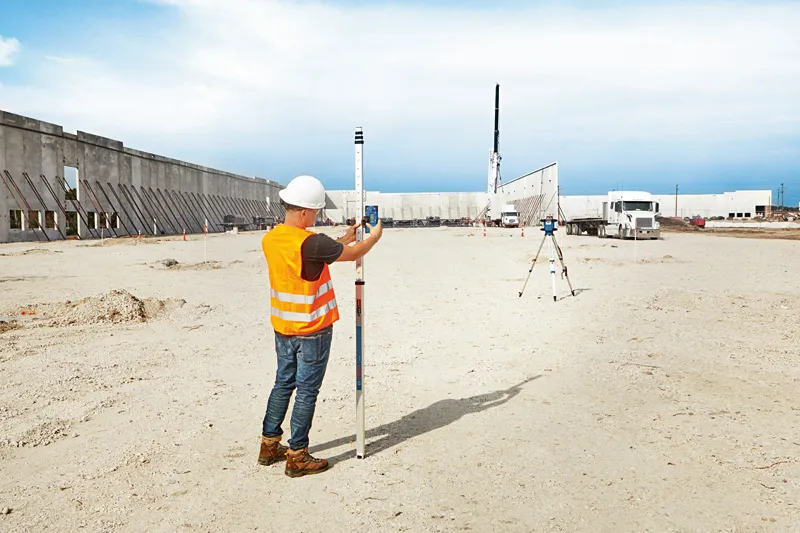

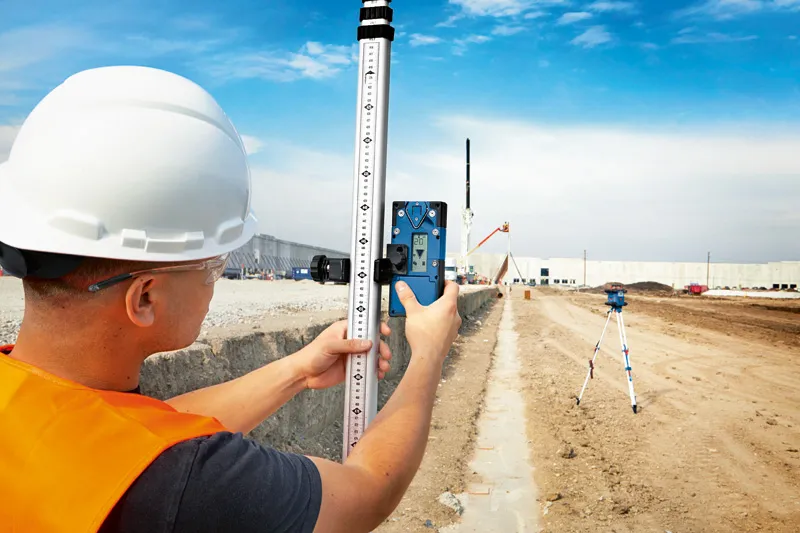

Use this receiver with the GRL 600 CHV when determining cut-and-fill for excavation work, concrete forms, landscaping, and facade work.

Additional Information

The laser receiver LR 60 also features different sensitivity and volume settings, making it adaptable to fit each work environment. It has a large working range of up to 300 m. The receiver's LEDs with adjustable brightness settings help detect the laser beam while its vial ensures accurate results.
