New
PRO

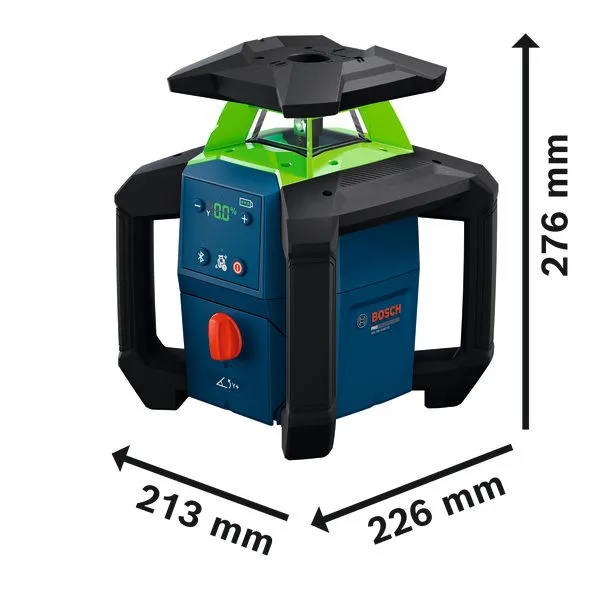

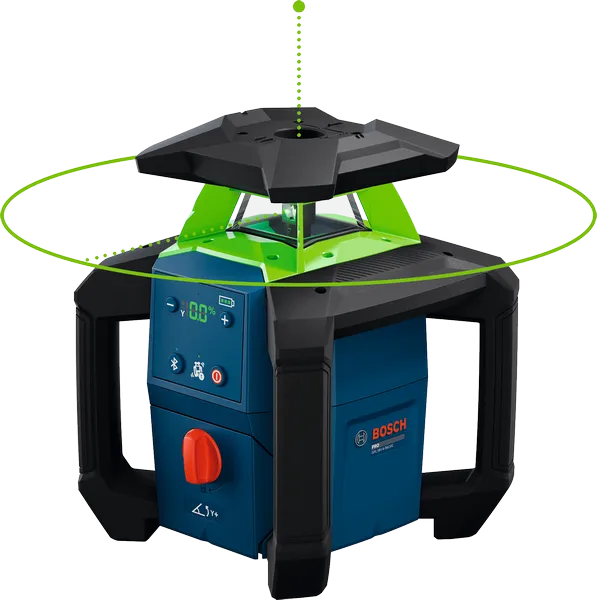

PRO GRL18V-4-34CVG
Rotation Laser
Order number 0.601.061.H01

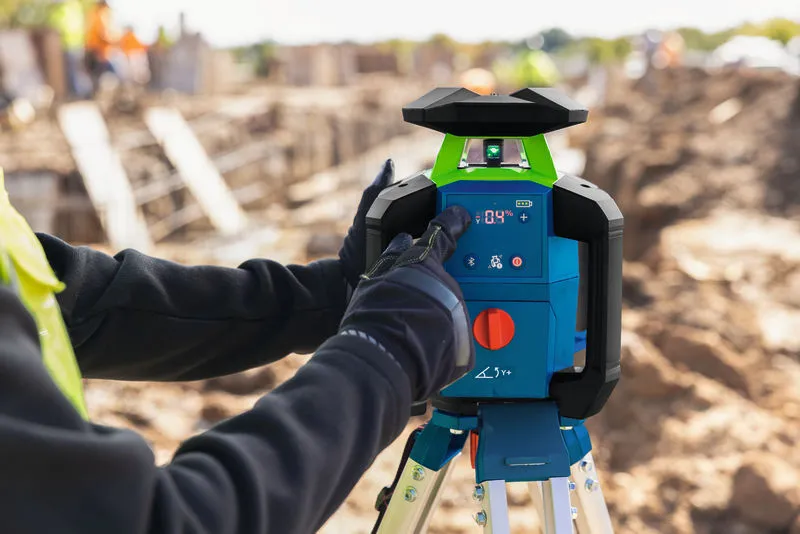

- Intuitive dial-in slope with a bi-colour LED keypad to save time and ensure clear visibility from a distance
- IP66 rating and 1.5 m tripod tip-over resistance for peace of mind on tough jobsites
- Powered by 18V LI-batteries or alkaline C-cells for uninterrupted work
in L-BOXX 374 with 2 x battery (AA)
0 601 061 H01
PRO GRL18V-4-34CVG
Your Selection
New
in L-BOXX 374 with 2 x battery (AA)
Part Number: 0 601 061 H01
£1,848.00
incl. VAT
£1,540.00
excl. VAT

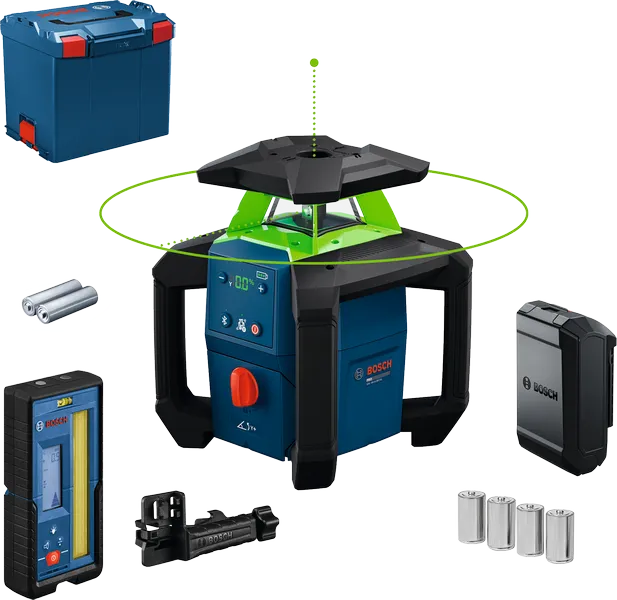

Included in this variant
-
Receiver bracket RB 45 Professional (spare part number: 1 600 A00 FD1)
-
4 x 1.5 V LR14 battery (C)
-
Battery adapter BA 18-CPart Number: 1 608 M00 C4B
-
2 x 1.5 V LR6 battery (AA)
-
Laser Receiver LR 45 ProfessionalPart Number: 0 601 069 L00
-
L-BOXX 374Part Number: 1 600 A01 2G3
Technical data
The most important data
Battery voltage
18.0 V
Laser diode
500 – 540 nm, < 1 mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 50 °C
Laser class
2
Working range with receiver*
400 m (diameter)
Accuracy*
± 3.0 mm at 30 m vertical, ± 1.5 mm at 30 m horizontal
Self-levelling range
± 15% (± 8.5 °)
Dust and splash protection
IP66
Rotation speed
150/300/600 min-¹
Power supply
4 x 1.5 V LR14 (C), 18 V Li-Ion battery
Tripod thread
2 x 5/8"
Weight, approx.*
3.1 kg
Colour of laser line
Green
Color of plumb points
Green
Projection
1 x 360° line
Compatible laser receivers
LR 45
* You can find more information about the deviations in the following link:
PRO GRL18V-4-34CVG: Further information
Product Highlights
With a robust build and cutting-edge features, the GRL18V-4-34CVG rotary laser is made to boost your efficiency on even the toughest jobs. Its intuitive dial-in slope is adjustable up to +/- 15% to save you time and ensure precision, while a keypad featuring bi-colour segment LEDs offers clear visibility of the tool's status even from a distance. With protective handles and a reinforced top-cap for impact resistance, as well as an IP66 rating for protection against dust and water, the GRL18V-4-34CVG is built for the toughest jobsites.
Equipment & Application

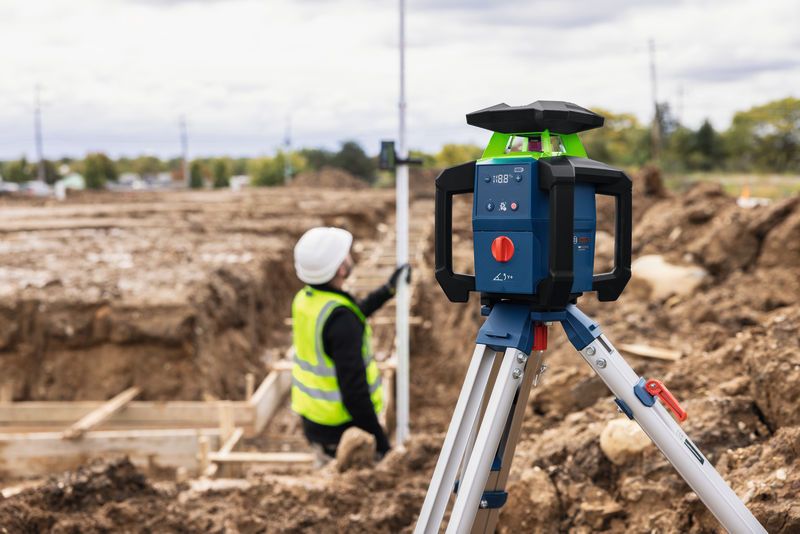

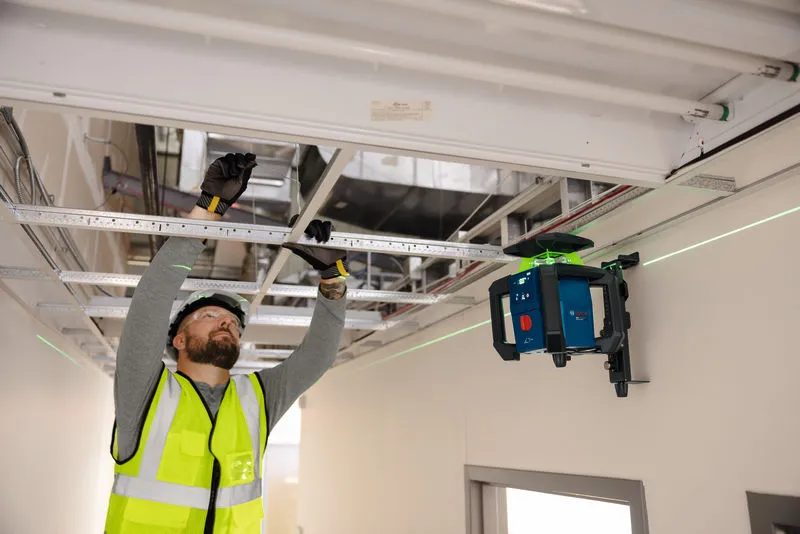

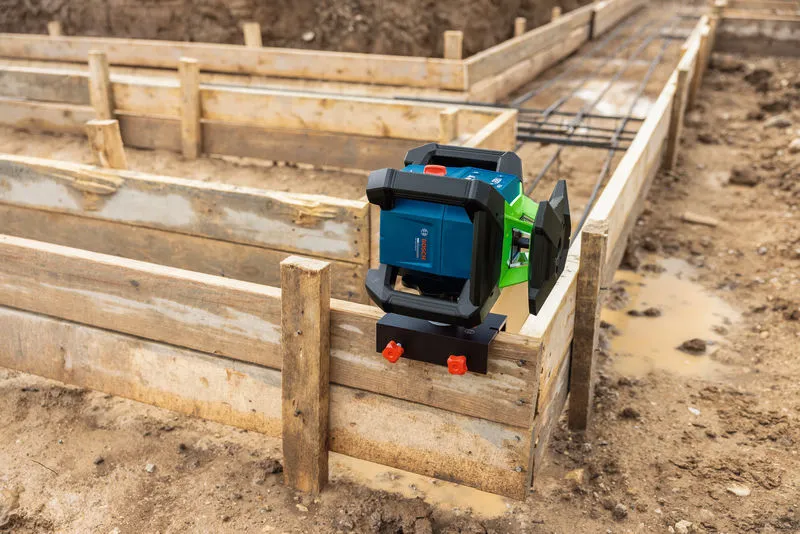

This rotary laser is perfect for single slope applications like pipe installation and building ramps with up to 15% slope. Also supporting interior tasks on larger job sites, such as suspended ceiling installation and wall partitioning, the GRL18V-4-34CVG gives you the versatility to work with speed and confidence – no matter the job.
Additional Information

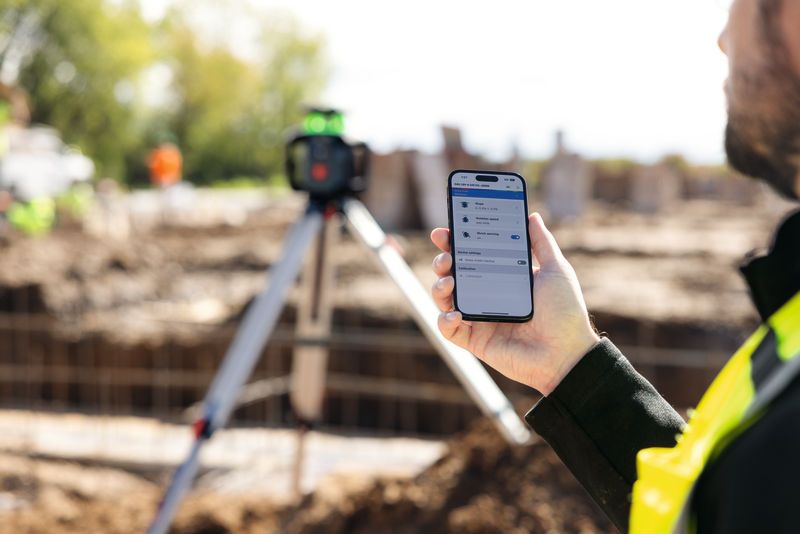

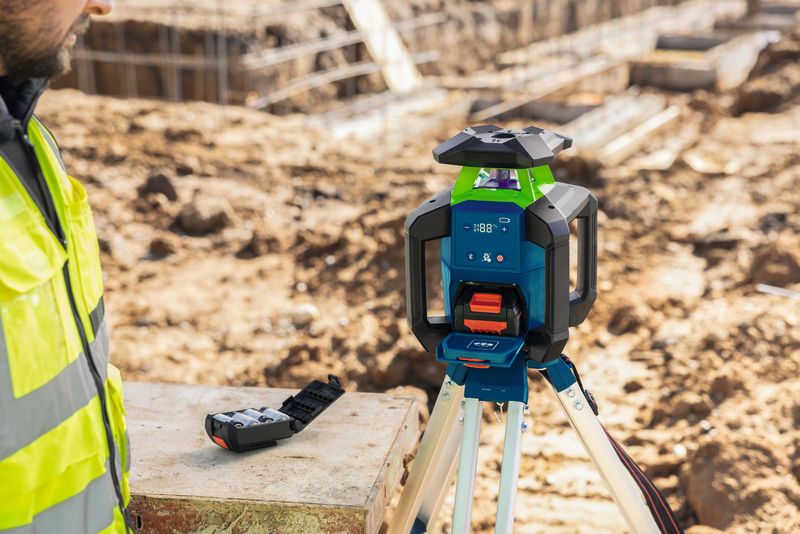

Featuring a green laser beam, the GRL18V-4-34CVG gives you clear visibility in any conditions. Connectivity with the Levelling Remote App allows faster slope setting and access to additional functions like sweep, speed and sleep modes. And with dual power source capabilities, you can work uninterrupted using 18V LI-batteries or 4 C-cells with the BA 18-C adapter.
