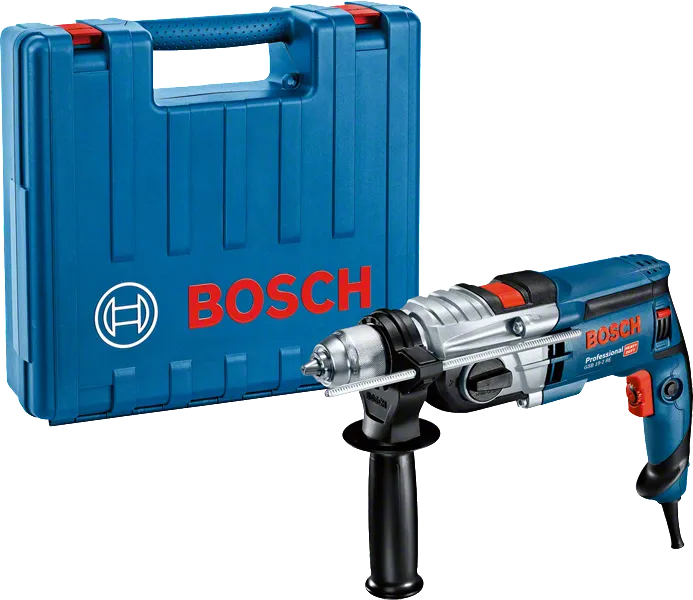

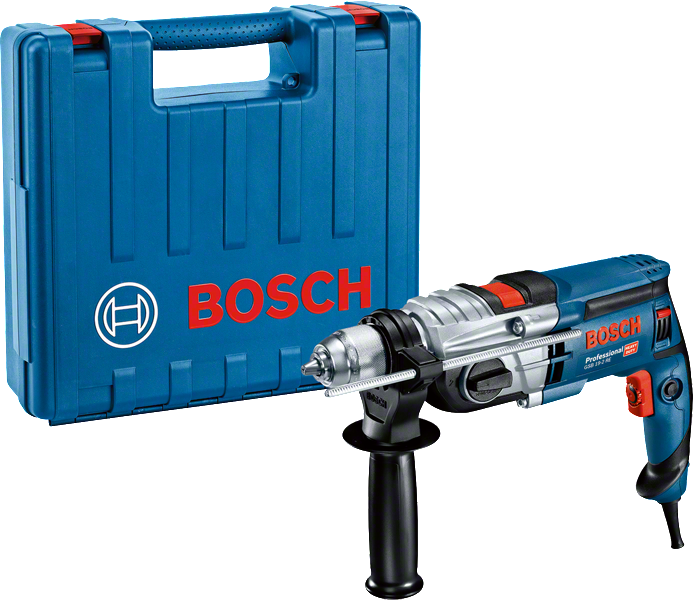

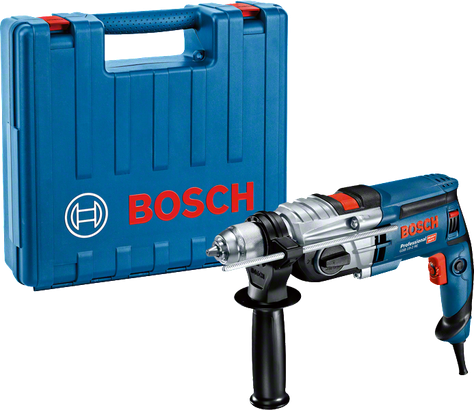

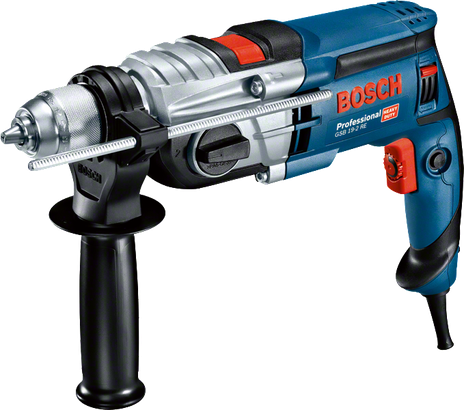

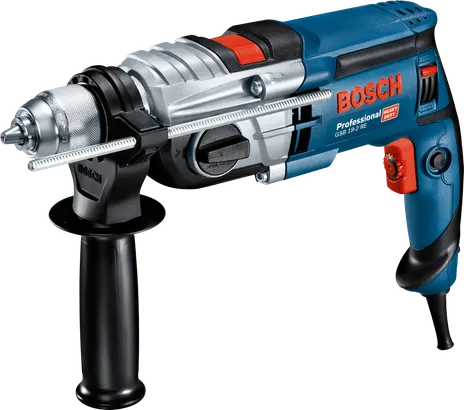

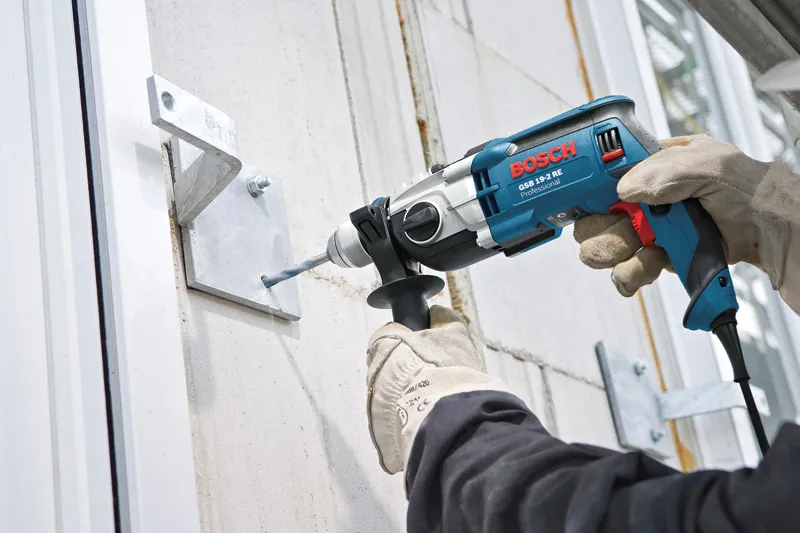

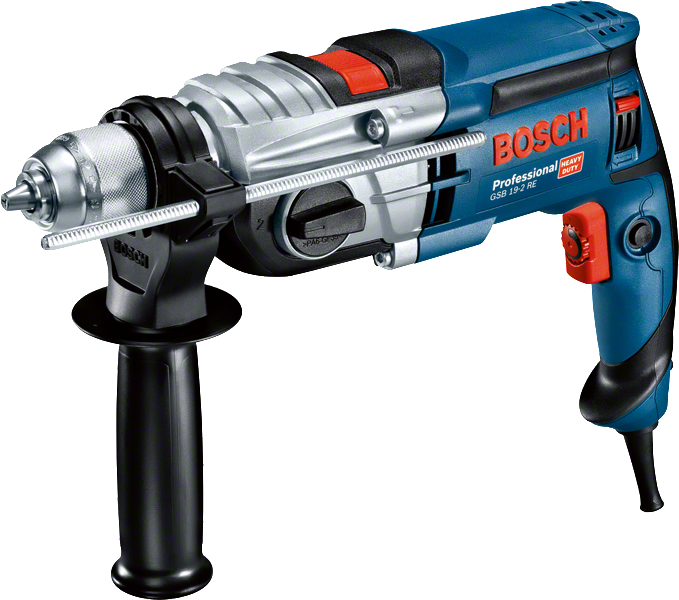

GSB 19-2 RE Professional

Impact Drill

All-round performance impact drill with 2-gears

Reliable 850 W motor for fast work progress
Features rotation control clutch for a high level of user protection
Sturdy metal gear housing for a long tool lifetime

See technical details

Functions

Your Selection

in carrying case with auxiliary handle, Accessory

Change variant

Quantity

Available at Bosch partners

Buy from a Bosch partner

Your Selected Variant

in carrying case with auxiliary handle, Accessory 0 601 17B 560

Select a variant

Your Selection

in carrying case with auxiliary handle, Accessory

Part Number: 0 601 17B 560

Quantity

Available at Bosch partners

Buy from a Bosch partner

This product includes

Auxiliary handle 2 605 025 190
Carrying case 2 605 438 524
Depth stop 210 mm 1 613 001 010
Keyless chuck 13 mm 2 608 572 149
Voltage 110 V

Show less

Your Selection

in carrying case with auxiliary handle, Accessory

Part Number: 0 601 17B 570

Select Variant

Quantity

Available at Bosch partners

Buy from a Bosch partner

This product includes

Auxiliary handle 2 605 025 190
Carrying case 2 605 438 524
Depth stop 210 mm 1 613 001 010
Keyless chuck 13 mm 2 608 572 149
Voltage 240 V

Show less

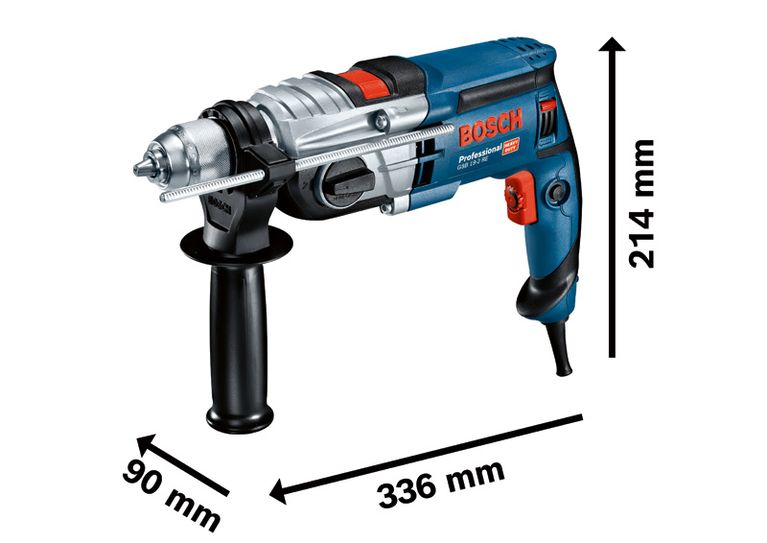

Technical data

The most important data
Rated input power	850 W
No-load speed, 1st gear	0 – 1,000 rpm
No-load speed, 2nd gear	3,000 rpm
Power output	430 W
Weight	2.6 kg
Rated speed	800 / 2,060 rpm
Rated torque	5.2 / 2.0 Nm
Drill spindle connecting thread	1/2" – 20 UNF
Chuck capacity, min./max.	1.5 – 13 mm
Impact rate at no-load speed	0 – 17,000 / 51,000 bpm
Max. torque	36.0 / 15.5 Nm

Drilling range
Drilling diameter in concrete	18 / 13 mm
Drilling diameter in wood	40 / 25 mm
Drilling diameter in steel	13 / 8 mm
Drilling dia. in stone	20 / 15 mm
Drilling diameter in masonry	20 / 15 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	2 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	99 dB(A)
Sound power level	110 dB(A)
Uncertainty K	5 dB

GSB 19-2 RE Professional: Further information

Product Highlights

The GSB 19-2 RE Professional is a corded 2-geared all-round performing impact drill. It has a reliable 850 W motor enabling fast work progress. It also features a rotation control clutch providing a high level of user protection. The impact drill is designed with a sturdy metal gear housing ensuring a long tool lifetime.

Equipment & Application

This tool is intended for drilling in concrete, stone, and masonry. It is compatible with the attachment GDE 16 Cyl Professional.

Additional Information

The GSB 19-2 RE Professional includes features such as Autolock and speed selection.
