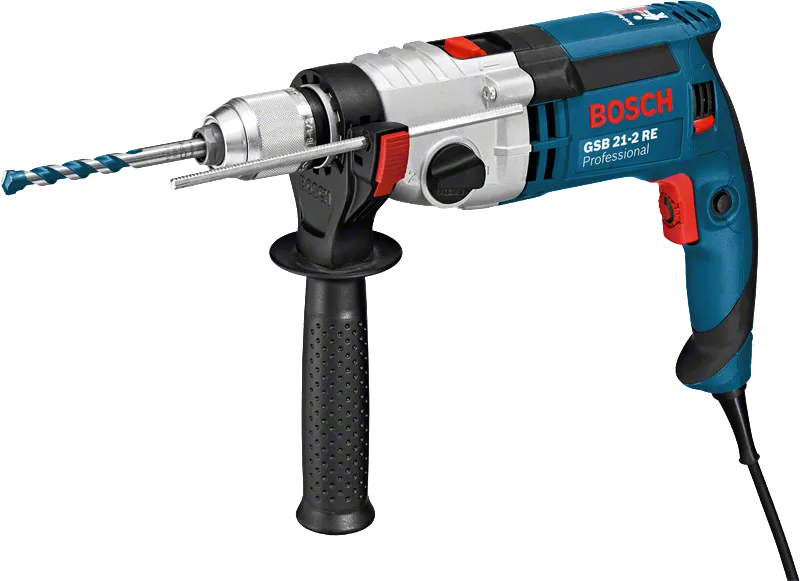

Impact Drill
GSB 21-2 RE Professional

in carrying case with auxiliary handle, Accessory

The most powerful tool in its class – for the toughest applications

Choose product variation:

Available at Bosch partners

Print

More

Technical data

The most important data

Rated input power 1,100 W
No-load speed, 1st gear 0 – 900 rpm
No-load speed, 2nd gear 3,000 rpm
Power output 630 W
Weight 2.85 kg
Rated speed 580 / 1,900 rpm
Rated torque 9.6 / 3.2 Nm
Drill spindle connecting thread 1/2" – 20 UNF
Chuck capacity, min./max. 1.5 – 13 mm

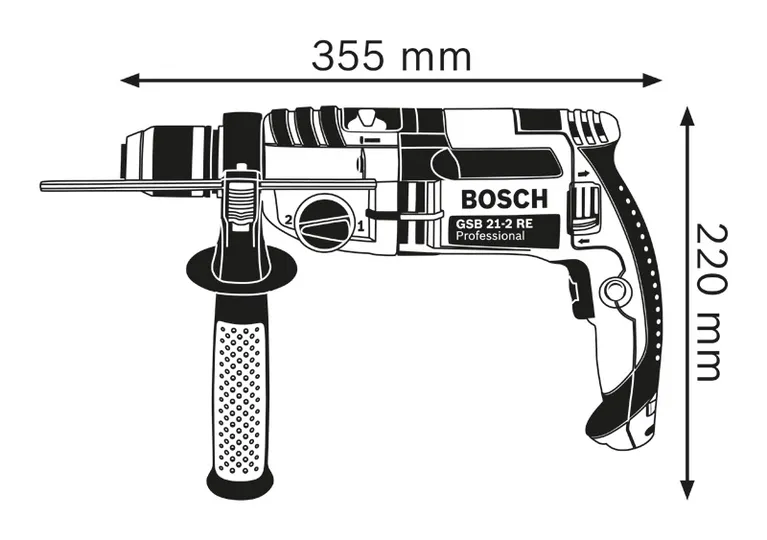

Tool dimensions (width) 81 mm
Tool dimensions (length) 363 mm
Tool dimensions (height) 220 mm
Impact rate at no-load speed 0 – 15,300 / 51,000 bpm
Max. torque 40.0 / 14.5 Nm
Packaging dimensions (width x length x height) 355 x 390 x 115 mm
Voltage, electrical 110 V
Spindle collar diameter 0 mm
Drilling range
Drilling diameter in concrete 22 / 13 mm
Drilling diameter in wood 40 / 25 mm
Drilling diameter in steel 16 / 8 mm
Drilling diameter in masonry 24 / 16 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 95 dB(A)
Sound power level 106 dB(A)
Uncertainty K 3 dB
Drilling in metal
Vibration emission value ah 5.6 m/s²
Uncertainty K 1.5 m/s²
Impact drilling in concrete
Vibration emission value ah 14.6 m/s²
Uncertainty K 1.8 m/s²
Screwdriving
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²
Thread-cutting
Vibration emission value ah 2.5 m/s²
Uncertainty K 1.5 m/s²

Advantages

The most powerful tool in its class – for the toughest applications

  • Bosch high-performance motor (1100 W) with high torque for the most heavy-duty applications with large diameters (drilling, working with core cutters and holesaws), screwdriving and stirring
  • Sturdy metal gear housing for a long lifetime
  • Anti-rotation mechanical overload clutch for a high level of work safety, even in the toughest applications

Functions

Metal chuck 1.5 - 13.0 mm
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Convenient change of accessories Keyless chuck opens and closes easily
Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox
Comfortable handling of the tool thanks to softgrip
Woodworking The professional power tools for woodworking from Bosch.

Scope of supply

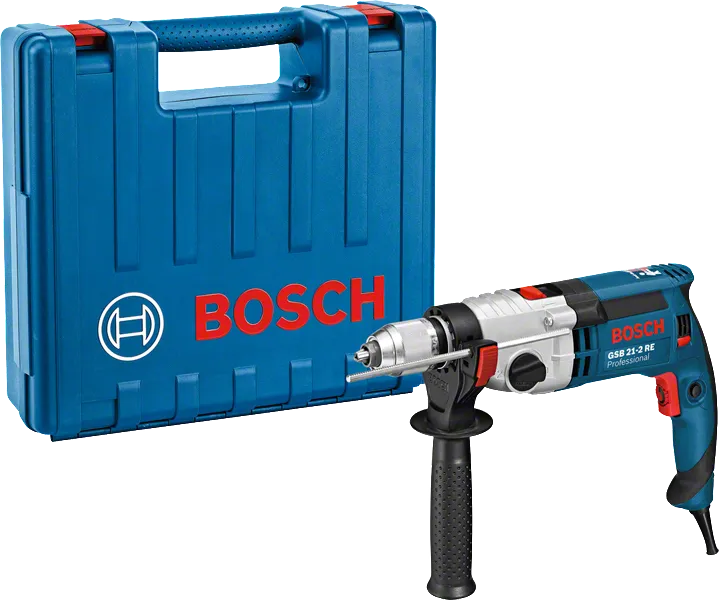

in carrying case with auxiliary handle, Accessory

Part Number: 060119C560

Selected version

Price includes:

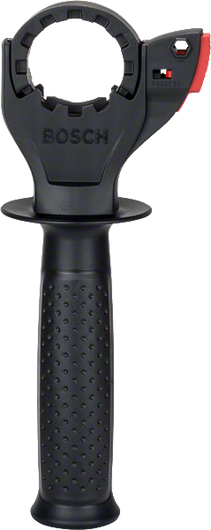

  • Auxiliary handle 2 602 025 193
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010

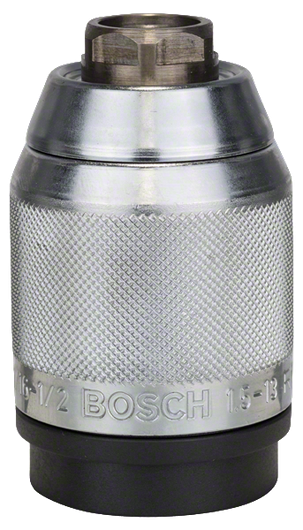

  • Keyless chuck 13 mm 2 608 572 150
  • Voltage 110 V

Available at Bosch partners

in carrying case with auxiliary handle, Accessory

Part Number: 060119C570

Price includes:

  • Auxiliary handle 2 602 025 193
  • Carrying case 2 605 438 524
  • Depth stop 210 mm 1 613 001 010
  • Keyless chuck 13 mm 2 608 572 150
  • Voltage 240 V

Available at Bosch partners
