Measuring technology

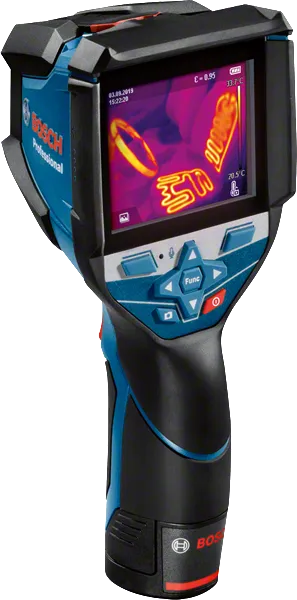

GTC 600 C Professional

Thermo Camera

GTC 600 C
GTC 600 C
GTC 600 C

Detailed visualisation of temperature differences with smart documentation

  • High thermal resolution and wide measuring range for maximum applications
  • Voice note and Bosch ThermalOn app enable easy documentation of thermal images
  • Intuitive user interface and seamlessly integrated features deliver successful results in minimum clicks

Functions & key features

IR Sensor 256 x 192 pixel
IP54 dust and splash water protection
 Integrated microphone and speaker for recording of voice notes
GTC transfer software
IR measurement range -20 °C to +600 °C

Your Selection

  • in L-BOXX 136
Change variant
£1,834.00
Including VAT

not available

Available at 3 BOSCH Partners

in L-BOXX 136 0 601 083 508
£1,834.00
Including VAT

Select a variant

Your Selection

GTC 600 C
in L-BOXX 136

Part Number: 0 601 083 508

£1,834.00
Including VAT

not available

Available at 3 BOSCH Partners

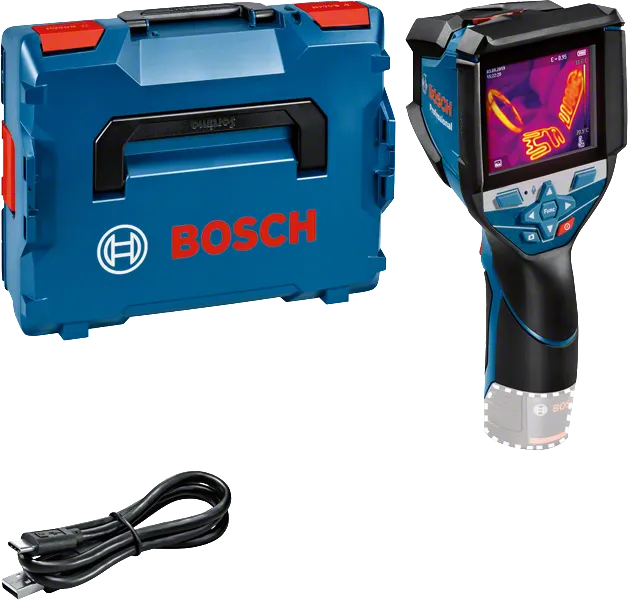

Included in all variants

  • L-BOXX 136
    Part Number: 1 600 A01 2G0
  • USB-C™ Cable
    Part Number: 1 600 A01 L6H
  • L-BOXX inlay for accessories
  • L-BOXX inlay for tool

Your Selection

GTC 600 C

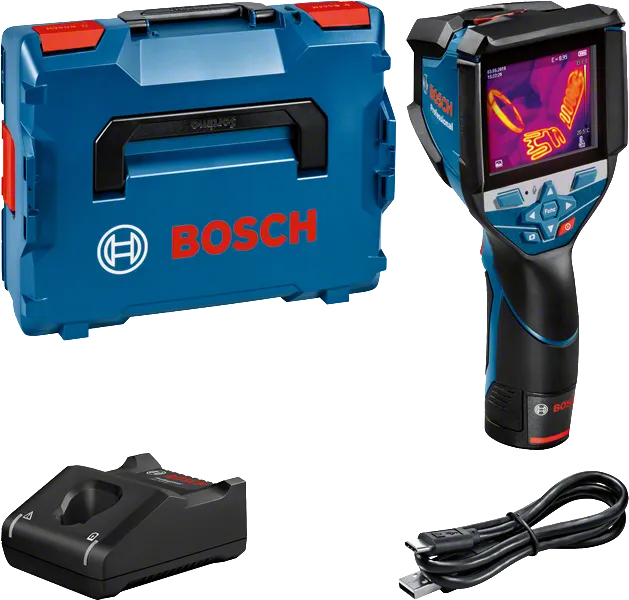

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, quick charger

Part Number: 0 601 083 570

£1,692.00
Including VAT

not available

Available at 2 BOSCH Partners

Included in all variants

  • L-BOXX 136
    Part Number: 1 600 A01 2G0
  • USB-C™ Cable
    Part Number: 1 600 A01 L6H
  • L-BOXX inlay for accessories
  • L-BOXX inlay for tool

Additional in this variant

  • Quick charger GAL 12V-40 Professional
    Part Number: 1 600 A01 9R4
  • 1 x battery GBA 12V 2.0Ah
    Part Number: 1 600 Z00 02X
GTC Transfer Software
Discover and download now!

Technical data

The most important data

Battery voltage 12.0 V
Measurement range* -20 °C to +600 °C
Measuring accuracy of IR* ± 2.0 °Cᵇ
Resolution 0.1 °C
Thermal sensitivity (NETD) <=50 mK
Size of IR sensor 256x192 px
Number of measuring points 49,152
Power supply and runtime GBA 12 V 2.0 Ah 6 hours
Frame buffer (number of images) 600
File format of image .jpg
Data transfer Wi-Fi, USB-C®
Shock protection 2 m
Dust and splash protection* IP54** (**except for the lithium-ion battery pack)

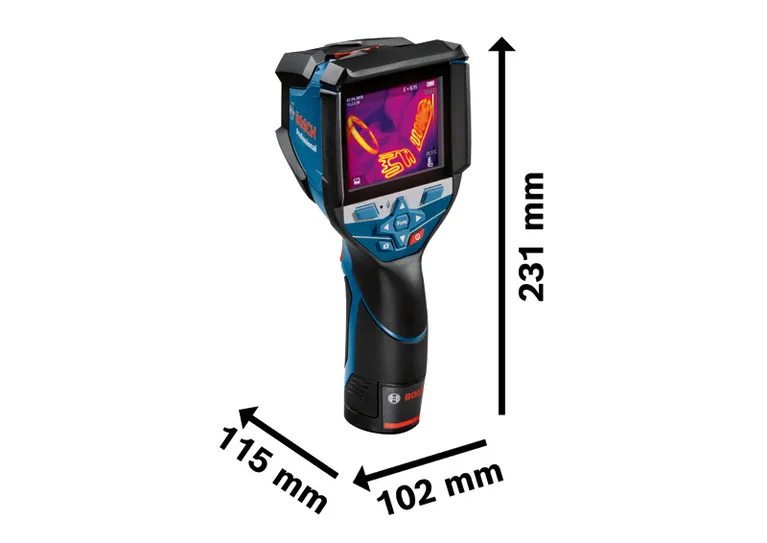

Weight** 0.6 kg
Size of display 3,5"
Operating temperature -10 – 45 °C
Storage temperature -20 – 50 °C
Focus distance, minimum 0.3 m
Thermal image refresh rate 9 Hz
Frame buffer (number of images each with audio) 350
File format of audio .wav
GTC 600 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

GTC 600 C Professional: Further information

Product Highlights

Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.

Equipment & Application

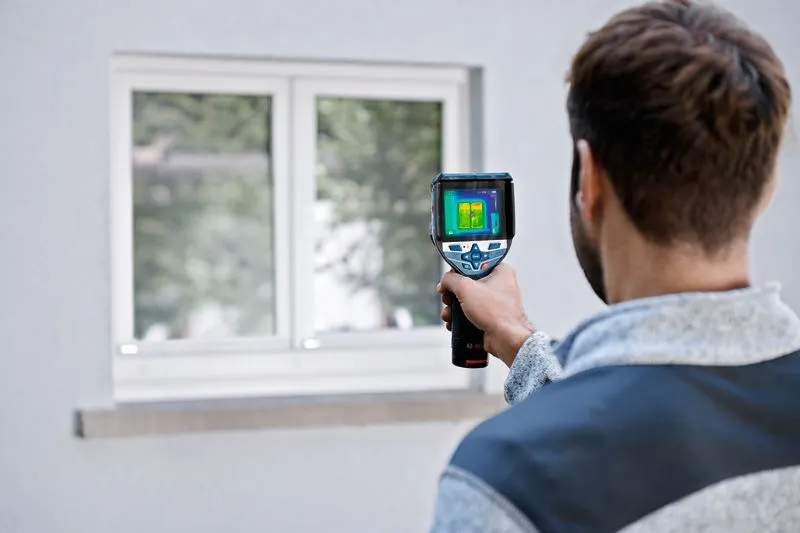

This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Additional Information

The robust GTC 600 C can withstand falling from a height of 2 m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This thermal camera has a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.
