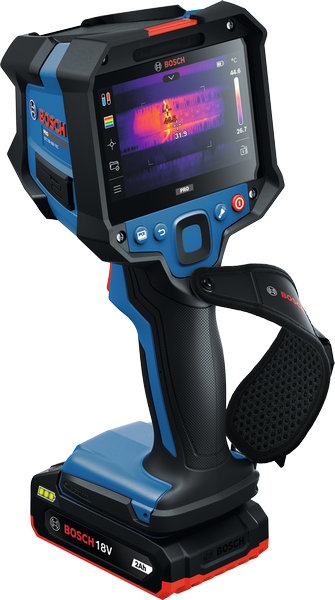

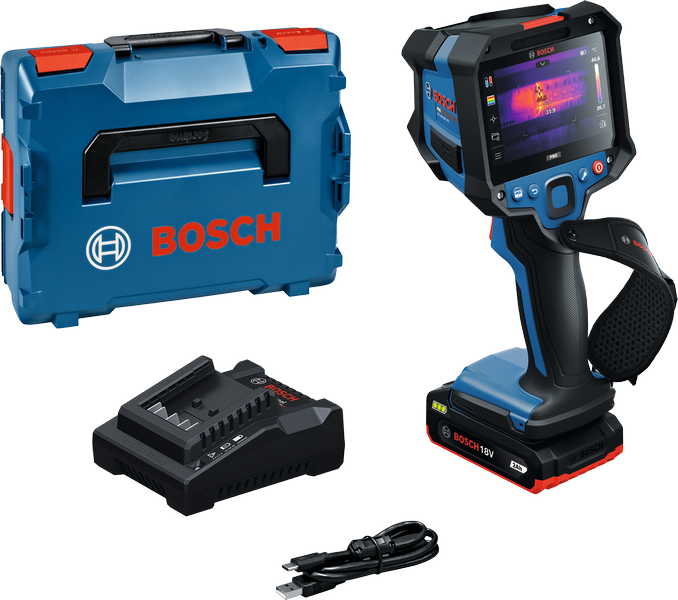

PRO GTC18V-600-16C
Thermo Camera
Order number 0.601.083.770
- Wide 4.3” touchscreen enables advanced picture analysis and data management directly on the tool
- Versatile with Temperature Probe Type K interface, LED worklight and -20°C to +600°C range for diverse indoor and outdoor applications
- Built to last with IP54, lens protection and with ergonomic handle for tough conditions
Limited stock
Estimated delivery time 2-5 working days
£2,212.92
incl. VAT
£1,844.10
excl. VAT
Payment options
PRO GTC18V-600-16C Professional
0 601 083 770
PRO GTC18V-600-16C
Your Selection
Technical data
The most important data
Battery voltage
18 V Li-Ion battery
Measurement range*
-20 °C to +600 °C
Measuring accuracy of IR*
± 2.0 °C
Resolution
0.1 °C
Laser diode
630 - 640 nm, < 1 mW
Thermal sensitivity (NETD)
<=50 mK
Power supply and runtime
18 V Li-Ion battery
Frame buffer (number of images)
6,000
Memory type
internal memory, microSD
File format of image
.jpg
Data transfer
Wi-Fi
Shock protection
2 m
Dust and splash protection*
IP54
Weight*
0.76 kg
Display type
Capacitive touchscreen
Size of display
4.3"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focus distance, minimum
0.3 m
Thermal image refresh rate
25 Hz
Frame buffer (number of images each with audio)
4,000

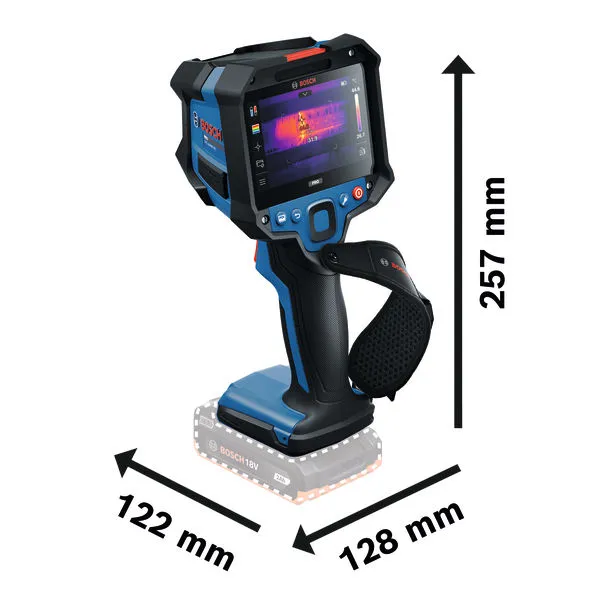

Tool dimensions (L x W x H)
128 x 122 x 257 mm
Packaging dimensions (width x length x height)
360 x 44 x 140 mm
IR image sharpening
Yes
Compensation for measuring small objects
Yes
IR Image with contours
Yes
Advanced gallery for viewing images
Yes
AI Image Boost
No
* You can find more information about the deviations in the following link:
PRO GTC18V-600-16C: Further information
Product Highlights

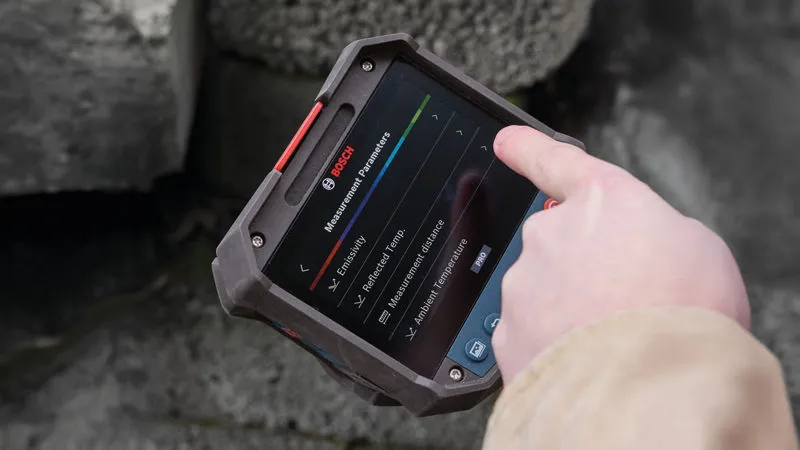

The GTC18V-600-16C thermal camera combines premium usability with advanced functionality. Its user-validated HMI features a 4.3” wide touchscreen, making picture analysis, editing and data management directly on the tool intuitive and efficient. With a focus on both infrared and visual imaging, this camera ensures precise thermal imaging for professionals.
Equipment & Application

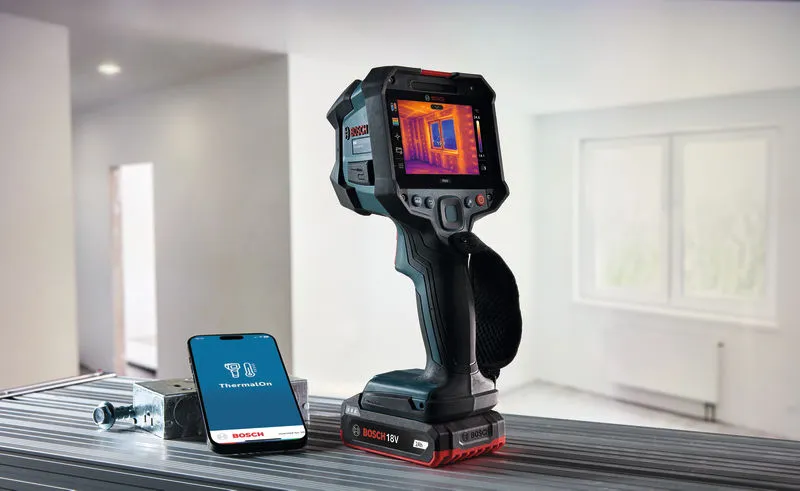

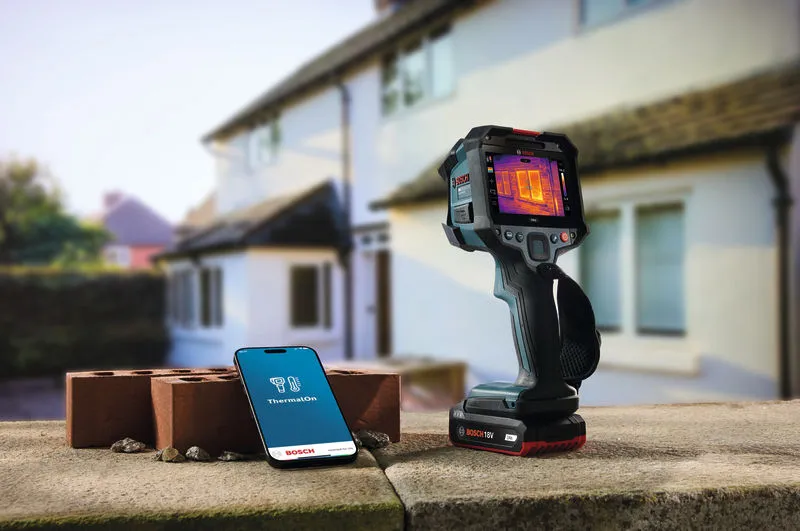

The GTC18V-600-16C offers premium image quality with an infrared resolution (IR) of 256 x 192 pixels. Smart functions like Small Objects compensation, Contours and Sharpen ensure precision. The ergonomic hand strap and configurable second trigger button enhance comfort and control, even during extended use. Thanks to Wi-Fi connectivity, you can instantly transfer measurements to the Bosch ThermalOn app for fast, error-free documentation. Powered by the 18V battery platform for uninterrupted performance. Built tough with IP54 rating and lens protection for durability.
Additional Information

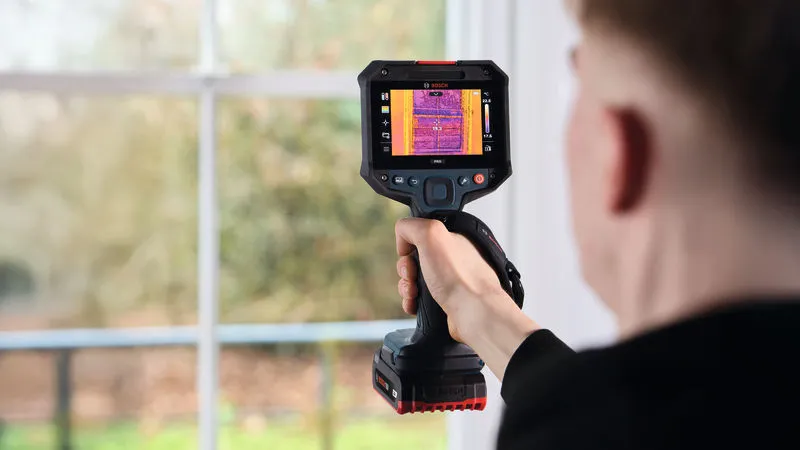

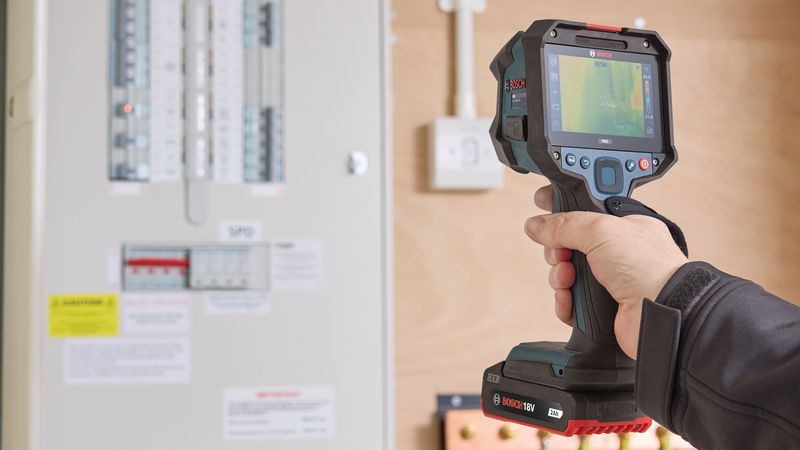

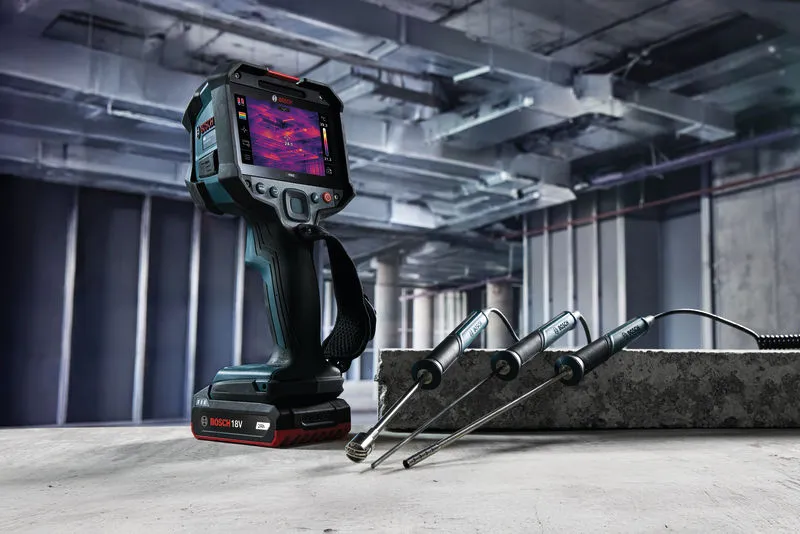

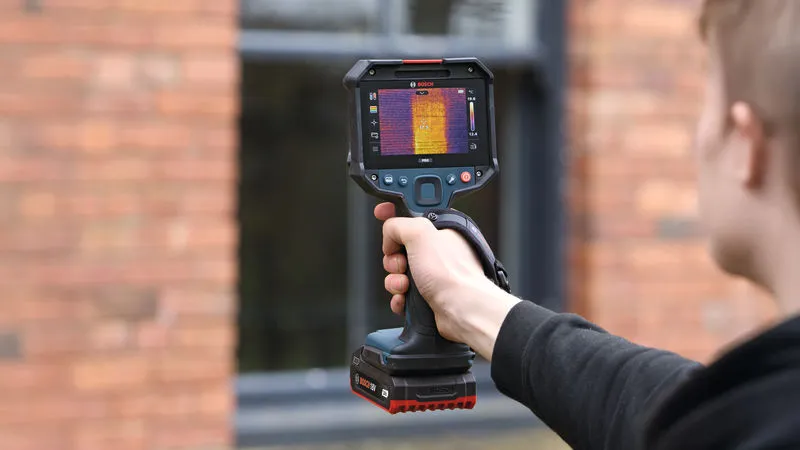

This thermal camera is perfect for HVAC, industrial, automotive, renovation, and facility management applications. Use it to check heating systems, evaluate insulation, or visualize engine components. The expanded functionality includes a Temperature Probe Type K interface, LED worklight, a laser and a wide temperature range of -20°C to +600°C, making it versatile for various indoor and outdoor tasks.
