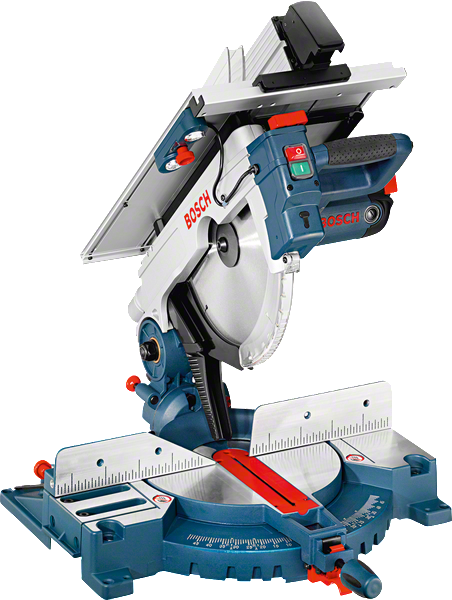

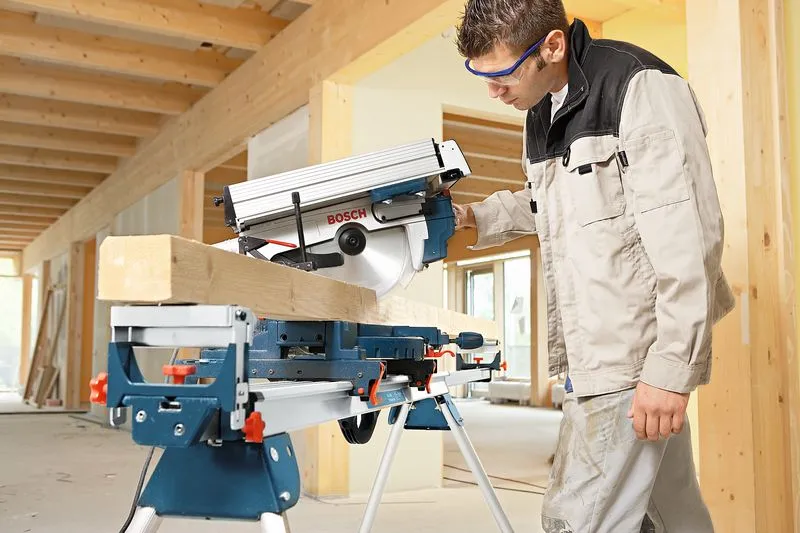

Combination Saw
GTM 12 JL Professional

£475.42 Including VAT.
with circular saw blade, Accessory

Multi-functional combination saw for versatile performance

Choose product variation:

Available at Bosch partners

Print

More

Technical data

The most important data

Cutting capacity, 0° 95 x 150 mm
Cutting capacity, 45° mitre 95 x 90 mm
Mitre setting 48 ° L / 48 ° R
Bevel setting 47 ° L / 2 ° R

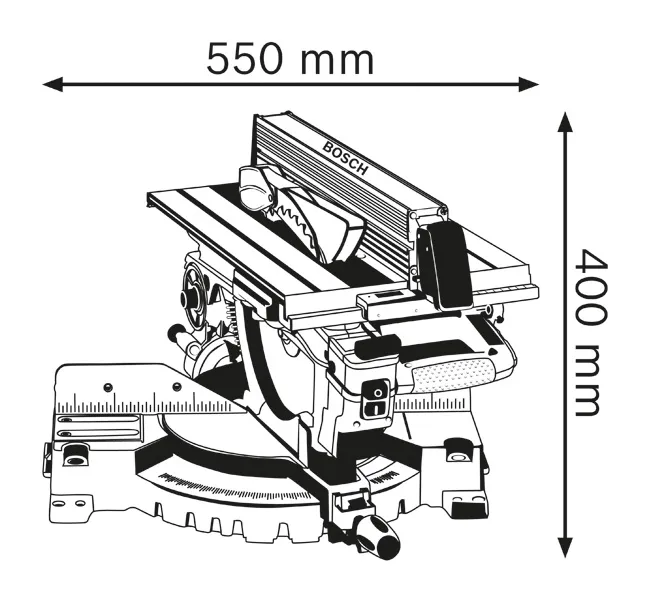

Tool dimensions (width x length x height) 660 x550 x400 mm
No-load speed 3,800 rpm
Saw blade diameter 305 mm
Cutting height of table saw 51 mm
Saw blade bore diameter 30 mm
Weight 21 kg
Rated input power 1,800 W
Voltage 220 – 240 V
Packaging dimensions (width x length x height) 606 x 710 x 464 mm
Noise/vibration information

Total vibration values (vector sum of three directions)

Sound pressure level 91 dB(A)
Sound power level 104.5 dB(A)
Uncertainty K 3 dB

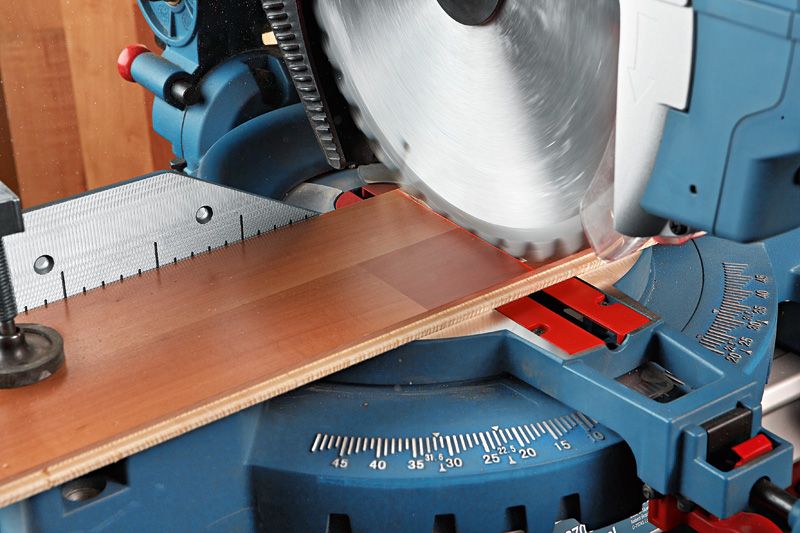

Sawing wood
Vibration emission value ah 3.4 m/s²
Uncertainty K 1.5 m/s²

Advantages

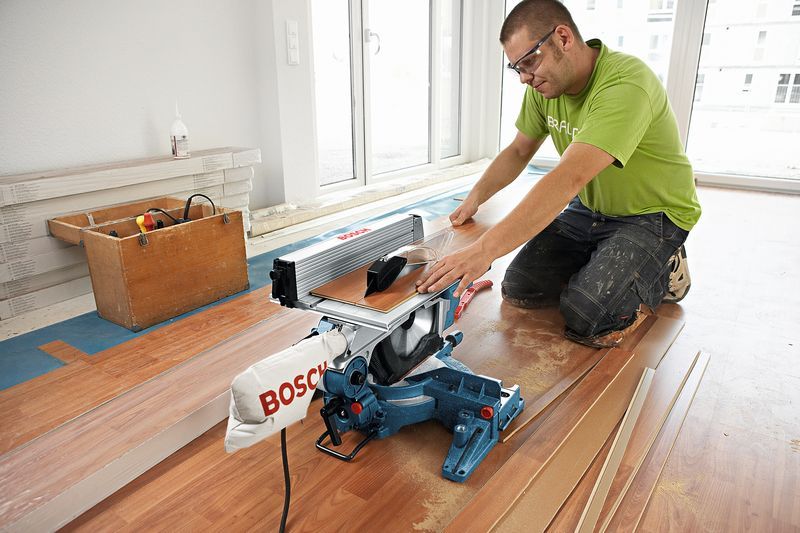

Multi-functional combination saw for versatile performance

  • Combines mitre saw and table saw in one, making it versatile in many applications
  • Powerful 1,800 W motor makes fast progress possible, in both table and mitre saw configurations
  • Integrated laser makes precise results easy to achieve

Functions

Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

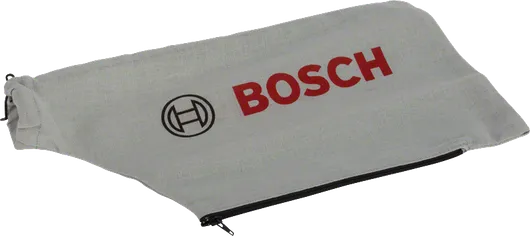

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor

Scope of supply

with circular saw blade, Accessory

Part Number: 0601B15071

£475.42
Including VAT.

Selected version

Price includes:

  • 1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40 2 608 640 440
  • Push stick 1 619 P04 042
  • Voltage 240 V

Available at Bosch partners

with circular saw blade, Accessory

Part Number: 0601B15071920

£415.99
Including VAT.

Price includes:

  • 1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40 2 608 640 440
  • Push stick 1 619 P04 042
  • Voltage 240 V

Available at Bosch partners
