GTS 10 XC Professional
Table Saw
Versatile performance table saw
- Powerful motor and Constant Speed feature produce the best results even in toughest applications
- Integrated slide carriage, table-widener, and table extension enable expansion for workpieces in a variety of sizes
- Tool-free lowering of riving knife enables quick adjustments for creating concealed cuts
Functions & key features
Your Selection
- with dust extraction accessory, Accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 B30 460
in stock
Included in all variants
-
Parallel guidePart Number: 2 610 016 851
-
Angle guidePart Number: 2 610 015 508
-
Dust extraction adapterPart Number: 2 610 015 509
-
Push stickPart Number: 2 610 015 022
-
Storage for additional saw blade
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24Part Number: 2 608 838 412
Additional in this variant
-
Voltage 110 V
Your Selection
Part Number: 0 601 B30 470
in stock
Included in all variants
-
Parallel guidePart Number: 2 610 016 851
-
Angle guidePart Number: 2 610 015 508
-
Dust extraction adapterPart Number: 2 610 015 509
-
Push stickPart Number: 2 610 015 022
-
Storage for additional saw blade
-
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 24Part Number: 2 608 838 412
Additional in this variant
-
Voltage 240 V
Technical data
The most important data |
|
|---|---|
| Rated input power | 1,650 W |
| Table size | 640 x 705 mm |

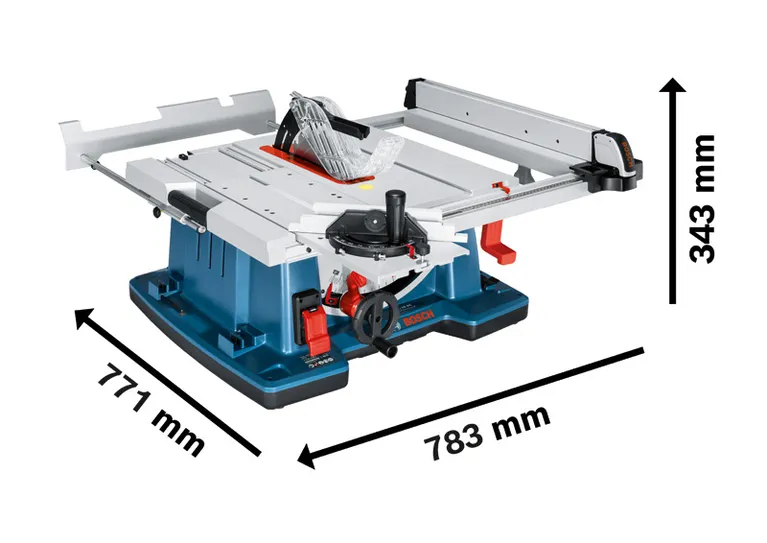

| Tool dimensions (width x length x height) | 771 x 783 x 343 mm |
| No-load speed* | 4,200 rpm |
| Saw blade diameter | 254 mm |
| Cutting height 90° | 79 mm |
| Cutting height 45° | 56 mm |
| Saw blade bore diameter | 30 mm |
| Incline setting | 47 ° L / 1 ° R |
| Weight* | 35 kg |
| Max. cutting capacity on the right | 635 mm |
| Max. cutting capacity on the left | 250 mm |
| Voltage | 110 V |
| Packaging dimensions (width x length x height) | 815 x 850 x 415 mm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 105 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GTS 10 XC Professional: Further information
Product Highlights

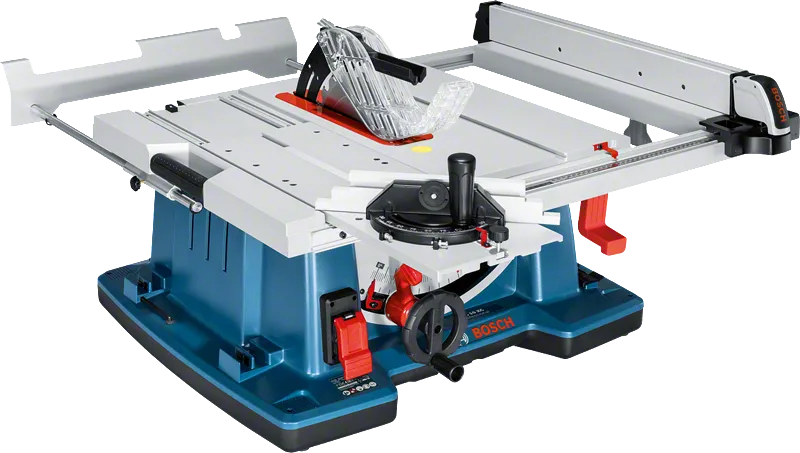

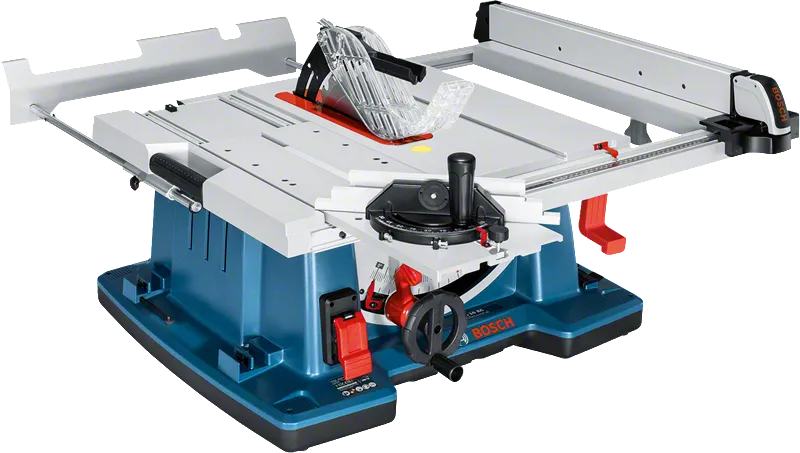

The GTS 10 XC Professional corded table saw delivers versatile performance and is ideal for use in workshops. An integrated slide carriage, table-widener, and table extension enable its expansion for accommodating variously sized workpieces. Furthermore, a tool-free lowering of its riving knife provides quick adjustments for creating concealed cuts.
Equipment & Application

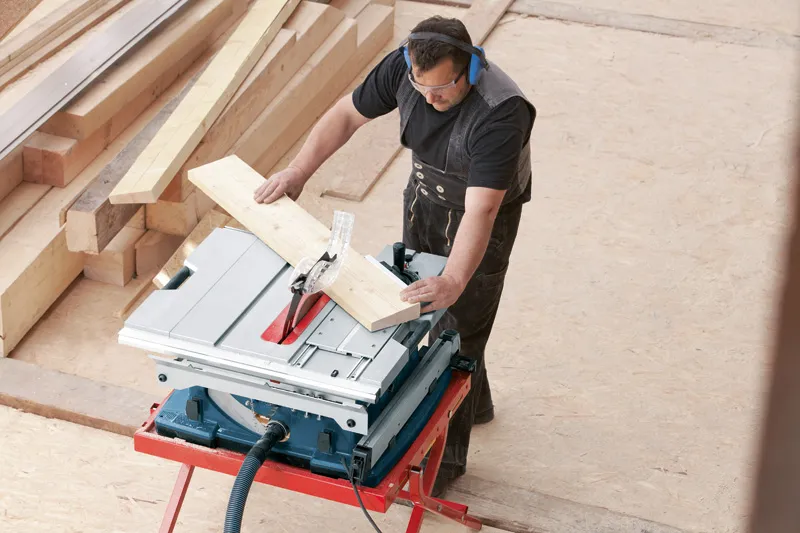

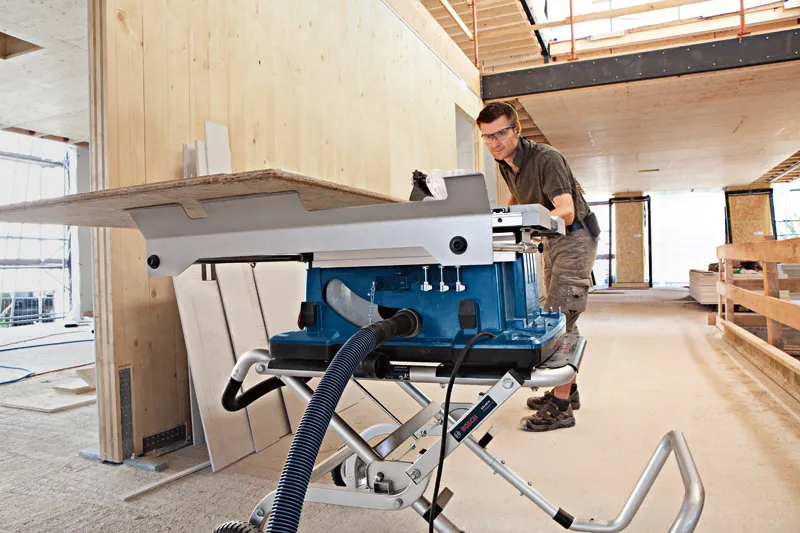

This tool is intended for cutting board materials to custom sizes, rip cutting, and concealed cuts in wood as well as wood composites, board materials, and laminate. It is compatible with table saw stands as well as the Bosch Click & Clean dust extraction system.
Additional Information
The GTS 10 XC Professional also includes features such as double insulation, a motor brake, overload protection, Soft Start, and Spindle Lock.
