Large angle grinders

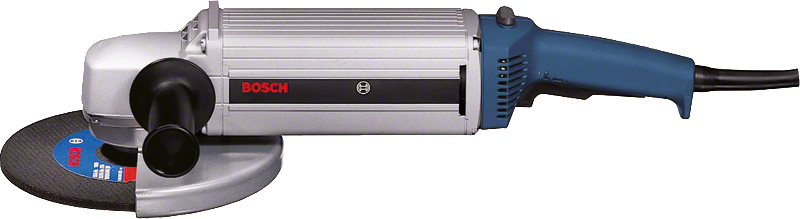

HWS 810/230 Professional

Name: HWS 810/230
Brand: Bosch power tools
Availability: OutOfStock

For heavy-duty grinding work

Show variant

not available

Find a local dealer

Your Selected Variant

HWS 810/230 Professional 0 602 334 534

Find a local dealer

HWS 810/230 Professional

Your Selection

Part Number: 0 602 334 534

not available

Find a local dealer

Included in this variant

Protective guard 230 mm diameter

Part Number: 1 605 510 173
Two-hole spanner

Part Number: 1 607 950 061
Round nut

Part Number: 1 603 345 043
Spanner WAF 17

Part Number: 2 607 950 503
Backing flange

Part Number: 2 605 703 014
Auxiliary handle

Part Number: 1 602 025 022

Your selection

Technical data

The most important data
Frequency	300 Hz
Voltage	200 V
Permitted sanding disc diameter	230 mm
No-load speed*	6,600 rpm
Rated power, input*	3,800 W
Rated power, output*	3,100 W
Rated current	13.2 A
Weight as per EPTA*	7.8 kg
Toolholder, drive end	M14
Switch version	Safety switch

* You can find more information about the deviations in the following link: Technical features of products

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

Product name

HWS 810/230

Description

HWS 810/230 Professional

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

User Manual | HWS 810/230 Instruction manual (PDF 12.3 MB) User Manual | HWS 810/230 Insert (PDF 0.2 MB)

Product data sheet Product data sheet | HWS 810/230 (PDF 1.5 MB)
