For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 8 options
Number of teeth 6 options
Width of cut (b1) mm 4 options
Choose a pack size 1 Pcs

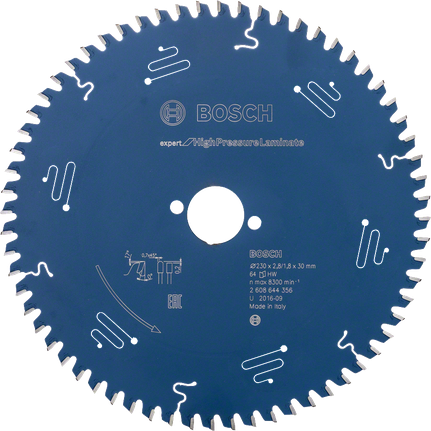

Expert for High Pressure Laminate Circular Saw Blade performs perfectly when cutting high-pressure laminate
Available product options: 9
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 131 | 140 | 20 | 1.8/1.3 | 42 | 1 Pcs | 75.25 GBP | ||
| 2 608 644 132 | 160 | 20 | 2.2/1.6 | 48 | 1 Pcs | 79.61 GBP | ||
| 2 608 644 133 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | 83.58 GBP | ||
| 2 608 644 134 | 190 | 20 | 2.6/1.6 | 56 | 1 Pcs | 89.04 GBP | ||
| 2 608 644 135 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | 89.04 GBP | ||
| 2 608 644 354 | 210 | 30 | 2.8/1.8 | 60 | 1 Pcs | 94.44 GBP | ||
| 2 608 644 356 | 230 | 30 | 2.8/1.8 | 64 | 1 Pcs | 74.00 GBP | ||
| 2 608 644 357 | 235 | 30 | 2.8/1.8 | 64 | 1 Pcs | 109.62 GBP | ||
| 2 608 901 875 | 168 | 20 | 1.8/1.2 | 52 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644131 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 140 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.3 |
| Number of teeth | 42 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 13600 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
in stock
| Part number 2608644132 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 160 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11900 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
in stock

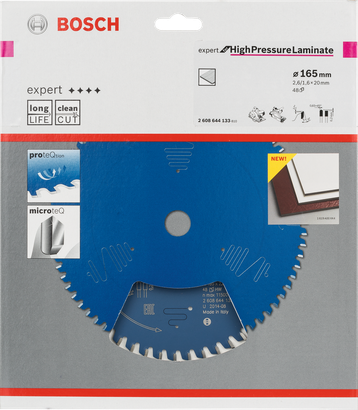

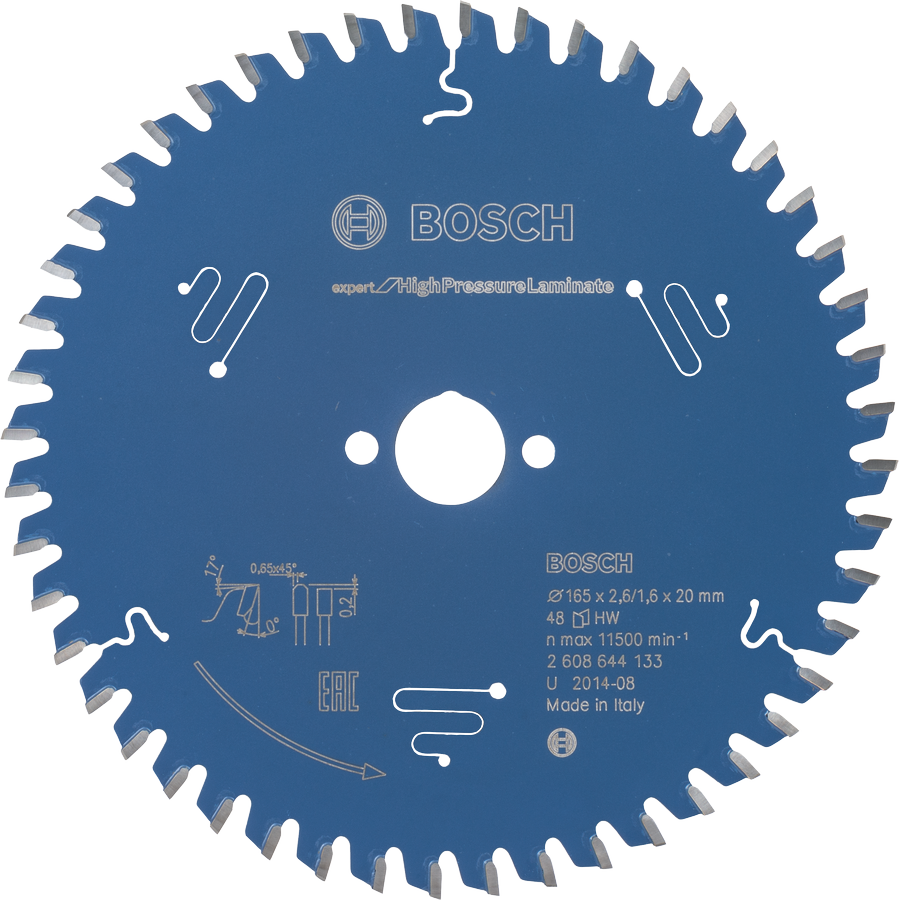

| Part number 2608644133 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
in stock
| Part number 2608644134 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
in stock
| Part number 2608644135 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
in stock
| Part number 2608644354 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 210 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 60 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 9000 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Bore with reduction ring mm | 0 |
in stock

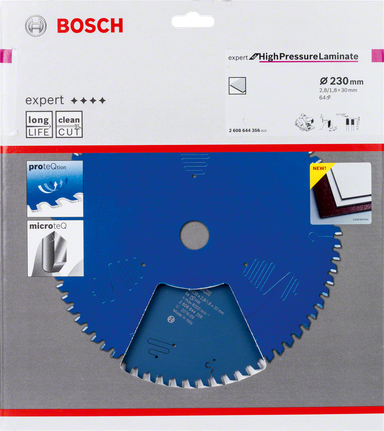

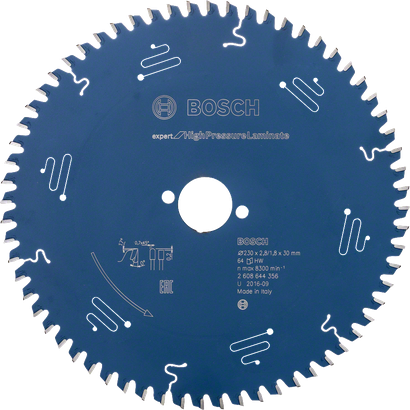

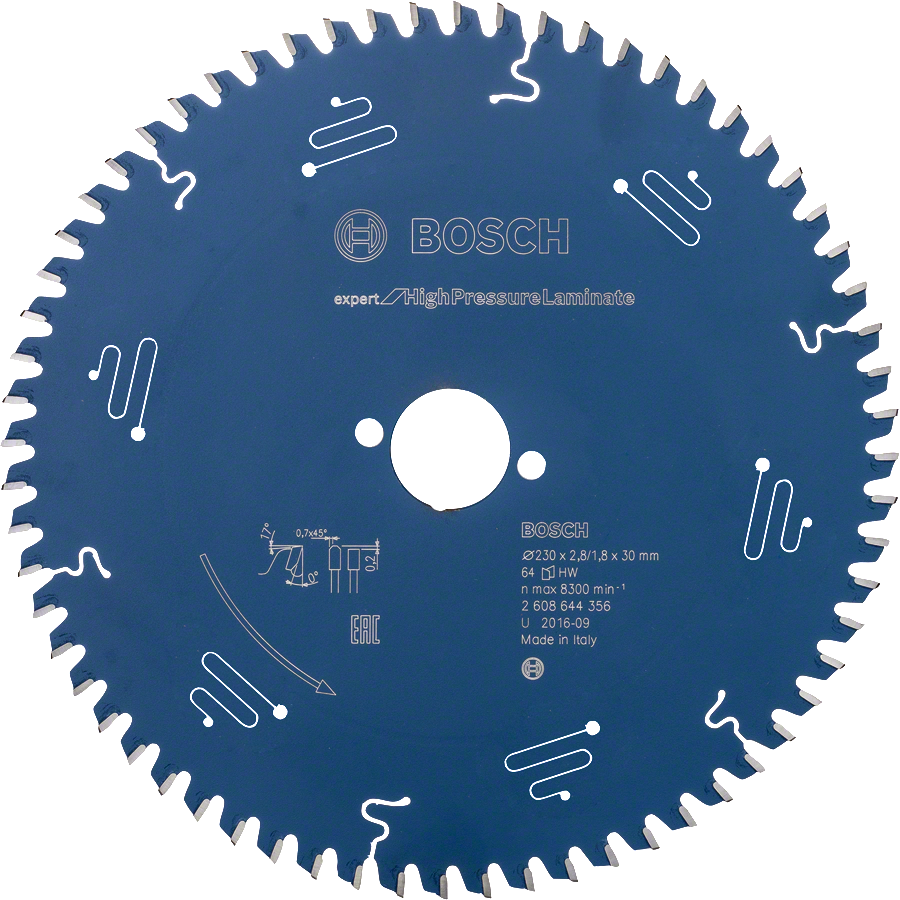

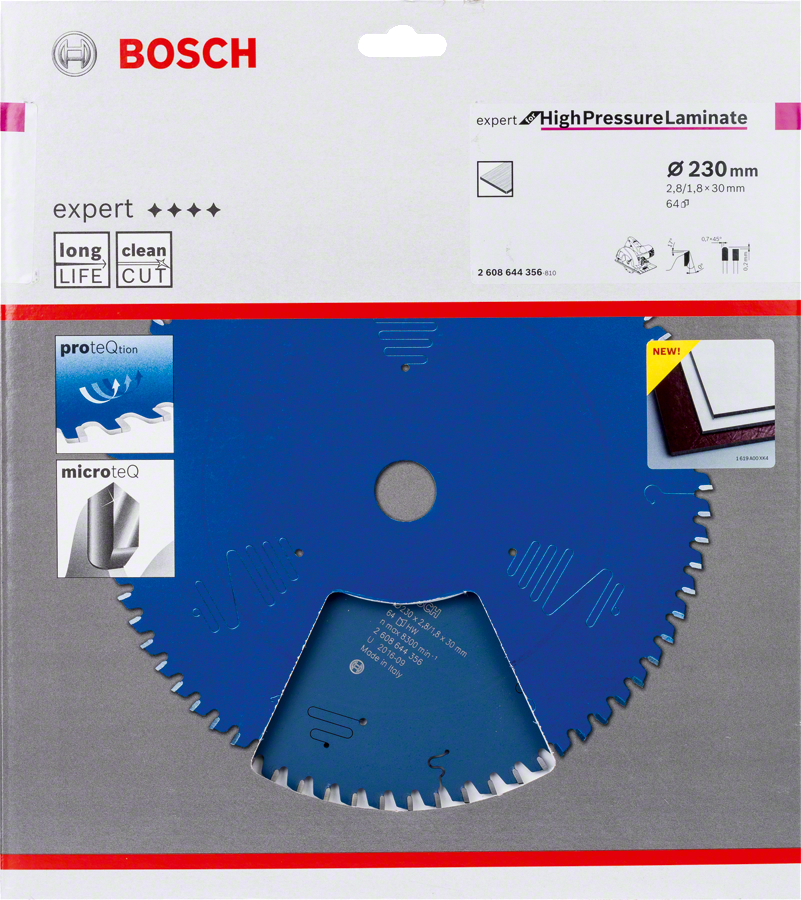

| Part number 2608644356 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8300 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Bore with reduction ring mm | 0 |
in stock
| Part number 2608644357 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.8/1.8 |
| Number of teeth | 64 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 8100 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
| Bore with reduction ring mm | 0 |
in stock
| Part number 2608901875 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 168 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.8/1.2 |
| Number of teeth | 52 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 11300 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 0 |
| Relief angle ° β | 17 |
