EXPERT EXLL18V-120-33CG

Name: EXPERT EXLL18V-120-33CG
Brand: Bosch Professional
SKU: 0601065B70
Availability: OutOfStock

Line Laser

Order number 0.601.065.B70

18V line laser with triple power source, IP65 rating and 120 m working range¹

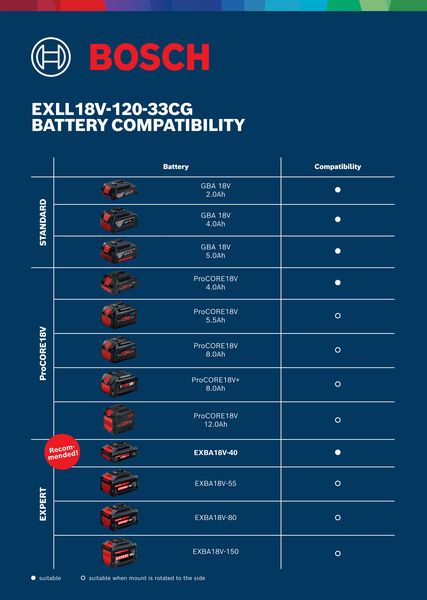

Triple power source: Easily switch between 18V, 12V, and alkaline C batteries
Outstanding working range: 120 m radius with receiver
Withstands the toughest jobsites: Rubber-enforced housing, laser windows, and IP65 rating
Secure mounting and precise work: Integrated mount with strong magnets and pivot fine adjustment

¹ 20% higher working range with receiver than GLL 12V-100-33 CG*

Select a variant

Find a local EXPERT dealer

Your Selected Variant

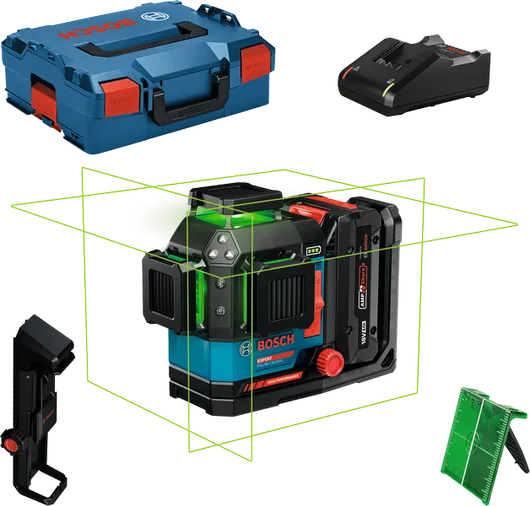

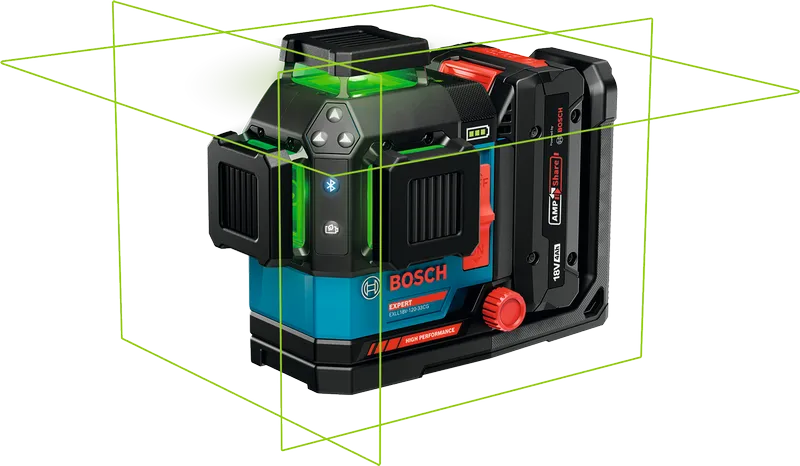

Bosch EXLL18V-120-33CG laser leveling tool with green 360° lines.

Your Selected Variant

in L-BOXX 136 with Laser target plate, quick charger 0 601 065 B70

Find a local EXPERT dealer

Select a variant

Your Selection

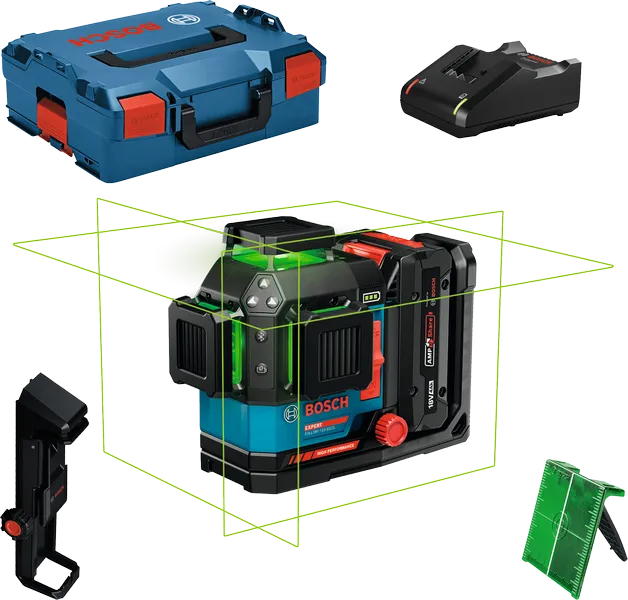

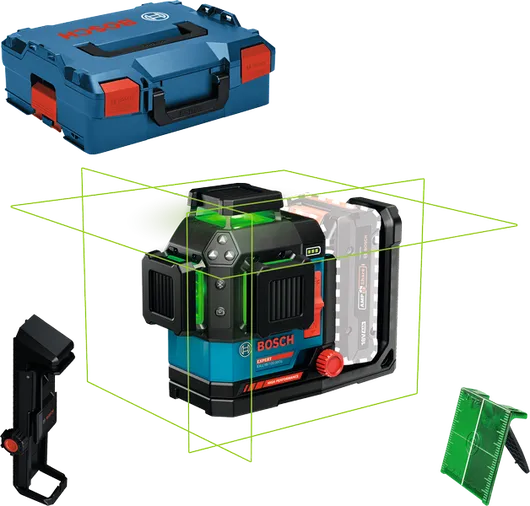

Bosch EXLL18V-120-33CG laser leveling tool with case.

Included in all variants

L-BOXX 136 Part Number: 1 600 A01 2G0

Ceiling clip DK 20 Professional Part Number: 1 608 M00 C4C

Laser target plate

Additional in this variant

1 x EXBA18V-40 Part Number: 1 607 A35 1MD

Quick charger GAL 18V-40 Professional Part Number: 1 600 A01 9RK

Select Variant

Your Selection

Included in all variants

L-BOXX 136 Part Number: 1 600 A01 2G0

Ceiling clip DK 20 Professional Part Number: 1 608 M00 C4C

Laser target plate

Select Variant

Product highlights

1

Outstanding Working Range: 120 m radius with receiver

2

Levelling Remote App: For hands-free line control

3

Secure Mounting and Precise Work: Integrated mount with strong magnets and pivot fine adjustment

4

Withstands the Toughest Jobsites: Rubber-enforced housing, laser windows, and IP65 rating

5

Triple Power Source: Easily switch between 18V, 12V, and alkaline C batteries

6

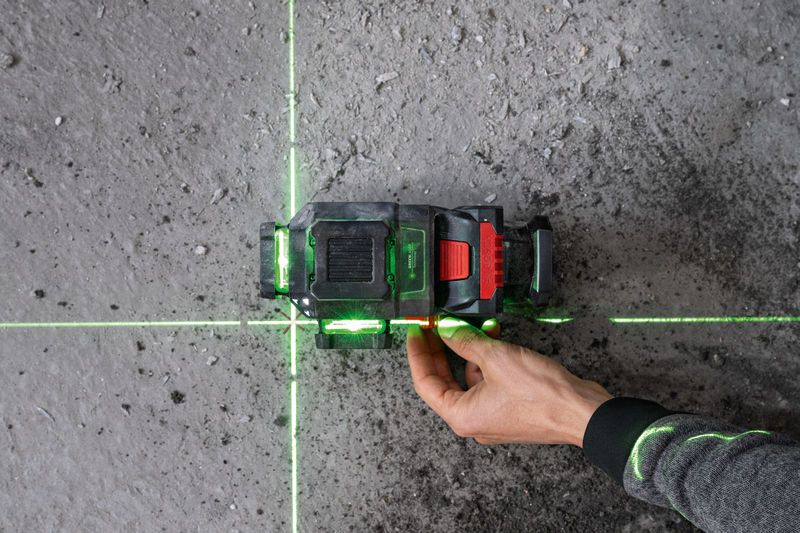

Laser Line Fine Adjustment: Alter the vertical line without losing the reference point

Further functions & features

Product Highlights

The EXPERT EXLL18V-120-33CG provides construction professionals with reliable accuracy in the toughest work conditions. It offers an outstanding working range of up to 120m. The triple power source lets you switch between 18V/12V platforms, and alkaline C batteries to avoid downtime. This line laser features rubber-enforced housing and laser windows with IP65 rating, to work without worrying about water, dust, or impact. It also features a backlit corner keypad for individually selecting laser lines and an integrated mount with strong magnets for secure mounting. The fine adjustment lets you alter the vertical line without losing the reference point.

Equipment & Application

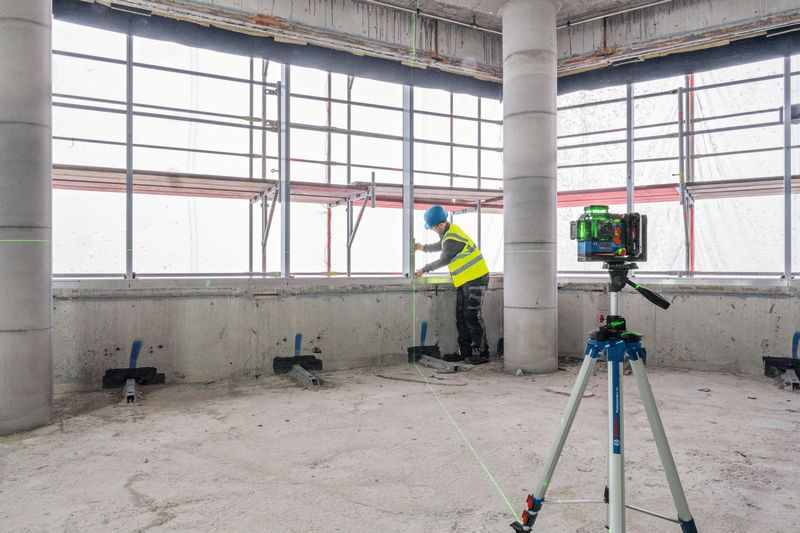

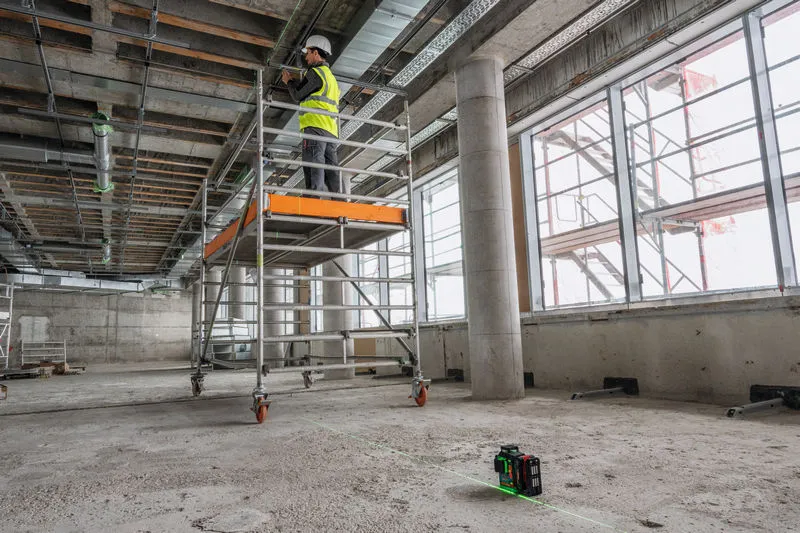

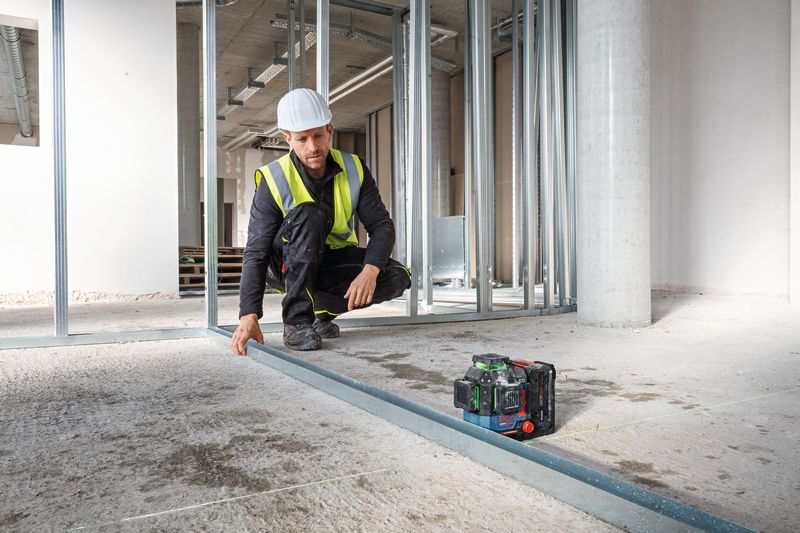

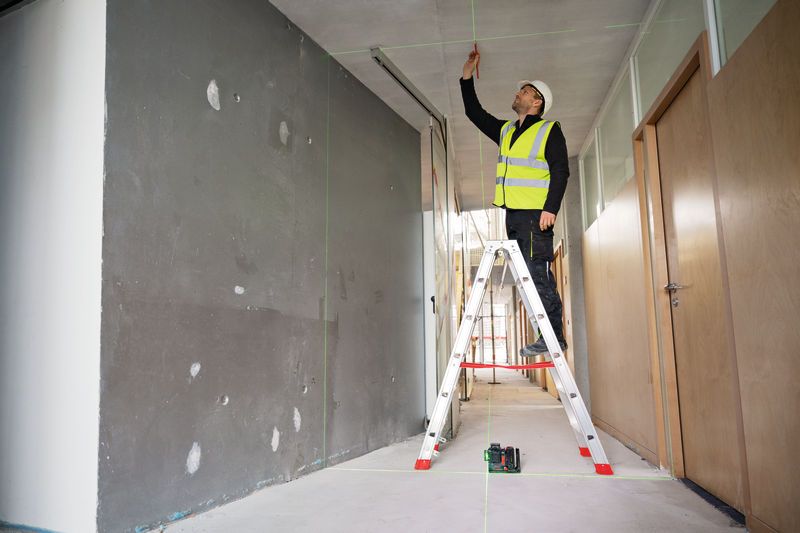

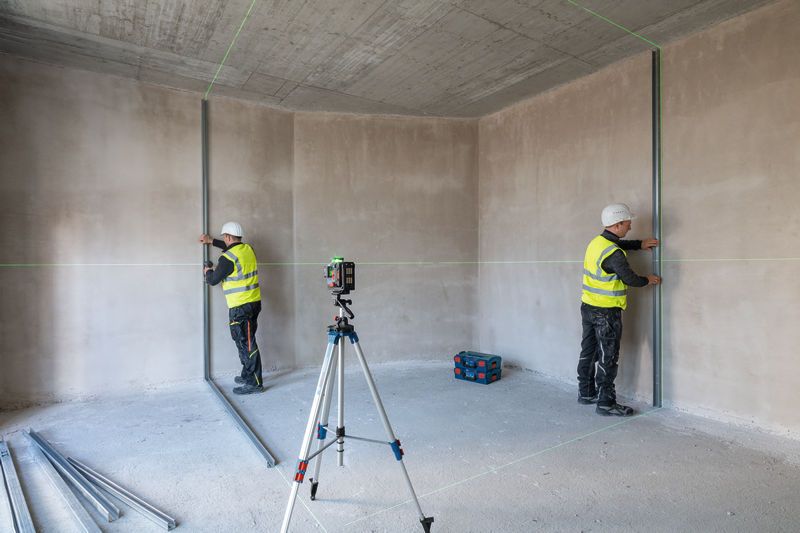

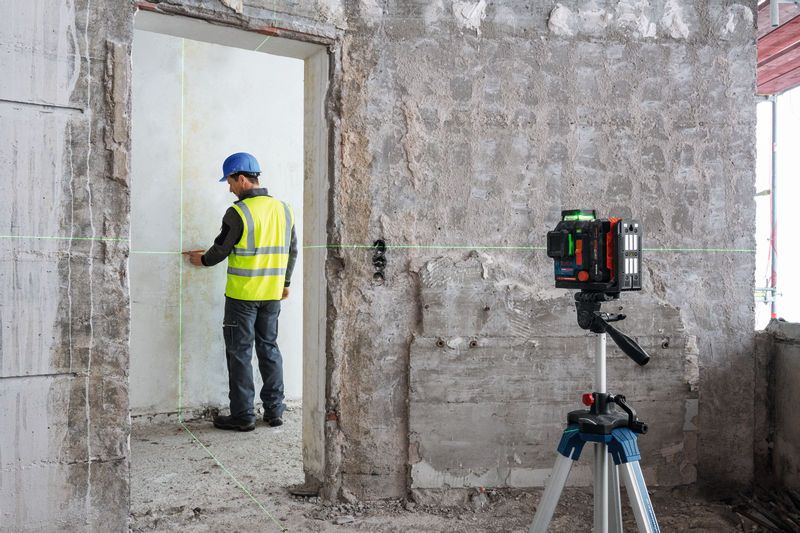

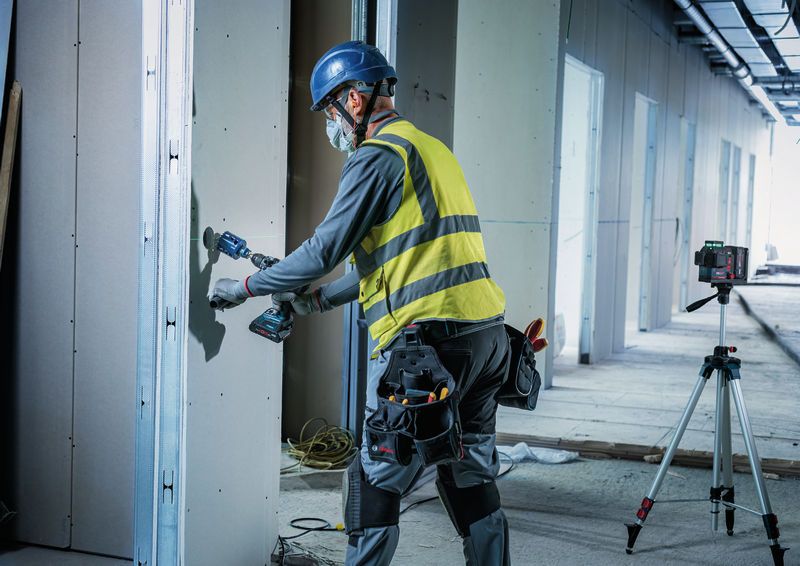

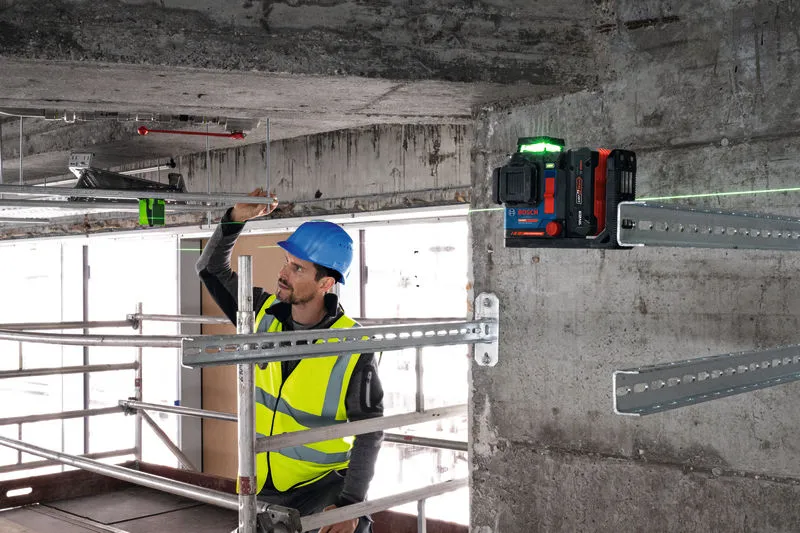

The Levelling Remote App for hands-free line control helps you to save time and to ensure better accuracy. Projecting 3 x 360° laser lines, it is ideal for setting up drywalls, aligning window or door frames and installing suspended ceilings.

Fits to EXPERT EXLL18V-120-33CG

BT 350

Telescopic Pole

Easy to operate and robust for line and point laser level

£176.36

incl. VAT

£146.97

excl. VAT

Available

Find out more

BT 250

Building Tripod

The robust 1/4" tripod for professional applications

£94.78

incl. VAT

£78.98

excl. VAT

Available

Find out more

LR 7

Laser Receiver

£95.87

incl. VAT

£79.89

excl. VAT

Limited stock

Find out more

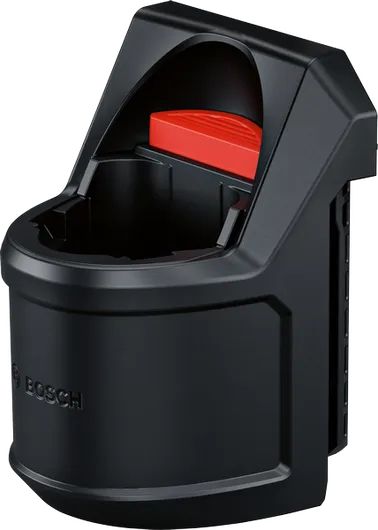

BA 18-12

Accessory

Flexible power adapter for continuous work

£49.95

incl. VAT

£41.63

excl. VAT

Limited stock

Find out more

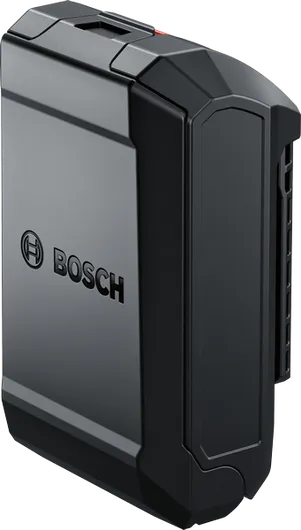

BA 18-C

Accessory

Flexible power source for uninterrupted work

£41.18

incl. VAT

£34.32

excl. VAT

Limited stock

Find out more

DK 20

Accessory

For secure and precise positioning

£31.32

incl. VAT

£26.10

excl. VAT

available at Bosch EXPERT dealers

Find out more

Technical data

The most important data
Battery voltage	18.0 V, 12.0 V, 4 x 1.5 V LR14 (C)
Laser diode	500 – 540 nm, < 10 mW
Operating temperature	-10 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	2
Working range, value	35 m
Working range with receiver*	120 m (radius)
Accuracy*	± 0.3 mm/m
Self-levelling range	± 4°
Levelling time	3 s
Dust and splash protection	IP65
Power supply	12 V Li-Ion battery, 18 V Li-Ion battery, 4 x 1.5 V LR14 (C)
Operating time (max.)	8 h (12V 2Ah Li-Ion), 8 h (4 x C, energy saving mode) in 3-line mode, 24 h (18V 4Ah Li-Ion)
Tripod thread	1/4", 5/8"
Weight, approx.*	1.3 kg
Colour of laser line	Green
Projection	3 x 360° line
Compatible laser receivers	LR 7
Weight with alkaline batteries*	1.8 kg
Packaging dimensions (width x length x height)	360 x 440 x 140 mm

* You can find more information about the deviations in the following link: Technical features of products
