EXPERT EXSB18V-90

Cordless Combi

Order number 0.601.9R3.100

Ideal balance of power, compactness and advanced protection¹

Powerful Allrounder: Strong brushless motor delivers top performance with 36/65 Nm soft/hard torque, 2,100 rpm and 29,500 bpm for fast, efficient masonry work
Compact Powerhouse: Head length of 175 mm with 13 mm metal chuck for increased robustness and great torque transfer
Advanced User Protection: Kickback Control (on/off) minimises the risk of injury by stopping the motor when the drill jams
Unrivalled Tool Control:Precision Clutch (on/off) stops overriding when needed and gives you the freedom to adjust the tool according to your requirements

¹ 1TOP TOOL: Ideal balance of power, compactness, and advanced protection*

Select a variant

Your Selected Variant

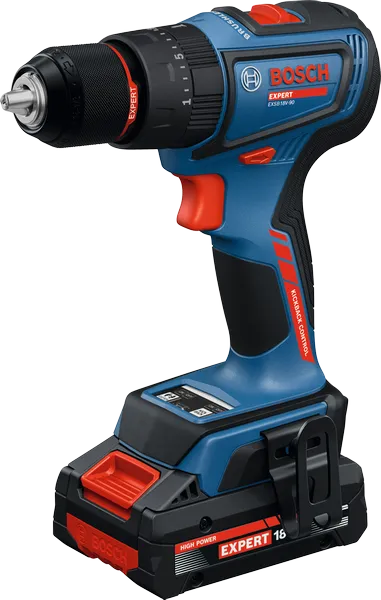

Bosch EXSB18V-90 cordless combi drill with 4Ah battery.

Your Selected Variant

in L-BOXX 136 0 601 9R3 100

Find a local dealer

The best tools for the job

Select a variant

Your Selection

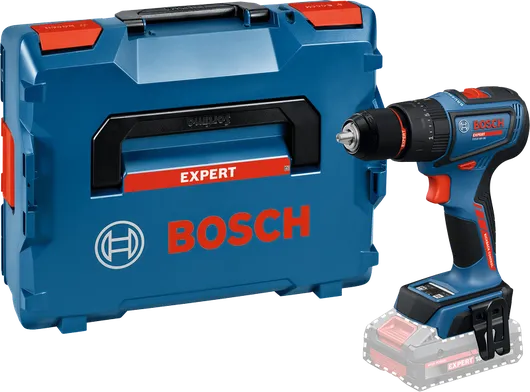

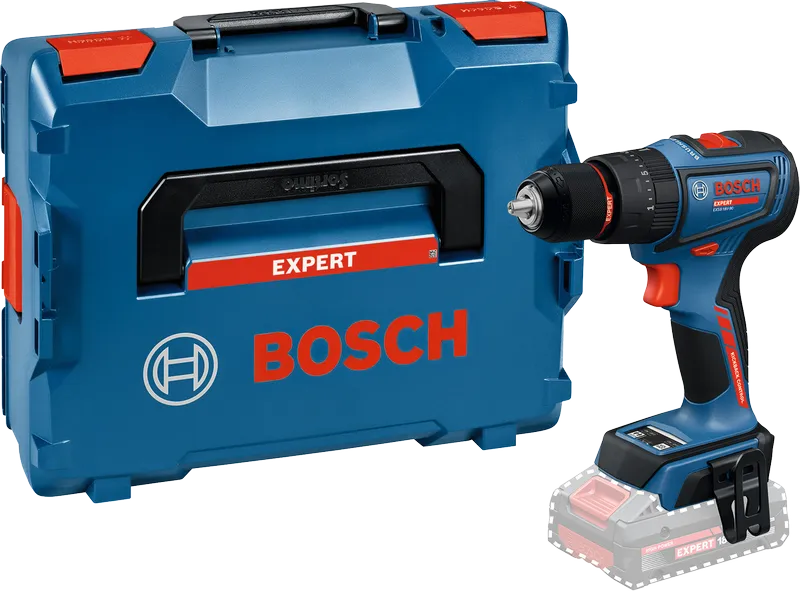

Bosch cordless drill EXSB18V-90 with carrying case.

Included in all variants

1/1 L-BOXX inlay for tool Part Number: 1 600 A02 K83

L-BOXX 136 Part Number: 1 600 A01 2G0

Select Variant

Your Selection

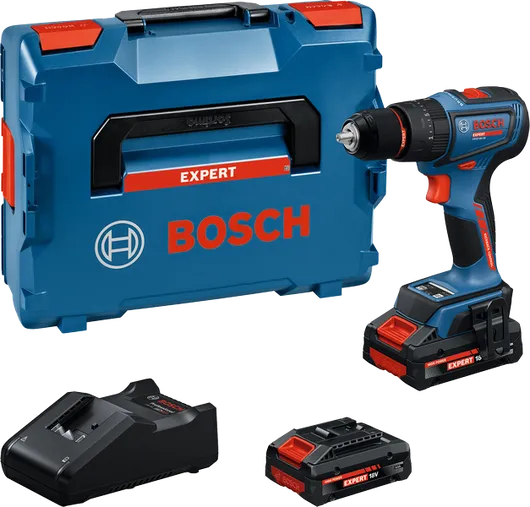

Bosch cordless drill set with 18V batteries and case.

Included in all variants

1/1 L-BOXX inlay for tool Part Number: 1 600 A02 K83

L-BOXX 136 Part Number: 1 600 A01 2G0

Additional in this variant

2 x EXBA18V-40 Part Number: 1 607 A35 1MD

Quick charger GAL 18V-40 Professional Part Number: 1 600 A01 9RK

Select Variant

Product highlights

1

Powerful Allrounder: Strong brushless motor delivers top performance with 36/65 Nm soft/hard torque and 2,100 rpm

2

Compact Head Length: 163 mm head length for medium to large applications in tight spaces

3

Advanced User Protection: Kickback Control (on/off) minimises the risk of injury by stopping the motor when the drill jams

4

Unrivalled Tool Control: Precision Clutch (on/off) stops overriding when needed and gives you the freedom to adjust the tool according to your requirements

5

Precise Screw Driving : Clutch with 21 precision torque settings

6

Robust Metal Chuck: 13 mm metal chuck for increased robustness and great torque transfer

Further functions & features

Product Highlights

The EXPERT EXSB18V-90 is a powerful cordless impact drill driver. This superior allrounder with brushless motor delivers a top performance with 36 Nm soft torque and 65 Nm hard torque, 2,100 rpm and 29,500 bpm for fast, efficient masonry work. This compact powerhouse has a head length of 175 mm with a 13 mm metal chuck for increased robustness and great torque transfer. It comes with advanced user protection: Kickback Control minimises the risk of injury by stopping the motor when the drill jams. This feature can be switched on and off. Precision Clutch ensures unrivalled tool control, stops overriding when needed, and gives you the freedom to adjust the tool according to your requirements. It also reduces wear and tear of the clutch and the resulting noise.

Equipment & Application

The EXPERT EXSB18V-90 is a superior impact drill driver intended for drilling in wood with a maximum diameter of 68 mm and in steel or masonry with up to 13 mm diameter.

Fits to EXPERT EXSB18V-90

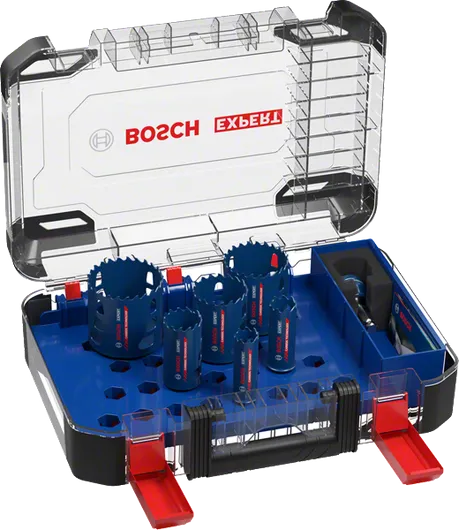

EXPERT Multi Material PC Plus Universal Hole Saw Set

For rotary drills/drivers

Long Life cutting holes in multi material

Material

£252.08

incl. VAT

£210.07

excl. VAT

Limited stock

Find out more

Technical data

The most important data
Torque (soft/hard/max.)*	36/65/- Nm
No-load speed (1st gear / 2nd gear)*	0 – 630 / 0 – 2,100 rpm
Max. impact rate*	29,500 bpm
Chuck capacity, min./max.	1.5 / 13 mm
Battery voltage	18.0 V
Weight excl. battery*	1.2 kg
Torque settings	21
Packaging dimensions (width x length x height)	360 x 444 x 151 mm
Work light
Chuck type	Keyless
BITURBO	No
Tool design	T-Handle

Total vibration values (Drilling in metal)
Vibration emission value ah	1.5 m/s²
Uncertainty K	1.2 m/s²

Total vibration values (Impact drilling in masonry)
Vibration emission value ah	11.8 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products

Downloads

Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB) Product data sheet | EXSB18V-90 (PDF 1.5 MB)

Spare parts

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Part number

3601JR3100

Product name

EXSB18V-90

Description

Cordless Combi

Go to spare part Browse spare parts catalogue
