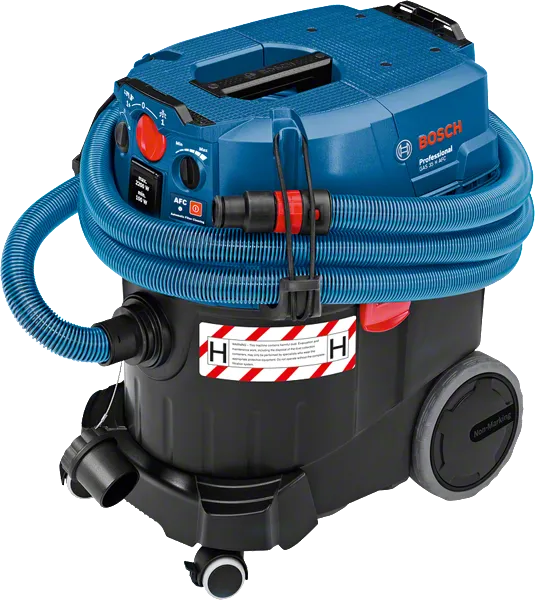

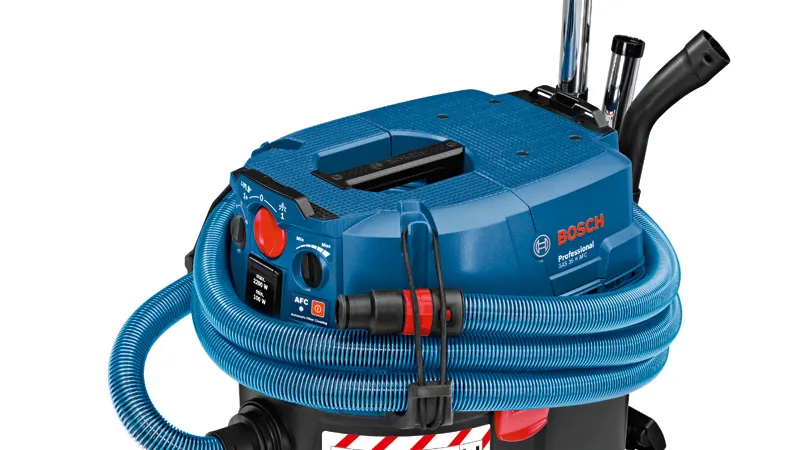

GAS 35 H AFC Professional
Wet/Dry Extractor
H-Class dust extractor for wet/dry hazardous dust applications with automatic filter cleaning
- H-class certified for carcinogenic and pathogenic dust, increasing user protection
- Automatic filter cleaning mechanism for constant working
- Flow control monitoring constant air flow through the suction cup, including an acoustic warning signal
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 9C3 660
in stock

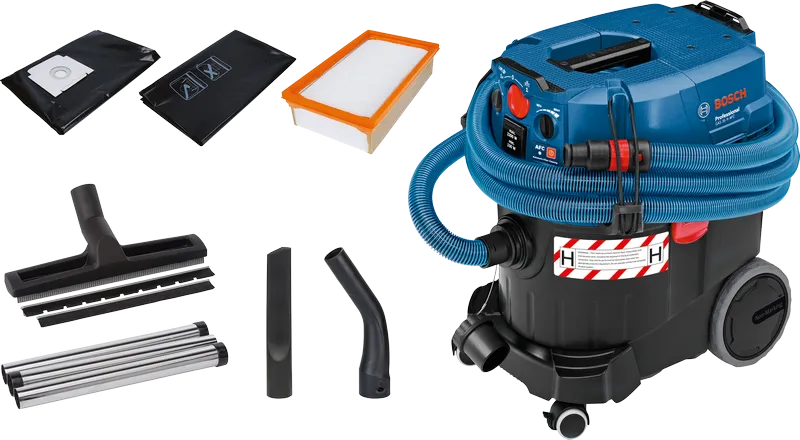

Included in all variants
-
1 x safety filter bag (available separately as set of 5: 2 607 432 050)
-
1 x flat-pleated filter H-class (HEPA), PTFEPart Number: 2 607 432 052
-

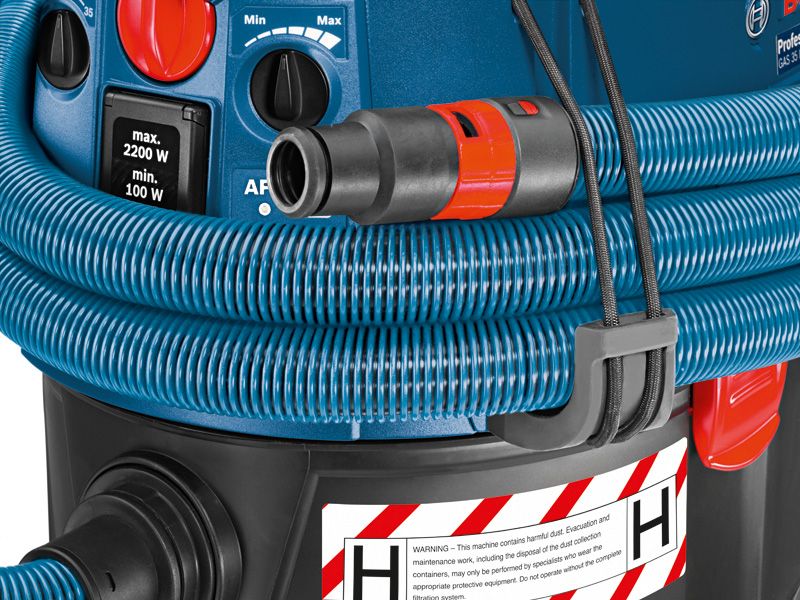

5 m hose, 35 mm diameter, antistatic, with power tool adapterPart Number: 2 608 000 566
-
3 x 0.35 m chrome-plated suction tube, 35 mm diameterPart Number: 2 608 000 575
-

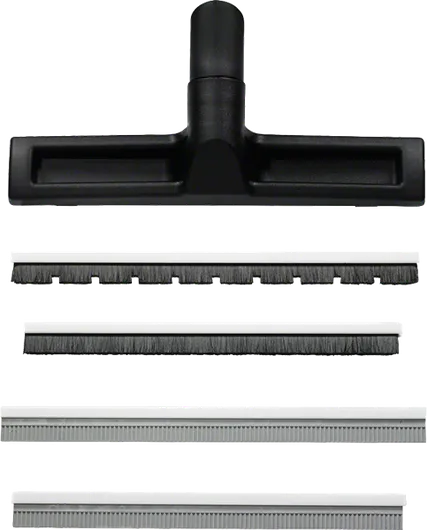

Floor nozzle set, 35 mm diameterPart Number: 1 609 390 478
-
Crevice nozzle, 35 mm diameterPart Number: 2 607 000 165
-
1 x PE disposable bag (available separately as set of 10: 2 607 432 051)
-

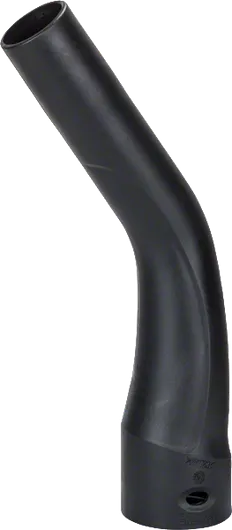

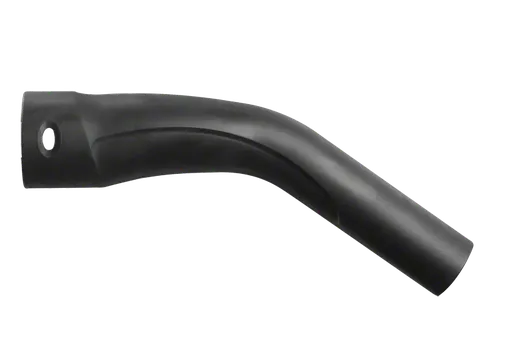

ElbowPart Number: 2 608 000 573
Your Selection
Part Number: 0 601 9C3 670
in stock
Included in all variants
-
1 x safety filter bag (available separately as set of 5: 2 607 432 050)
-
1 x flat-pleated filter H-class (HEPA), PTFEPart Number: 2 607 432 052
-
5 m hose, 35 mm diameter, antistatic, with power tool adapterPart Number: 2 608 000 566
-
3 x 0.35 m chrome-plated suction tube, 35 mm diameterPart Number: 2 608 000 575
-
Floor nozzle set, 35 mm diameterPart Number: 1 609 390 478
-
Crevice nozzle, 35 mm diameterPart Number: 2 607 000 165
-
1 x PE disposable bag (available separately as set of 10: 2 607 432 051)
-
ElbowPart Number: 2 608 000 573
Technical data
The most important data |
|
|---|---|
| Rated input power | 1,200 W |
| Weight* | 12.4 kg |
| Container volume, gross | 35 l |
| Container volume, net | 23 l |
| Container volume, net, water | 19.2 l |
| Dust class of wet/dry extractor | H |
| Dust class | H |
| Filter surface area | 5,000 cm² |
| Airflow rate (turbine) | 74 l/s |
| Vacuum pressure (turbine) | 254 mbar |
| Wheels, number | 4 |

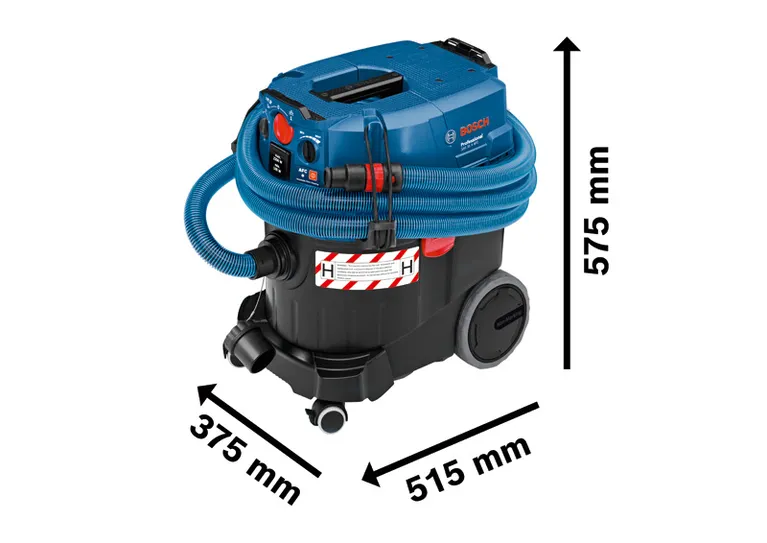

| Packaging dimensions (width x length x height) | 580 x 720 x 395 mm |
* You can find more information about the deviations in the following link:
GAS 35 H AFC Professional: Further information
Product Highlights
The GAS 35 H AFC Professional is the high-performance wet/dry dust extractor enabling better user protection. Its safety filter traps 99.995% of health-endangering dusts. The certification for H-class dust further increases the level of health protection against carcinogenic and pathogenic dust as well as organic material (e.g., mould) and container construction material (e.g.,glass fibre). Its automatic filter cleaning mechanism prevents interruptions for constant working. A volume flow control monitors the constant air flow through the suction cup and gives an acoustic warning signal if the air flow is too low.
Equipment & Application

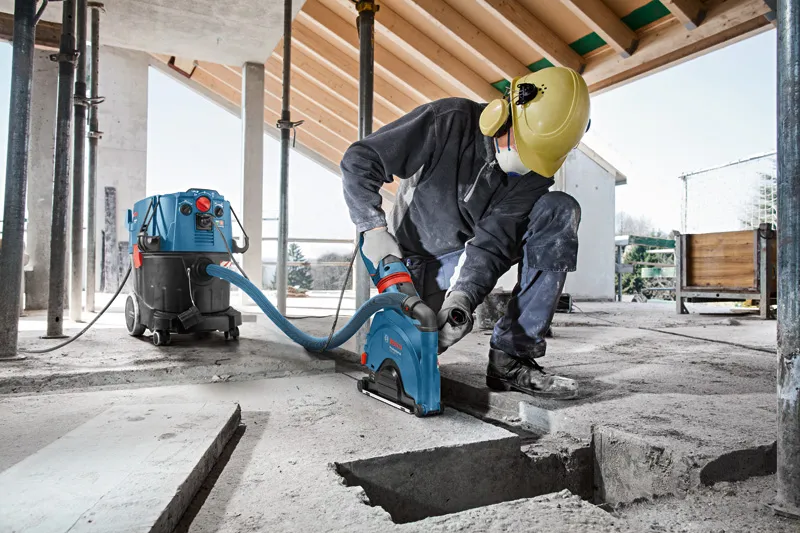

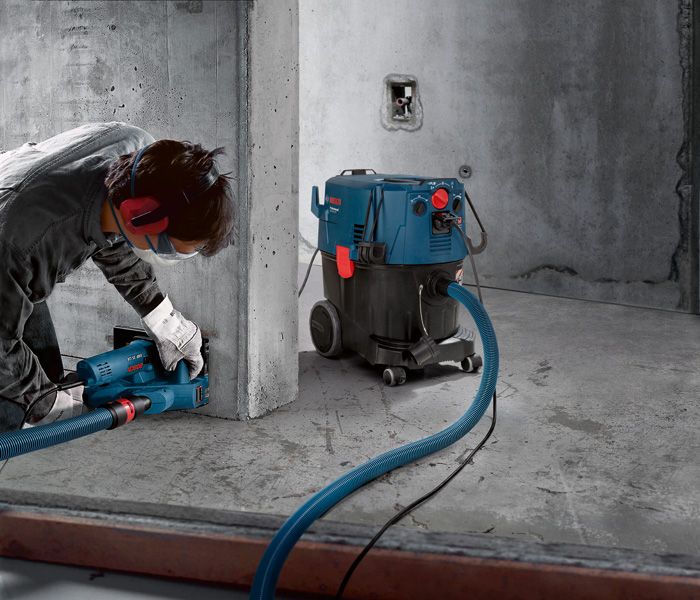

The GAS 35 H AFC Professional is certified for H-class dust, such as carcinogenic and pathogenic dusts. The L-BOXX can be clicked onto the wet/dry dust extractor for easy transport. All Bosch Power Tools with the Click & Clean System can be connected directly to the GAS 35 H AFC Professional without an adapter.
Additional Information
The 1,380 W suction turbine with 254 mbars (millibar) vacuum pressure delivers good extraction results. The wet/dry dust extractor is equipped with antistatic features for the reduction of electrostatic charge.
